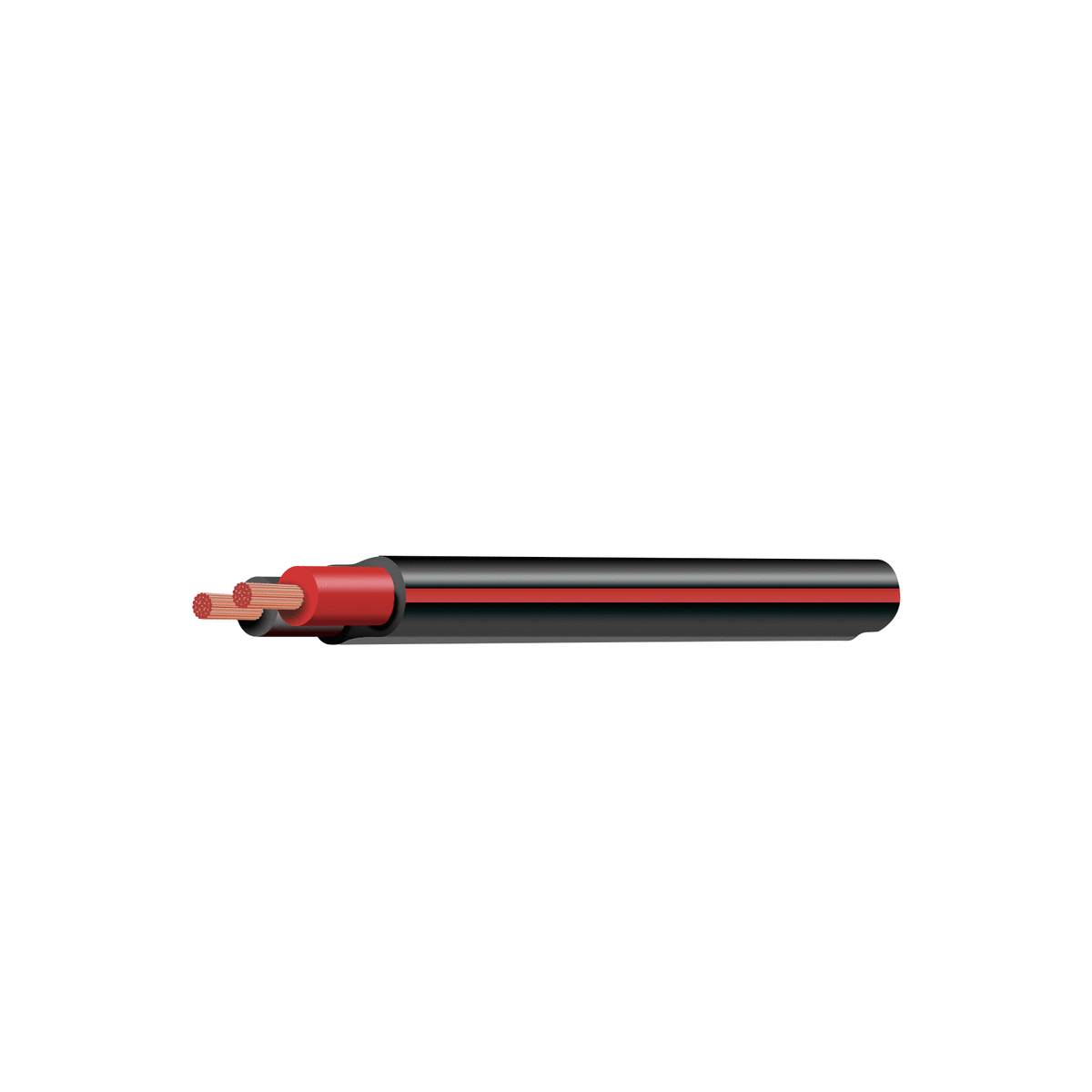

8AWG (7.71mm2) - Australian Made Twin Core Cable

Australian Made 8AWG (7.71mm2) twin core cable for use in a range of wiring applications.

Price is per metre. Simply add as many metres as you need to your cart and we will provide it it in one continuous length. We can also cut to length, free of charge, simply email us with your order number and custom lengths.

The boring stuff:

• Wire Manufactured in Australia
• 59.2 amp rating at 30c
• Comprising of 96 x 0.32mm conductors for a nominal area of 7.71mm2 (or 8AWG)
• Oxygen Free Copper (OFC) to AS1125 Standards
• Insulated with RoHS Compliant V90 PVC to AS3808 Standards
• Electrical Resistance – 2.4 ohm/km @ 20c
• Insulation thickness - 0.9mm
• Sheath thickness – 0.8mm
• Nominal OD - 7.1mm x 12.5mm
• 22kg per 100m
