NB Camping Equipment

Naked Fused Anderson Wiring Cable - 8 AWG (7.71mm2)

Naked Fused Anderson Wiring Cable - 8 AWG (7.71mm2)

Regular price $72.95 AUD
Regular price Sale price $72.95 AUD
Sale Sold out
Shipping calculated at checkout.

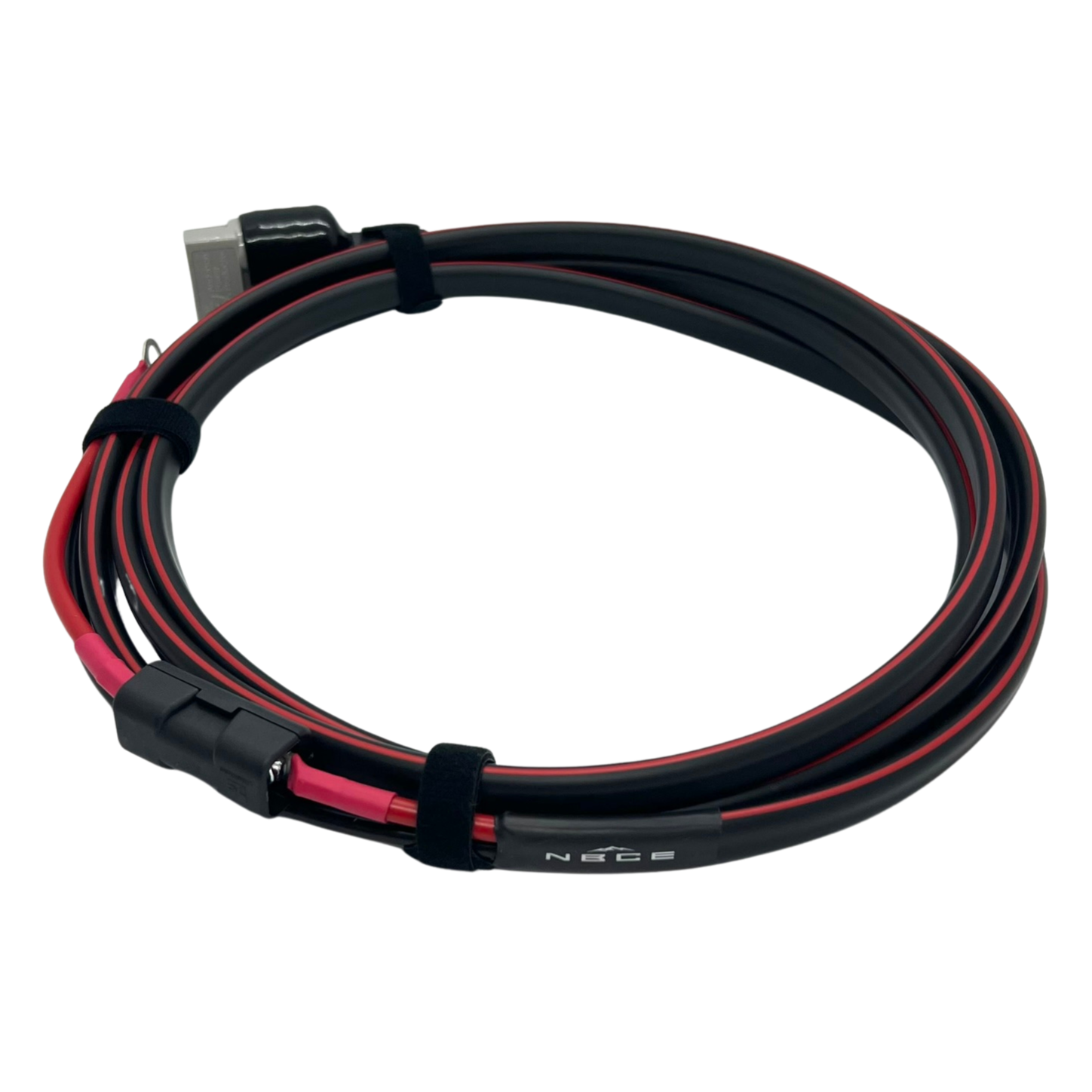

Our Naked Fused Anderson Wiring Cables are custom made to order using Australian Made Twin Core Cable, Genuine Anderson SB50 Connectors and quality Littelfuse 30A MIDI fuses.

Our "Naked" cables utilise the insulated wire only. For "Sleeved" versions which add an extra layer of protection, see our "Sleeved" version found here.

Suitable for hookup of DC-DC chargers or running a fused Anderson output to your battery. Maximum recommended DC-DC charger size is 25A however this will be subject to the length of your run.

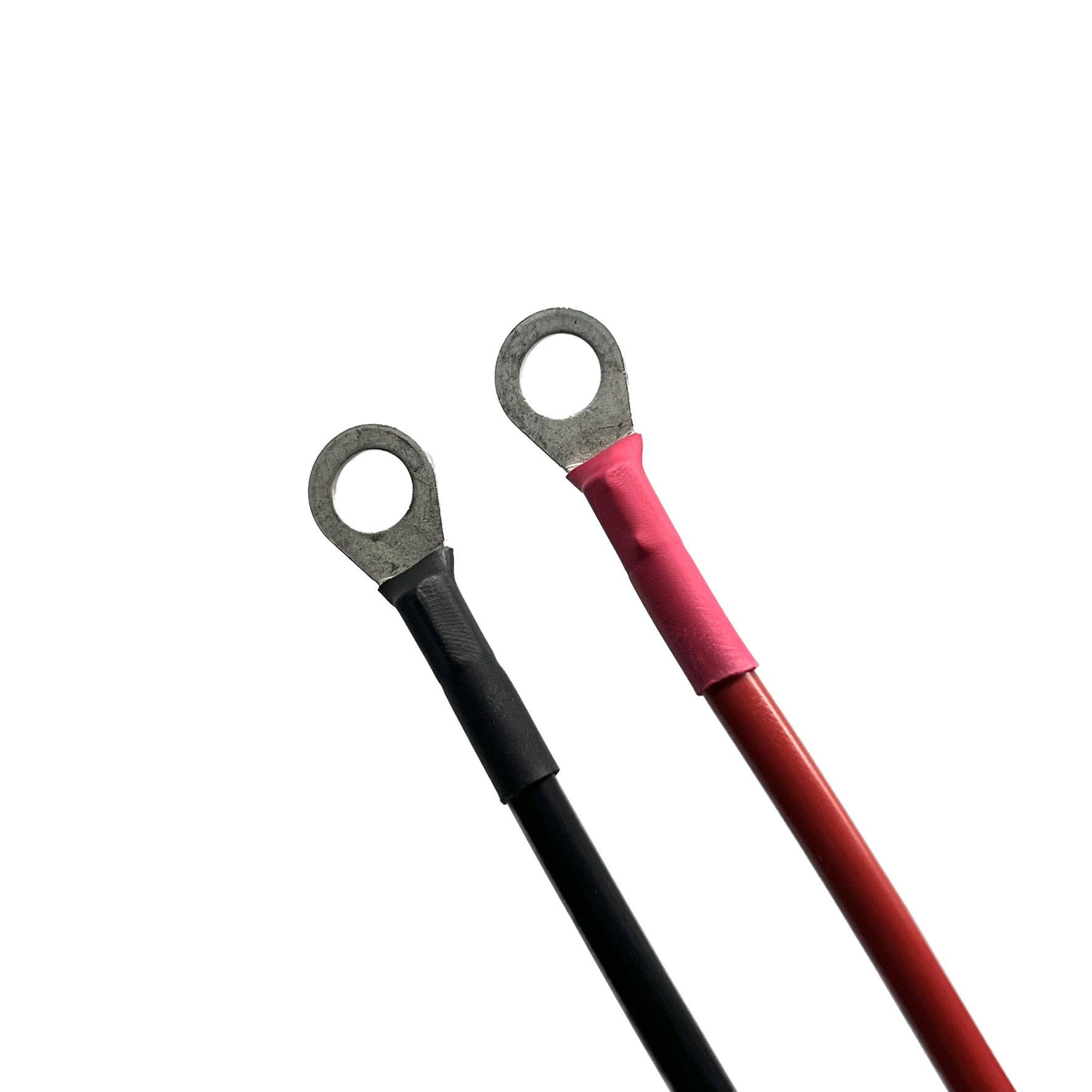

Standard ring terminals are to suit an M8 bolt but we can switch this out for any size you need, simply email us to check availability.

As all cables are custom made to order, we have short lead times before your cables will be posted. For more information, click here.

Can be offered in "Kit" form for a 10% discount. The kit comes with only the MIDI Fuse end pre-terminated so you can cut the wire to the required length and attach the Anderson Plug for neat installation. Email us to find out more.

Prior to purchasing our Anderson Cables, please read our Cable Guide found here to ensure your choosing the right size cable for the job.

The Boring Stuff:


  • Manufactured in Australia
  • 59.2 amp rating at 30c
  • Comprising of 96 x 0.32mm conductors for a nominal area of 7.71mm2 (or 8AWG)
  • Oxygen Free Copper (OFC) to AS1125 Standards
  • Insulated with RoHS Compliant V90 PVC to AS3808 Standards
  • Electrical Resistance – 2.4 ohm/km @ 20c
  • Insulation thickness - 0.9mm
  • Sheath thickness – 0.8mm
  • Nominal OD - 7.1mm x 12.5mm
  • 22kg per 100m

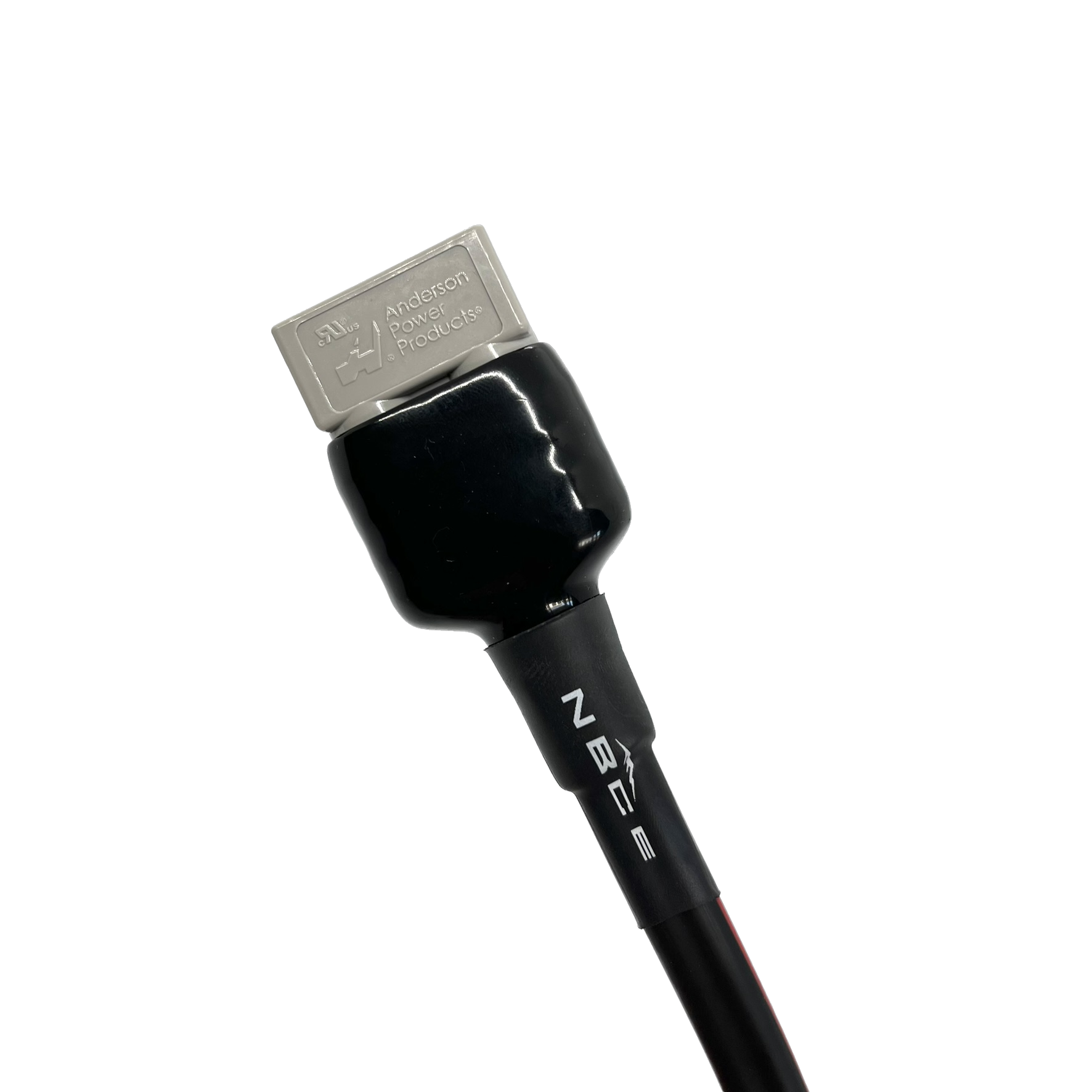

  • Genuine 'Anderson Power Products' SB series 50A Plug
  • Silver Coated 8 AWG Contacts
  • Genderless design
  • Rated to 600V 50A
  • Size: 16x35x48mm
  • Weight: 24 grams

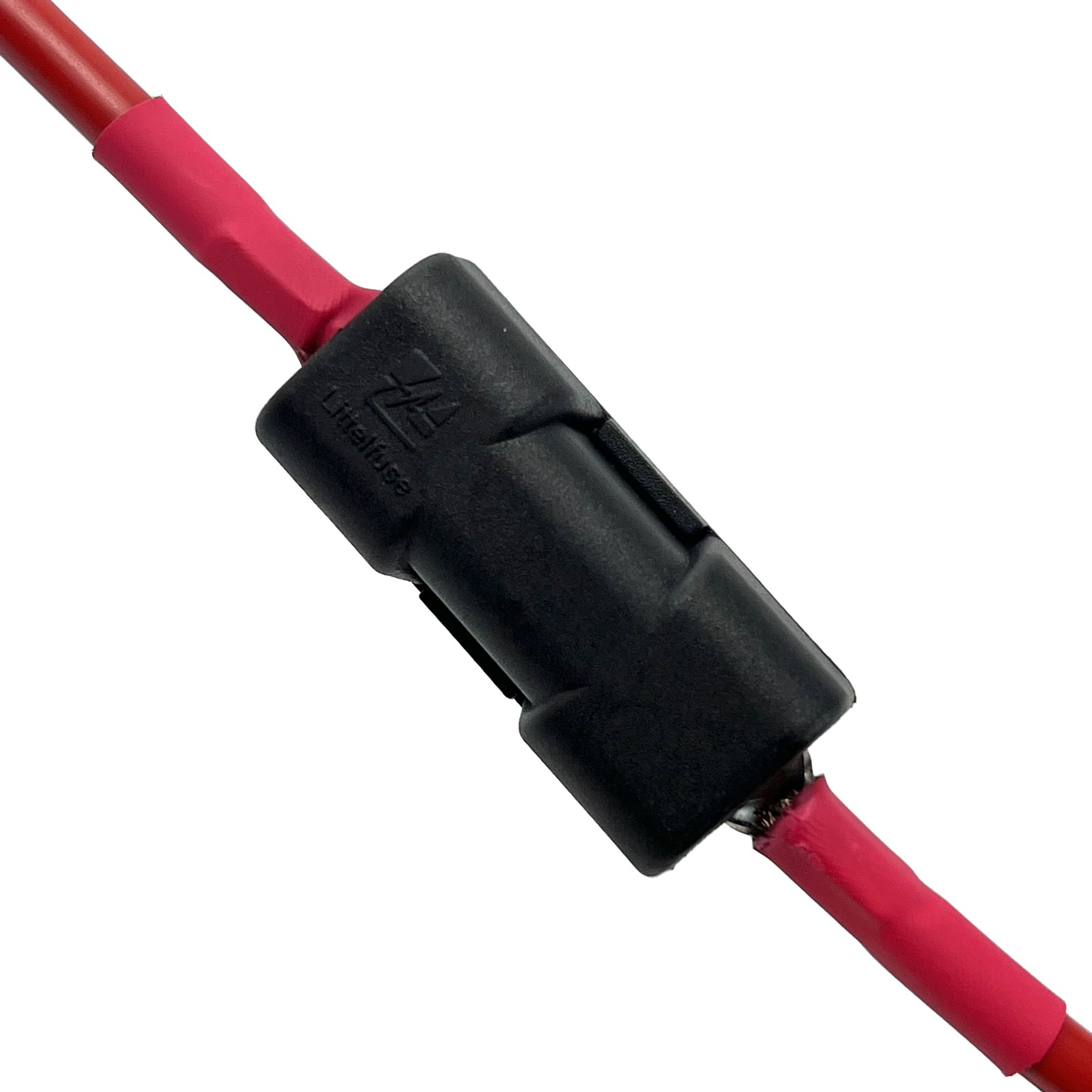

  • 30A Rating
  • Time Delay fuse protection
  • Tin Plated Copper Terminals
