12V - Red LED Audible Visual Buzzer Alarm

12V Red LED Audible Visual Buzzer Alarm

Combined Sound and Light Alert for 12V DC Systems

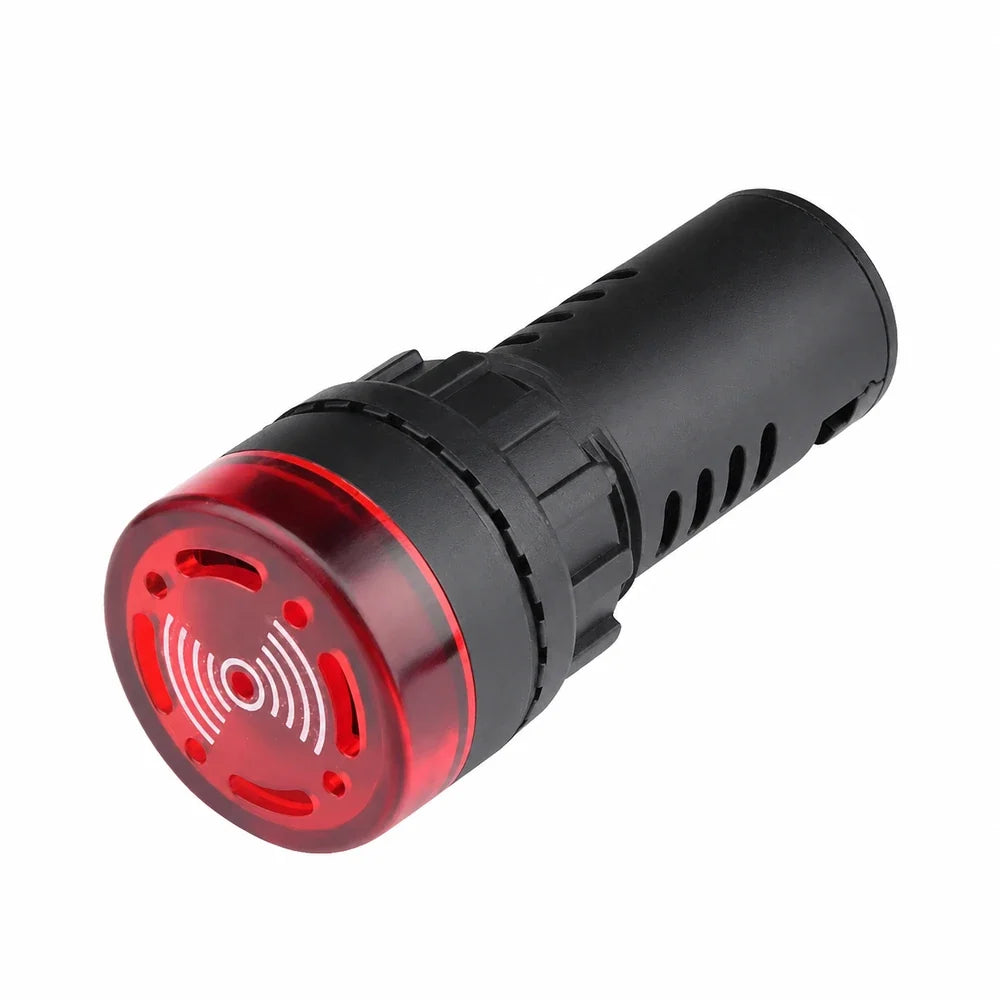

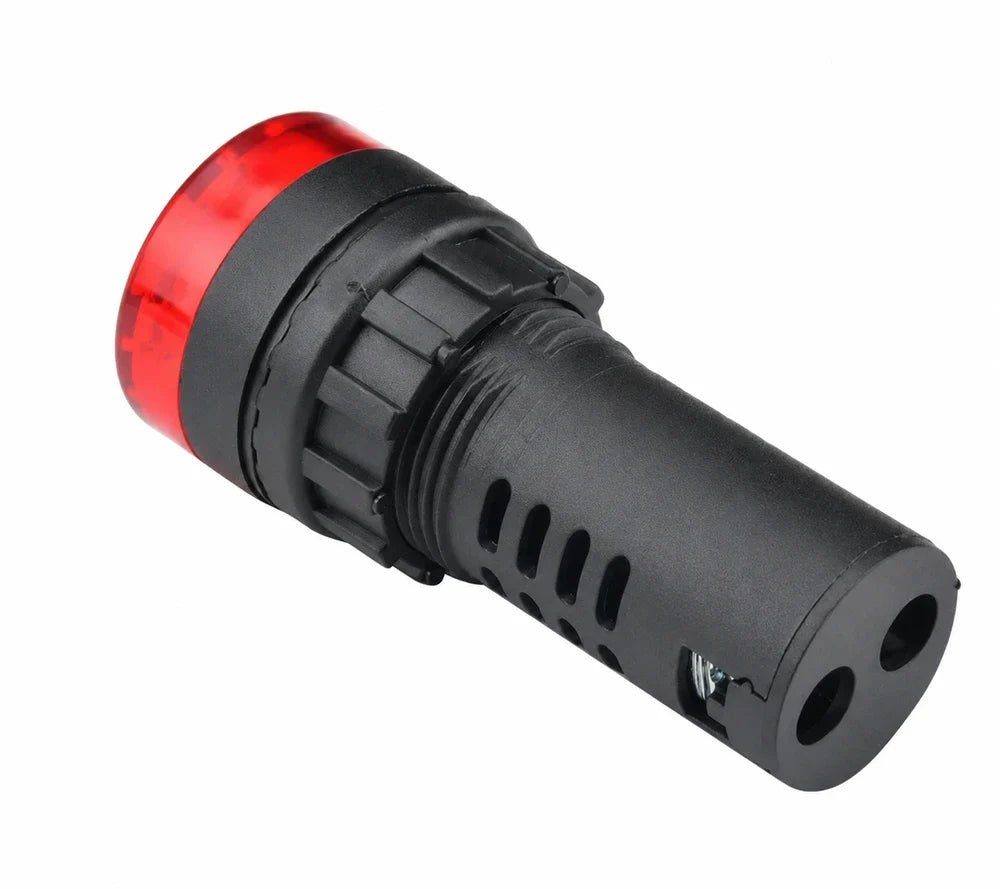

This compact 12V red LED buzzer alarm combines an audible buzzer with a red LED indicator in one compact body. Wire it to a 12V DC alarm output, relay contact or switched circuit in your caravan, camper, 4WD or boat so a warning is both heard and seen.

It draws just 20mA, so it suits being left connected to an alarm or relay output in a battery-powered system.

Key Features

• Audible buzzer with red LED indicator
• 12V DC operation
• Low 20mA current draw
• Compact 28 x 64mm body, 21g
• Brightness of 75mcd or more
• IP20 rated

Applications

• Alarm outputs from battery monitors, chargers and relays
• Warning indicators on switch panels and control boxes
• Caravan, RV, 4WD and marine 12V systems

Specifications
