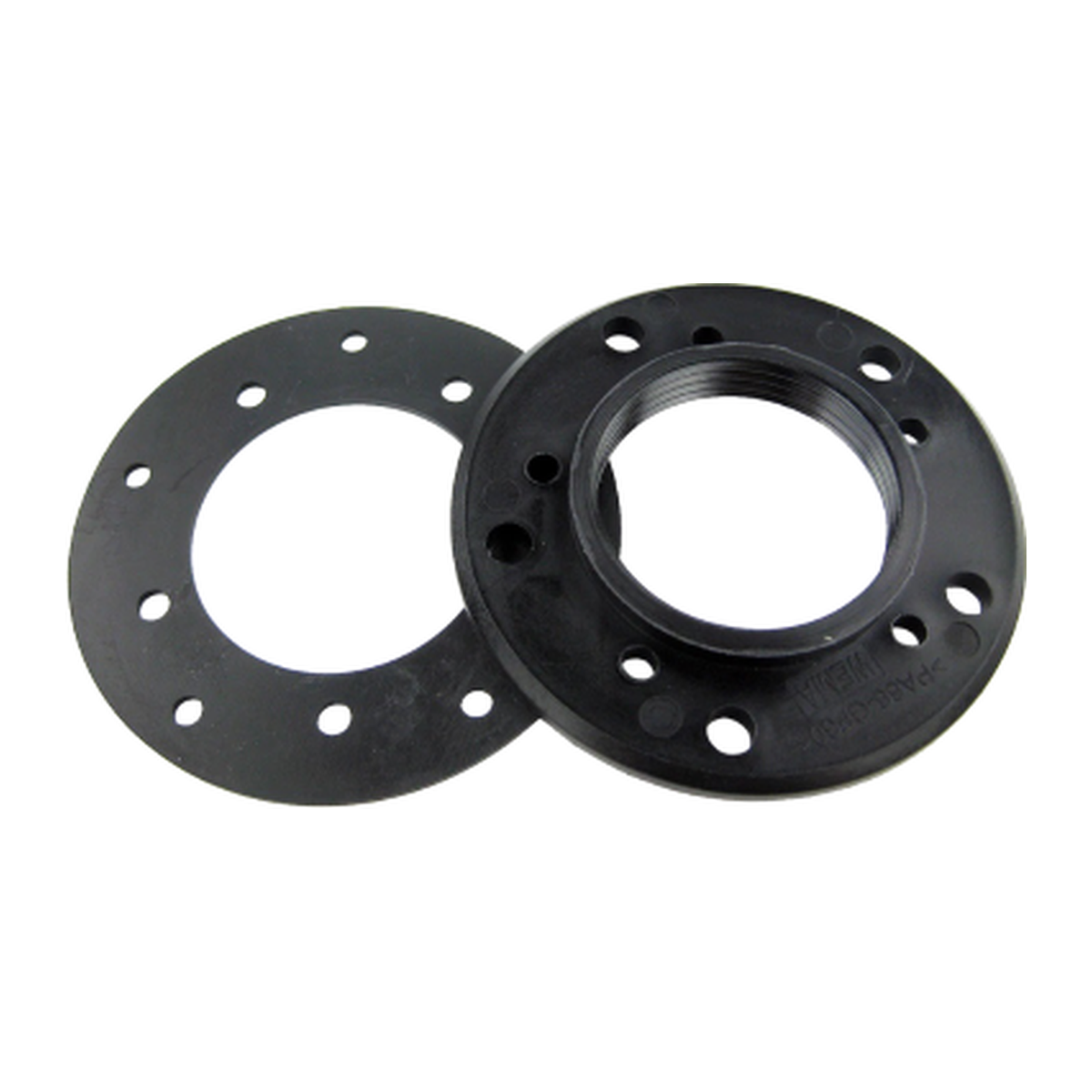

Enerdrive - 1-1/4" BSP to SAE 5 Hole - Tank Sender Flange Adaptor

Flange Mounting for Enerdrive S3 Tank Senders on Thin Wall Tanks

The Enerdrive EN-TS-FL-2 flange adaptor converts a 1 ¼" BSP threaded tank sender mounting to a standard 5 hole flange pattern. It is a nylon flange fitted to the topside of the tank to create a 1 ¼" BSP thread, so an Enerdrive S3 rod style fuel or water sender can be screwed in. Enerdrive offers it for thin wall tanks that are not suitable for screw threads, and for retro-fitting where a tank was set up for a 5 hole sender.

Retro-Fit SAE or VDO 5 Hole Patterns

The hole pattern is the standard SAE 5 hole, and the adaptor can be used with a VDO-U inner ring, converting to SAE 5 hole or VDO 5 hole patterns for retro-fitting. It is a good way to retrofit a tank that had a floating arm sender, giving a female thread for a standard S3 type sender.

Key Features

• 1 ¼" BSP thread to dual 5 hole pattern
• Converts to SAE 5 hole or VDO 5 hole pattern for retro-fitting
• Supplied with nitrile rubber gasket
• Screw hole size 5mm
• Nylon flange fitted to the topside of the tank
• Suits Enerdrive S3 rod style senders for water, grey water, fuel and diesel

Mounting Example

Cut a 45mm hole in the tank where the sensor is to be placed. Mount the flange with its rubber gasket on the tank top. When all 5 screws are securely tightened, the S3 sensor, with its O-ring, can be screwed into the flange.

The tank sender is sold separately.
