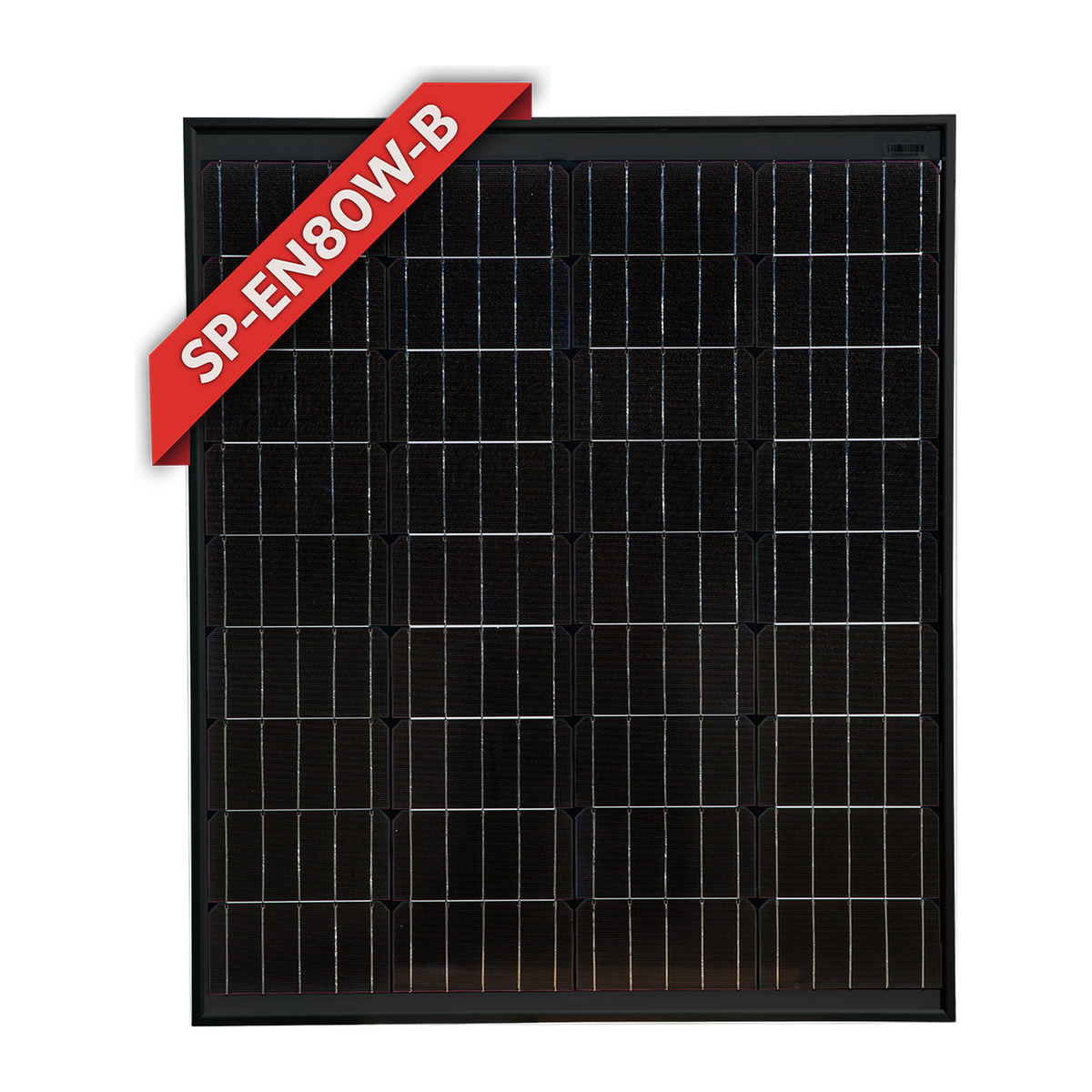

Enerdrive 80W Black Frame Monocrystalline Fixed Solar Panel
Monocrystalline Solar Power for 12V Systems
The Enerdrive 80W Black Frame Monocrystalline Fixed Solar Panel (SP-EN80W-B) is the black-frame version of Enerdrive's 80W fixed mono panel. With an open-circuit voltage of 22.4V it suits 12V battery charging in caravans, camper trailers, 4WD canopies and boats, and panels can be connected in series for 24V systems.
Fixed Installation
A fixed panel stays mounted on the roof or canopy, so it keeps charging whenever the sun is out, including while you drive. The panel comes with MC4 compatible solar cable connectors for connection to your solar cabling and charge controller. Mount it with commercially manufactured fixings rated for mobile use.
Key Features
- 80W monocrystalline panel with a black frame
- Suits 12V installations, or 24V with panels connected in series
- MC4 compatible solar cable connectors included
- Compact 780 x 676 x 35mm, 7.9kg
- Also available with a silver frame (SP-EN80W)
Power Your Next Adventure
Add the Enerdrive 80W Black Frame Monocrystalline Fixed Solar Panel to your caravan, camper or vehicle for steady solar charging wherever you travel.
Specifications
| Product | 80W Fixed Mono Solar Panel (Black Frame) |
|---|---|
| SKU | SP-EN80W-B (Black Frame) |
| Max Power Pm (W) | 80 |
| Power Tolerance (%) | –1% to +3% |
| Max Power Voltage Vm (V) | 17.50 |
| Max Power Current Im (A) | 4.58 |
| Open Circuit Voltage Voc (V) | 22.40 |
| Short Circuit Current Isc (A) | 5.10 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 780 x 676 x 35 |
| Weight (kg) | 7.9 |
| Test Conditions | 1000W/m², AM1.5, 25°C |
| Note | Specifications subject to change without notice. |
