Exotronic - 100A - Midi/AMI/ANS Fuse (Pack of 100)

Exotronic 100A Midi/AMI/ANS Fuse - Pack of 100

Spare-Ready Overcurrent Protection for 12V, 24V and 48V DC Circuits

This pack contains 100 identical 100A Midi/AMI/ANS fuses, the standard M5 mounting version of Exotronic's Midi-style fuse range. Keeping matched spares on hand is good practice for DC installations, since a blown fuse should always be replaced with one of the same rating. The fuse carries a 72V DC voltage rating, giving it enough headroom for 12V, 24V and 48V battery systems, with an interrupt rating specified separately as 2000A at 58V DC.

Tin-plated copper-alloy terminals keep contact resistance low, while the nylon housing includes a viewing window over the fuse element so you can check its condition without a multimeter. Open-ended terminals let the fuse slide out of a compatible holder once the retaining nuts are loosened, rather than requiring full nut removal.

Every fuse in the pack shares the same 100A rating - this is not an assorted pack of different amperages, so use the 100A rating and its time-current characteristics when sizing protection for your circuit.

Key Features

• 100 x 100A Midi/AMI/ANS fuses, all the same rating, for spares and multi-circuit installations
• 72V DC voltage rating, suiting 12V, 24V and 48V DC systems
• 2000A at 58V DC interrupt rating for safe fault clearing on high-current circuits
• Tin-plated copper-alloy terminals for low-resistance, corrosion-resistant connections
• Nylon housing with viewing window for quick visual inspection of the element

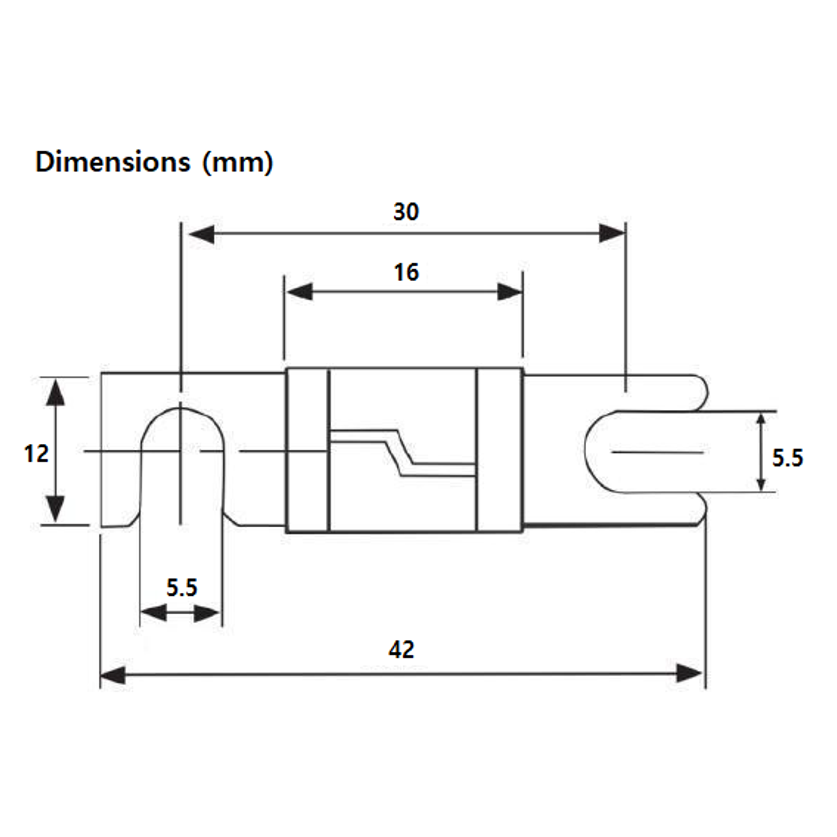

• Standard M5 mounting with 30mm mounting hole spacing

Specifications
