Exotronic - 12V - 180AH - Twin Pack Alpha IP67 Smart Bluetooth Lithium Batteries
Exotronic - 12V - 180AH - Twin Pack Alpha IP67 Smart Bluetooth Lithium Batteries
Regular price
$1,989.95 AUD
Regular price
Sale price
$1,989.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

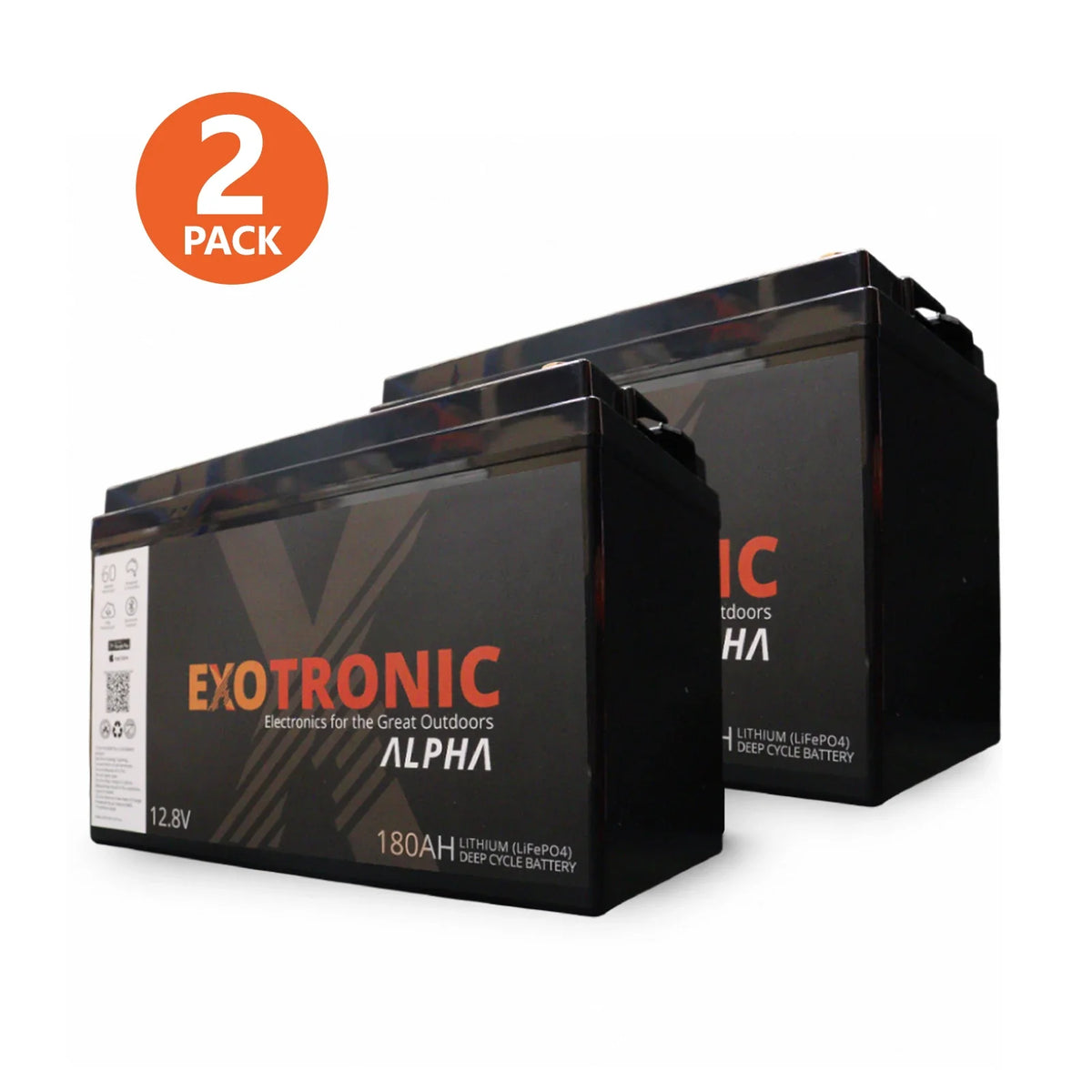

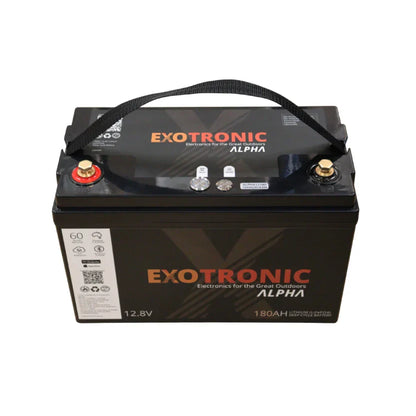

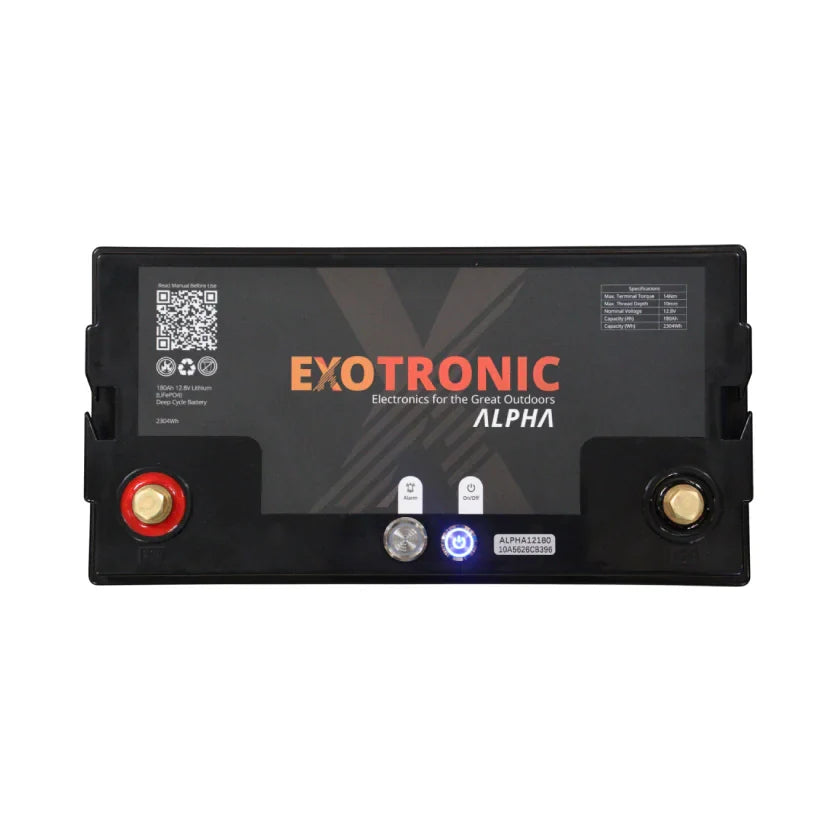

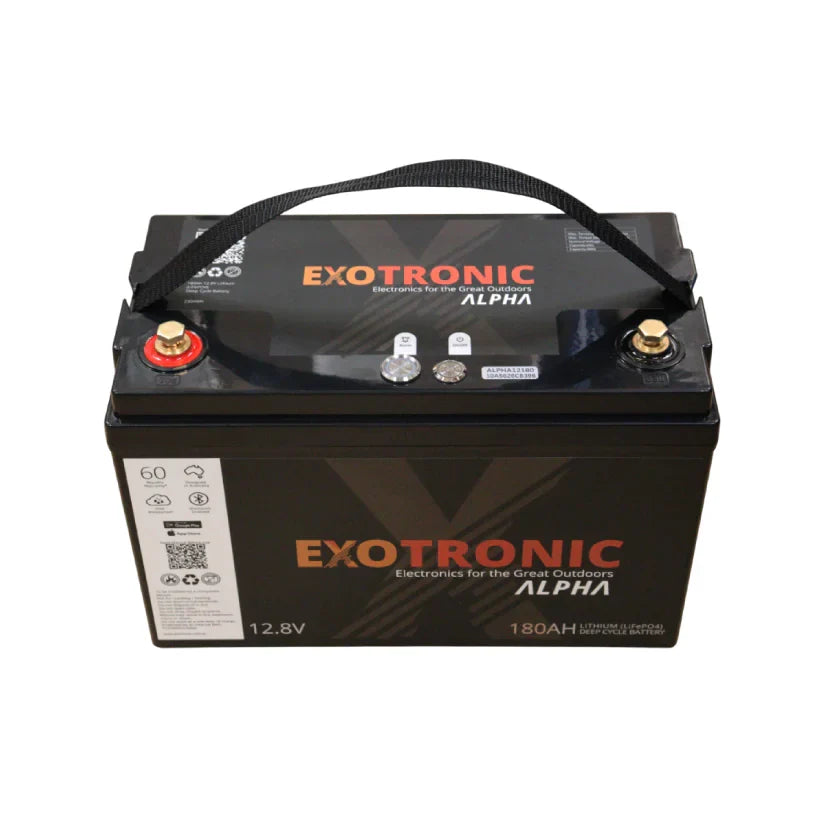

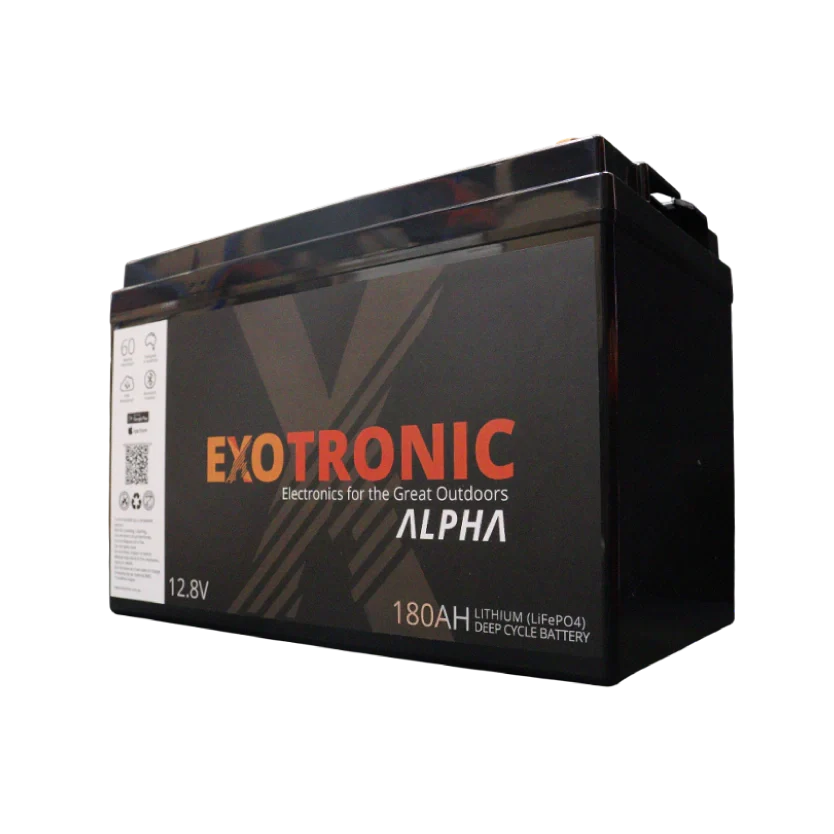

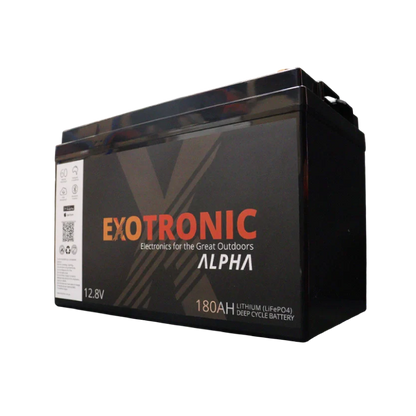

Exotronic 12V 180Ah Alpha IP67 Smart Bluetooth Lithium Battery - Twin Pack
Two Matched Alpha Series LiFePO4 Batteries
This twin pack contains two identical Exotronic 12V 180Ah Alpha Series IP67 Smart Bluetooth lithium (LiFePO4) batteries. The specifications below apply to each battery in the pack.
Each battery can be connected in parallel or series with up to four batteries of the same model, so the pair can be wired as a 12V system or connected in series for 24V.
Key Features (Per Battery)
- 180Ah LiFePO4 (lithium iron phosphate) capacity
- IP67 dust-tight and water-resistant enclosure
- Smart Bluetooth monitoring via the Exotronic Alpha app
- M8 bolt terminals
- Rated for more than 3,000 cycles (0.3C, 25°C) to 80% capacity
- Can be connected in parallel or series with up to 4 batteries of the same model
Specifications (Per Battery)
| Pack Contents | 2 x Exotronic 12V 180Ah Alpha IP67 Smart Bluetooth Lithium Battery |
|---|---|
| Battery Capacity | 180Ah |
| Nominal Voltage | 12.8V |
| Chemistry | LiFePO4 |
| IP Rating | IP67 |
| Continuous Discharge Current | 200A |
| Peak Current (1s) | 310A |
| Charge Current | 50A nominal / 85A maximum |
| Charge Voltages | Absorption 14.0-14.2V / Float 13.5V |
| Cycle Life | More than 3,000 cycles (0.3C, 25°C) to 80% capacity |
| Dimensions (L x W x H) | 330mm (L) x 172mm (W) x 215mm (H) |
| Weight | 17.5kg |
| Terminal | M8 bolt (10mm depth), 12Nm recommended / 14Nm max torque |
| Max Parallel / Series Batteries | 4 of the same model (each) |
| Operating Temperature | Charging 5°C to 45°C / Discharging -20°C to 55°C |
| Communication | Bluetooth (JBD BMS) |
