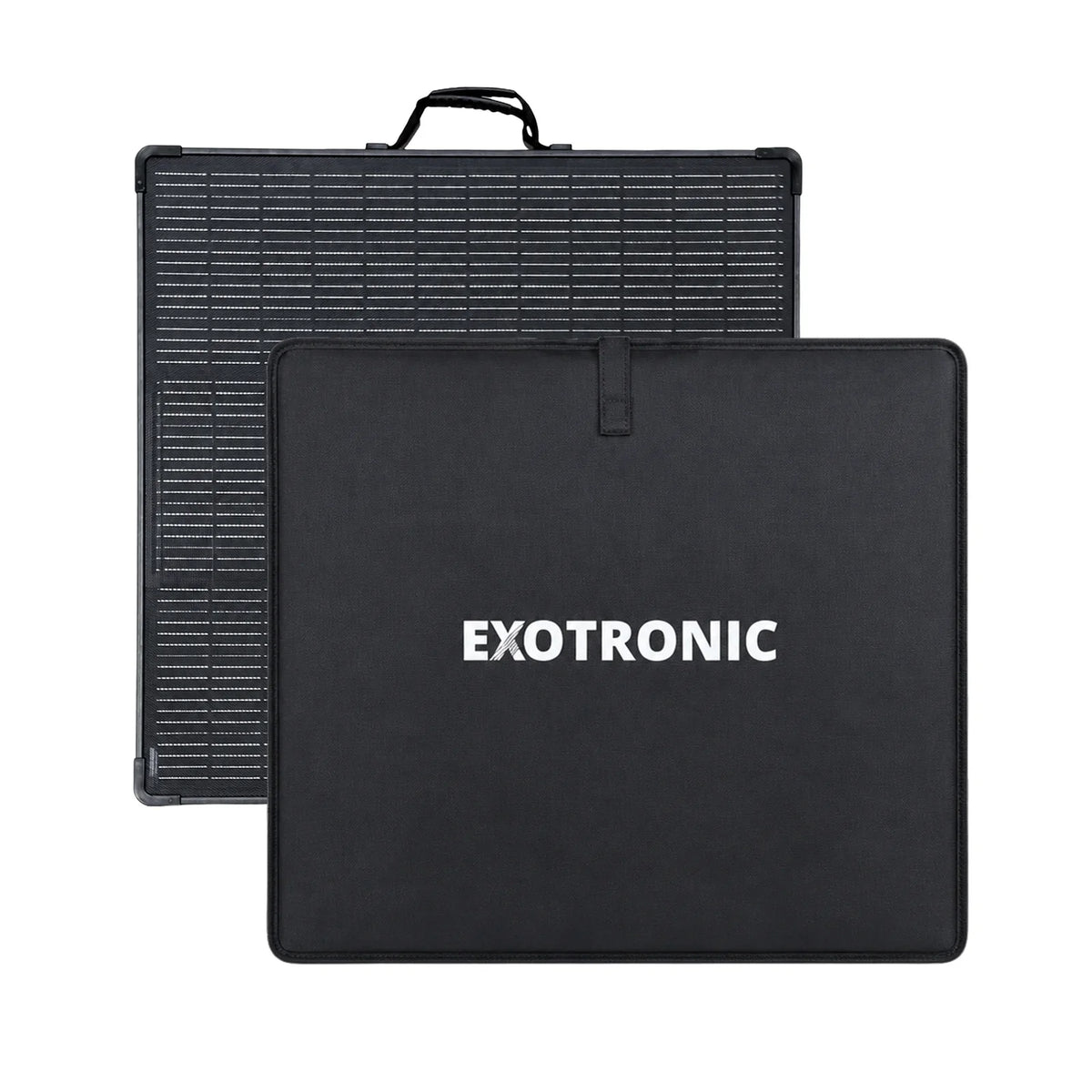

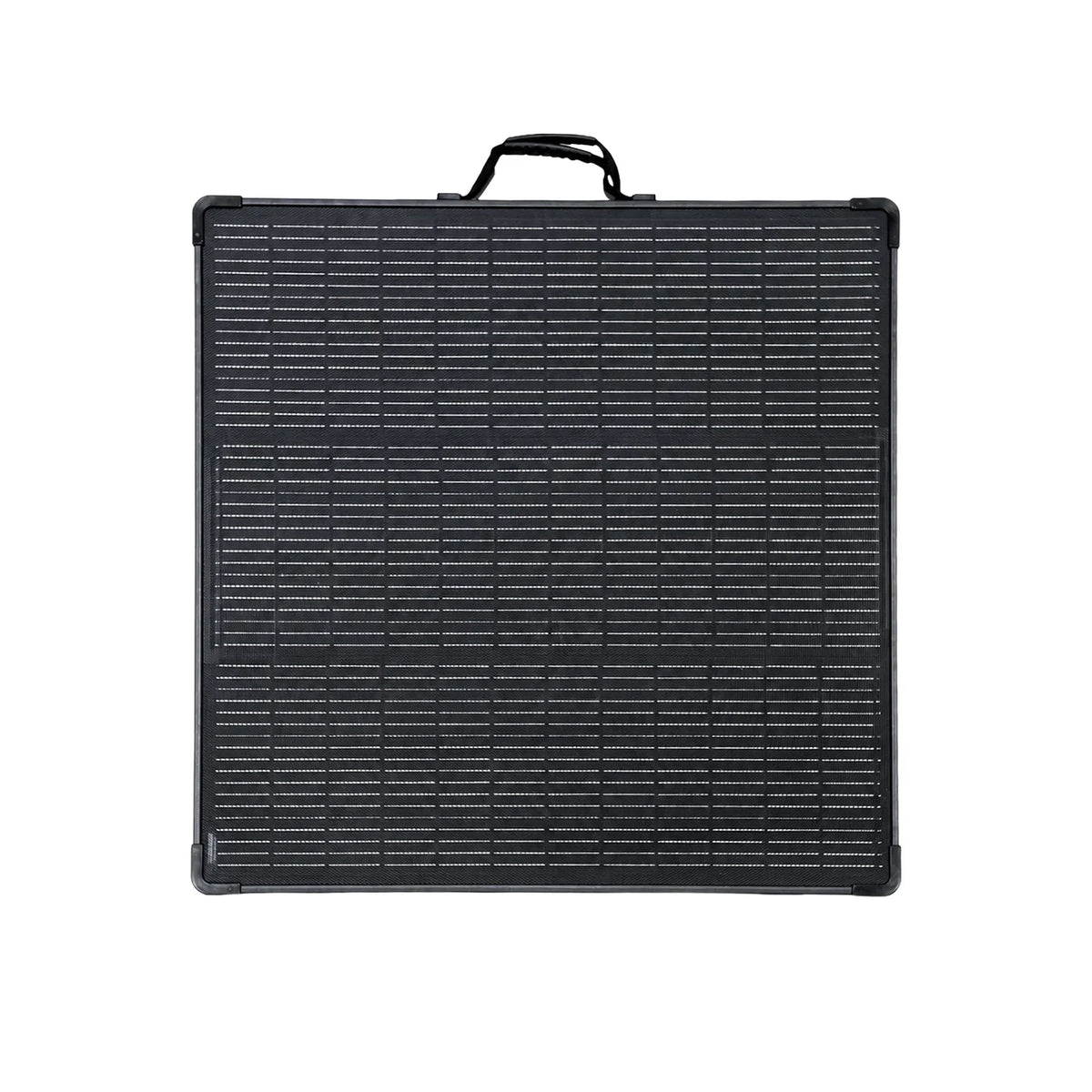

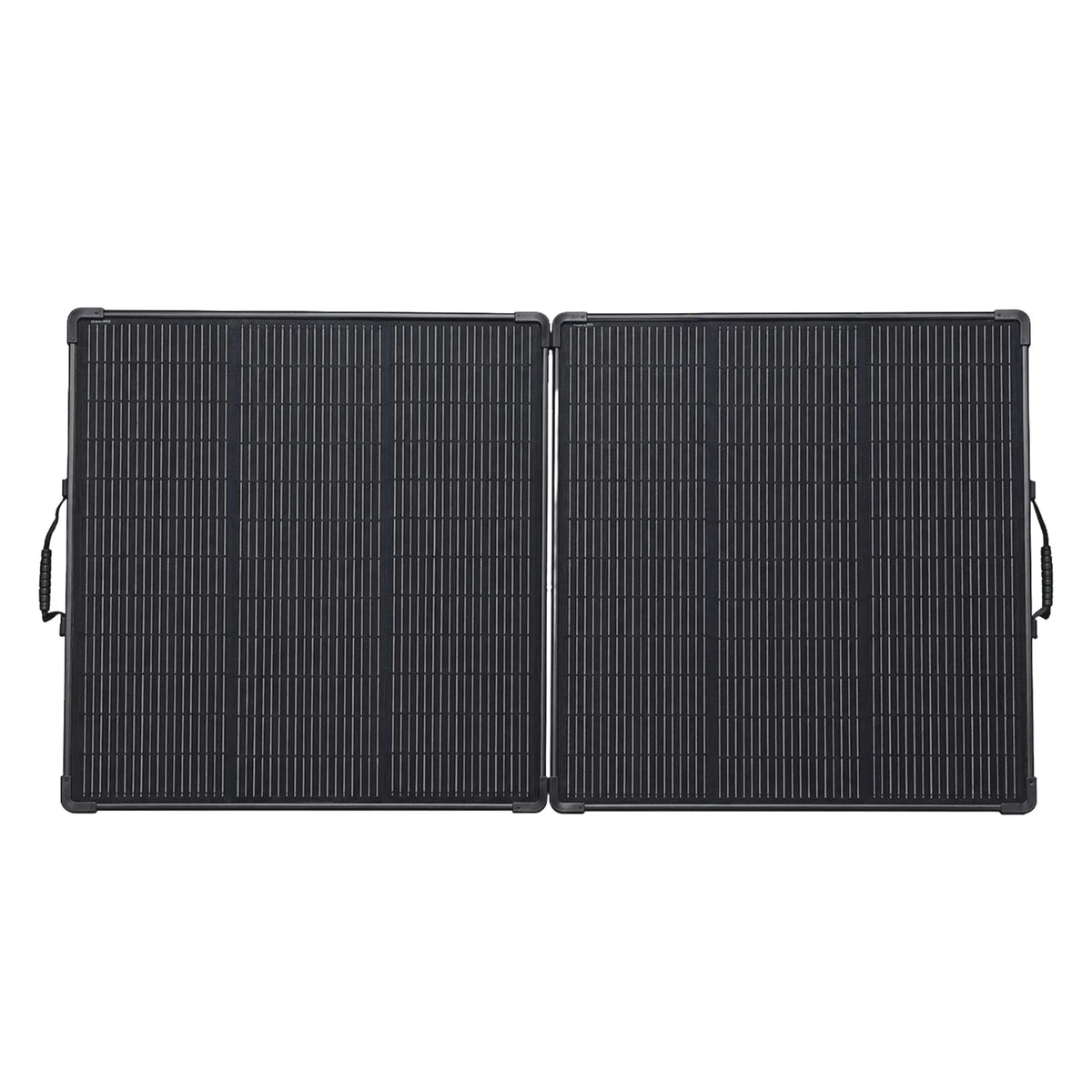

Exotronic 200W Fusion Ultra-Light Folding Solar Panel
N-Type TOPCon Portable Power for Caravans, Camping and 4WD Touring
The Exotronic 200W Fusion Ultra-Light Folding Solar Panel pairs advanced N-Type TOPCon solar cells with an ultra-lightweight folding design, giving you portable charging for caravans, camper trailers, 4WDs, boats and off-grid camps. The TOPCon cells are rated at 25.6% efficiency, which Exotronic states gives stronger low-light performance and lower long-term degradation than conventional P-type monocrystalline or PERC cells.

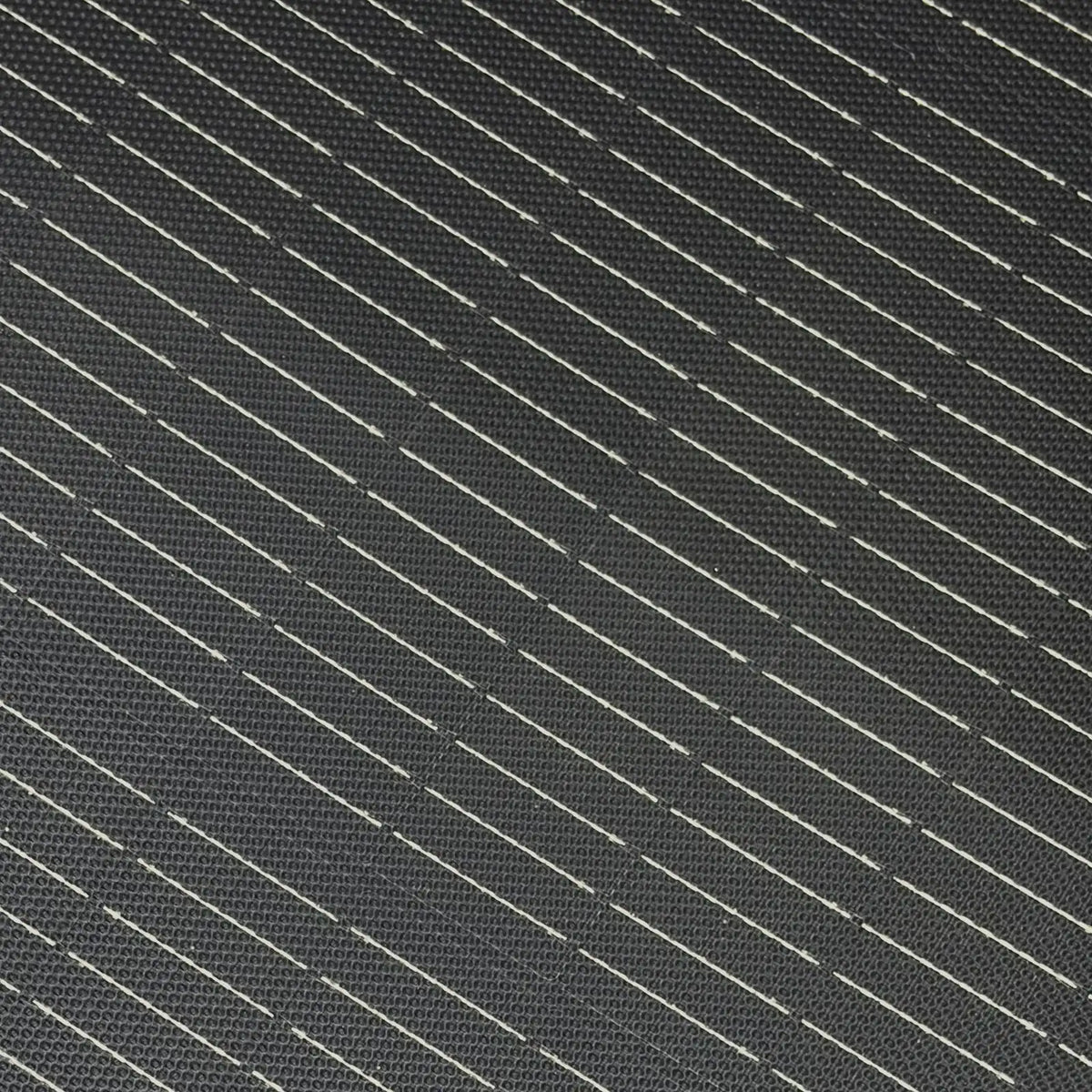

Instead of the tempered glass used on many folding panels, this model uses a durable ETFE laminated surface, cutting weight to just 5.9kg - around half the weight of a typical briefcase-style folding panel of similar output. An ultra-light reinforced backplate sits behind the cells to reduce flex during transport and setup, which Exotronic says helps guard against the micro-cracking that causes premature output loss in portable panels.
This panel is sold without a solar charge controller, so you will need a separately fused MPPT or PWM controller sized to the panel's output before connecting it to a battery.
Key Features
- 200W rated output from N-Type TOPCon cells rated at 25.6% efficiency
- Ultra-lightweight ETFE construction - just 5.9kg, roughly half the weight of glass-faced folding panels

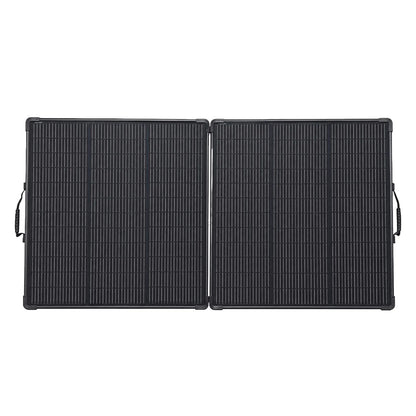

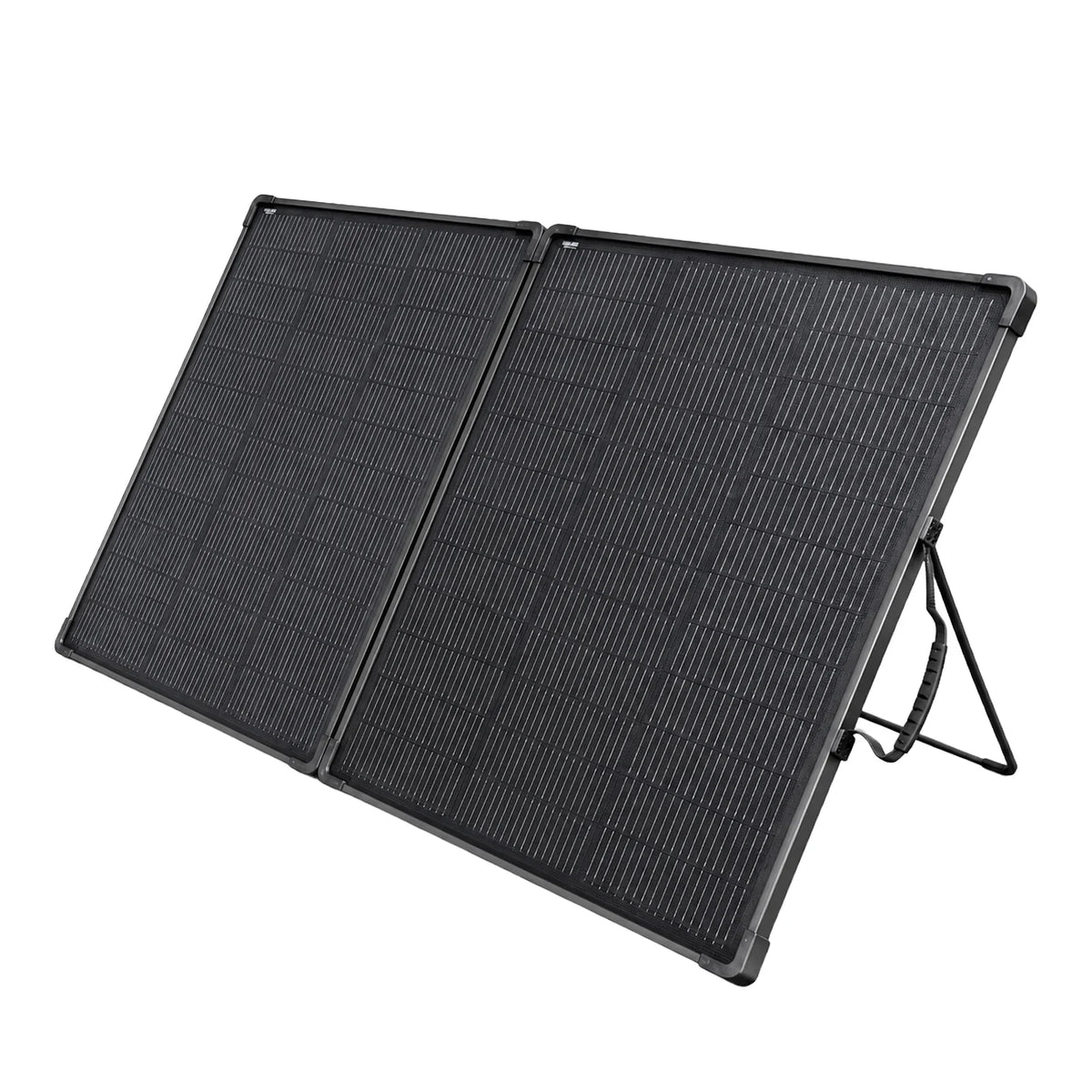

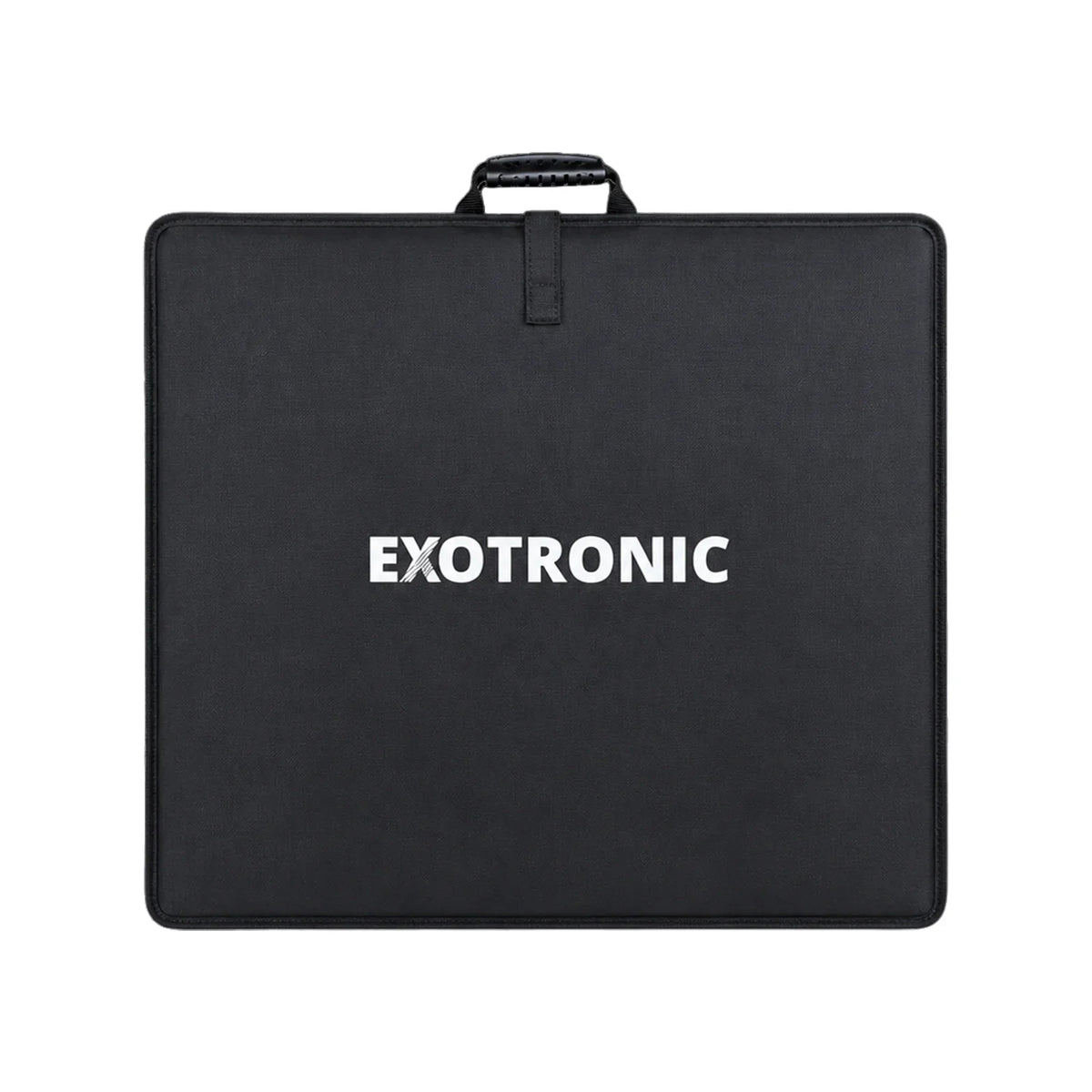

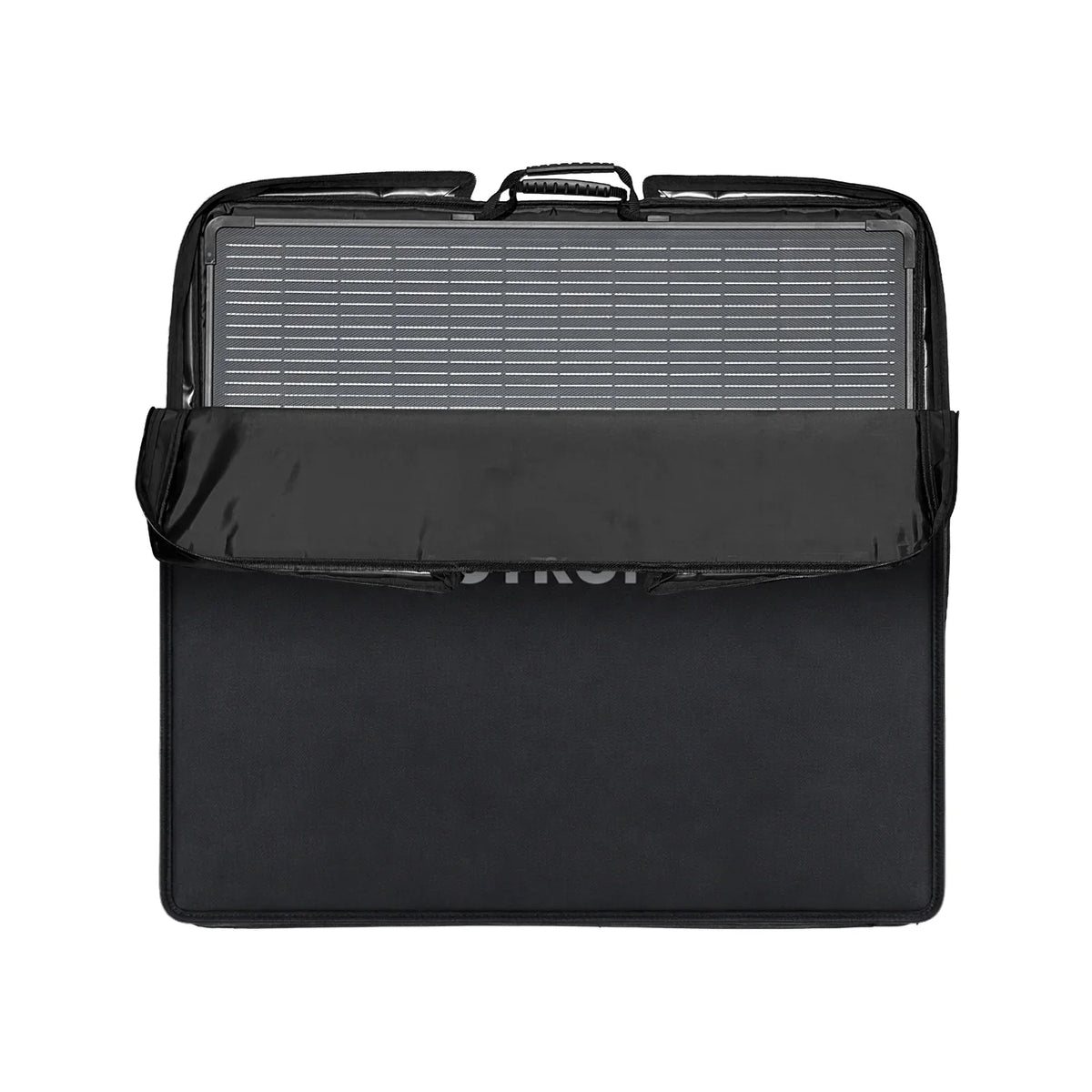

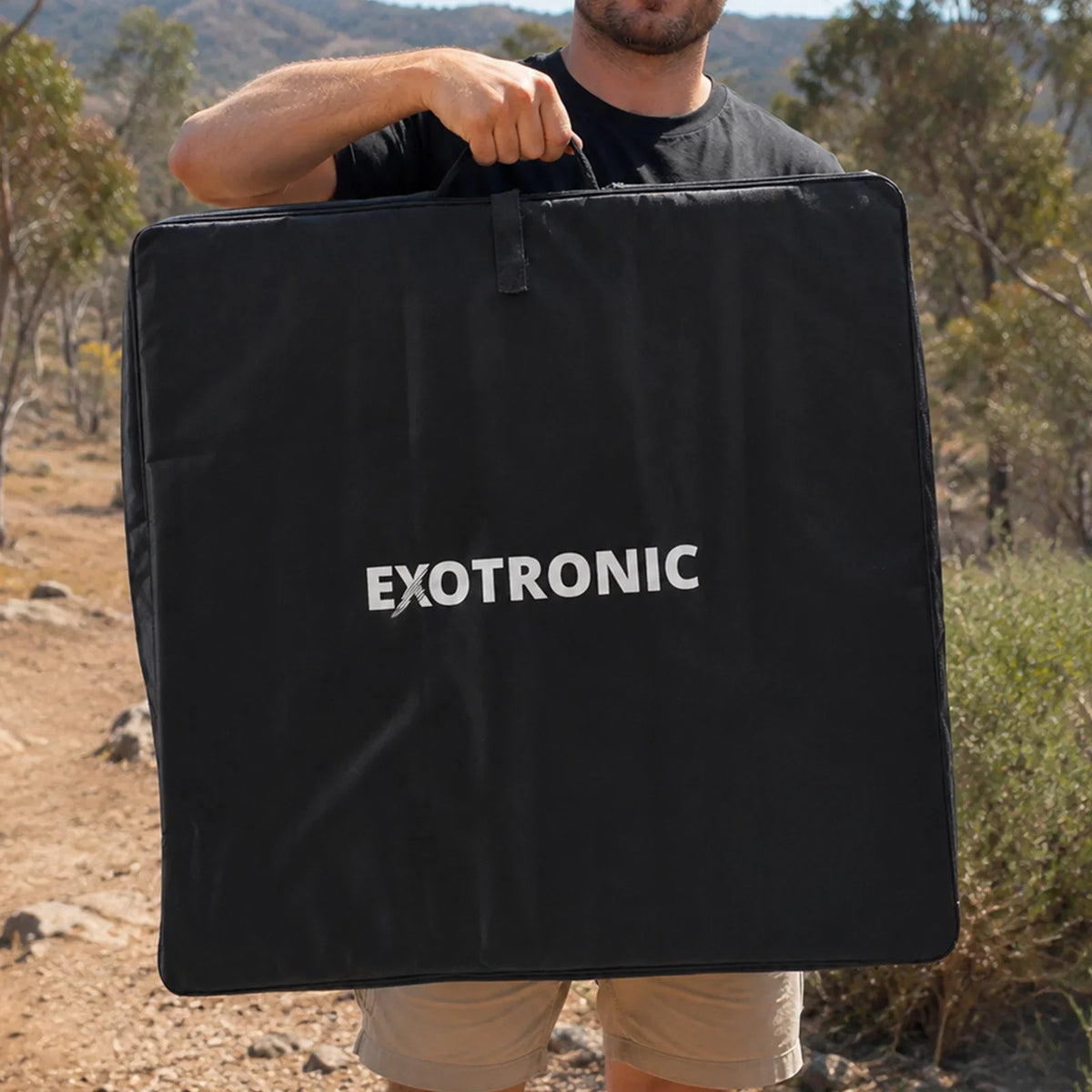

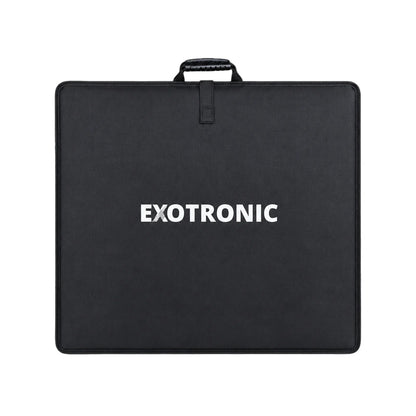

- Folding design for compact transport, storage and setup
- Reinforced backplate to reduce cell flex and micro-cracking risk during transport and use
- Wide -40°C to +85°C operating range for harsh Australian conditions
- No charge controller included - pair with a suitably rated MPPT or PWM controller
Specifications
| Rated Power | 200W |
|---|---|
| Cell Type | N-Type TOPCon, 25.6% cell efficiency |
| Vmp | 21.24V |
| Imp | 9.42A |
| Voc | 25.2V |
| Isc | 9.96A |
| Dimensions Folded | 690 x 670 x 40mm |
| Dimensions Unfolded | 690 x 1340 x 17mm |
| Weight | 5.9kg |
| Front Surface | ETFE laminate |
| Operating Temperature | -40°C to +85°C |
| Controller Included | No - sold as panel only |
