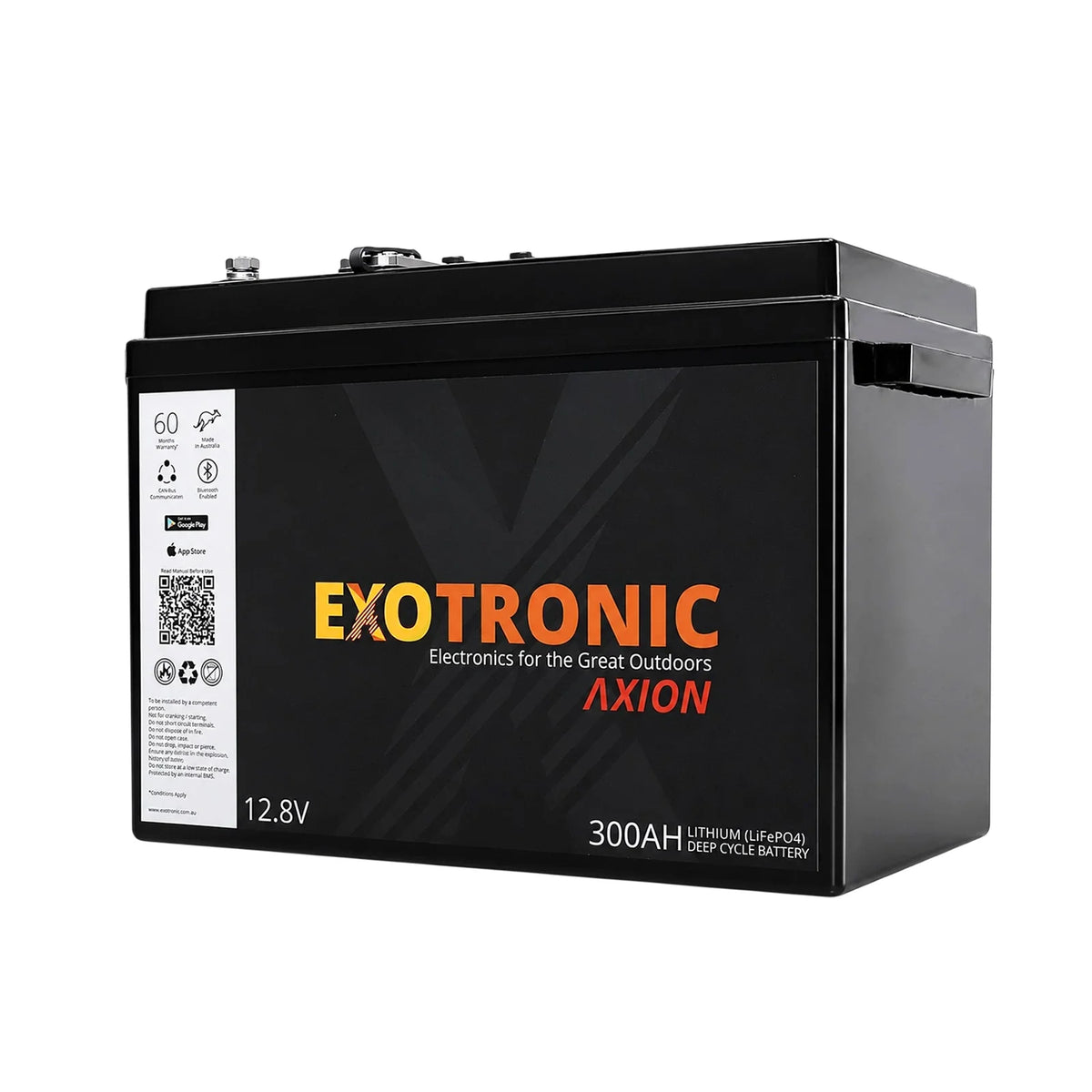

Exotronic - 12V - 300AH - Axion CANBus Bluetooth Lithium Battery

Exotronic 12V 300Ah Axion Series CANBus Bluetooth Smart Deep Cycle LiFePO4 Lithium Battery with On/Off Button

300Ah Axion Series Key Features

• Sleek, space-saving profile
• Real time Bluetooth monitoring

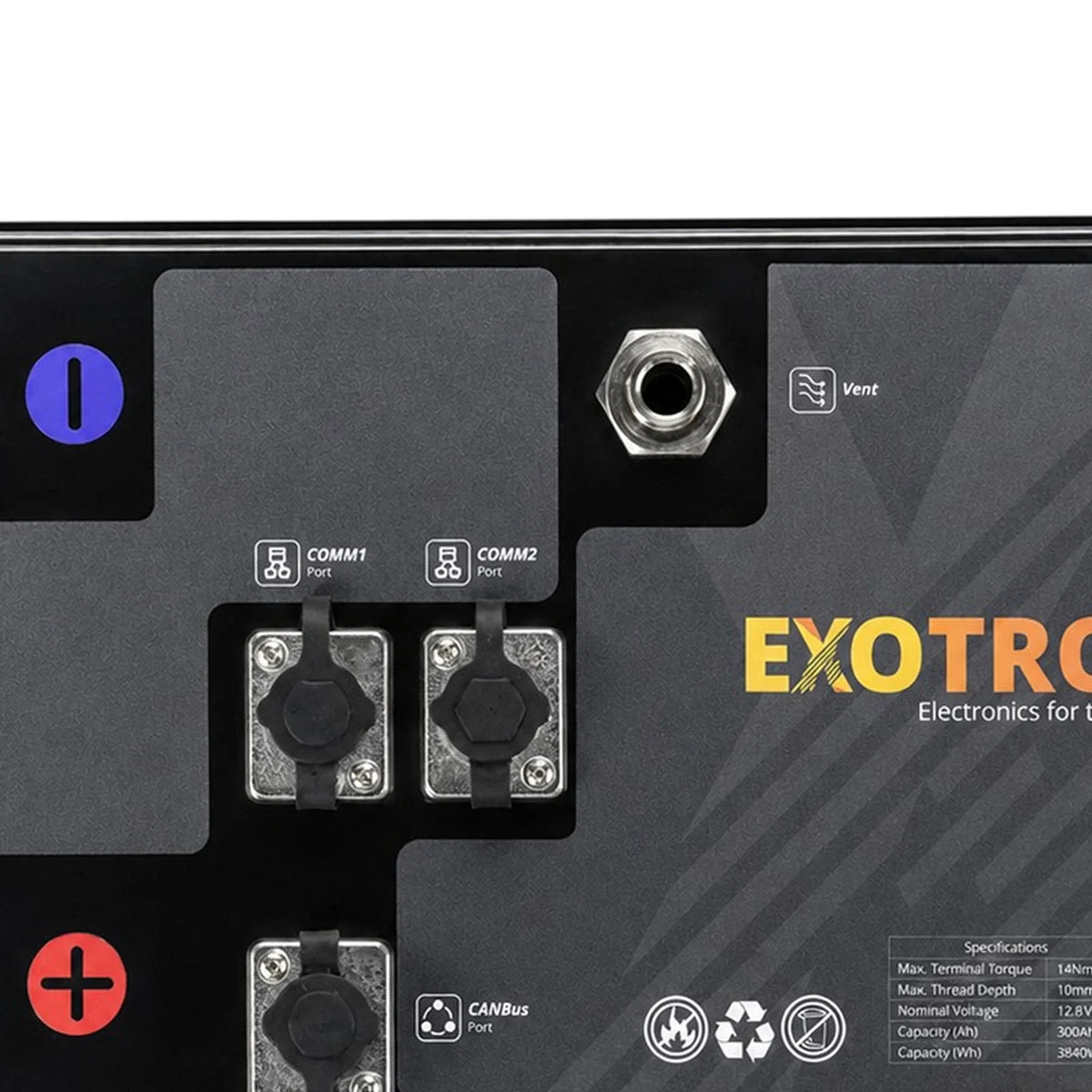

• Vent for 10mm PTFE tube, designed to meet AS/NZS 3001.2 internal installation battery venting system requirements without an additional enclosure

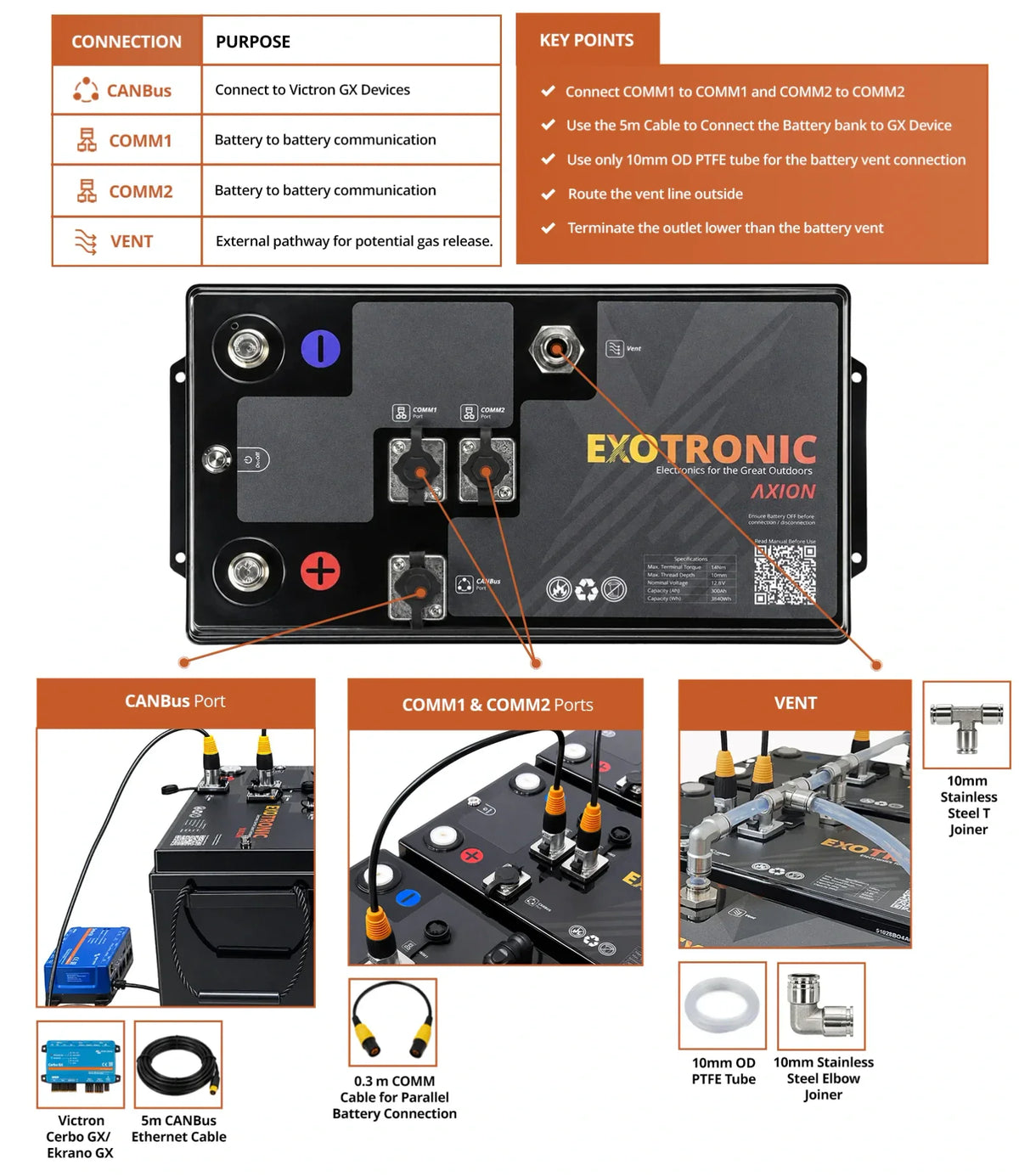

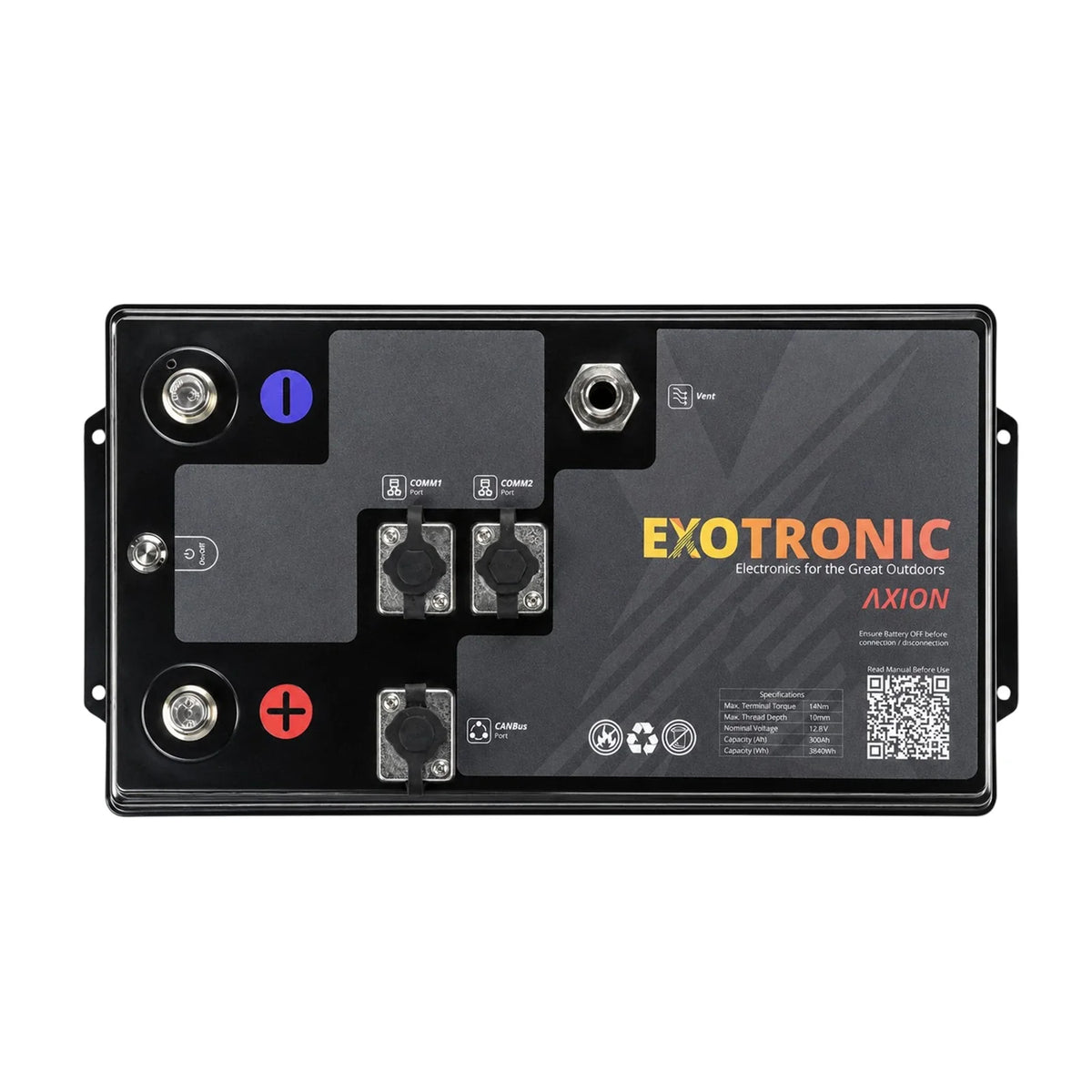

• CANbus port for connecting to Victron GX systems with a Cerbo GX or Ekrano GX
• COMM1 and COMM2 ports for battery-to-battery communication
• Parallel connection only, up to 16 batteries
• On/Off button
• JK BMS with 2A integrated microprocessor-controlled active balancer
• A Grade aluminium-cased prismatic cells with safety rupture disc
• 0-100% usable capacity
• IEC 62619 certified cells
• 5 temperature sensors including MOSFET temperature

Australian Made, with Victron GX and Battery-to-Battery Communication

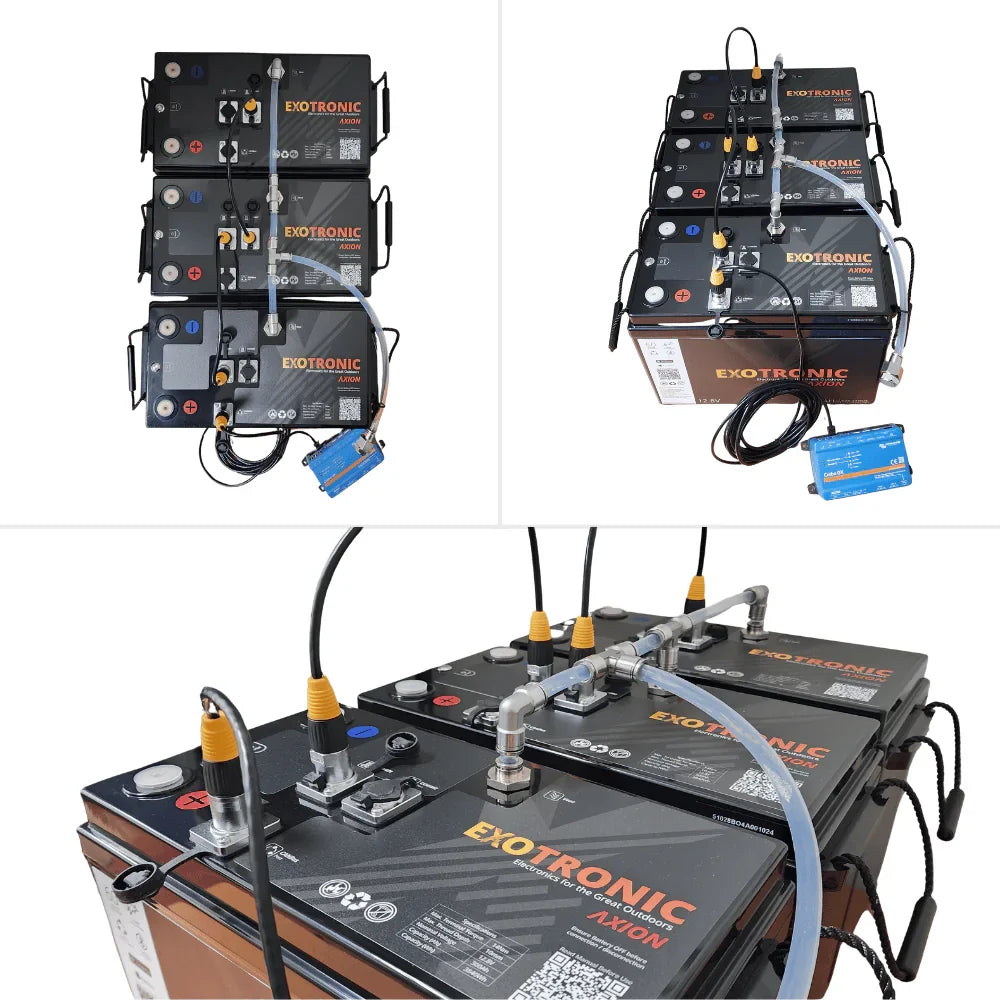

The Exotronic 12V 300Ah Axion Series is an Australian made deep cycle LiFePO4 lithium battery for caravans, RVs, 4x4 vehicles and off-grid installations. It is not designed for engine starting or cranking applications. The dedicated CANbus port connects the battery to compatible Victron GX systems (Cerbo GX or Ekrano GX), and the COMM1/COMM2 ports let multiple Axion batteries share information when installed together as a parallel bank of up to 16 batteries. Axion batteries may be connected in parallel only, not in series, and batteries in the same bank should be matching models.

Ingress Protection

The enclosure is rated IP20 with the safety vent disconnected and the CANbus port covers removed, and IP54 when the safety vent tubing is correctly installed and all port covers or suitable connectors are securely fitted.

Safety and Battery Management

The battery uses A Grade aluminium-cased prismatic LiFePO4 cells fitted with a safety rupture disc, inside a heavy-duty ABS case. The integrated JK Battery Management System includes a 2A microprocessor-controlled active balancer and protects against overcurrent, short circuit, over/under-voltage and extreme temperature, with real time Bluetooth monitoring of cell voltages, temperature, current and state of charge.

On/Off Button

Hold the button for 5 seconds to turn the battery on (the button LED stays lit while on; charging also activates the battery), and hold it for 5 seconds to turn the battery off.
