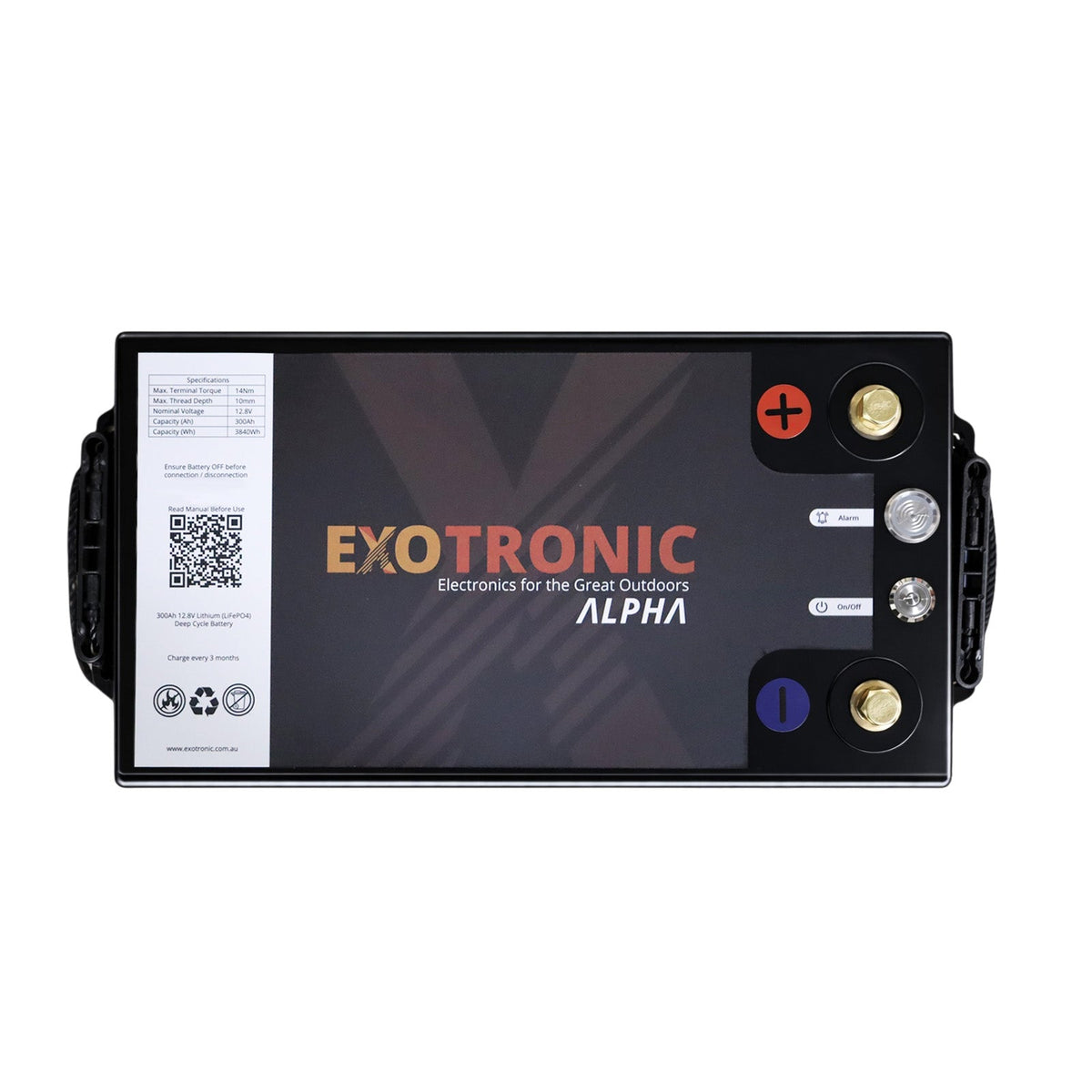

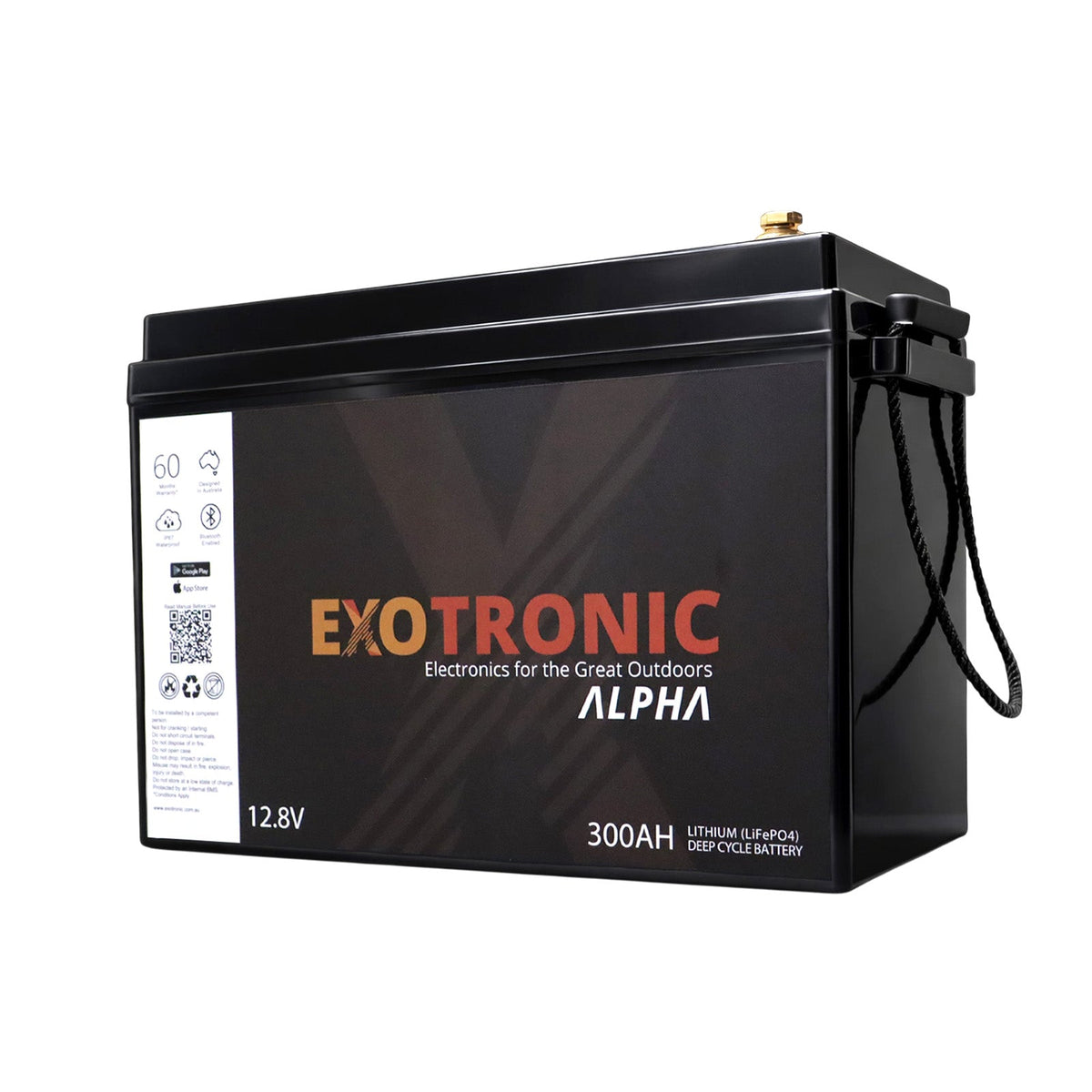

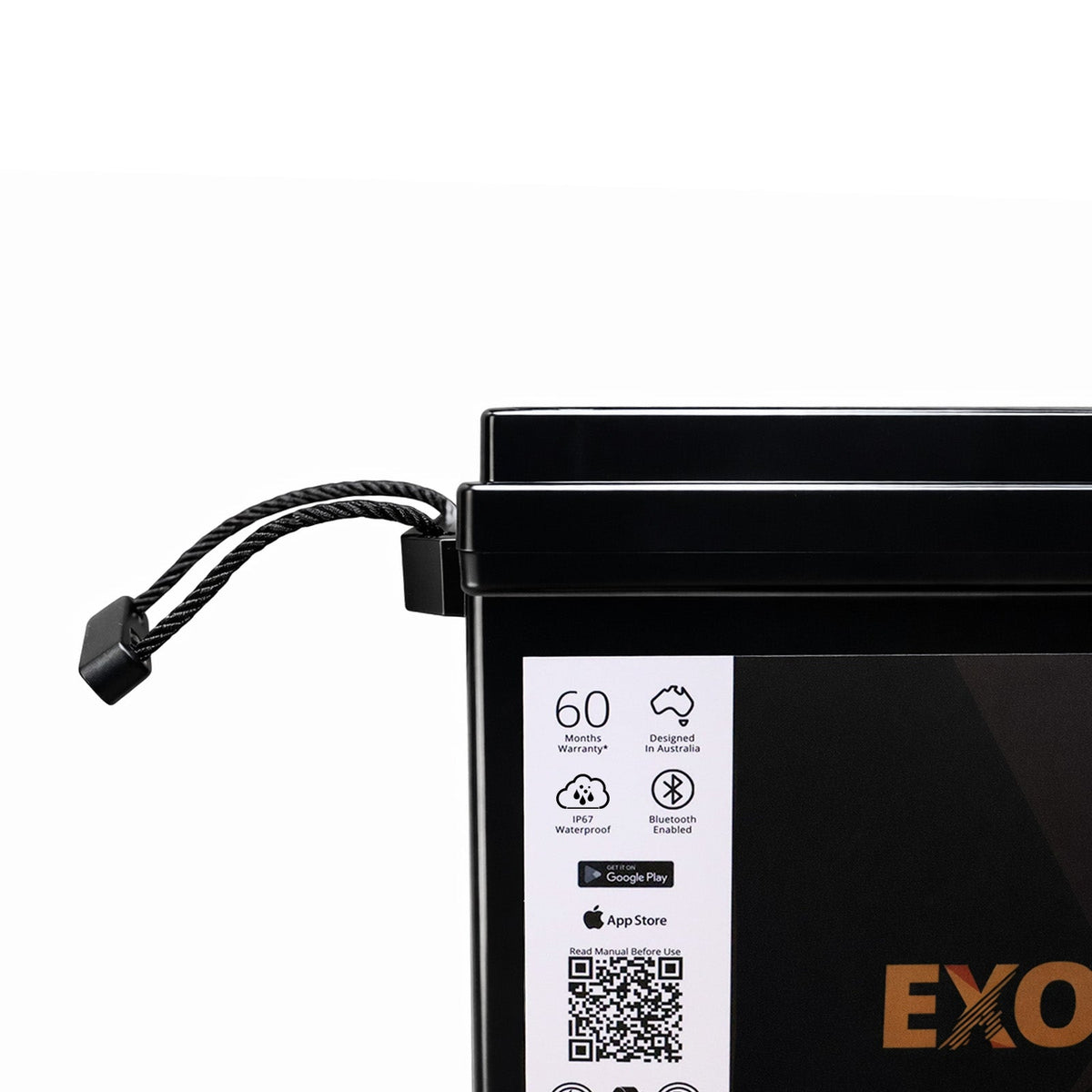

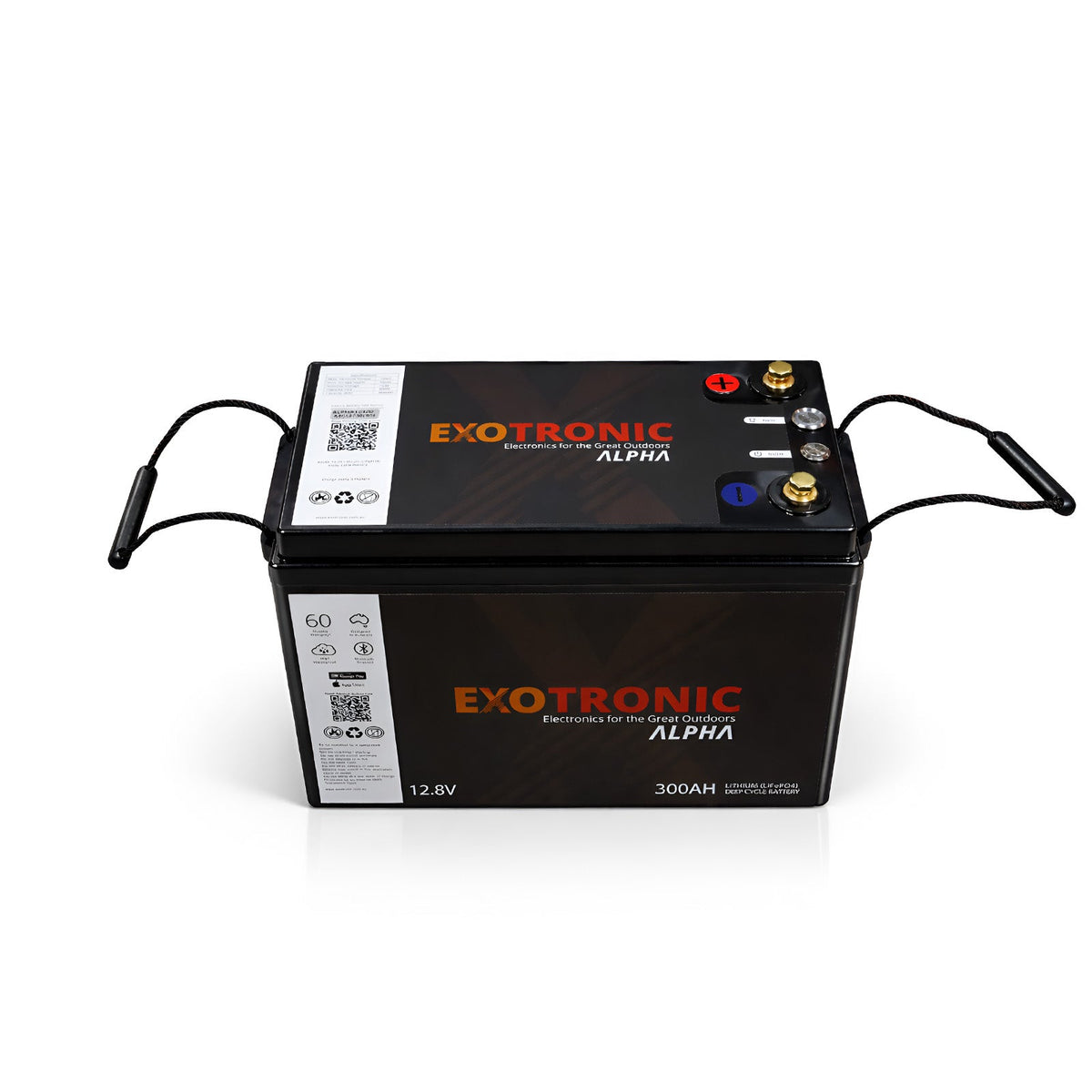

Exotronic 12V 300Ah Alpha IP67 Smart Bluetooth Lithium Battery - Twin Pack

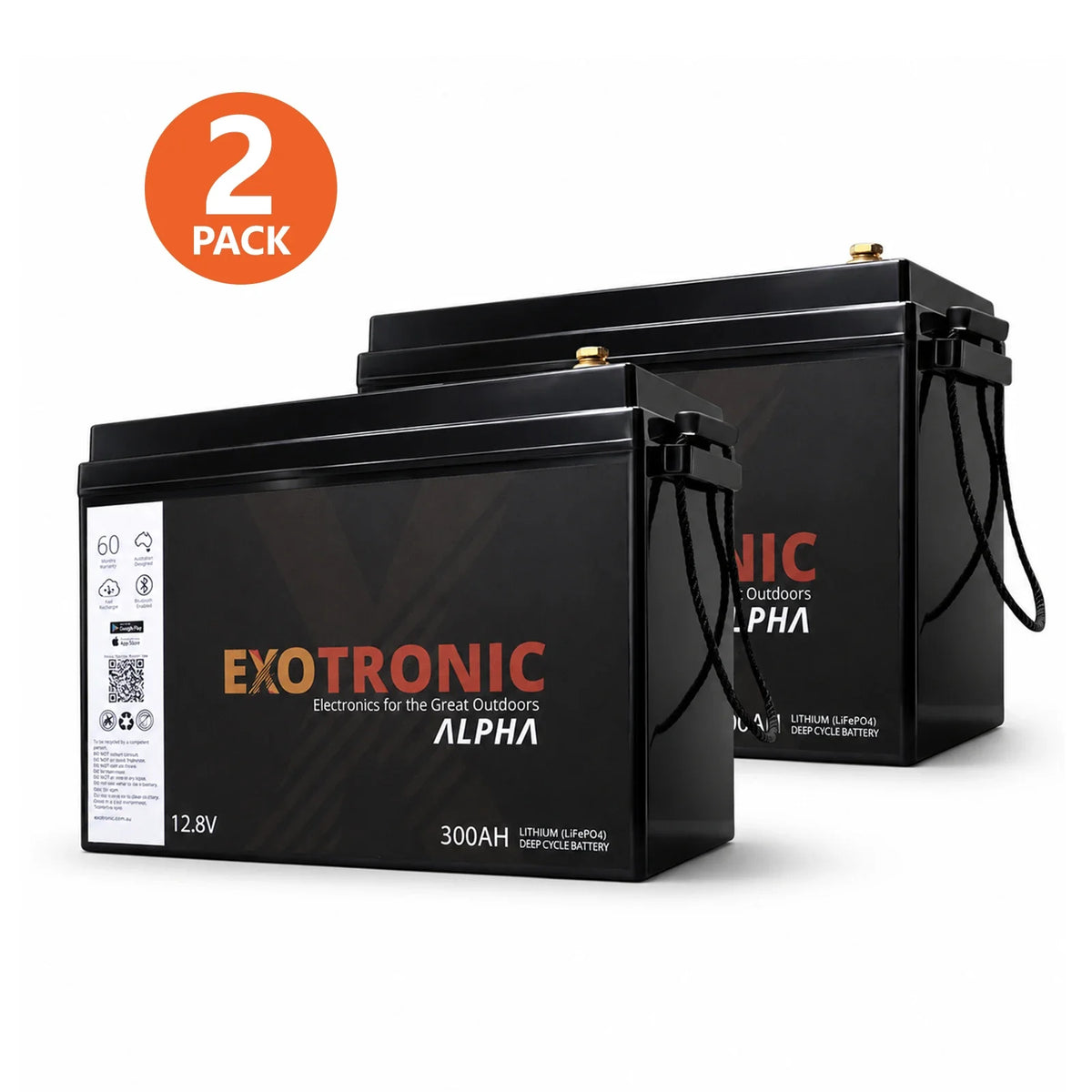

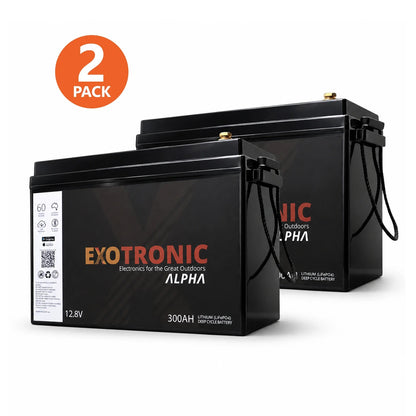

Two Matched Alpha Series LiFePO4 Batteries
This twin pack contains two identical Exotronic 12V 300Ah Alpha Series IP67 Smart Bluetooth lithium (LiFePO4) batteries. The specifications below apply to each battery in the pack.
Each battery can be connected in parallel or series with up to four batteries of the same model, so the pair can be wired as a 12V system or connected in series for 24V.
Key Features (Per Battery)
- 300Ah LiFePO4 (lithium iron phosphate) capacity
- IP67 dust-tight and water-resistant enclosure
- Smart Bluetooth monitoring via the Exotronic Alpha app
- M8 bolt terminals
- Rated for more than 3,000 cycles (0.3C, 25°C) to 80% capacity
- Can be connected in parallel or series with up to 4 batteries of the same model
Specifications (Per Battery)
| Pack Contents | 2 x Exotronic 12V 300Ah Alpha IP67 Smart Bluetooth Lithium Battery |
|---|---|
| Battery Capacity | 300Ah |
| Nominal Voltage | 12.8V |
| Chemistry | LiFePO4 |
| IP Rating | IP67 |
| Continuous Discharge Current | 300A |
| Peak Current (1s) | 500A |
| Charge Current | 90A nominal / 150A maximum |
| Charge Voltages | Absorption 14.0-14.2V / Float 13.5V |
| Cycle Life | More than 3,000 cycles (0.3C, 25°C) to 80% capacity |
| Dimensions (L x W x H) | 363mm (L) x 190mm (W) x 245mm (H) |
| Weight | 27.8kg |
| Terminal | M8 bolt (10mm depth), 12Nm recommended / 14Nm max torque |
| Max Parallel / Series Batteries | 4 of the same model (each) |
| Operating Temperature | Charging 5°C to 45°C / Discharging -20°C to 55°C |
| Communication | Bluetooth (JBD BMS) |
