Exotronic - 175A - ANL Fuse (Pack of 50)

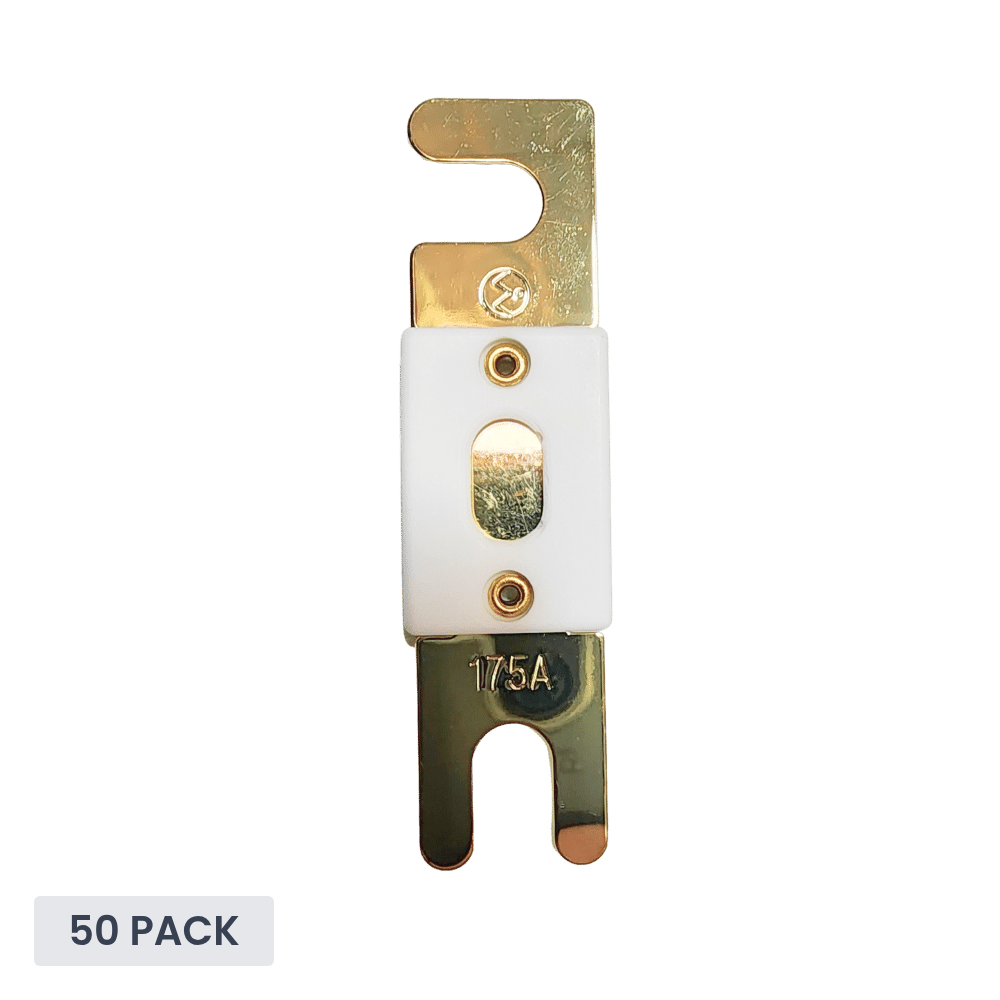

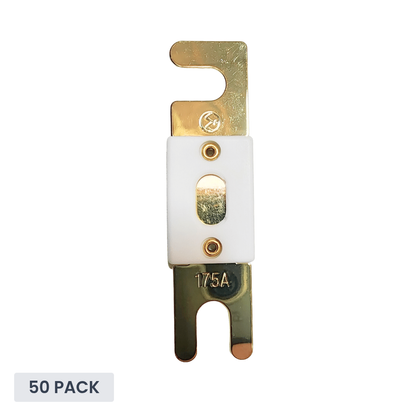

Exotronic 175A ANL Fuse - Pack of 50

Bulk-Ready Overcurrent Protection for 12V, 24V and 48V DC Systems

This pack contains 50 identical 175A ANL fuses, Exotronic's bolt-on, slide-on/off style fuse for high-current DC circuits. The fuse carries a 125VDC voltage rating, giving it headroom for 12V, 24V and 48V battery systems, with a breaking capacity specified separately as 6000A at 58VDC.

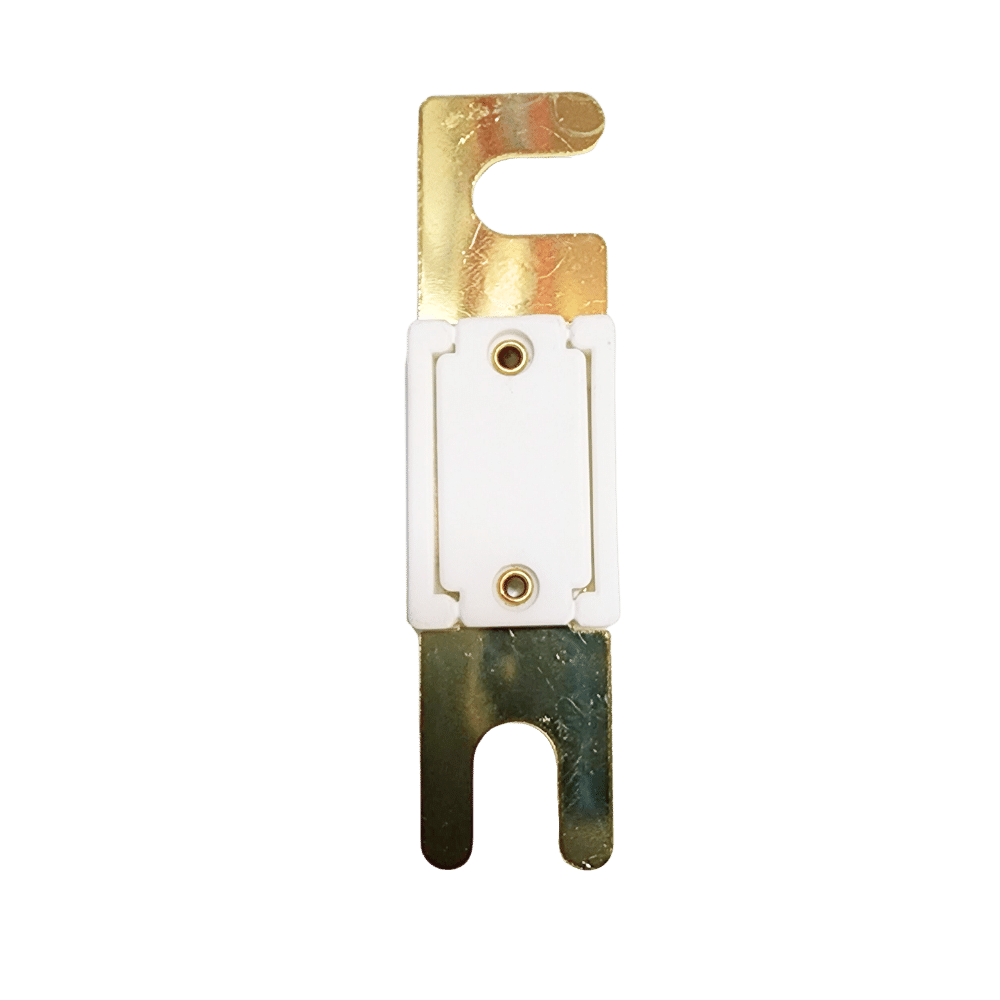

Gold-plated copper alloy terminals provide low-resistance, corrosion-resistant connections, while the ceramic housing gives high heat resistance across a wide -32C to 125C operating temperature range. The bolt-on, slide on/off design lets the fuse be swapped without removing the mounting nuts.

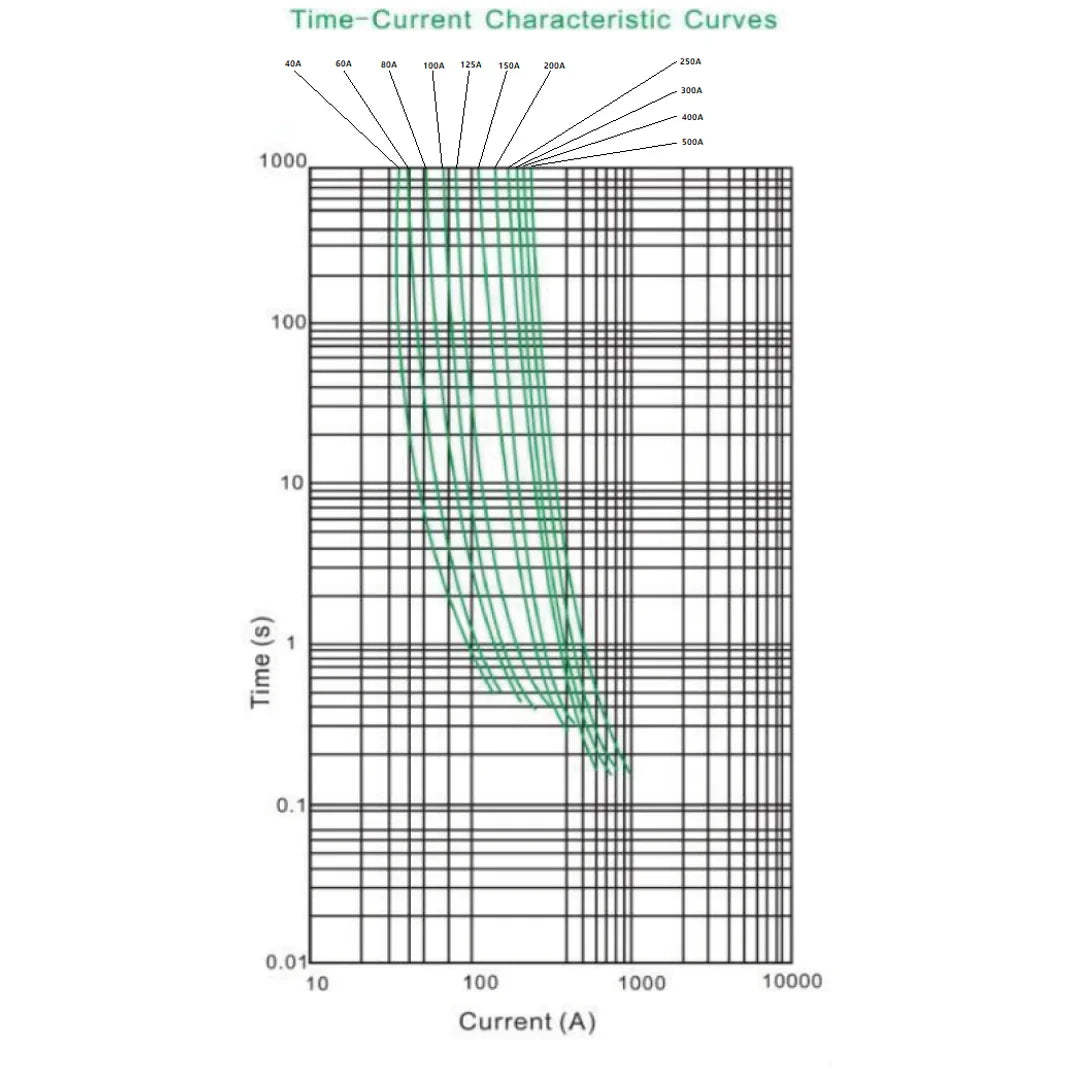

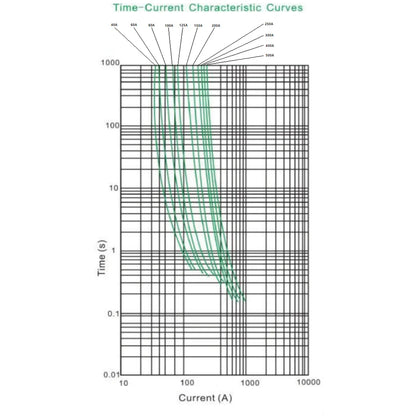

Every fuse in this pack shares the same 175A rating - this is not an assorted pack of different amperages, so use the 175A rating and its time-current characteristics when sizing protection for your circuit.

Key Features

• 50 x 175A ANL fuses, all the same rating, for spares and multi-circuit installations
• 125VDC voltage rating, suiting 12V, 24V and 48V DC systems
• 6000A at 58VDC breaking capacity for reliable overcurrent protection
• Gold-plated copper alloy terminals for low-resistance, corrosion-resistant connections
• Ceramic housing for heat resistance and durability
• Bolt-on, slide on/off design for straightforward installation and replacement

Specifications
