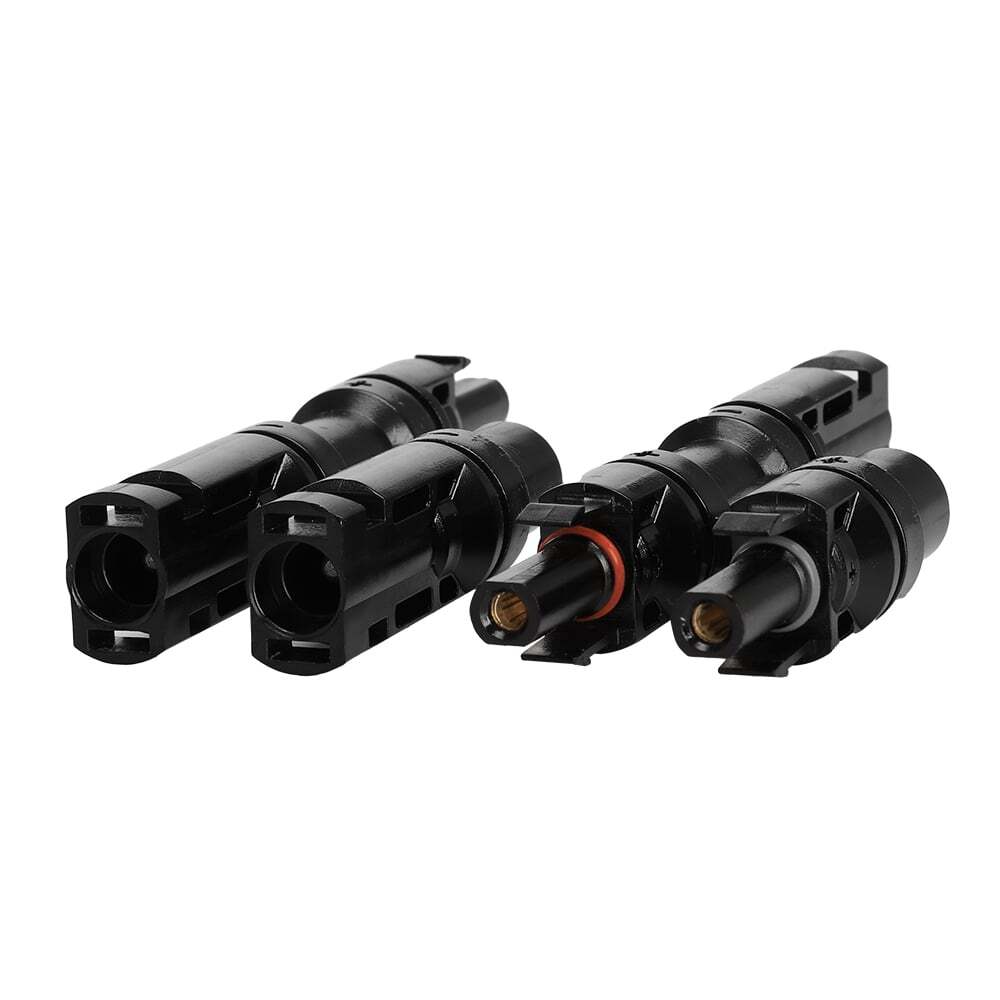

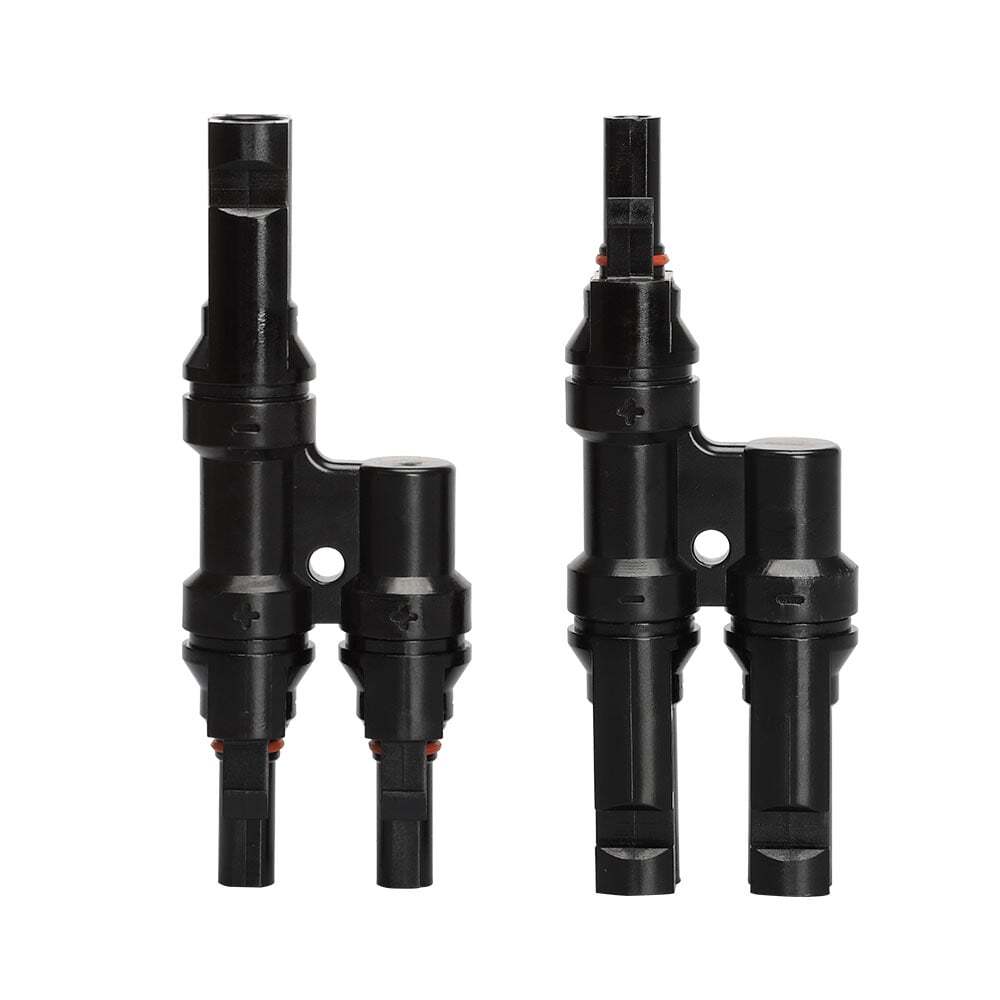

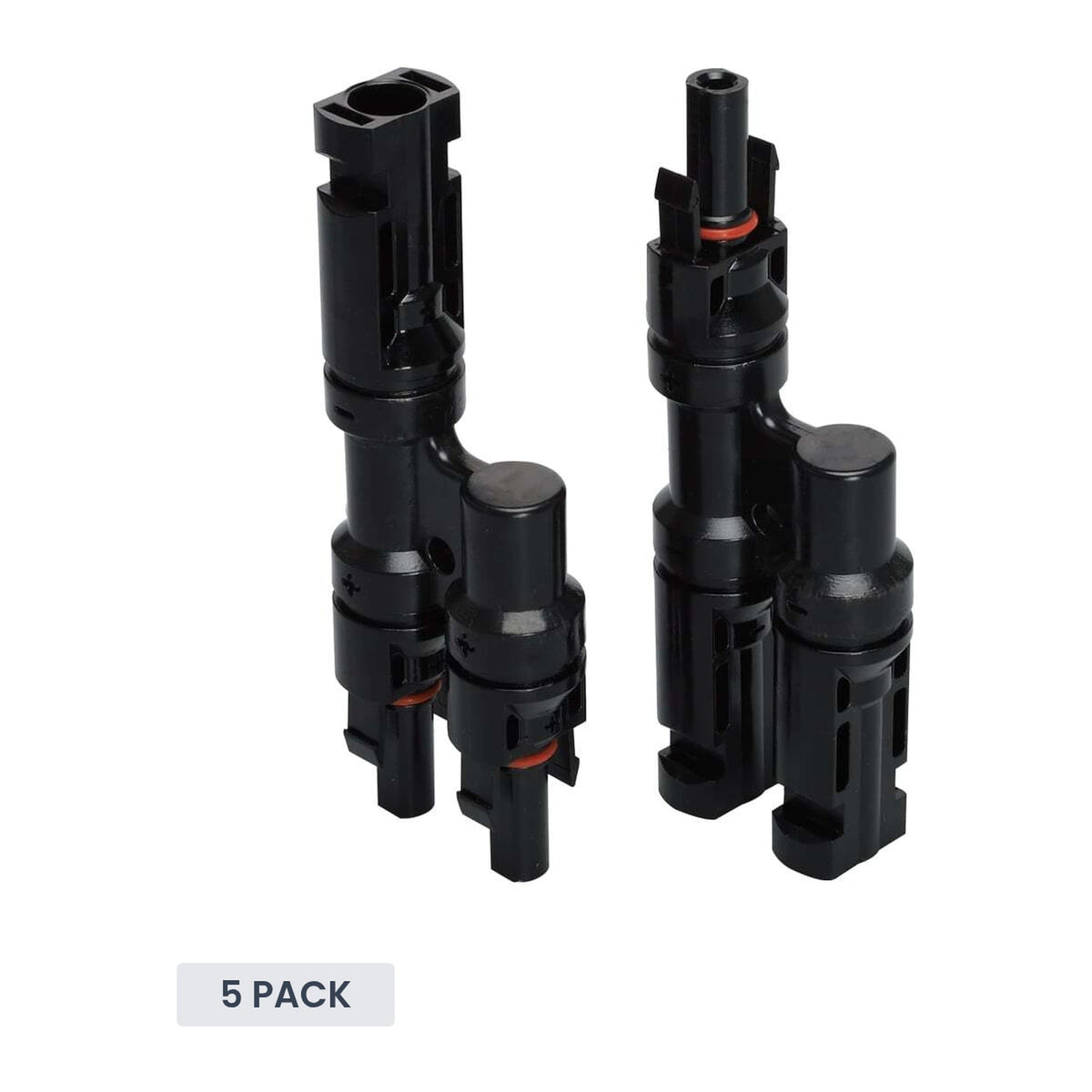

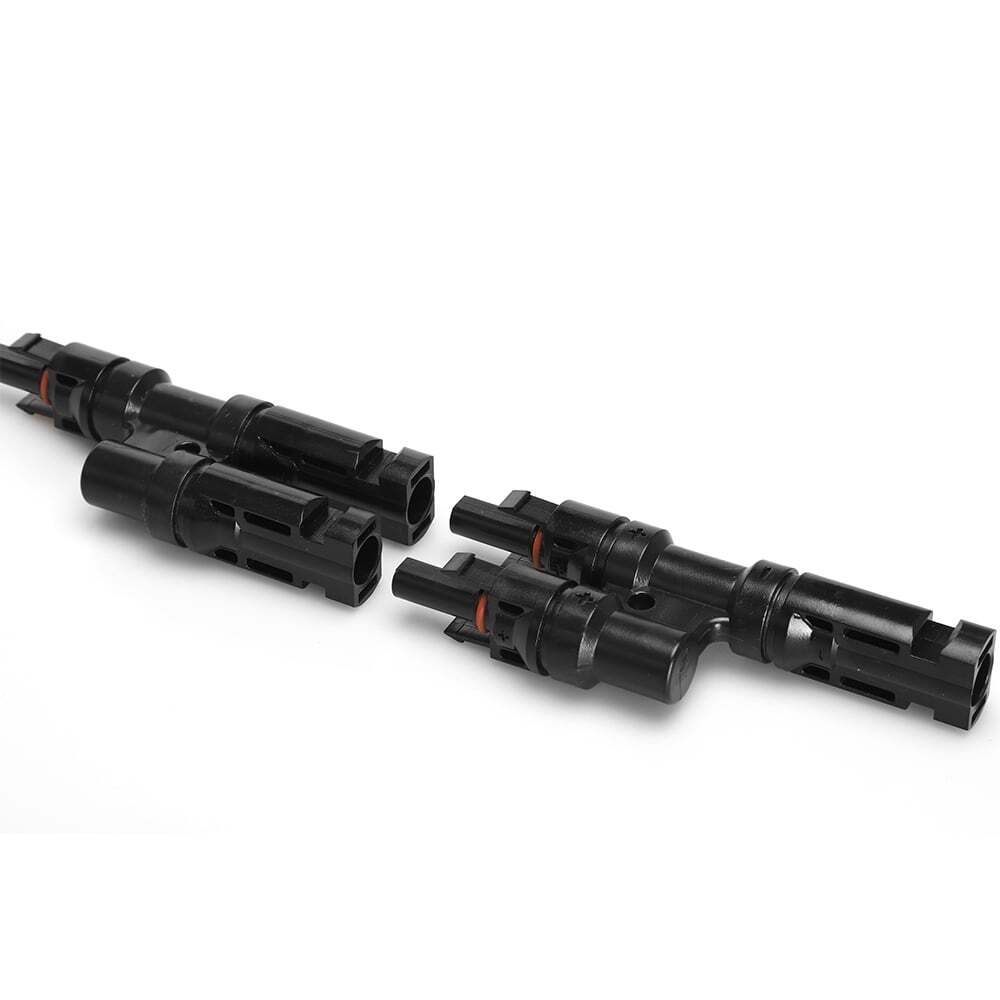

Exotronic - 2 to 1 'h' Branch Solar Connector Pair (Pack of 5)

Exotronic 2 to 1 'h' Branch Solar Connector Pair - Pack of 5

MC4-Compatible Branch Connectors for Paralleling Two Panels

This pack contains 5 identical Exotronic 2 to 1 'h' Branch Connector Pairs, used to combine two solar panels in parallel into a single output cable. They are fully compatible with standard MC4 connectors, suiting off-grid, caravan and industrial solar arrays.

Each connector is made from copper contacts plated with tin for strong conductivity and corrosion resistance, with a contact resistance under 0.5 mΩ. The connectors carry a current rating of 30A and are rated to 1000V (TUV) / 600V (UL), tested at 6kV.

The PPO insulation is UV stable and rated from -40°C to +85°C, and the connectors achieve an IP67 rating against dust and temporary water immersion. They meet the UL94-V0 flame class and Safety Class II for added protection.

Key Features

• 5 identical 2 to 1 'h' branch connector pairs
• Combines two solar panels in parallel into one output
• Copper contacts, tin-plated, for low-resistance connections
• IP67 rated against dust and temporary water immersion
• 30A current rating; 1000V (TUV) / 600V (UL)
• PPO insulation rated -40°C to +85°C; UL94-V0 flame class
• Compatible with standard MC4 connectors

Specifications
