Exotronic - 2 to 1 'Y' Branch Solar Connector Pair (Pack of 5)

Exotronic 2 to 1 'Y' Branch Solar Connector Pair - Pack of 5

MC4-Compatible Y-Branch Connectors for Paralleling Two Panels

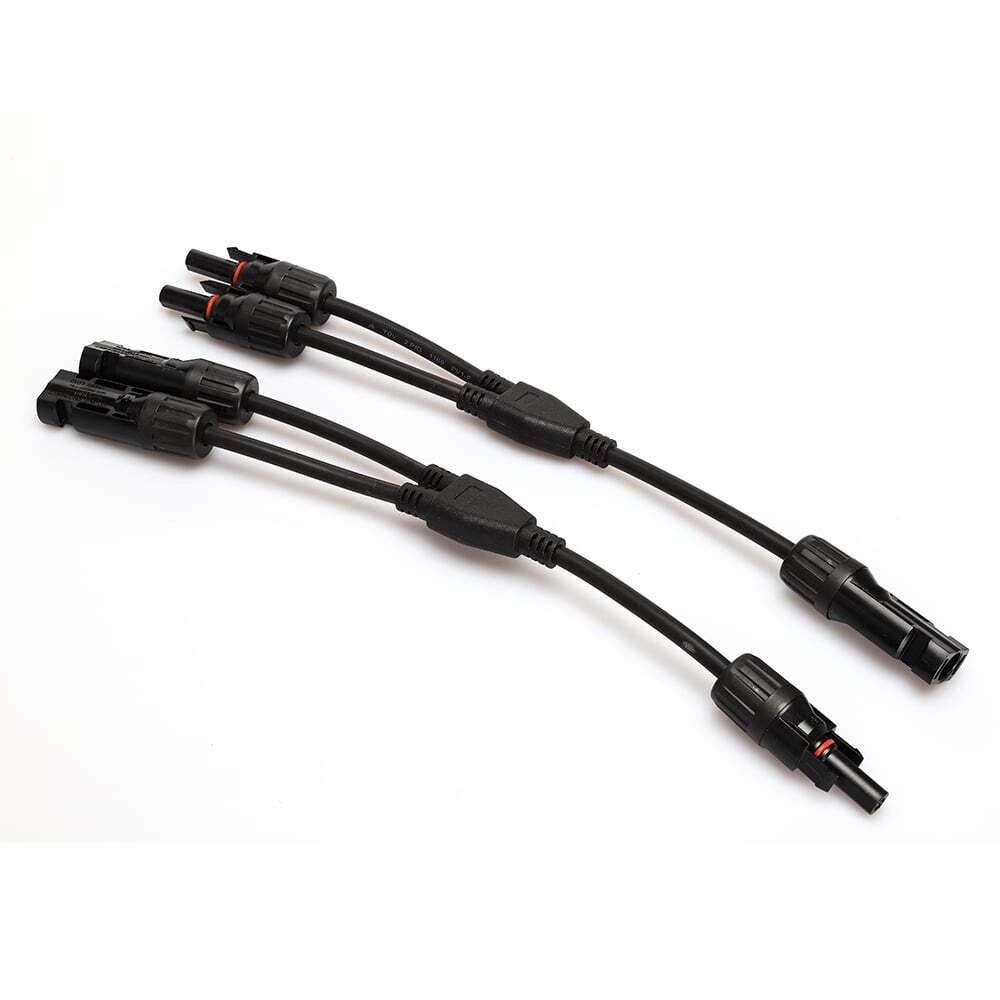

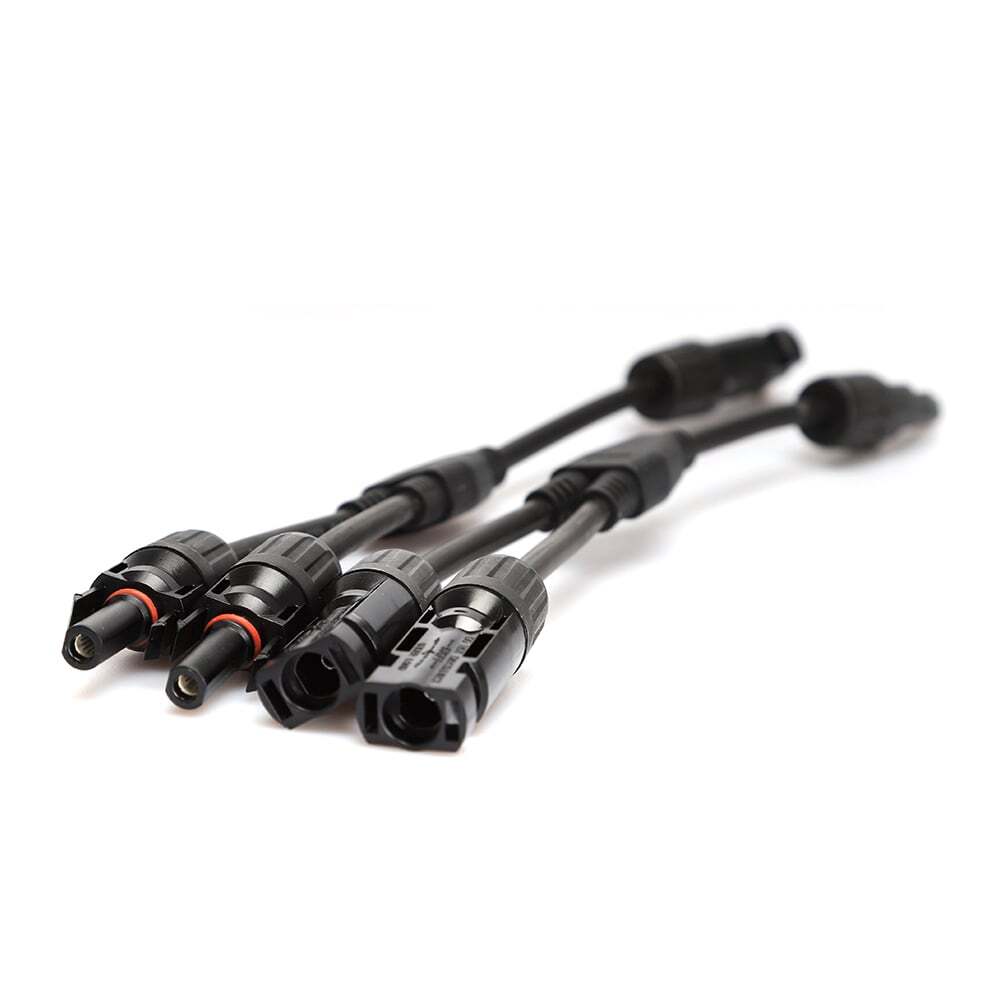

This pack contains 5 identical Exotronic 2 to 1 'Y' Branch Connector Pairs, used to combine two solar panels in parallel into a single output cable. They are fully compatible with standard MC4 connectors, suiting off-grid, caravan and industrial solar arrays.

Each connector uses tinned copper contacts with a contact resistance of 0.5 mΩ, and PC/PA insulation rated from -40°C to +85°C. They are rated to 1000V DC and support up to 30A on 4mm² or 6mm² cable.

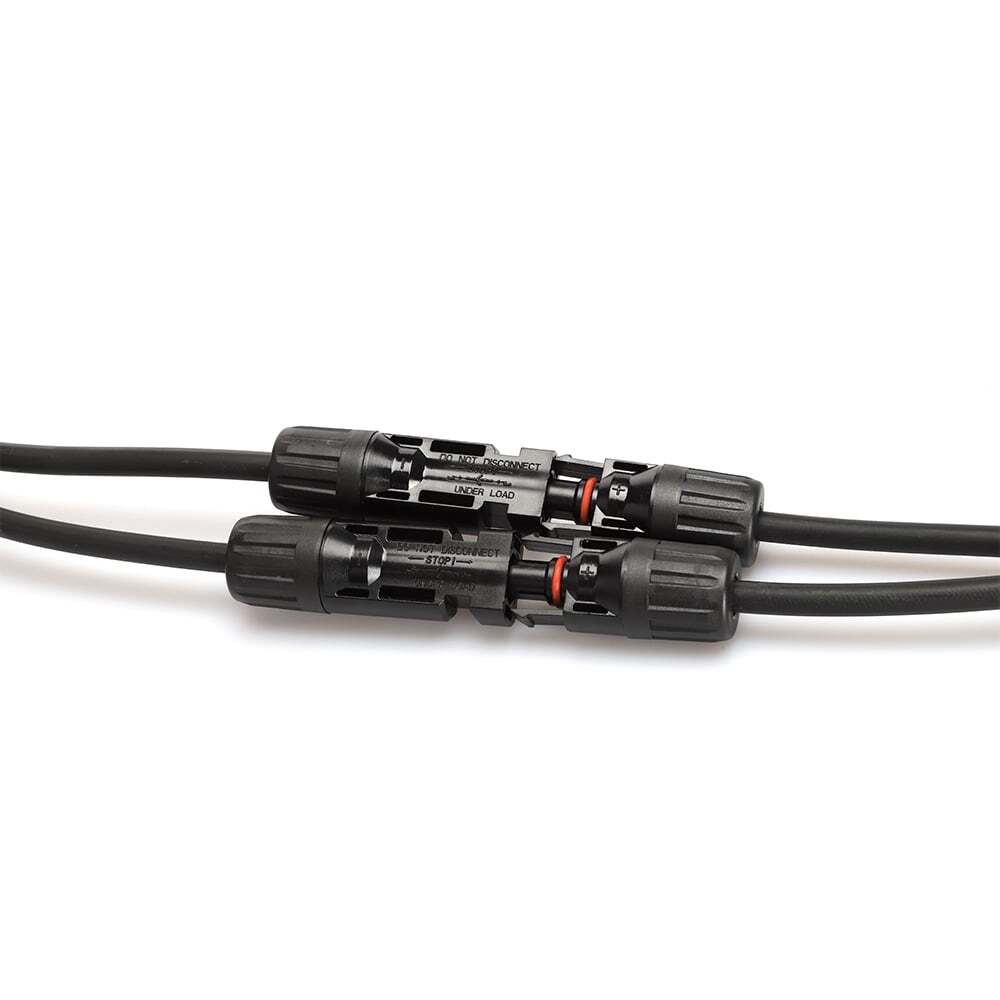

When mated, the connectors achieve an IP67 waterproof and dustproof rating, with a snap-in locking system and UL94-V0 flame class rating for added safety.

Key Features

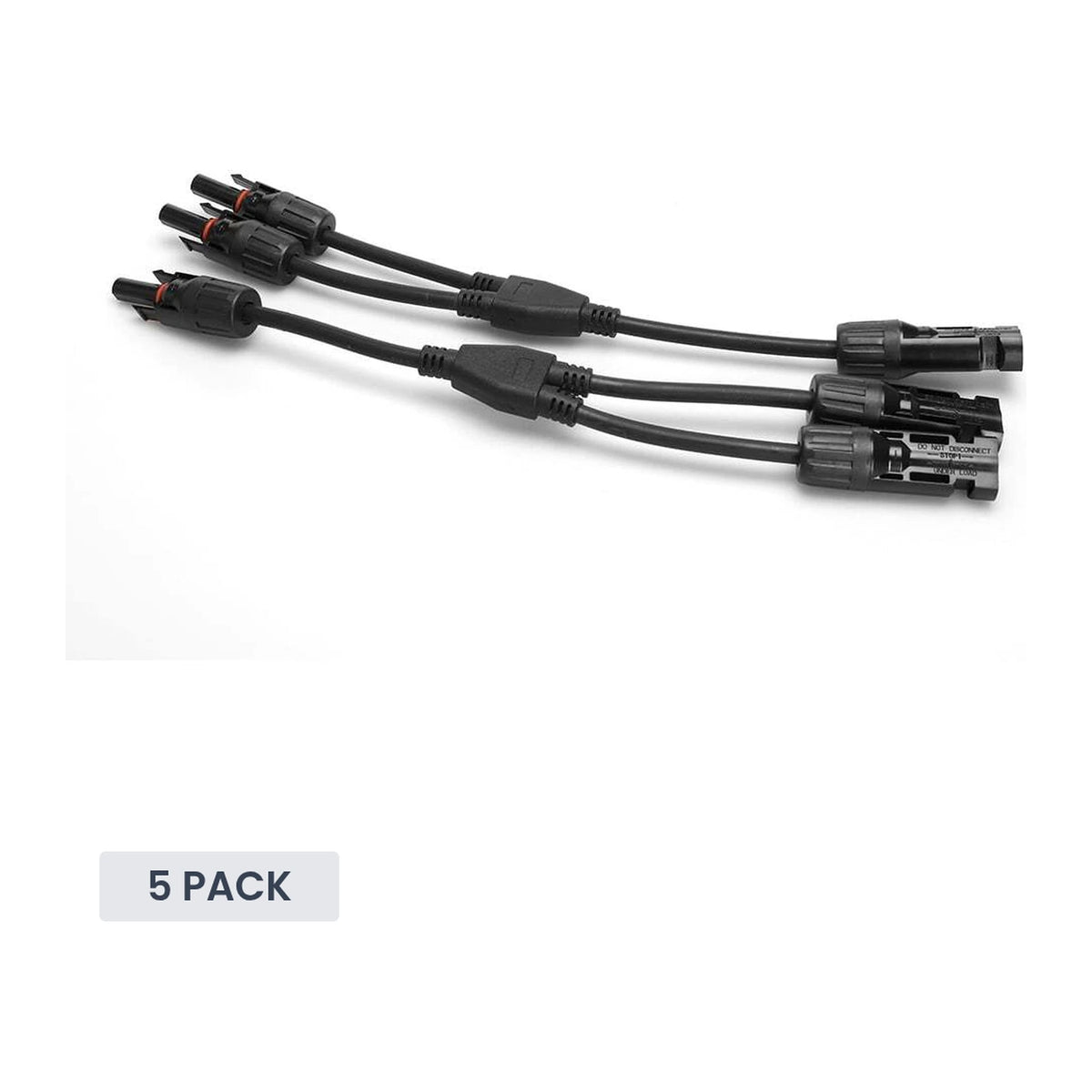

• 5 identical 2 to 1 'Y' branch connector pairs
• Combines two solar panels in parallel into one output
• Tinned copper contacts with 0.5 mΩ contact resistance
• IP67 mated protection against water and dust
• Rated to 1000V DC and up to 30A
• PC/PA insulation rated -40°C to +85°C; UL94-V0 flame class
• Suits 1.5mm² to 6mm² solar cable; MC4-compatible

Specifications
