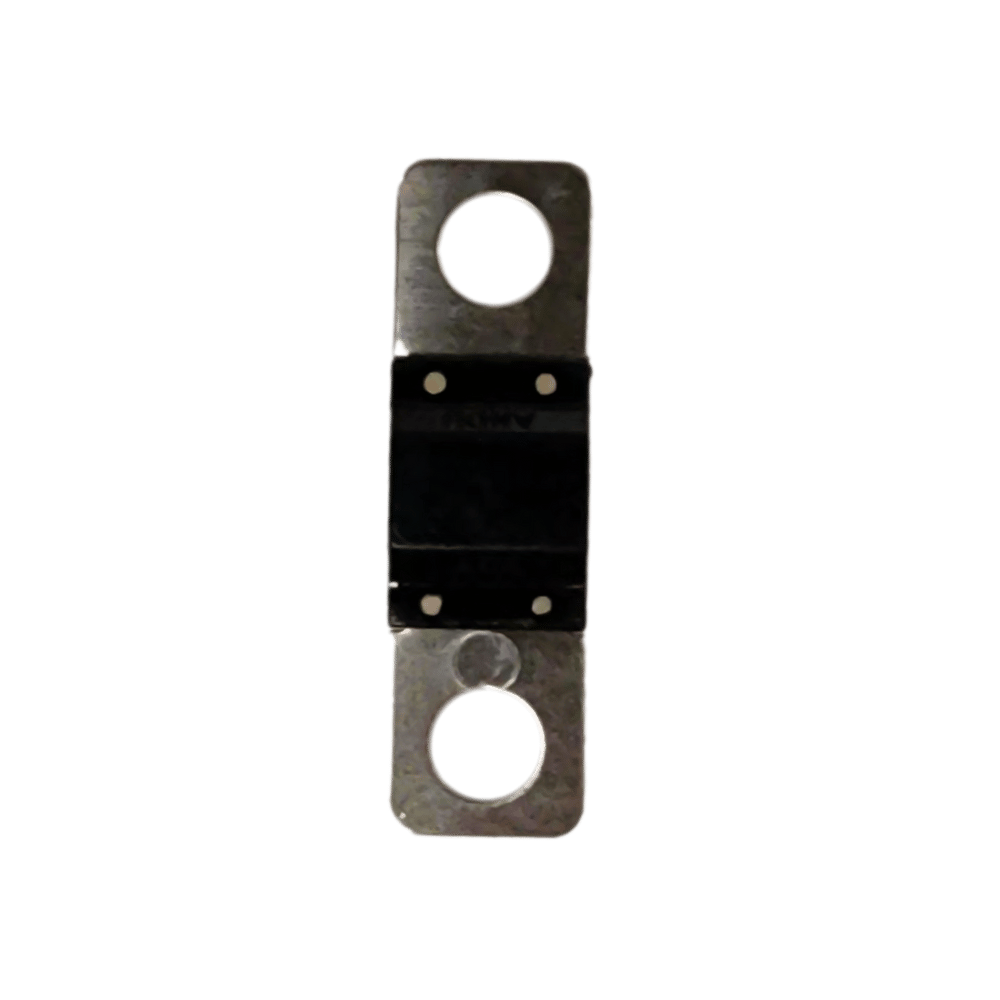

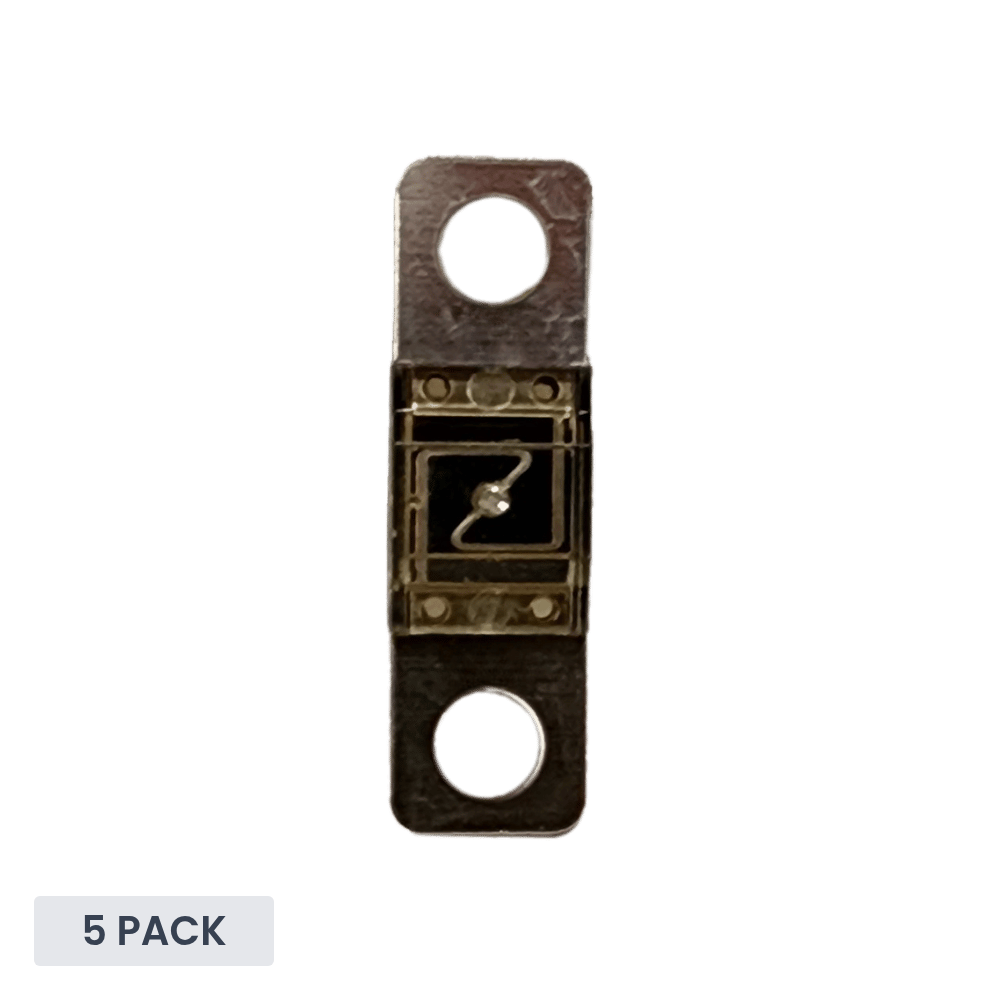

Exotronic - 200A - M6 Midi/AMI/ANS Fuse (Pack of 5)

Exotronic 200A M6 Midi/AMI/ANS Fuse - Pack of 5

M6-Mount Overcurrent Protection for 12V, 24V and 48V DC Circuits

This pack contains 5 identical 200A Midi/AMI/ANS fuses, the M6 mounting version of Exotronic's Midi-style fuse range, kept separate from the standard M5 range. Keeping matched spares on hand is good practice for DC installations, since a blown fuse should always be replaced with one of the same rating. The fuse carries a 72V DC voltage rating, giving it enough headroom for 12V, 24V and 48V battery systems, with an interrupt rating specified separately as 2000A at 58V DC.

The M6 mounting holes distinguish this fuse from the standard MIDI version - check your fuse holder's mounting size before ordering replacements. Tin-plated copper-alloy terminals keep contact resistance low, while the nylon housing includes a viewing window over the fuse element so you can check its condition without a multimeter.

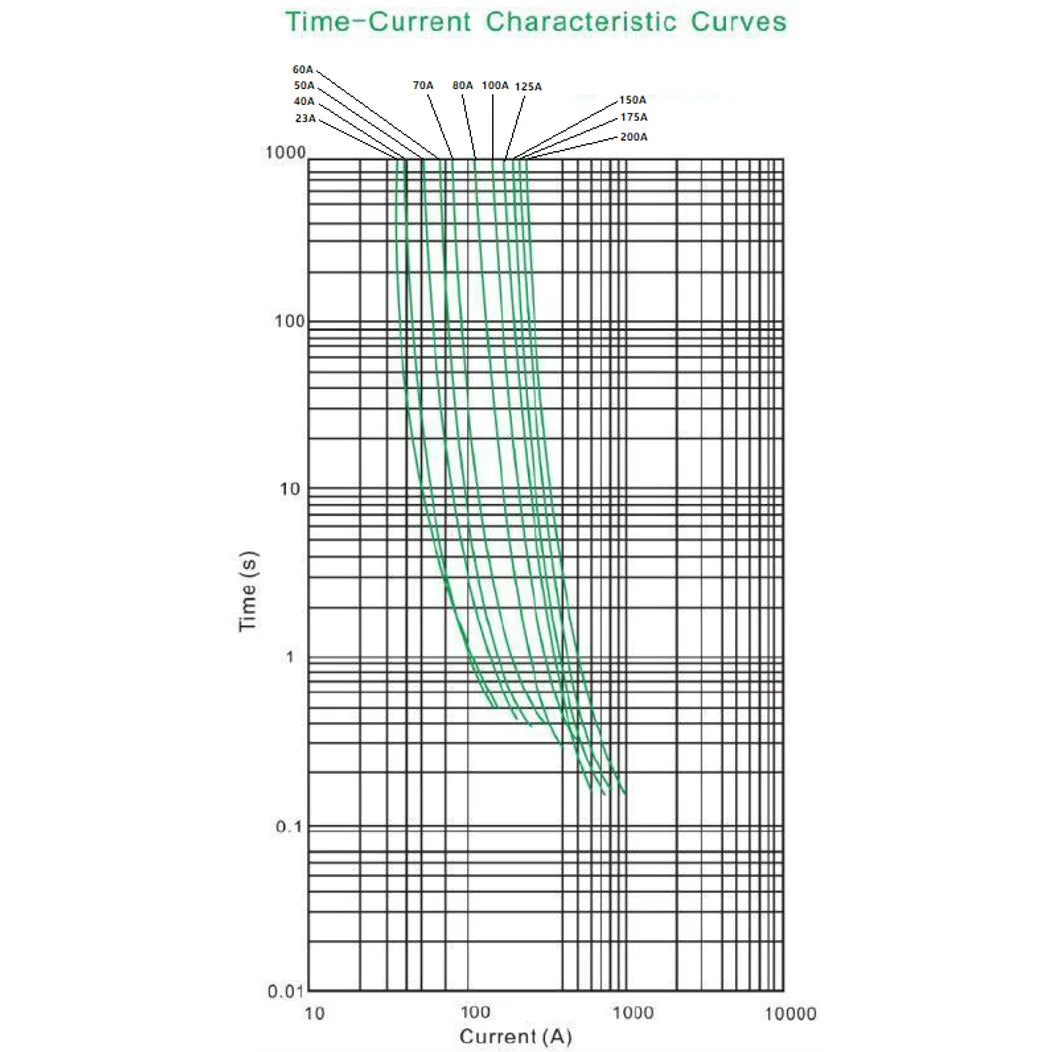

Every fuse in the pack shares the same 200A rating - this is not an assorted pack of different amperages, so use the 200A rating and its time-current characteristics when sizing protection for your circuit.

Key Features

• 5 x 200A M6 Midi/AMI/ANS fuses, all the same rating, for spares and multi-circuit installations
• 72V DC voltage rating, suiting 12V, 24V and 48V DC systems
• 2000A at 58V DC interrupt rating for safe fault clearing on high-current circuits
• Tin-plated copper-alloy terminals for low-resistance, corrosion-resistant connections
• Nylon housing with viewing window for quick visual inspection of the element

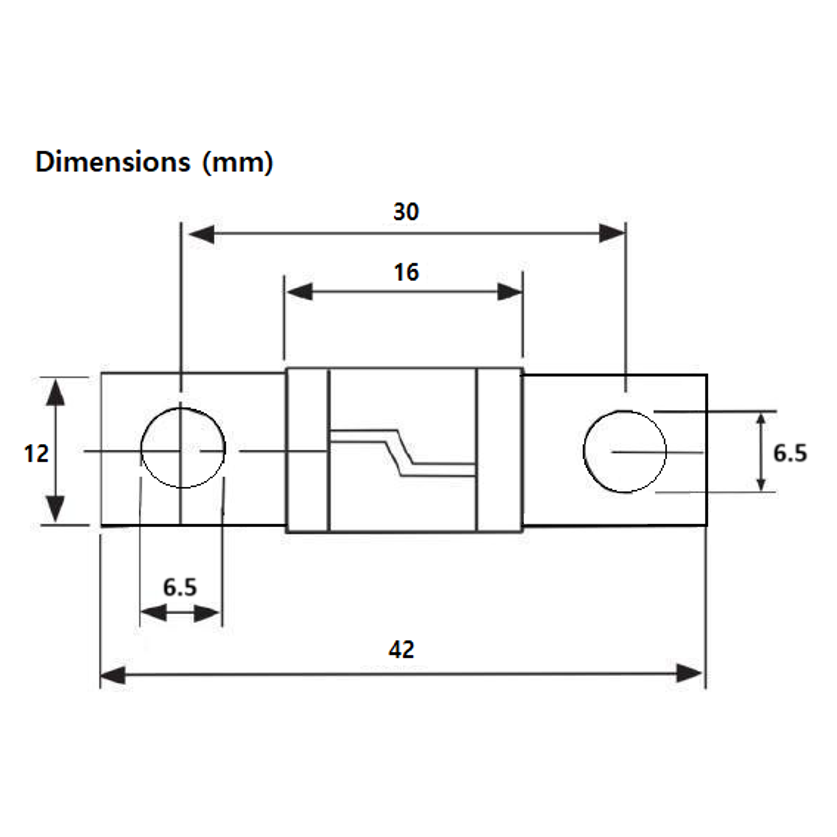

• M6 mounting with 30mm mounting hole spacing, kept separate from the standard M5 range

Specifications
