Exotronic - 300A - ANL Fuse (Pack of 5)

Exotronic 300A ANL Fuse - Pack of 5

Bulk-Ready Overcurrent Protection for 12V, 24V and 48V DC Systems

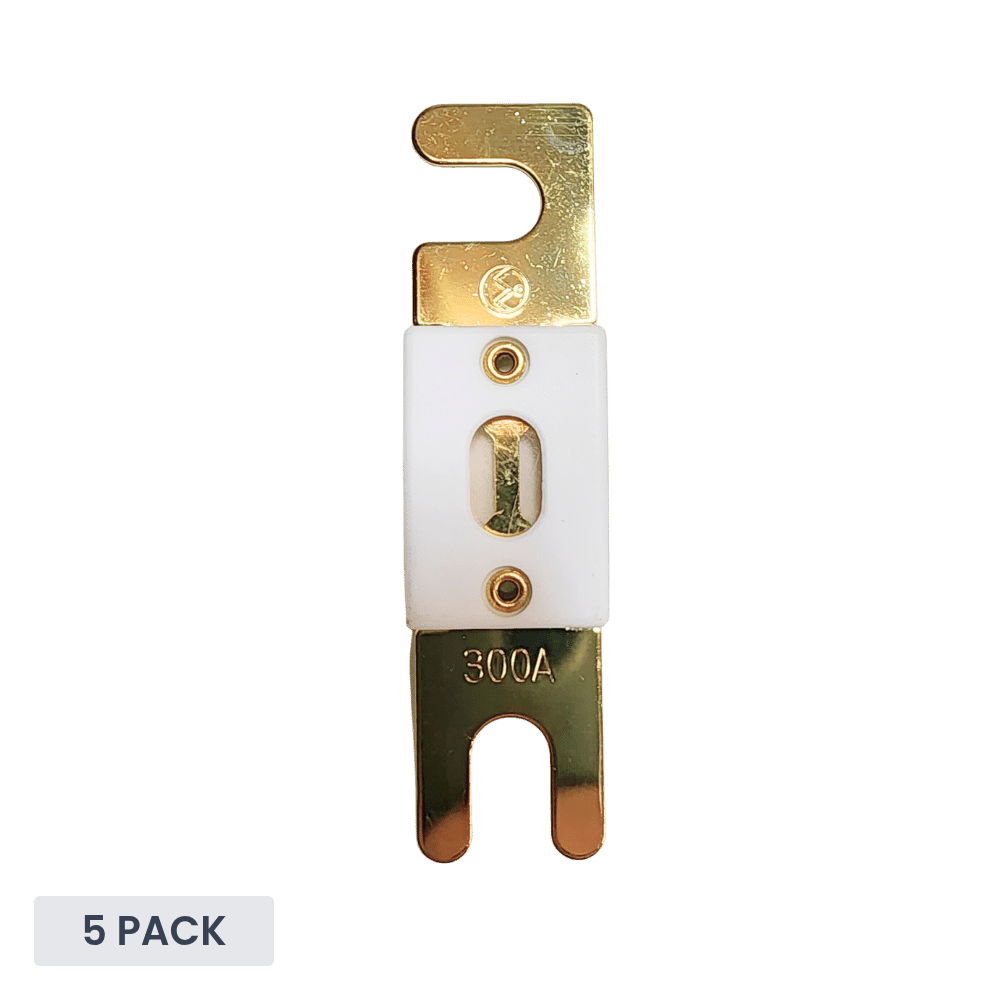

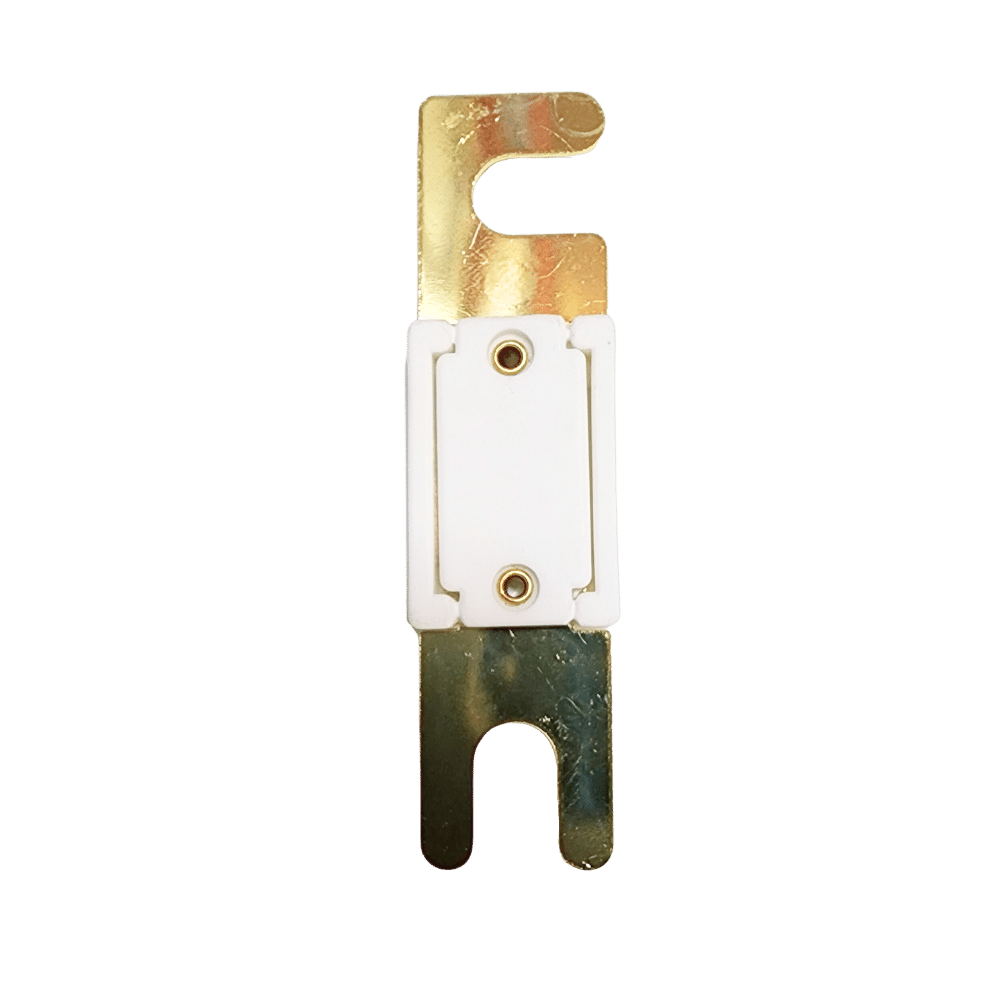

This pack contains 5 identical 300A ANL fuses, Exotronic's bolt-on, slide-on/off style fuse for high-current DC circuits. The fuse carries a 125VDC voltage rating, giving it headroom for 12V, 24V and 48V battery systems, with a breaking capacity specified separately as 6000A at 58VDC.

Gold-plated copper alloy terminals provide low-resistance, corrosion-resistant connections, while the ceramic housing gives high heat resistance across a wide -32C to 125C operating temperature range. The bolt-on, slide on/off design lets the fuse be swapped without removing the mounting nuts.

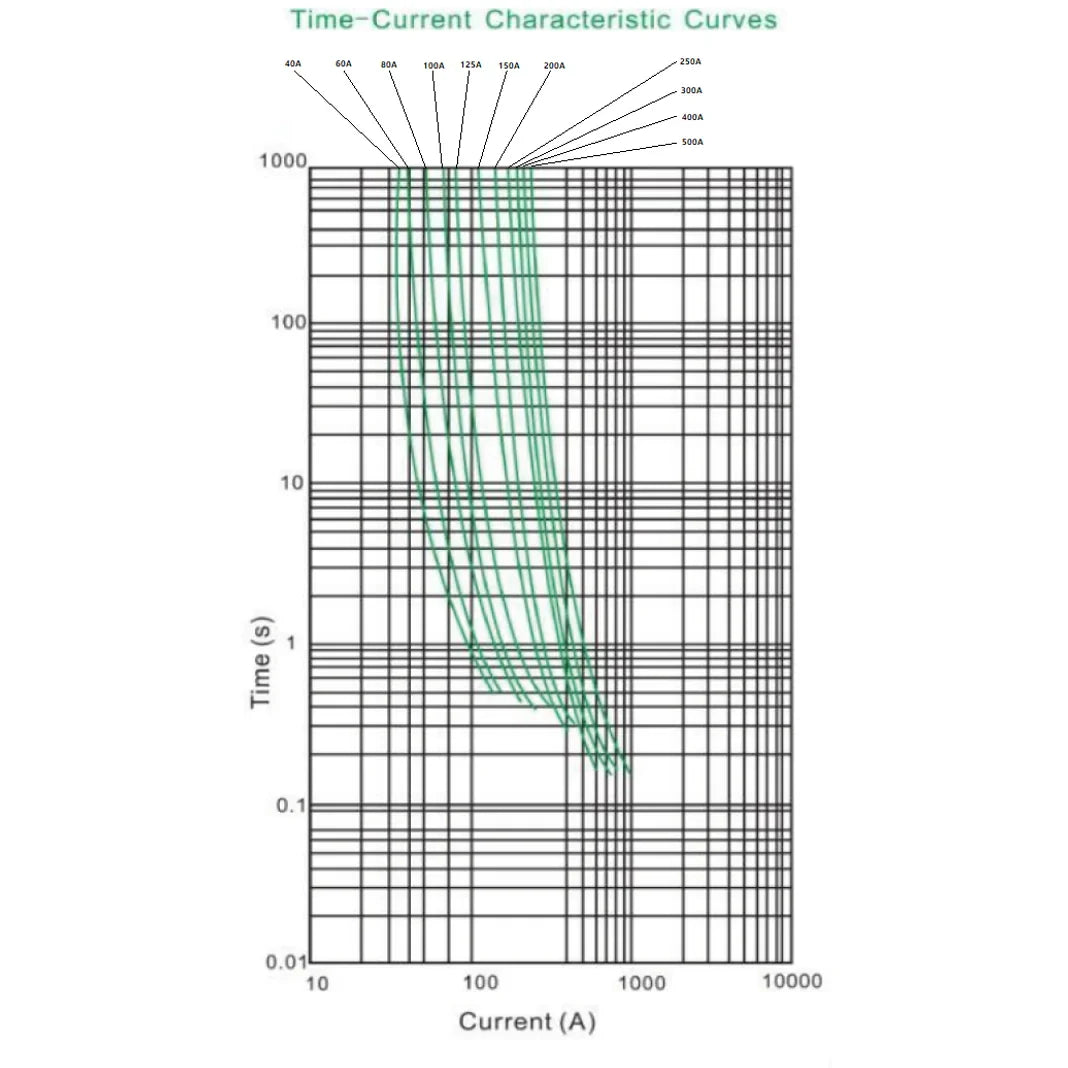

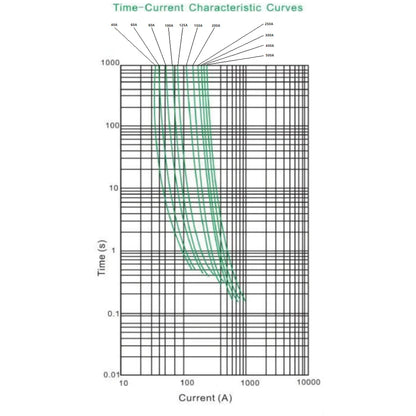

Every fuse in this pack shares the same 300A rating - this is not an assorted pack of different amperages, so use the 300A rating and its time-current characteristics when sizing protection for your circuit.

Key Features

• 5 x 300A ANL fuses, all the same rating, for spares and multi-circuit installations
• 125VDC voltage rating, suiting 12V, 24V and 48V DC systems
• 6000A at 58VDC breaking capacity for reliable overcurrent protection
• Gold-plated copper alloy terminals for low-resistance, corrosion-resistant connections
• Ceramic housing for heat resistance and durability
• Bolt-on, slide on/off design for straightforward installation and replacement

Specifications
