Exotronic - 300A - Black 3 Position (OFF/1/2) Battery Selector Switch

Exotronic 300A Black 3-Position (OFF/1/2) Battery Selector Switch

Simple Control for Two Battery Banks

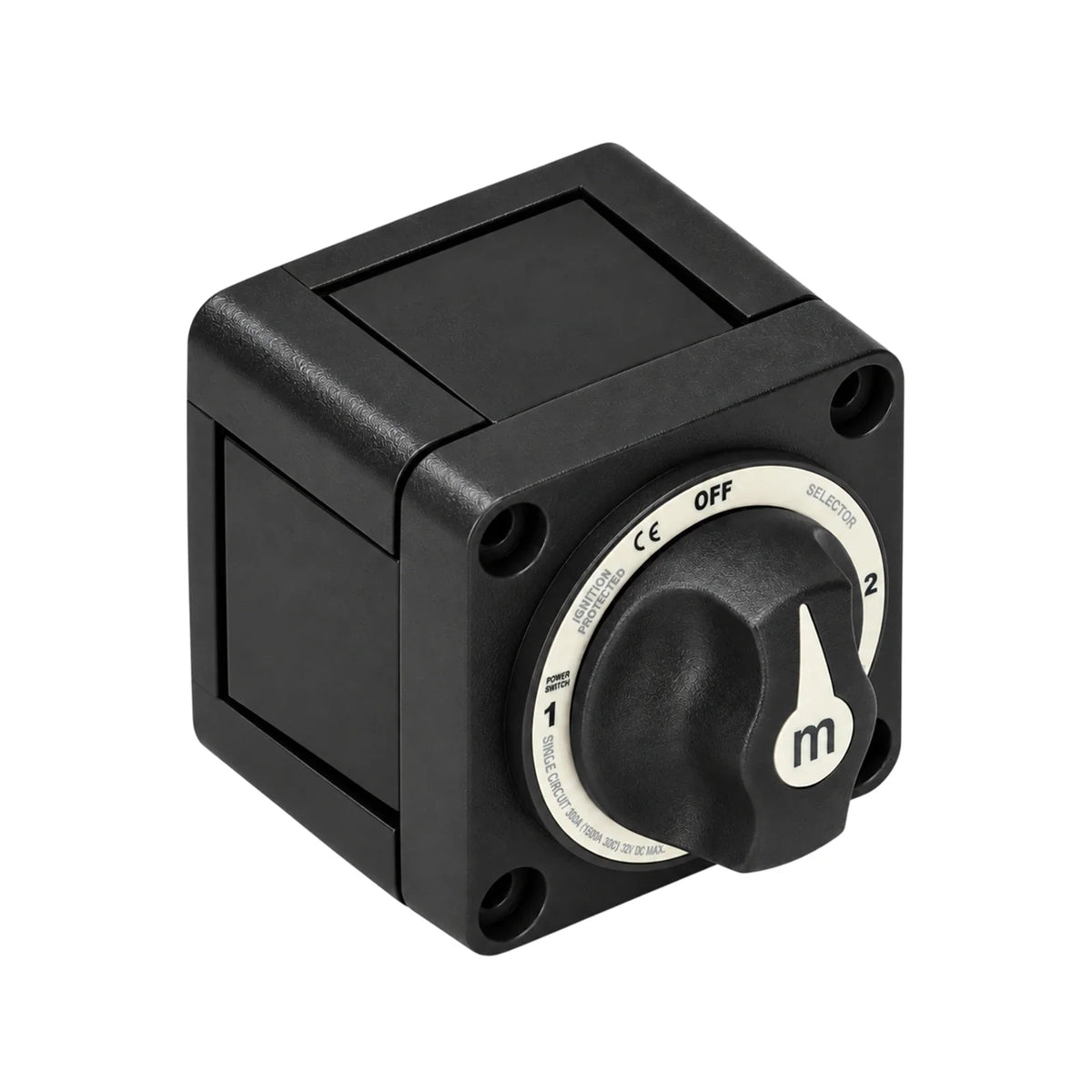

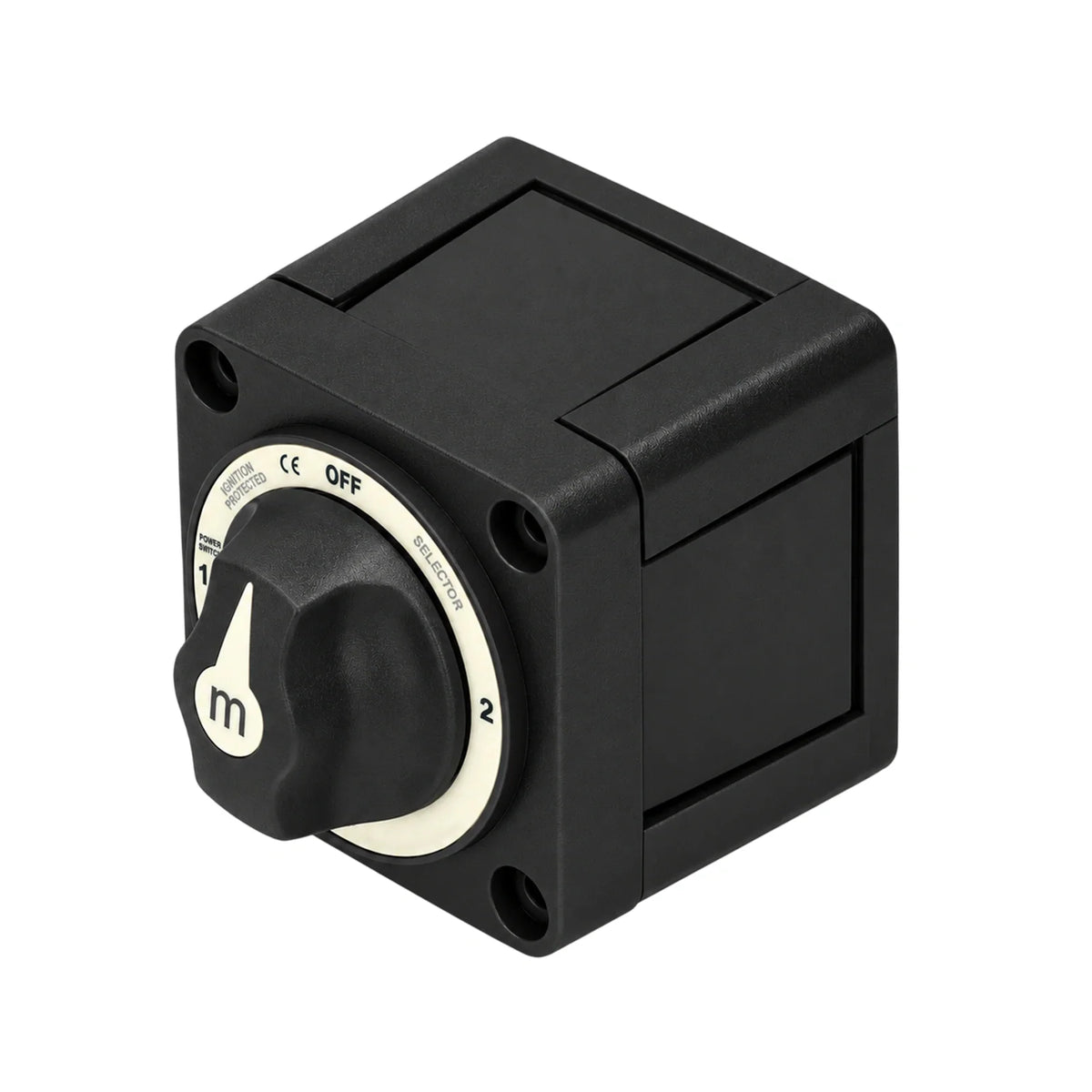

The Exotronic 300A Black Battery Selector Switch lets you choose which of two battery banks supplies a connected load. Its three clearly marked positions give you direct manual control in a compact format suited to boats, caravans and 4WDs.

Rated for 300A continuous and 900A peak (30s), with a maximum operating voltage of 48V, it suits high-current DC systems. The 3/8" (M10) terminal studs accept heavy-duty lugs on heavy-gauge battery cable.

Three Positions for Straightforward Switching

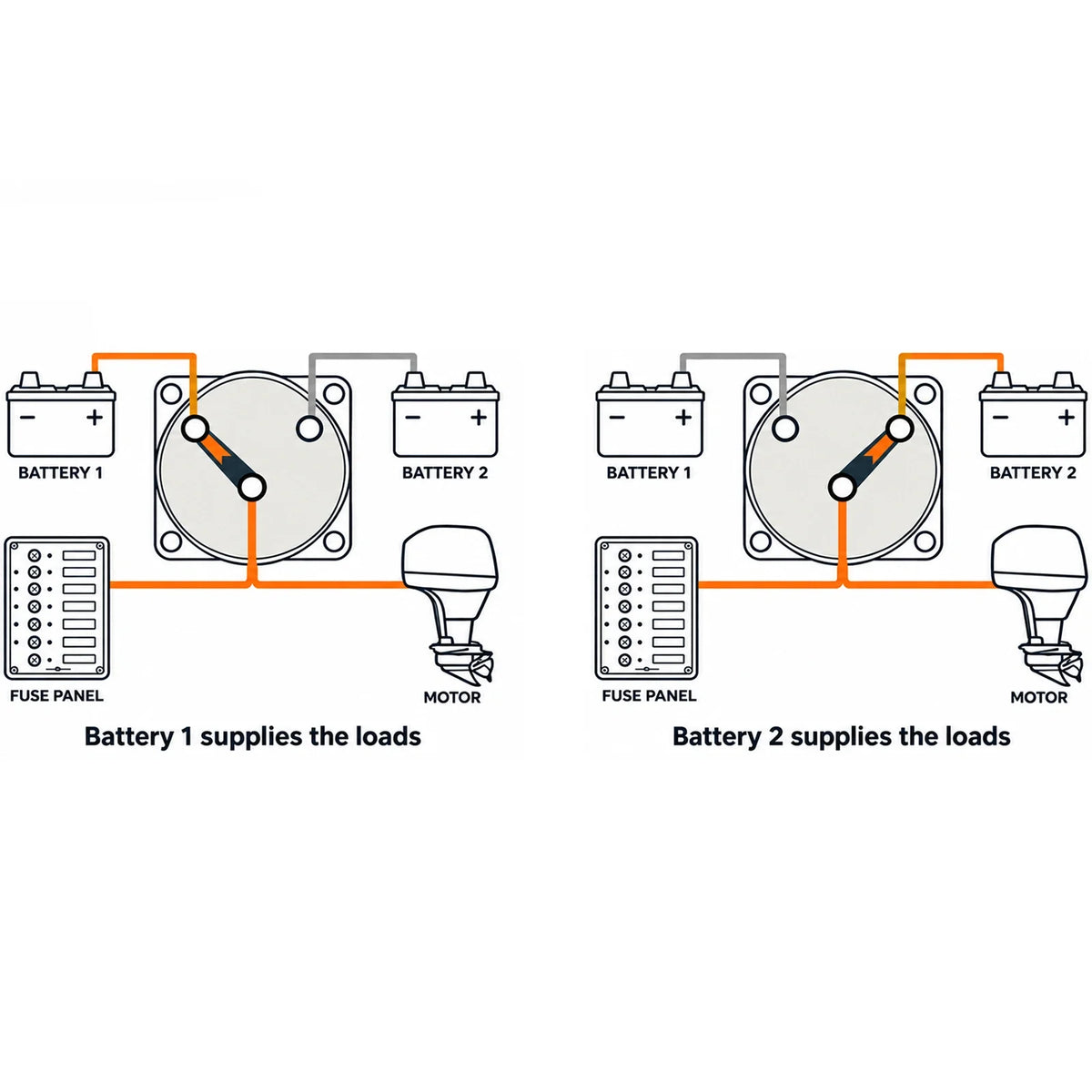

• OFF: Disconnects both batteries from the switch's common output.
• 1: Connects Battery 1 to the common output.
• 2: Connects Battery 2 to the common output.

This switch selects one battery bank at a time. It has no battery combine position, making it suitable for systems where the two banks need to remain separate at the selector switch.

Built for Marine and Mobile Installations

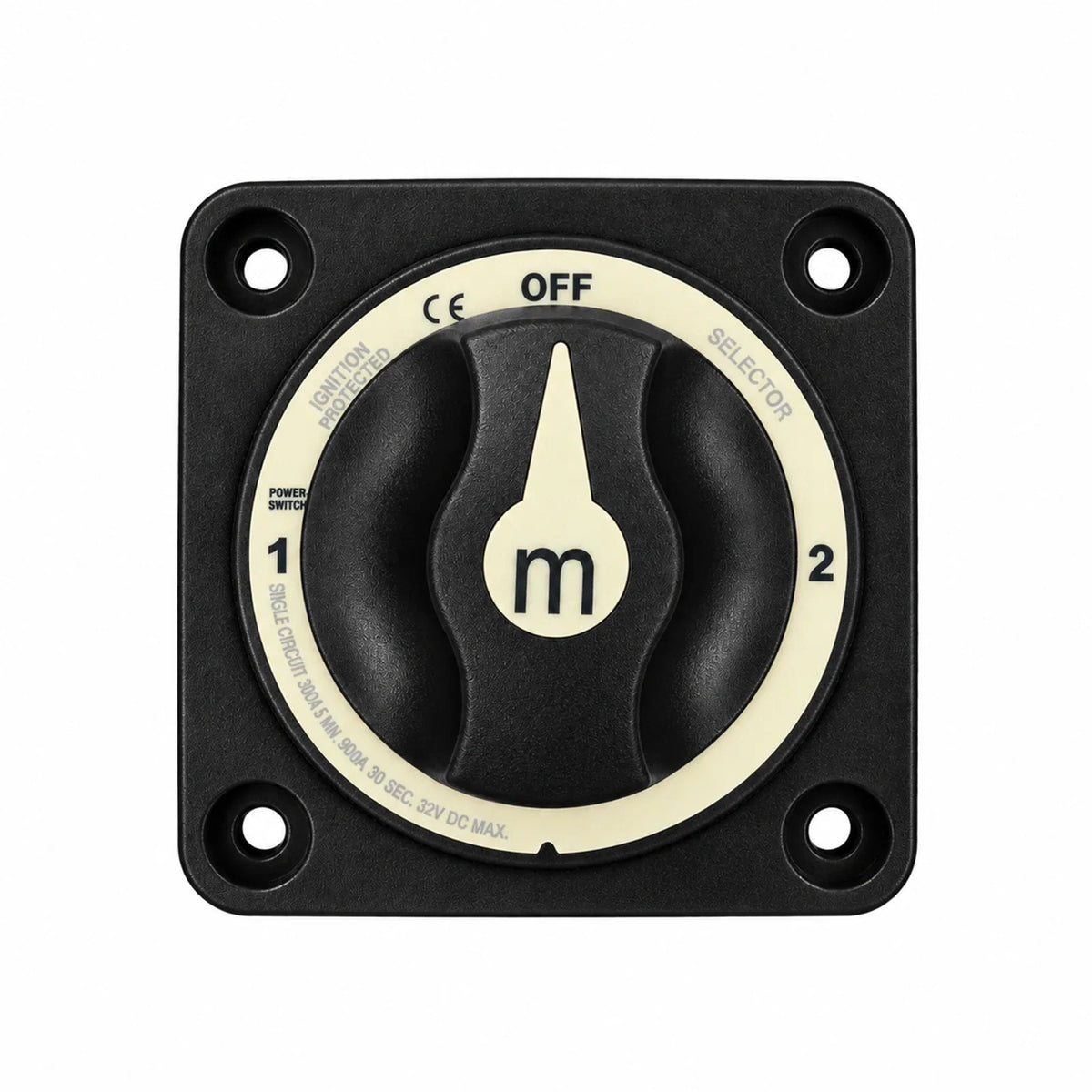

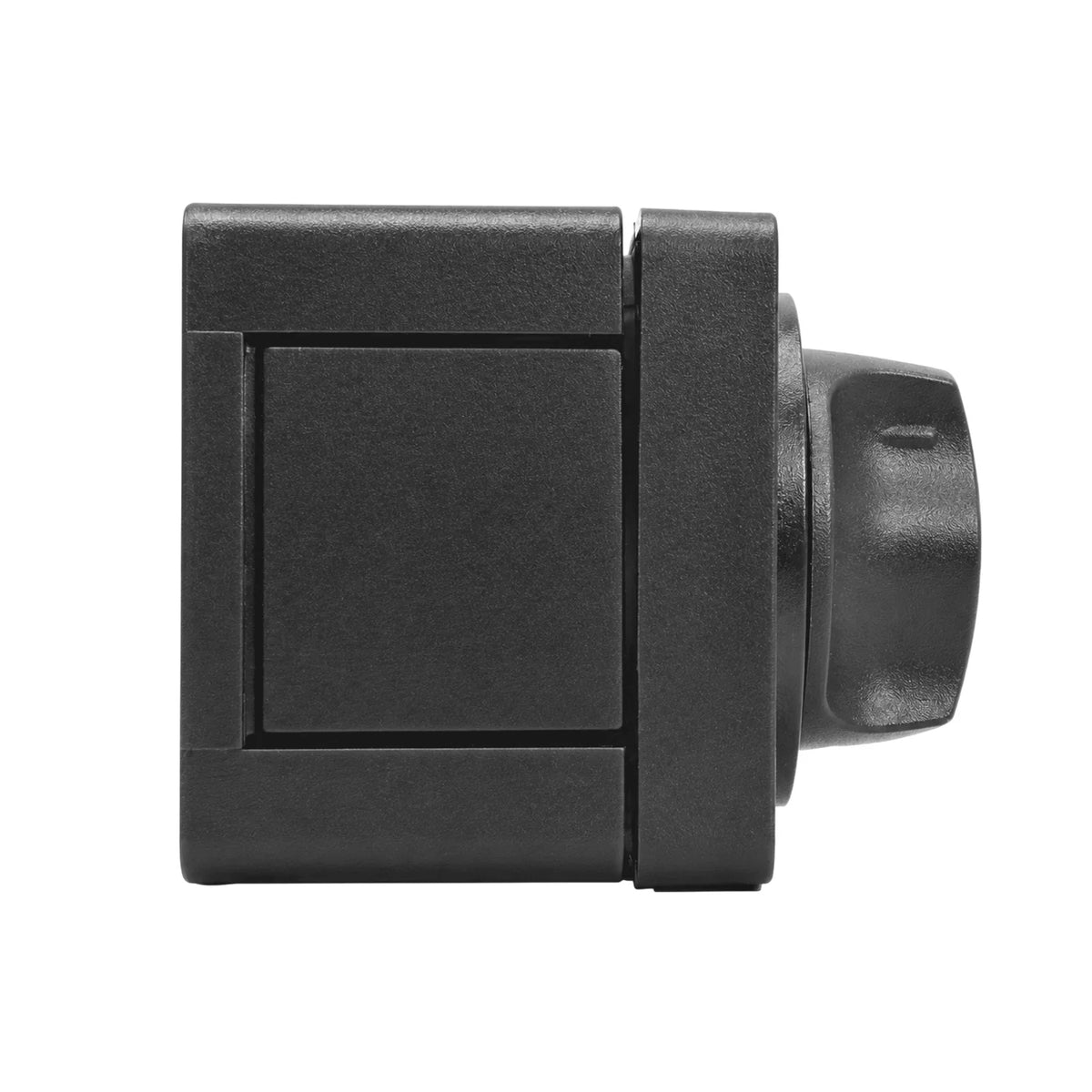

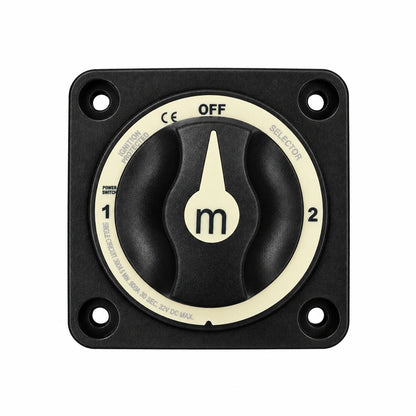

The switch is ignition protected, making it suitable for appropriate marine installations where flammable vapours may be present. It carries an IP66 rating, and its compact design provides accessible battery control without taking up unnecessary space in a boat, caravan or 4WD electrical setup. The clearly marked black rotary knob makes it easy to see which position is selected.

Key Features

• Three switch positions: OFF, 1 and 2
• High Current Capacity: 300A continuous and 900A peak (30s) rating
• Ignition Protected: Suitable for appropriate marine installations
• Weatherproof Construction: IP66 rating

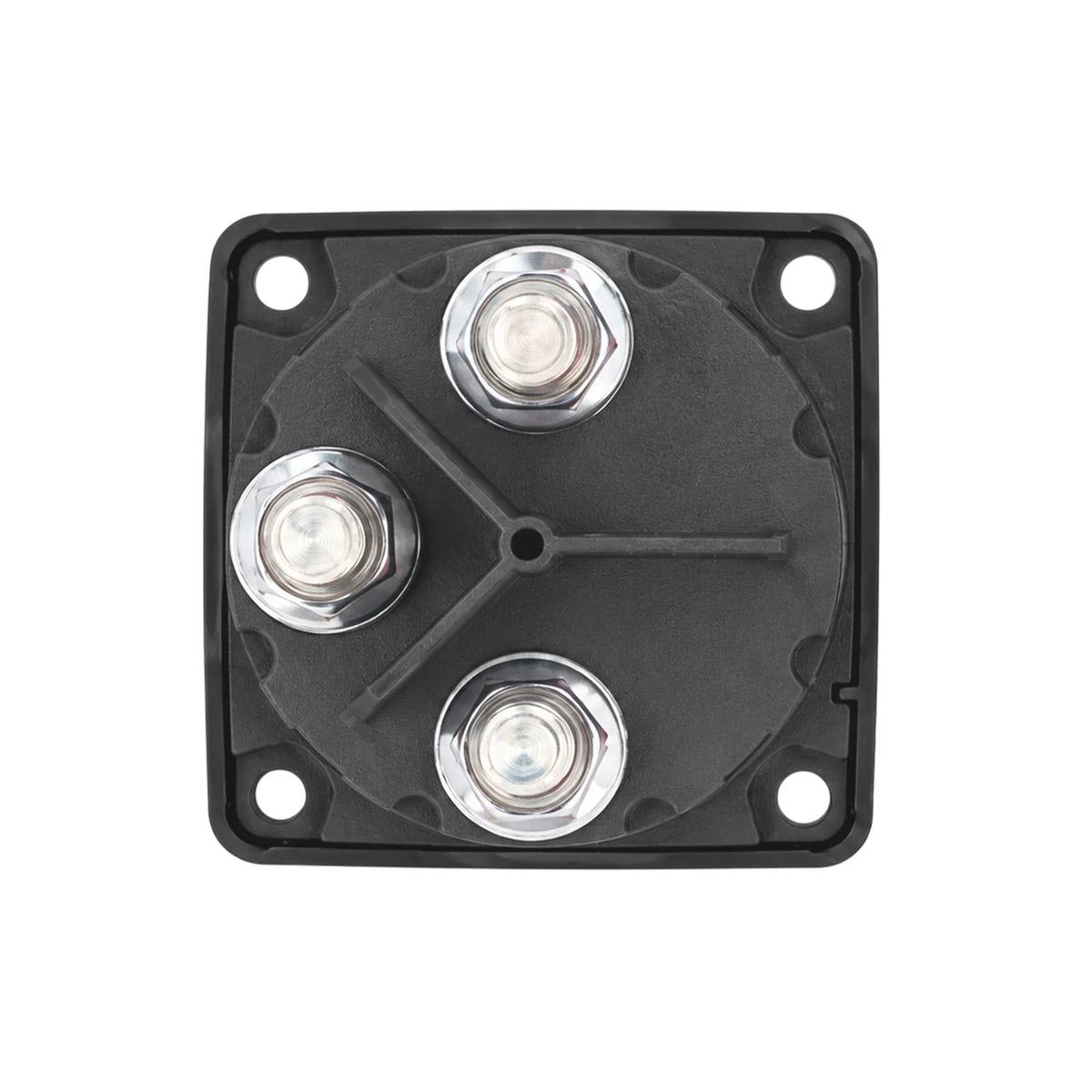

• Robust Terminals: 3/8" (M10) threaded studs
• No combine position: Keeps the battery banks separate at the switch
• Black rotary knob: Clear position markings for easy operation

What's Included

• 1x Exotronic 300A Black 3-Position Battery Selector Switch

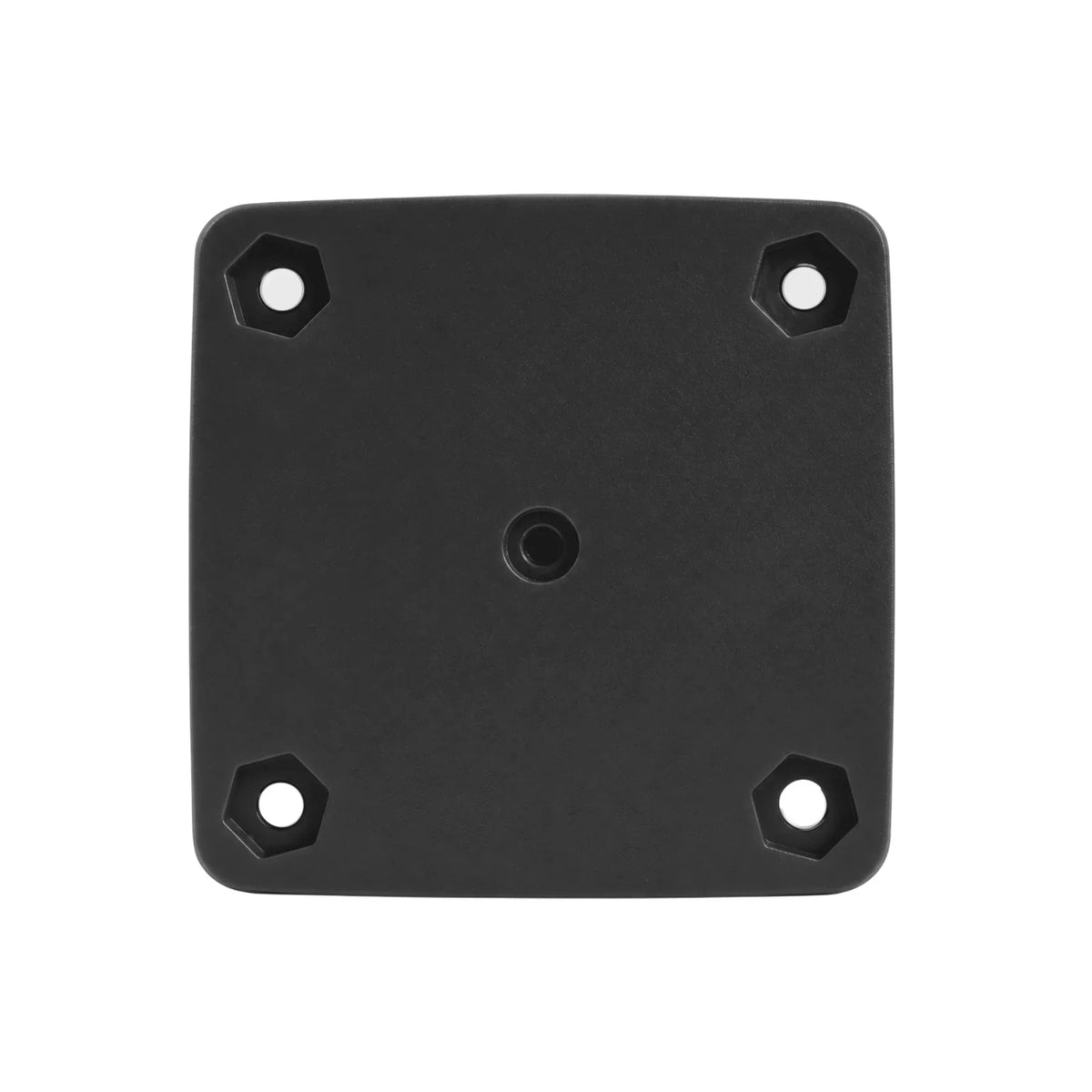

• 4x mounting screws

Take Control of Your Power

Choose Battery 1 or Battery 2 when you need it, then turn the connected output off when it's time to isolate it. The Exotronic 300A Black 3-Position Battery Selector Switch offers straightforward manual control for a well-planned dual battery system.
