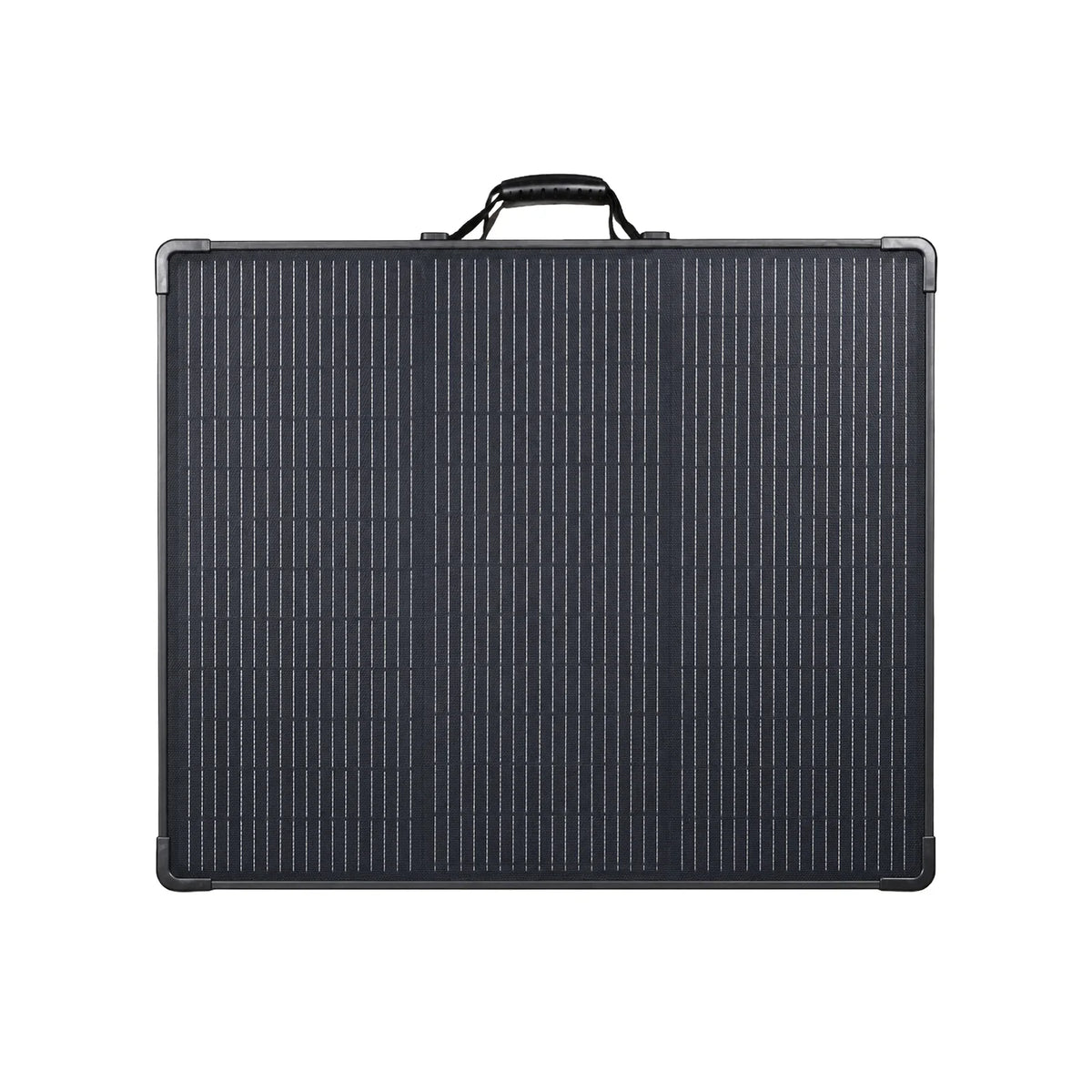

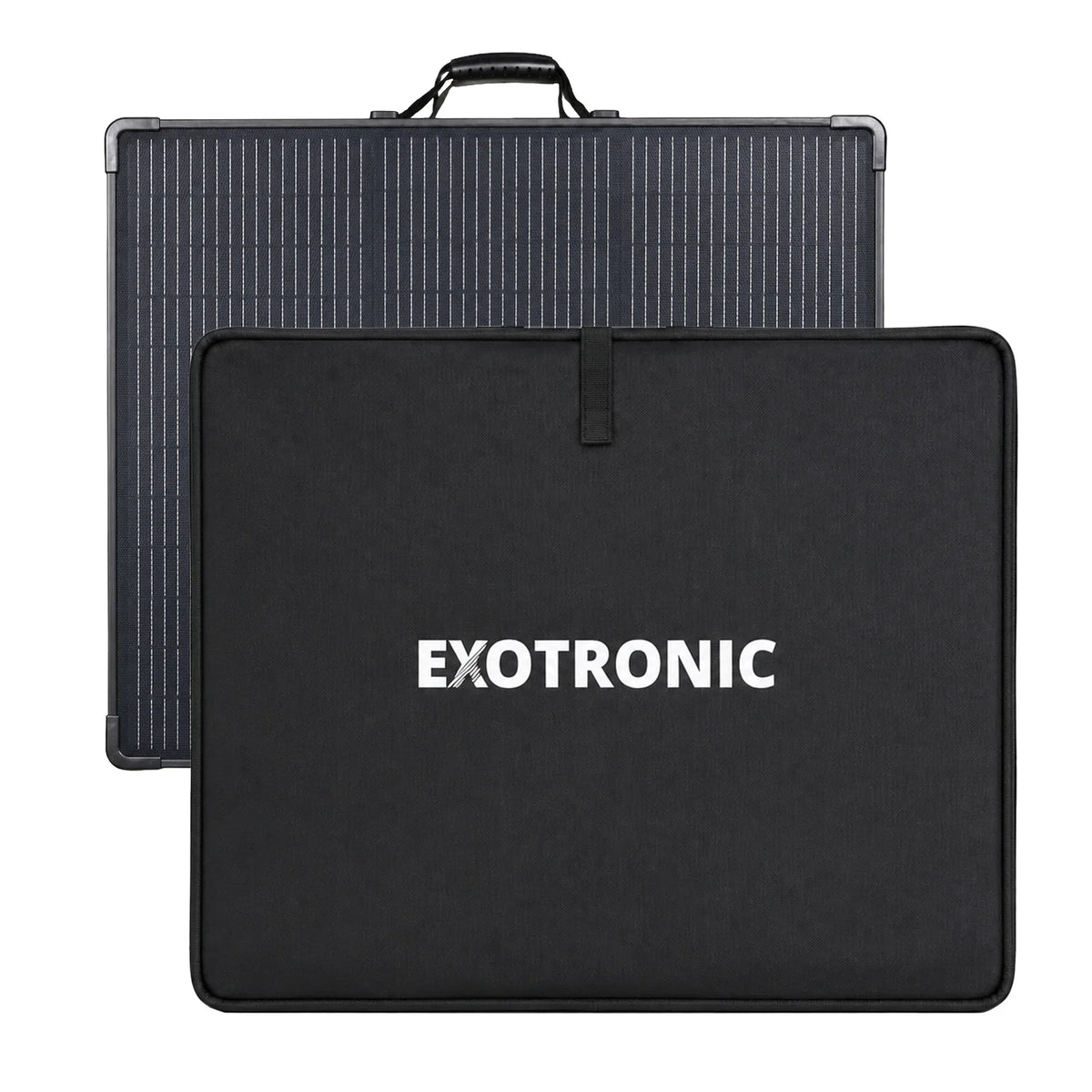

Exotronic 300W Fusion Ultra-Light Folding Solar Panel
N-Type TOPCon Portable Power for Caravans, Camping and 4WD Touring
The Exotronic 300W Fusion Ultra-Light Folding Solar Panel uses N-Type TOPCon solar cells rated at 25.6% cell efficiency, built from four 75W folding modules in a compact briefcase-style design. Exotronic states TOPCon technology gives higher efficiency, better low-light performance and lower long-term degradation than conventional P-type monocrystalline or PERC cells.

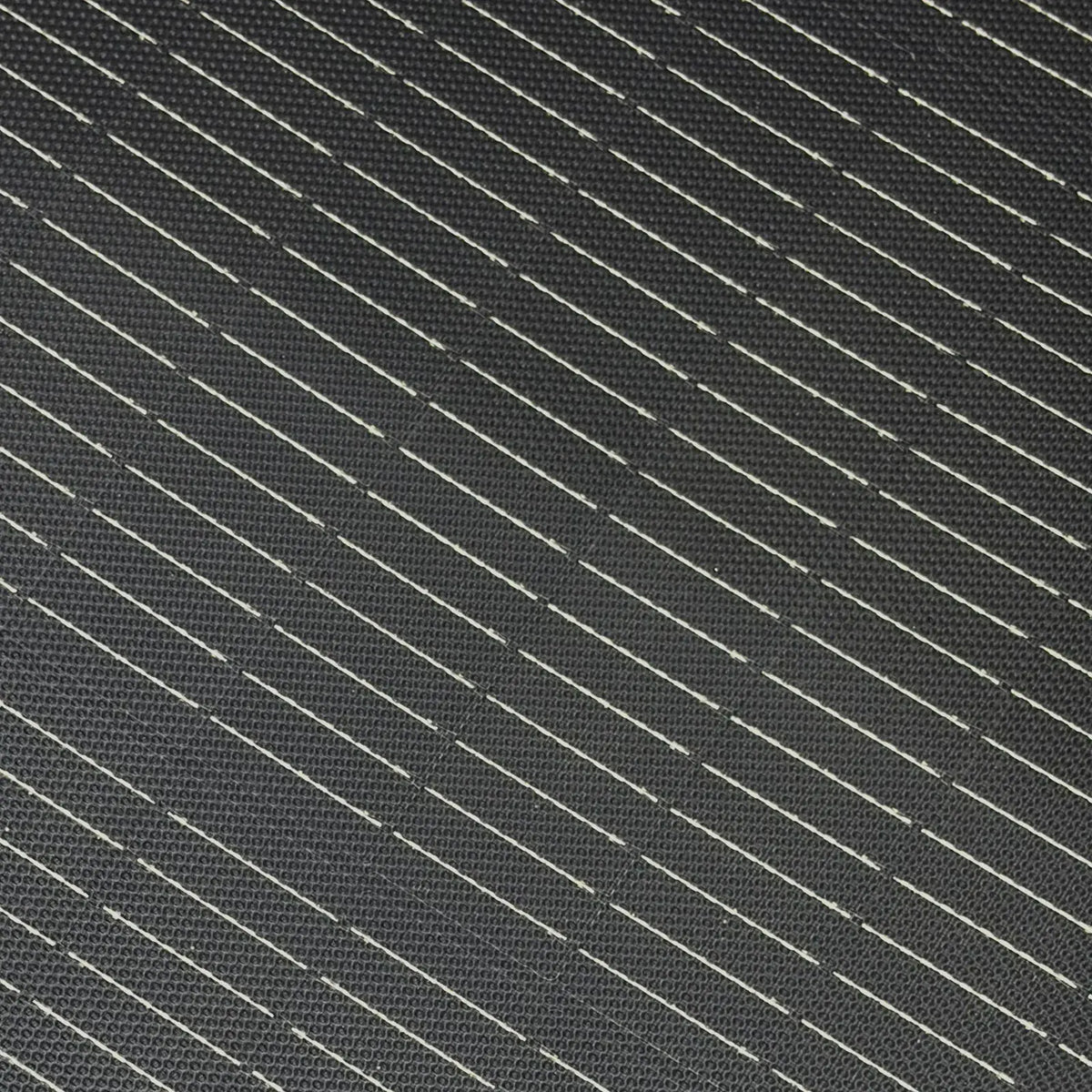

Instead of the tempered glass used on many folding panels, this model uses a durable ETFE laminated surface, cutting weight to just 8.7kg - Exotronic states this is around 50% lighter than a conventional briefcase-style folding panel of similar output. An ultra-light reinforced backplate sits behind the cells to reduce flex during transport and setup, which Exotronic says helps guard against the micro-cracking that causes premature output loss in portable panels.
This panel is sold without a solar charge controller, so you will need a separately fused MPPT or PWM controller sized to the panel's output before connecting it to a battery.
Key Features
- 300W rated output from N-Type TOPCon cells rated at 25.6% efficiency

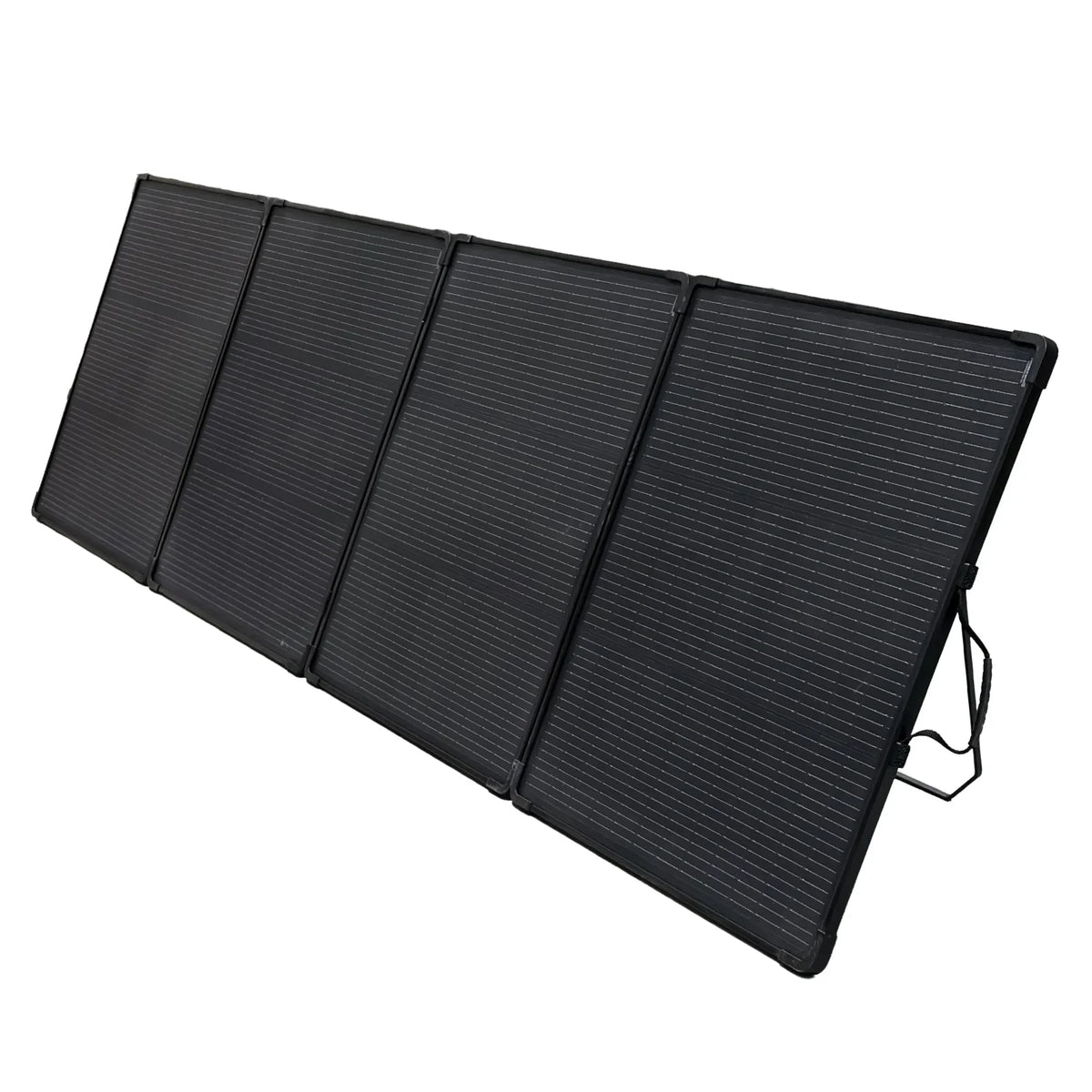

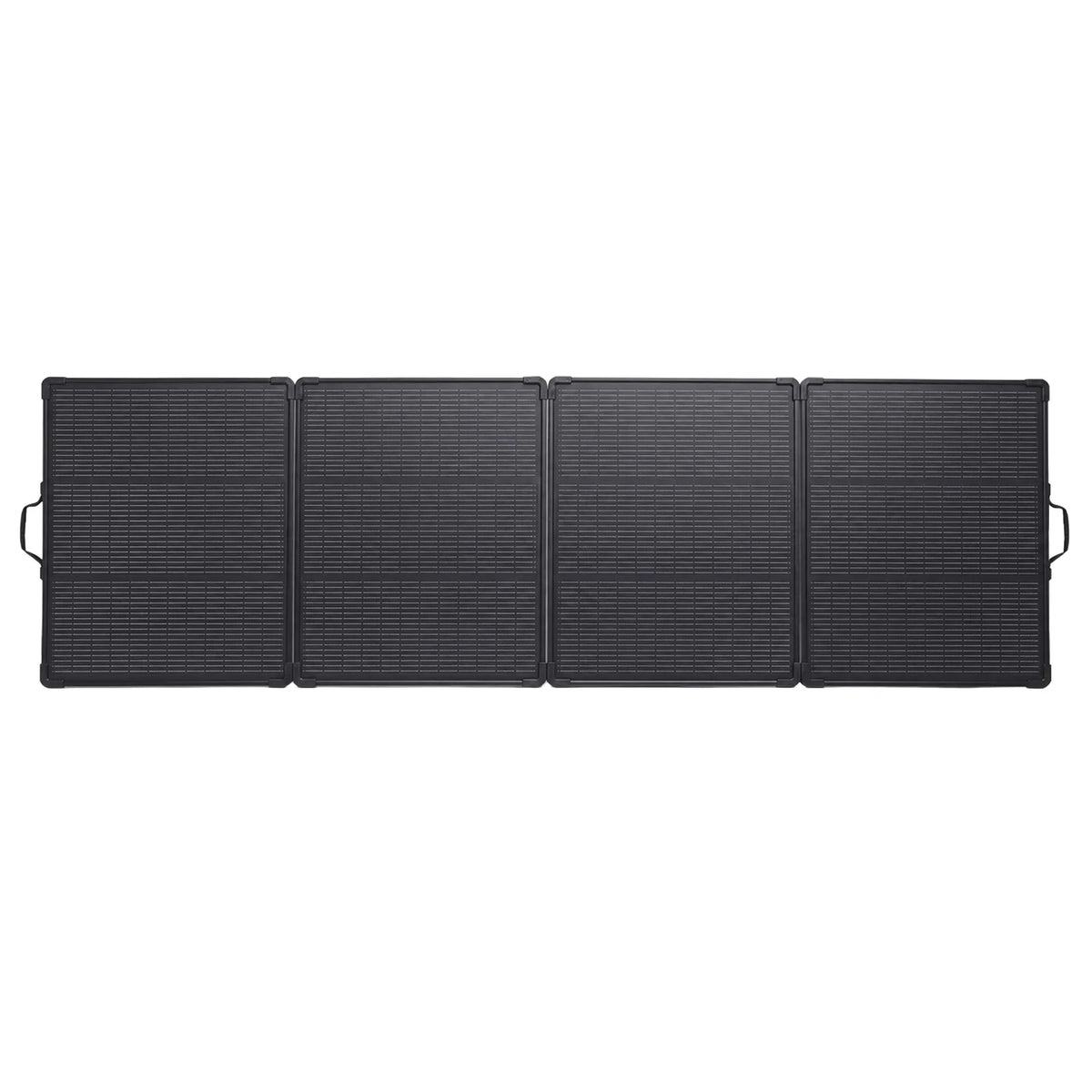

- Four 75W folding modules in a compact briefcase-style design
- Ultra-lightweight ETFE construction - just 8.7kg
- Ultra-light reinforced backplate to reduce cell flex and micro-cracking risk
- Wide -40°C to +85°C operating range for harsh Australian conditions
- No charge controller included - pair with a suitably rated MPPT or PWM controller
Specifications
| Model | Exo-FPL-TCN-300 |
|---|---|
| Rated Power | 300W |
| Cell Type | N-Type TOPCon, 25.6% cell efficiency |
| Construction | Four 75W folding modules, briefcase-style |
| Vmp | 22.1V |
| Imp | 13.57A |
| Voc | 25.7V |
| Isc | 15.26A |
| Dimensions Folded | 560 x 670 x 80mm |
| Dimensions Unfolded | 2240 x 670 x 17mm |
| Weight | 8.7kg |
| Front Surface | ETFE laminate |
| Operating Temperature | -40°C to +85°C |
| Controller Included | No - sold without a solar charge controller |
