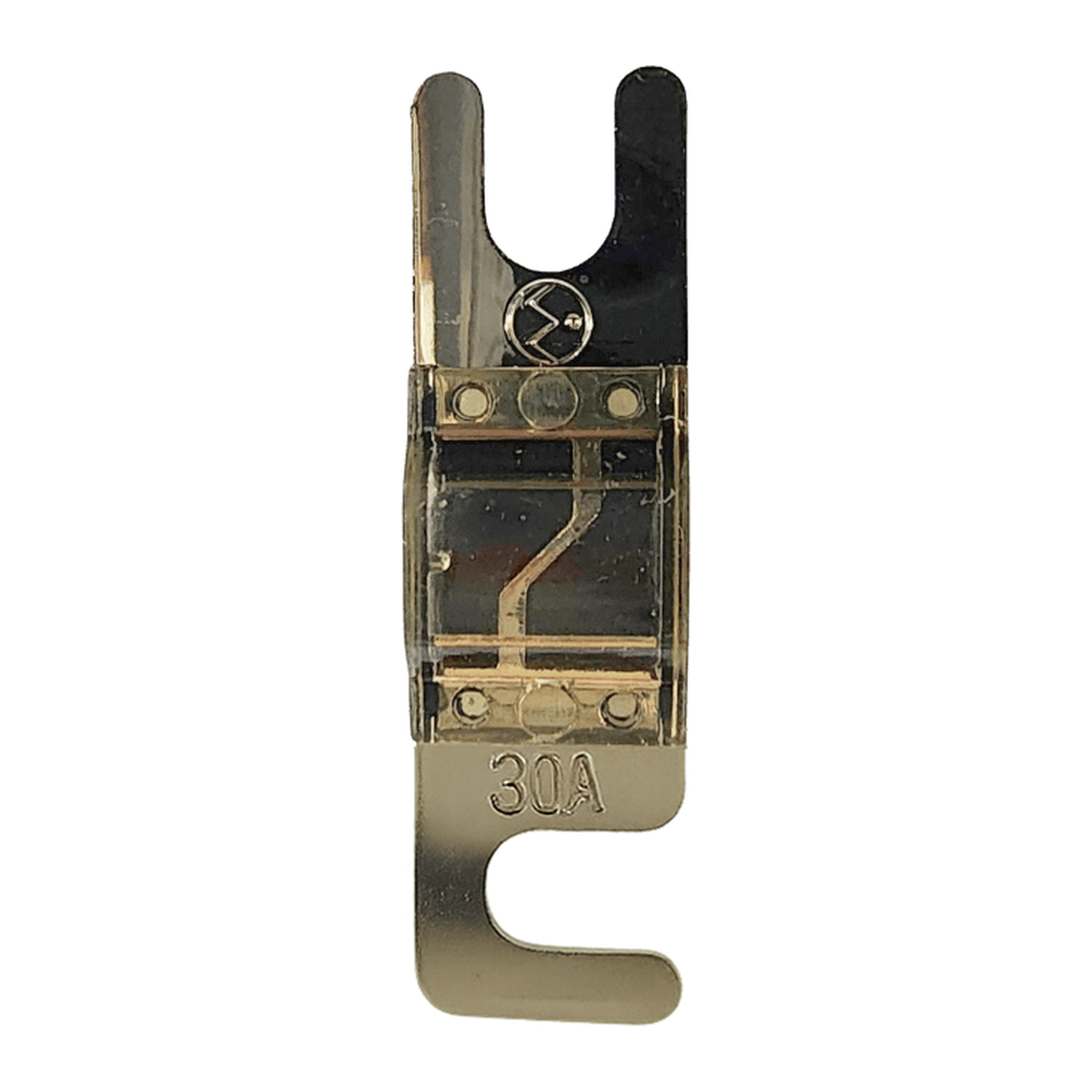

Exotronic - 30A - Midi/AMI/ANS Fuse

Dependable Circuit Protection for 12V, 24V, and 48V Systems

The Exotronic 30A Midi/AMI/ANS Fuse provides overcurrent protection for automotive, marine, RV and off-grid solar applications. It fits most standard Midi fuse holders and suits 12V, 24V or 48V electrical systems, with a 72VDC maximum voltage rating across the Exotronic Midi/AMI/ANS range.

Premium Materials for Low Resistance

The terminals are made from durable tin-plated copper alloy for good conductivity and corrosion resistance, an advantage for marine vessels, coastal 4x4 rigs and any environment prone to moisture. Exotronic Midi fuses feature low voltage drop and cold resistance for consistent performance in high-stress environments.

Rugged Construction and Instant Visual Inspection

The outer body is a durable nylon housing with an operating temperature range of -32C to 125C, and a transparent viewing window lets you check the internal element at a glance when troubleshooting a power loss.

Slide-On/Off Design for Quick Maintenance

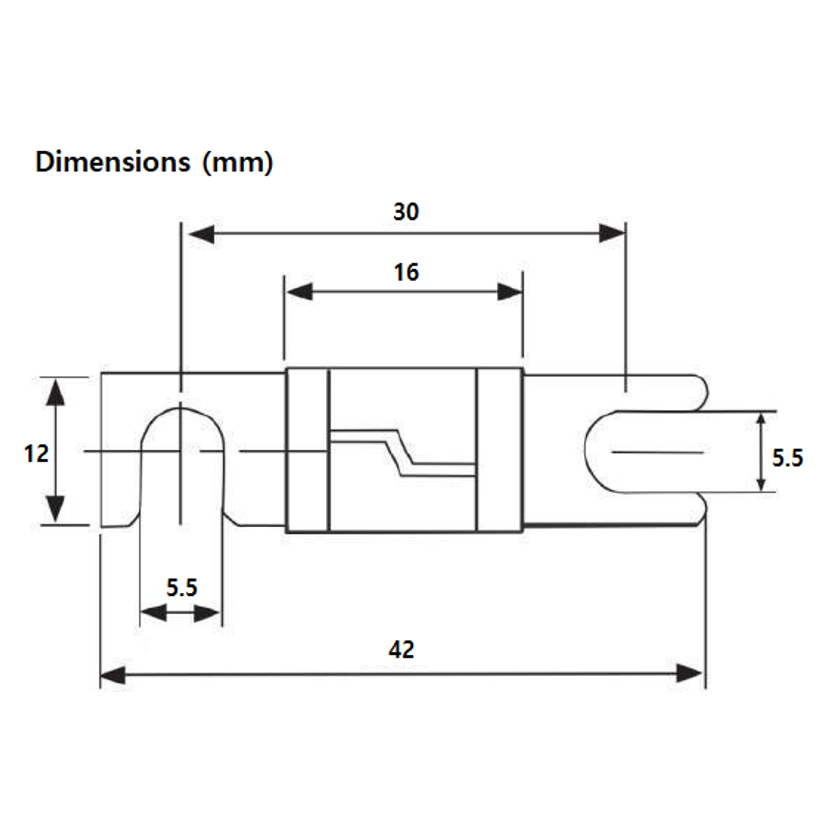

The bolt-on fuse has open-ended terminals with a slide-on/off design: when paired with compatible fuse holders, you can loosen the mounting nuts and slide the fuse out without removing the nuts completely. It has the industry standard M5 hole size with 30mm mounting spacing, for a fit in standard Midi, AMI or ANS fuse blocks.

With its 30A rating, this model suits lower-current circuits such as accessory feeds, small chargers and distribution circuits, protecting your cables and equipment from overcurrent events.

Key System Benefits

• Wide Voltage Compatibility: 72VDC maximum rating supports 12V, 24V, and 48V battery systems.
• Premium Conductivity: Tin-plated copper alloy terminals for low resistance and corrosion resistance.
• Instant Status Checks: A transparent nylon housing window shows the element at a glance.
• Temperature Range: -32C to 125C operating range.
• Standardised Dimensions: M5 hole size with 30mm stud spacing.
• Quick-Change Capability: Open-ended forks slide in without full nut removal.

Perfect for Applications Like

• Automotive: cars, trucks and commercial vehicles
• Marine and RV: boats, motorhomes and off-grid living setups
• Solar and energy systems: off-grid or backup power systems
