Exotronic - Fusion - 30W - Fixed Solar Panel

Exotronic Fusion Series: High-Performance N-Type TOPCon Solar Power

The Exotronic 30W Fusion Fixed Solar Panel represents a significant advancement in mobile energy harvesting, utilising N-Type TOPCon (Tunnel Oxide Passivated Contact) cell technology to deliver 25.2% cell efficiency. This allows for a significantly smaller footprint compared to traditional monocrystalline or PERC modules, making it an ideal solution for vehicles and vessels where roof space is at a premium.

Advanced TOPCon Technology for Australian Conditions

Unlike standard P-type cells, the N-type base used in this product offers superior resistance to Light-Induced Degradation (LID). This ensures the Exotronic 30W Fusion Fixed Solar Panel maintains high output over its lifespan. The 18-wire busbar design further optimises performance by reducing resistive losses and improving current collection, even under the intense Australian sun.

Compact and Lightweight Engineering

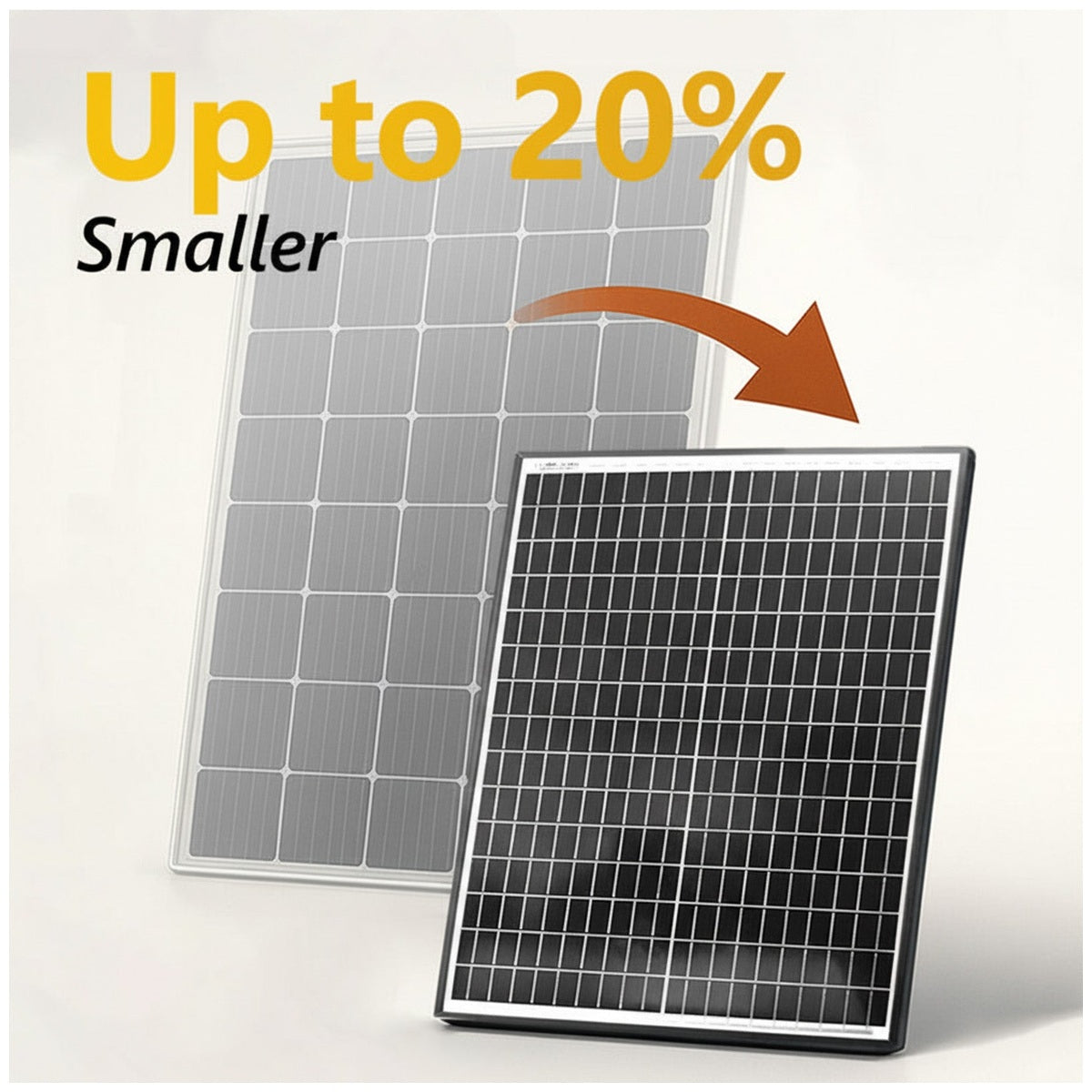

Space on a caravan or boat is a finite resource. This product solves the problem of limited real estate by providing up to 20% more power density than generic grade products. The compact 400x400x25mm frame benefits from a reduced weight profile, lowering the centre of gravity on vehicles and making installation simpler for DIY enthusiasts and professional installers alike.

• 25.2% Cell Efficiency: Maximises power generation in a compact 400x400x25mm frame
• N-Type Stability: Lower degradation rates and better performance in high-temperature environments
• Low-Light Response: Improved spectral response ensures charging begins earlier in the morning and lasts later into the evening
• Low-Iron Tempered Glass: 3.2mm high-transmissivity glass provides excellent impact resistance and light capture

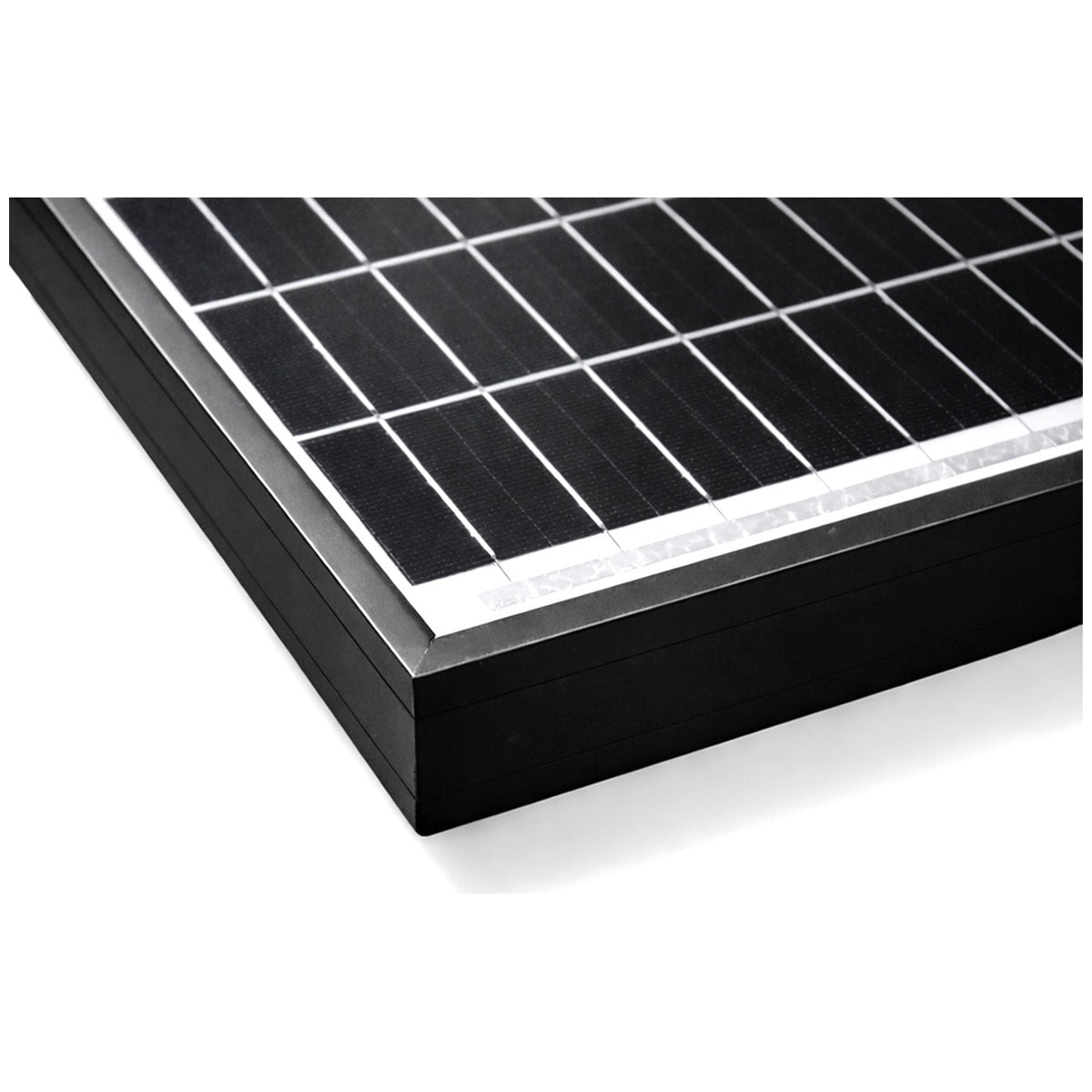

• Black Anodised Frame: 25mm aluminium alloy construction provides structural rigidity and corrosion resistance

Reliability in Harsh Environments

Mobile solar systems face constant vibration, salt spray, and extreme temperature fluctuations. The Exotronic 30W Fusion Fixed Solar Panel is engineered to mitigate these risks. Its junction box is designed to prevent moisture ingress, protecting the critical electrical terminations from corrosion.

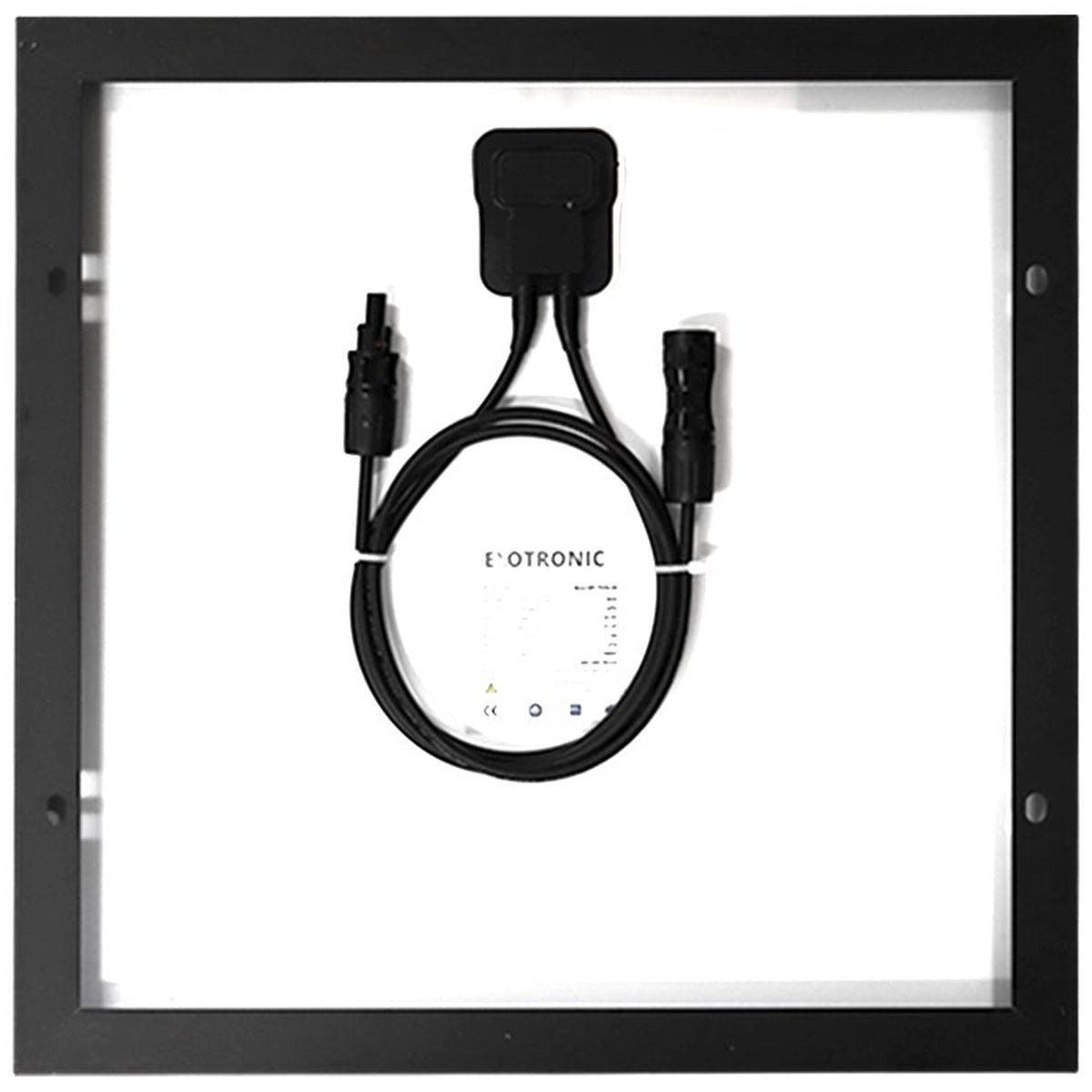

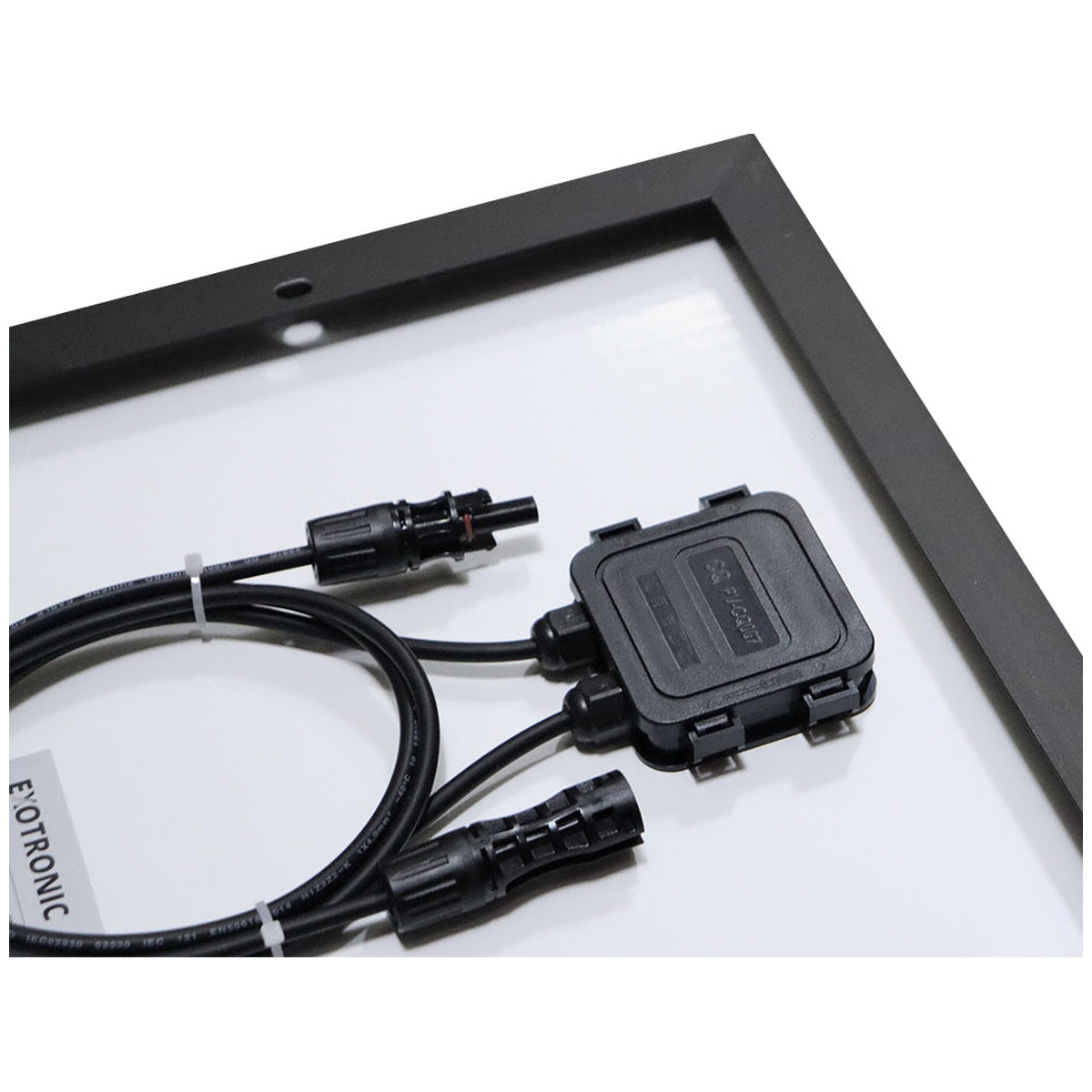

Features a fully potted IP68 rated junction box, providing maximum protection against moisture ingress and ensuring longevity in marine or heavy-duty coastal applications.

Versatile Integration

Whether you are building a 12V system for a weekend camper or a high-voltage array for a remote off-grid cabin, this product provides the necessary flexibility. The MC4 compatible connectors ensures it can be integrated into various mounting systems with ease.

Secure Your Energy Independence

Equip your setup with the Exotronic Fusion Series to ensure reliable power wherever your journey leads. Reach out to our technical team for assistance with array sizing or order the Exotronic 30W Fusion Fixed Solar Panel today to upgrade your off-grid capabilities.

Specifications

Model	Exo-SP-TCN-050
Power (W)	30

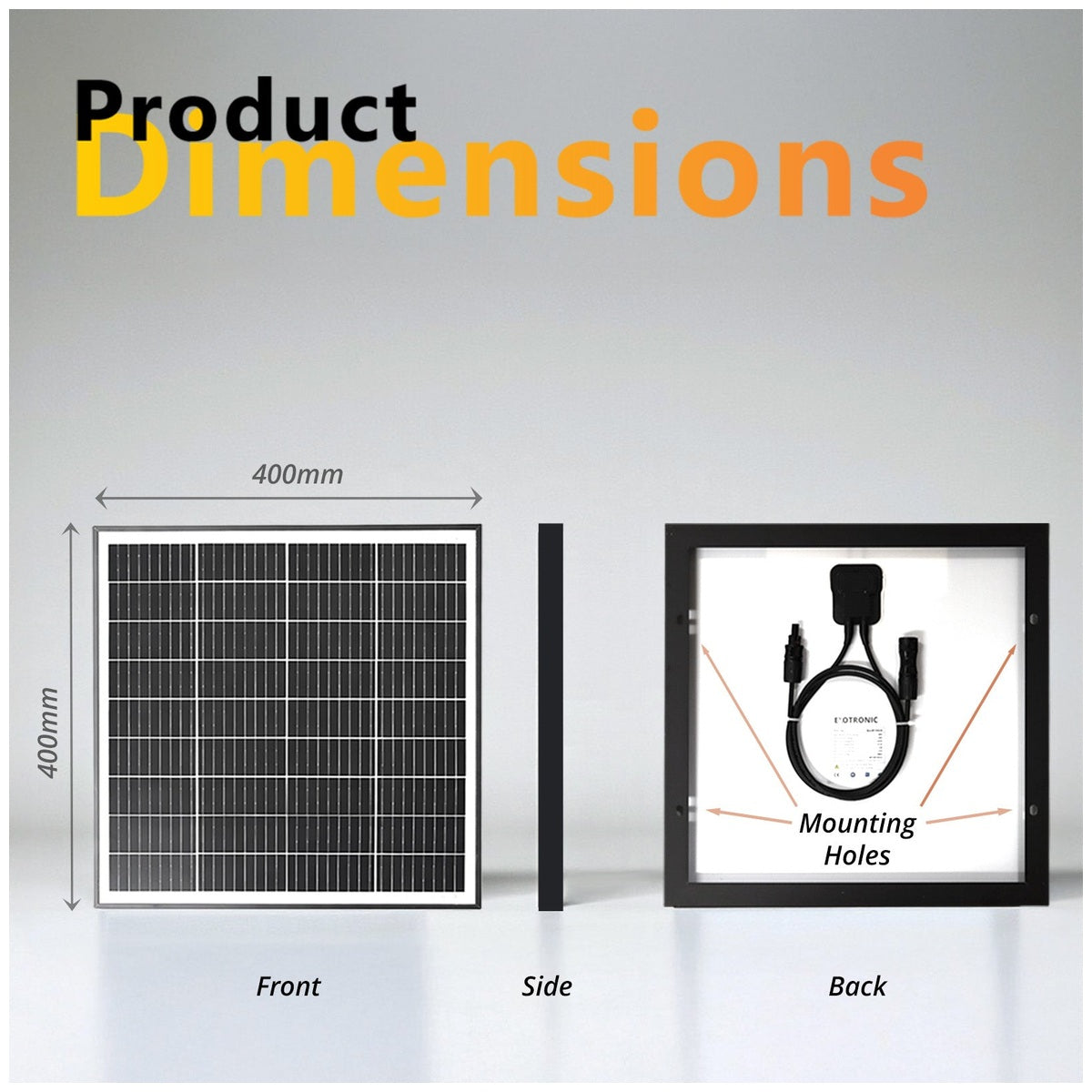

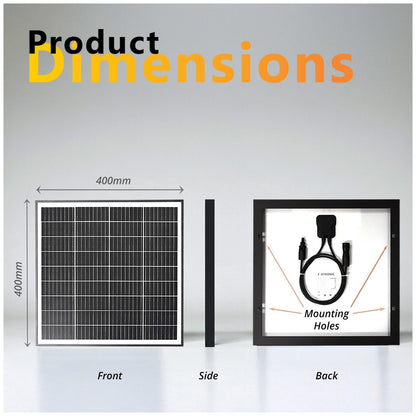

Dimensions (mm)	400x400x25
Weight (kg)	2.35
Vmp (V)	17.7
Imp (A)	1.69
Voc (V)	20.7
Isc (A)	1.92
