Exotronic - 35mm² Battery Parallel Cable Pair - 1000mm

Choose the Exotronic bellmouth lug stud size fitted to each end of the red cable and of the black cable (end 1 · end 2). M8 is selected by default.

Exotronic 35mm² Battery Parallel Cable Pair - 1000mm

Made-to-Order Leads for Linking Battery Banks and Busbars

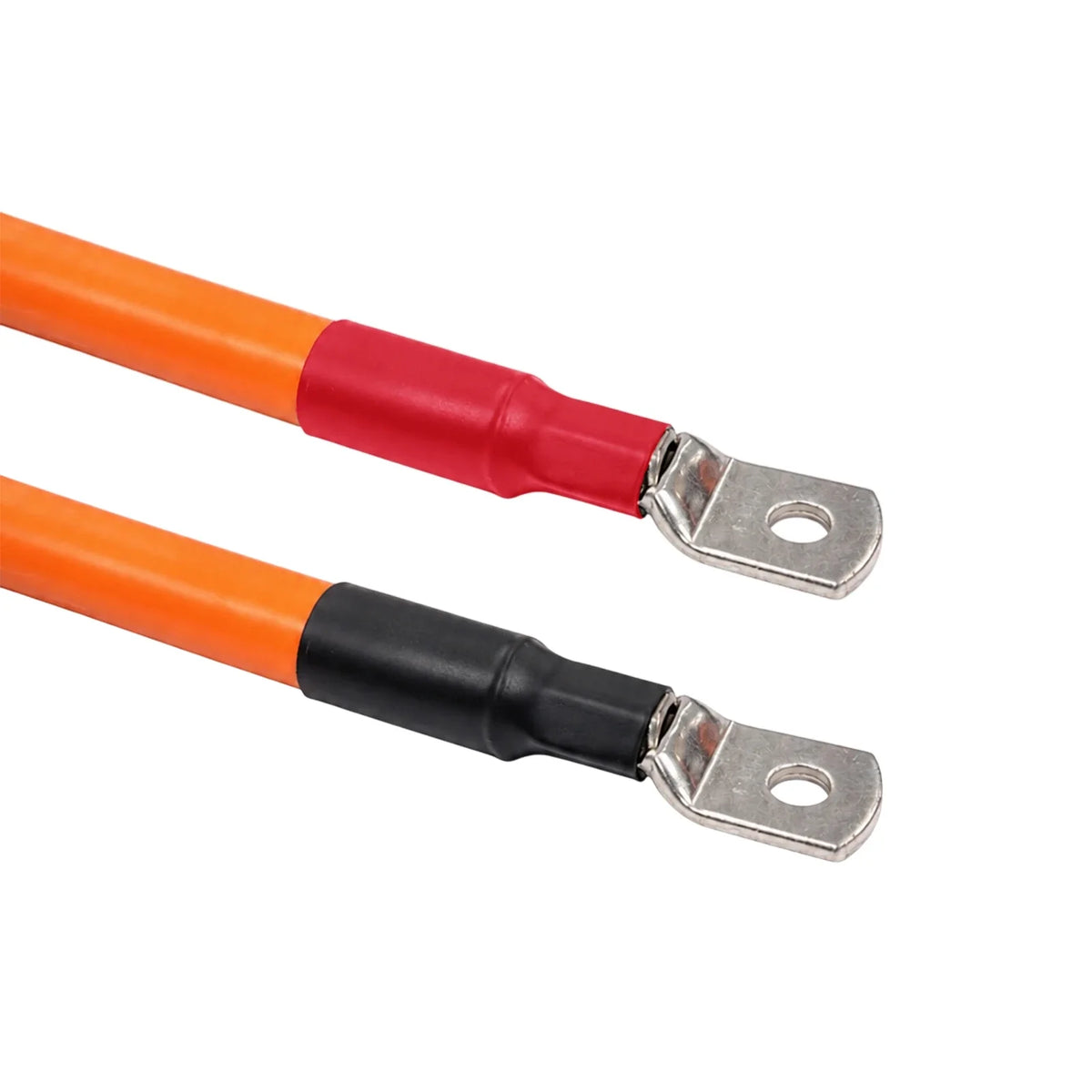

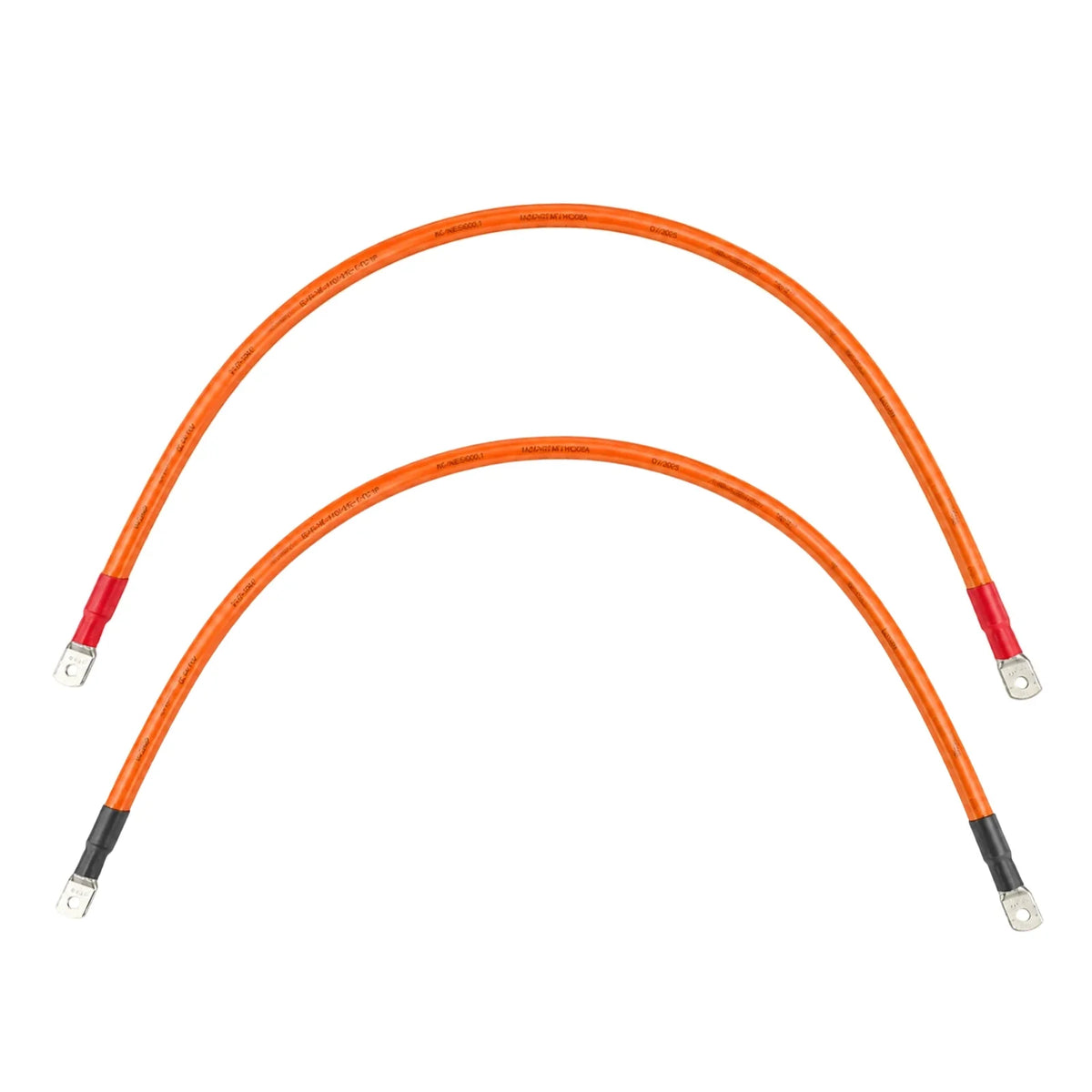

This matched pair of 1000mm battery cable leads is made to order from 35mm² flexible orange cable, with an Exotronic bellmouth lug (stud size as chosen) professionally crimped at both ends of each lead - four terminations in total. Red and black heat shrink marks the positive and negative leads so polarity is obvious at a glance when linking battery banks, busbars or inverter connections.

The fully annealed, tinned-copper bellmouth lugs have a flared entry that guides the fine cable strands into the barrel without splaying, supporting a clean crimp and a corrosion-resistant, low-resistance connection. The cable is rated at 0.6/1kV.

Because each pair is made to order, allow for production time.

Key Features

• Two 1000mm leads with four Exotronic bellmouth lug terminations (stud size as chosen)
• 35mm² flexible copper cable in orange
• Tinned-copper bellmouth lugs for a corrosion-resistant, low-resistance crimp connection
• Red and black heat shrink at both ends for clear polarity identification
• 0.6/1kV voltage rating, suited to battery bank and busbar interconnects

Specifications
