Exotronic - 35mm² Negative Battery Cable Lead - 1000mm

Choose the Exotronic bellmouth lug stud size fitted to each end. M8 is selected by default.

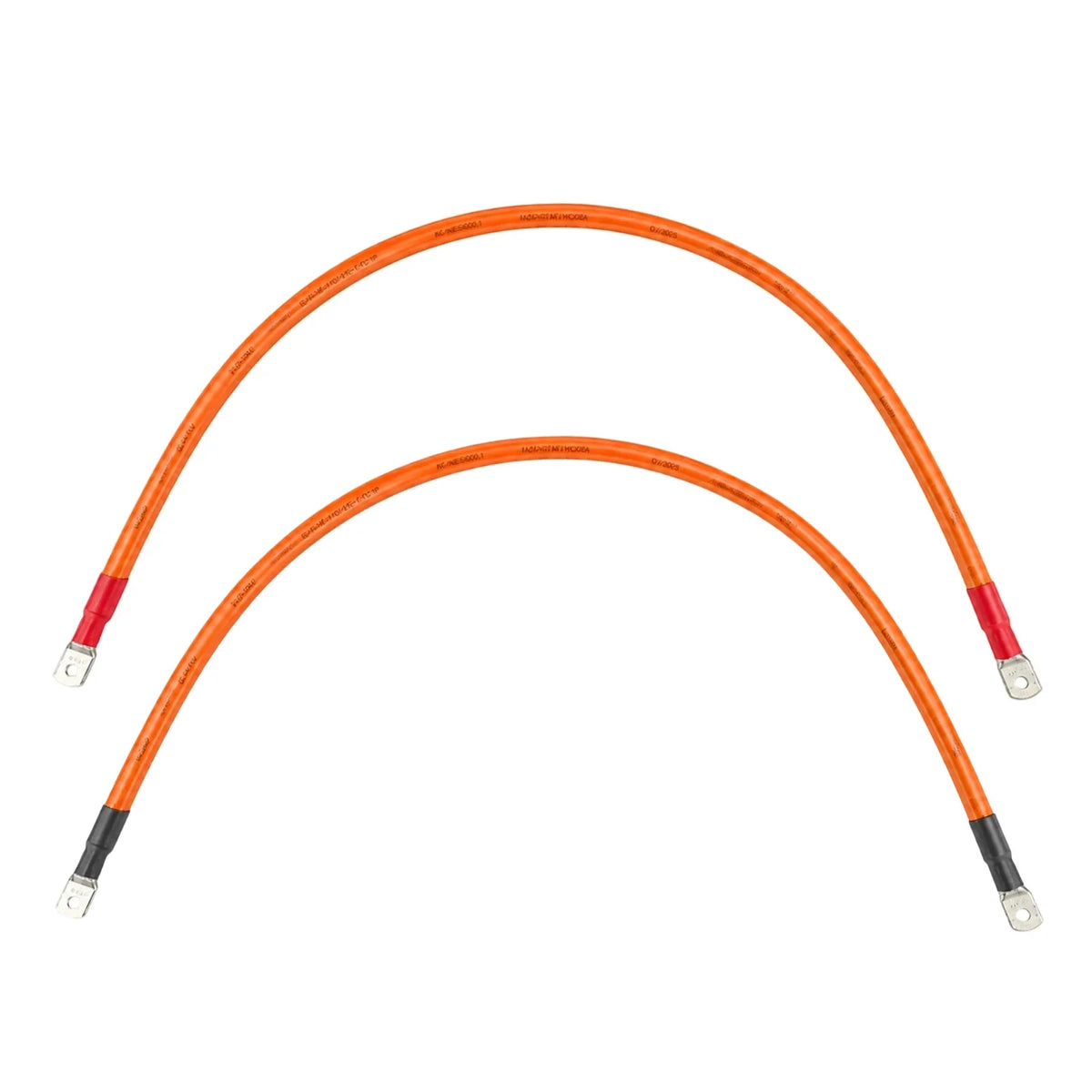

Exotronic 35mm² Negative Battery Cable Lead - 1000mm

Made-to-Order Lead for Linking Battery Banks and Busbars

This 1000mm negative battery cable lead is made to order from 35mm² flexible orange cable, with an Exotronic bellmouth lug (stud size as chosen) professionally crimped at both ends - two terminations in total. Black heat shrink identifies the lead as negative so polarity is obvious at a glance when linking battery banks, busbars or inverter connections.

The fully annealed, tinned-copper bellmouth lug has a flared entry that guides the fine cable strands into the barrel without splaying, supporting a clean crimp and a corrosion-resistant, low-resistance connection. The cable is rated at 0.6/1kV.

Because each lead is made to order, allow for production time.

Key Features

• One 1000mm lead with two Exotronic bellmouth lug terminations (stud size as chosen)
• 35mm² flexible copper cable in orange
• Tinned-copper bellmouth lug for a corrosion-resistant, low-resistance crimp connection
• Black heat shrink at both ends for clear negative polarity identification
• 0.6/1kV voltage rating, suited to battery bank and busbar interconnects

Specifications
