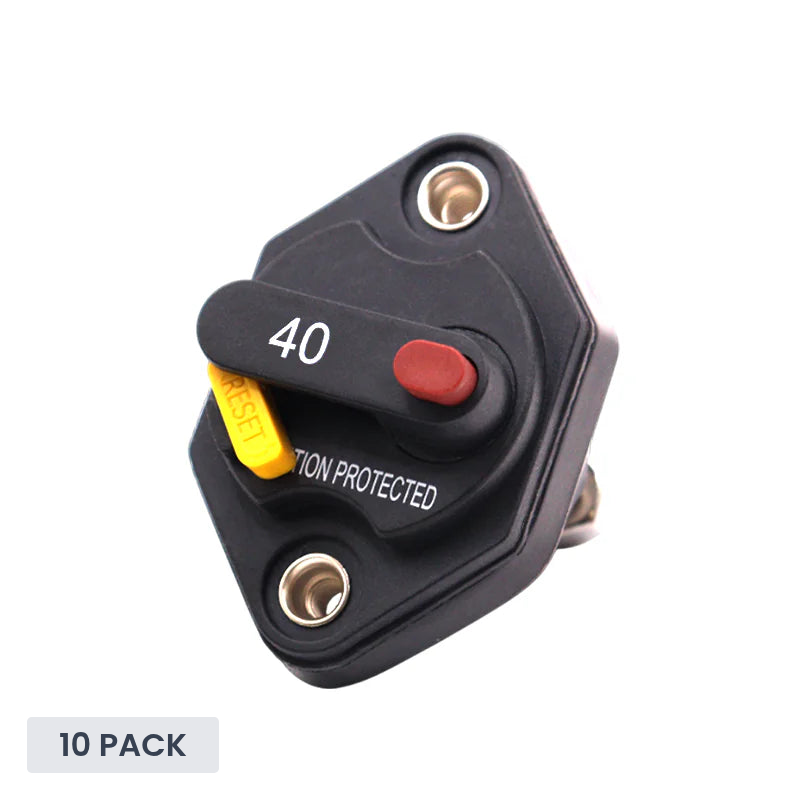

Exotronic - 40A - Mini Panel Mount Waterproof DC Circuit Breaker (Pack of 10)

Exotronic 40A Mini Panel Mount Waterproof DC Circuit Breaker - Pack of 10

Waterproof Overcurrent Protection for 12V, 24V and 48V DC Circuits

This pack contains ten identical 40A mini panel mount circuit breakers, Exotronic's compact waterproof breaker for 12V, 24V and 48V DC systems. Each breaker is rated to 40A and carries an IP67 rating, keeping water and dust out of the mechanism, and is designed to operate between -32C and 82C.

A Thermal Plastic UL 94V0 housing gives high resistance to harsh environments, while corrosion-resistant Stainless Steel studs and Nickel-Plated Copper rivets keep the breaker lightweight yet durable. A Manual Reset trip switch and reset lever let you restore the circuit after a trip, without replacing any parts.

Every breaker in the pack shares the same 40A rating - this is not an assorted pack of different amperages, so use the 40A rating when sizing protection for your circuit.

Key Features

• 10 x 40A mini panel mount circuit breakers, all the same rating, for spares and multi-circuit installations
• Suits 12V, 24V and 48V DC systems
• IP67 rated housing for protection from water and dust
• Manual Reset with trip switch and reset lever
• Thermal Plastic UL 94V0 housing for high resistance to harsh environments

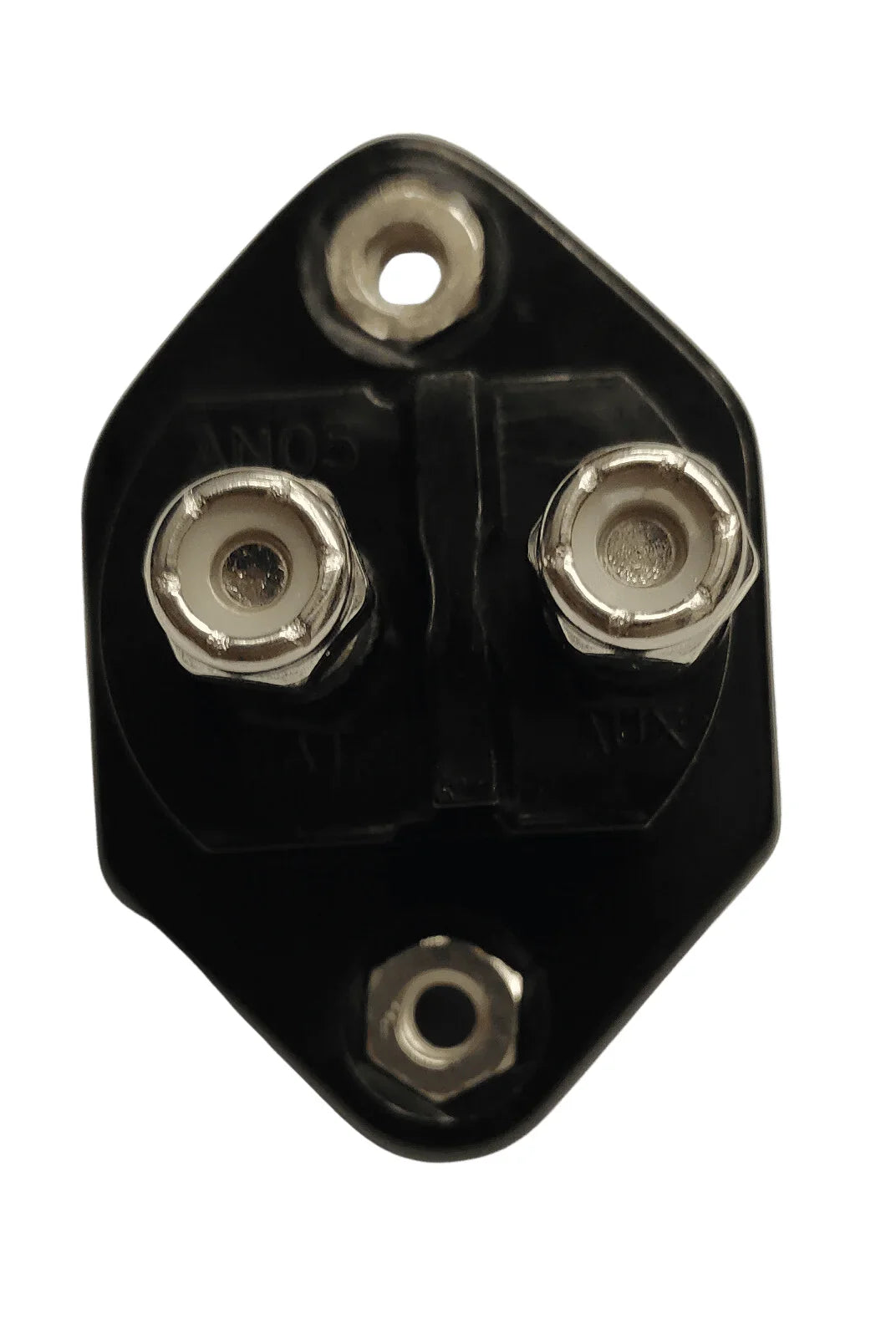

• Stainless Steel studs and Nickel-Plated Copper rivets for corrosion resistance
• Meets SAE J1625, SAE J553, ABYC-E11 and UL 1077 interrupt capacity standards, with SAE J1171 ignition protection
