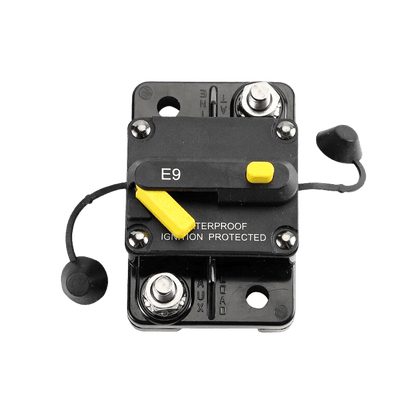

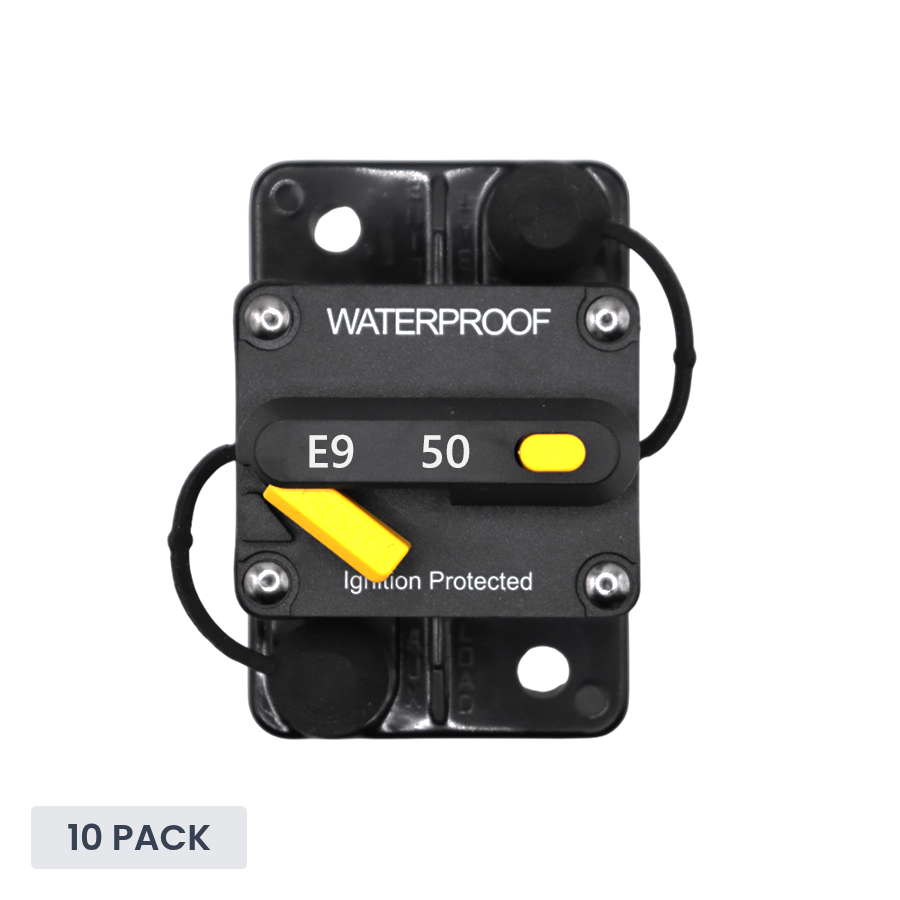

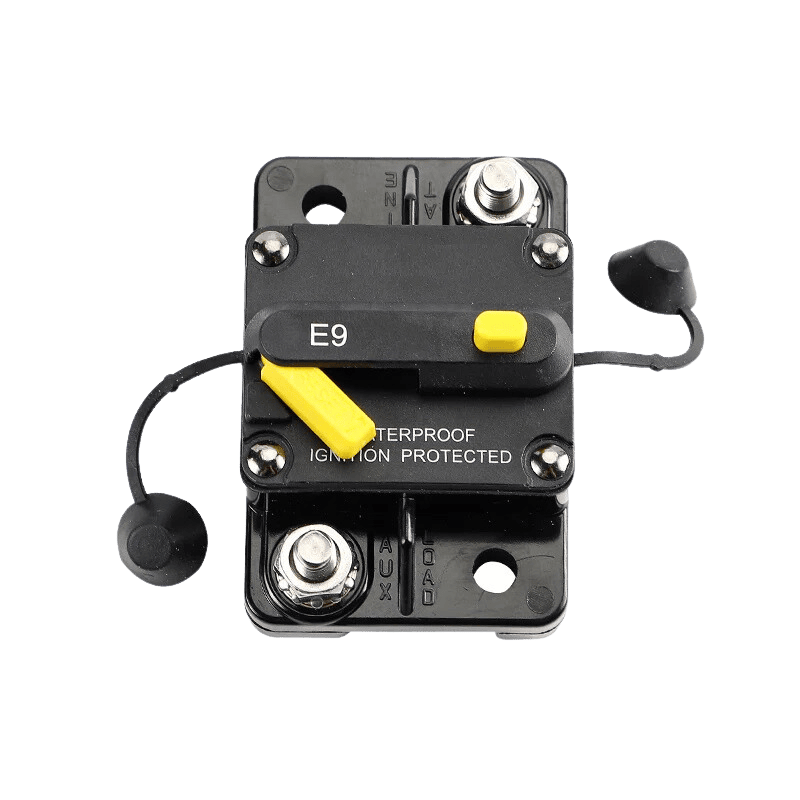

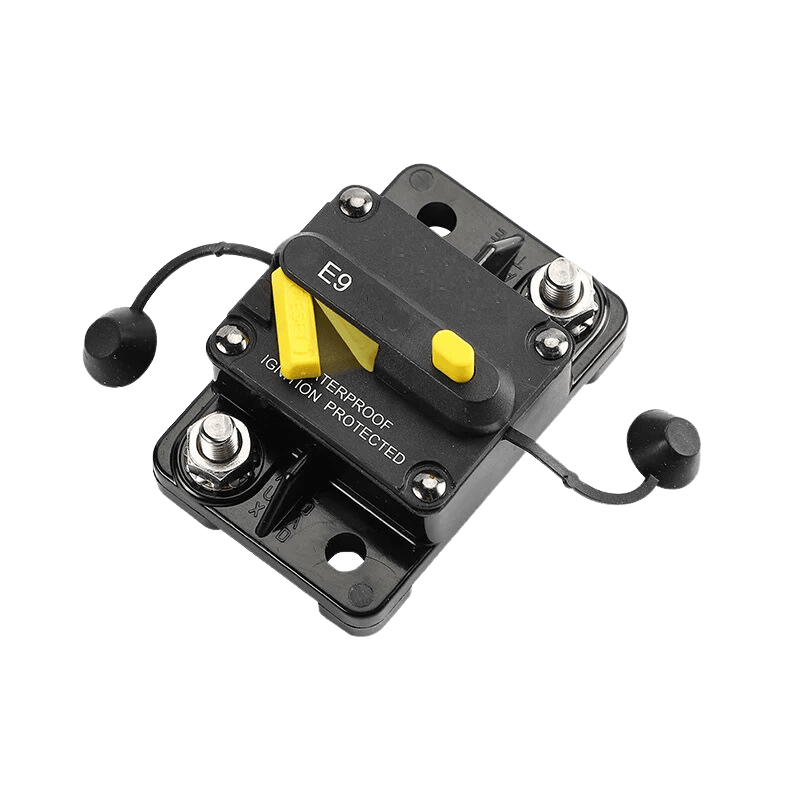

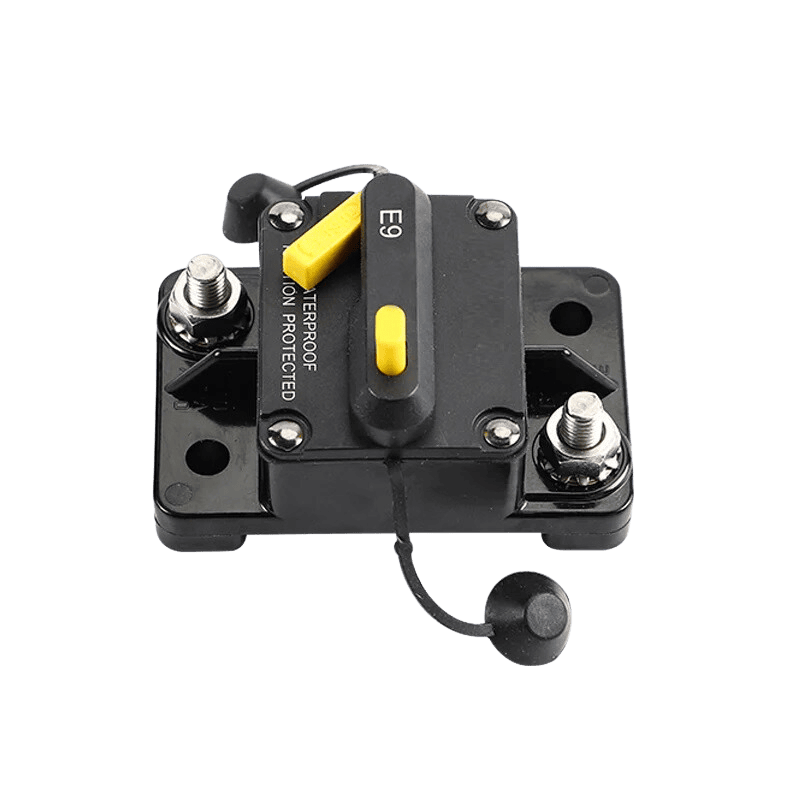

Exotronic - 50A - Surface Mount Waterproof DC Circuit Breaker (Pack of 10)

Exotronic 50A Surface Mount Waterproof DC Circuit Breaker - Pack of 10

Waterproof Overcurrent Protection for 12V, 24V and 48V DC Circuits

This pack contains ten identical 50A surface mount waterproof DC circuit breakers, each built with a Thermal Plastic UL 94V0 housing for high resistance to harsh environments. Every breaker in the pack carries an IP67 rating for protection against water and dust, and is designed to operate between -32C and 82C.

Each breaker uses a Manual Reset with a Trip Switch and Reset Lever, giving full control over circuit operation, and mounts via Surface Mount stud terminals with stud insulators for safe installation. Corrosion-resistant Stainless Steel studs and Nickel-Plated Copper rivets keep the construction robust while remaining lightweight. The breakers suit 12V, 24V and 48V DC systems and meet SAE J1625, SAE J553, ABYC-E11 and UL 1077 interrupt capacity standards, with SAE J1171 ignition protection.

Every breaker in the pack shares the same 50A rating - this is not an assorted pack of different amperages, so use the 50A rating when sizing protection for your circuit.

Key Features

• 10 x 50A surface mount waterproof DC circuit breakers, all the same rating
• IP67 rated Thermal Plastic UL 94V0 housing, -32C to 82C operating range
• Manual Reset with Trip Switch and Reset Lever
• Surface Mount stud terminals with stud insulators
• Stainless Steel studs and Nickel-Plated Copper rivets
• Suits 12V, 24V and 48V DC systems

Specifications
