Exotronic - 50mm² Positive Battery Cable Lead - 300mm

Choose the Exotronic bellmouth lug stud size fitted to each end. M8 is selected by default.

Exotronic 50mm² Positive Battery Cable Lead - 300mm

Made-to-Order Lead for Linking Battery Banks and Busbars

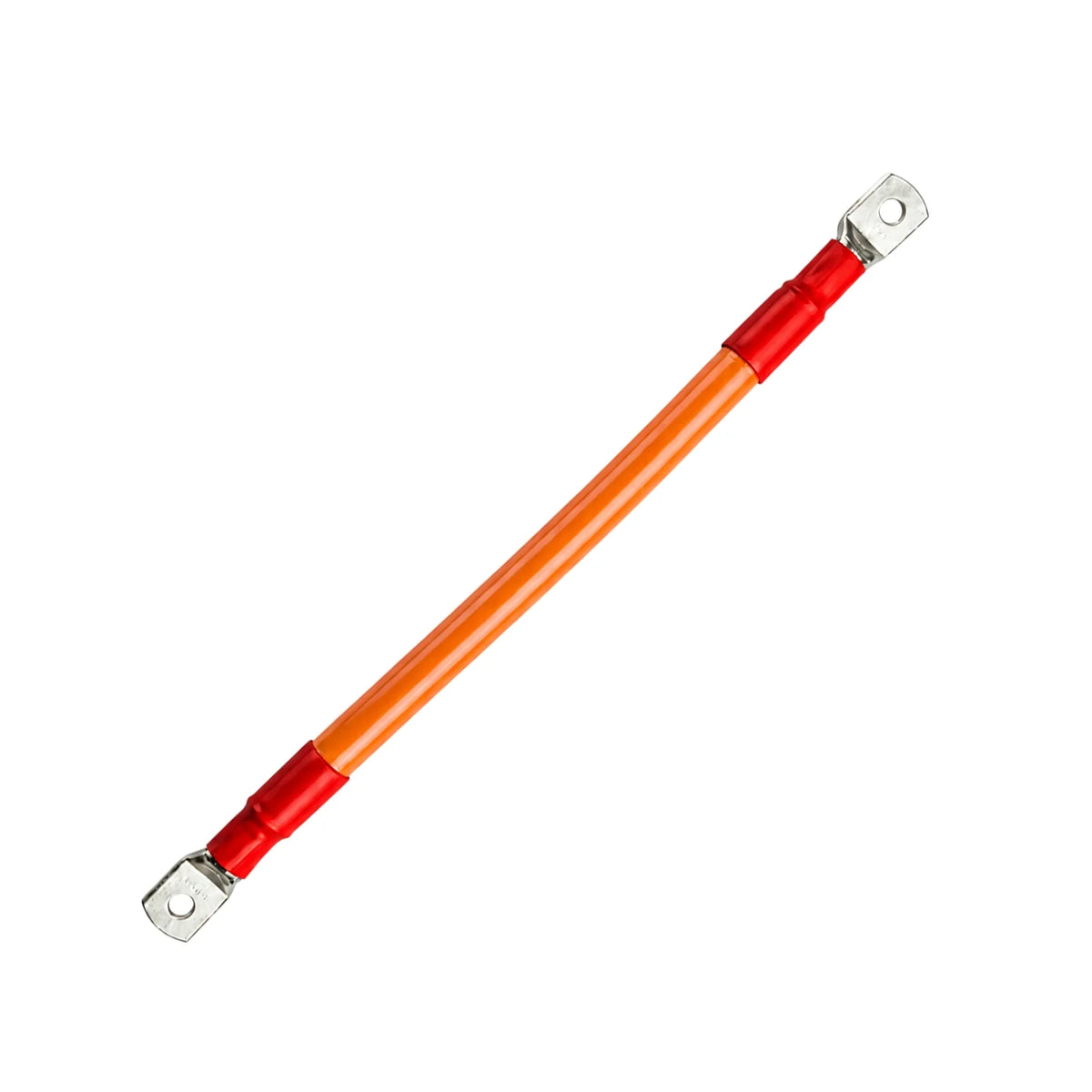

This 300mm positive battery cable lead is made to order from 50mm² flexible orange cable, with an Exotronic bellmouth lug (stud size as chosen) professionally crimped at both ends - two terminations in total. Red heat shrink identifies the lead as positive so polarity is obvious at a glance when linking battery banks, busbars or inverter connections.

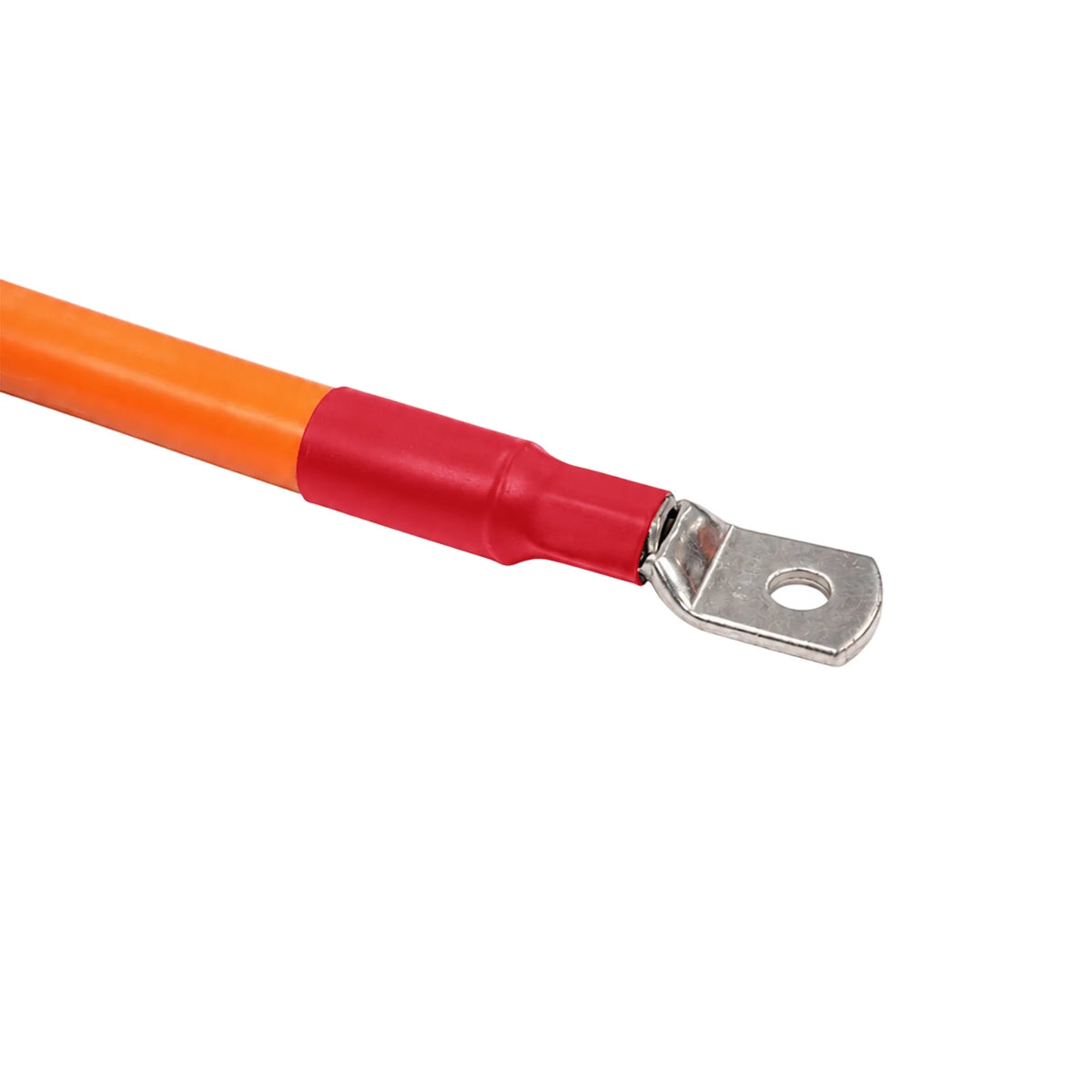

The fully annealed, tinned-copper bellmouth lug has a flared entry that guides the fine cable strands into the barrel without splaying, supporting a clean crimp and a corrosion-resistant, low-resistance connection. The cable is rated at 0.6/1kV.

Because each lead is made to order, allow for production time.

Key Features

• One 300mm lead with two Exotronic bellmouth lug terminations (stud size as chosen)
• 50mm² flexible copper cable in orange
• Tinned-copper bellmouth lug for a corrosion-resistant, low-resistance crimp connection
• Red heat shrink at both ends for clear positive polarity identification
• 0.6/1kV voltage rating, suited to battery bank and busbar interconnects

Specifications
