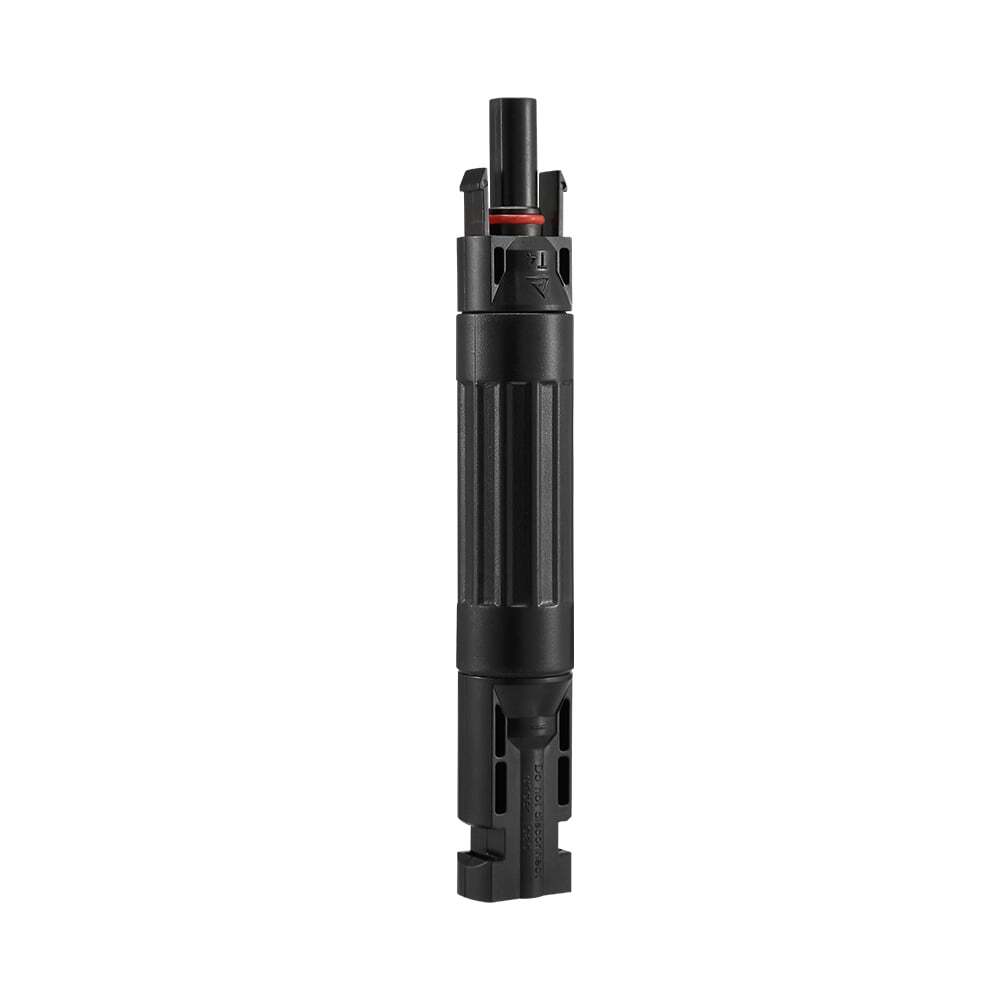

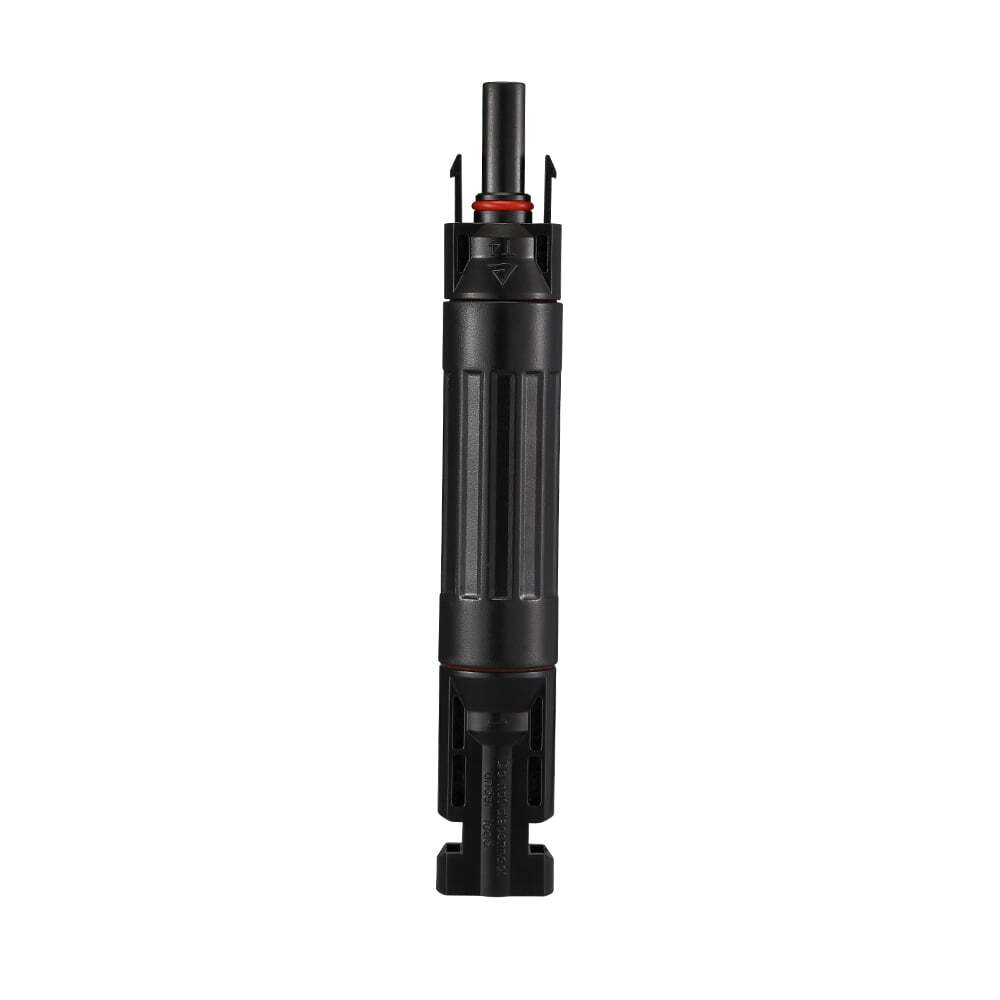

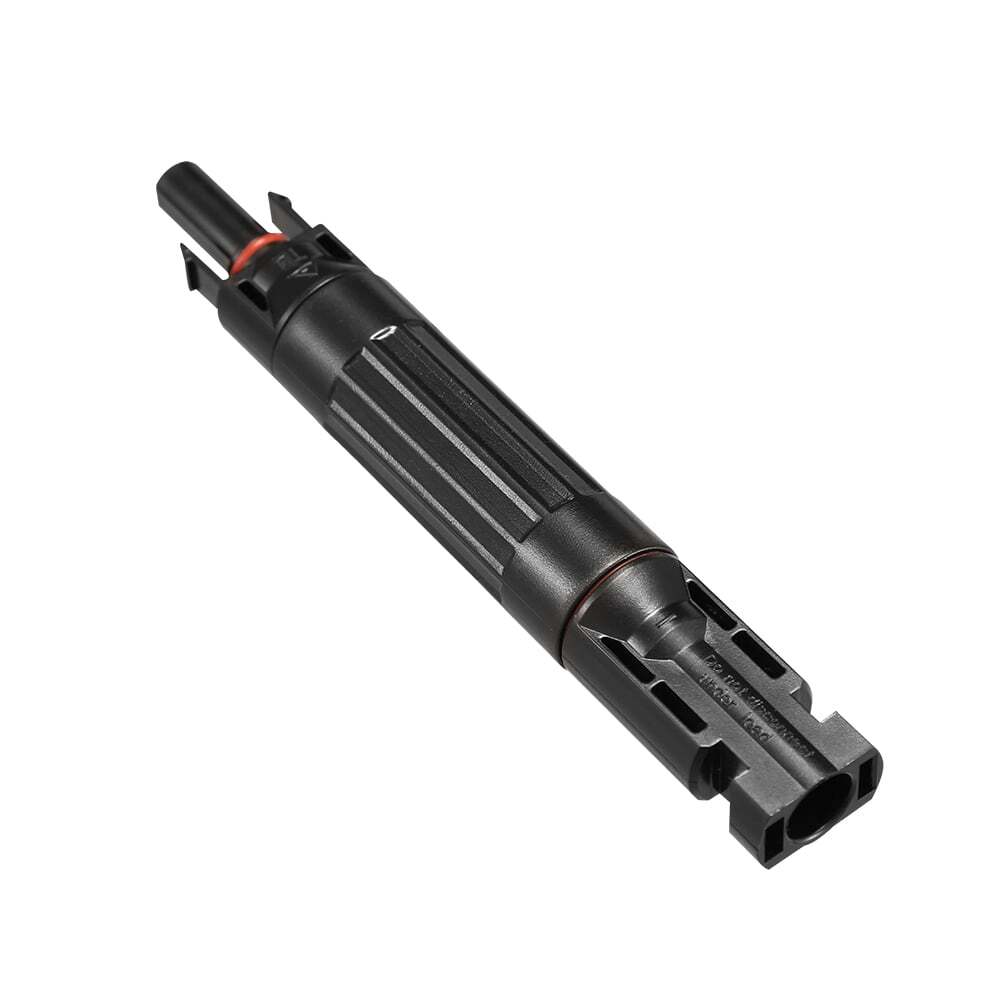

Exotronic 5A In-line Fuse Solar Connector
Integrated Overcurrent Protection for Solar Arrays
The Exotronic In-line Fuse Solar Connector combines a standard Ø 4 mm solar connector with a built-in 5A fuse, giving an individual panel string or parallel connection its own overcurrent protection. It is compatible with MC4 connectors and fits into a cable run with a simple plug-and-play connection, so no tools are needed.
The connector carries an IP67 waterproof and dustproof rating when mated, and uses tinned copper contacts with a snap-in locking system - a practical choice for caravan, 4WD, marine and other outdoor solar setups.
Key Features
- Integrated 5A fuse for in-line overcurrent protection
- IP67 waterproof and dustproof rating when mated
- Tinned copper contacts for a corrosion-resistant, low-resistance connection

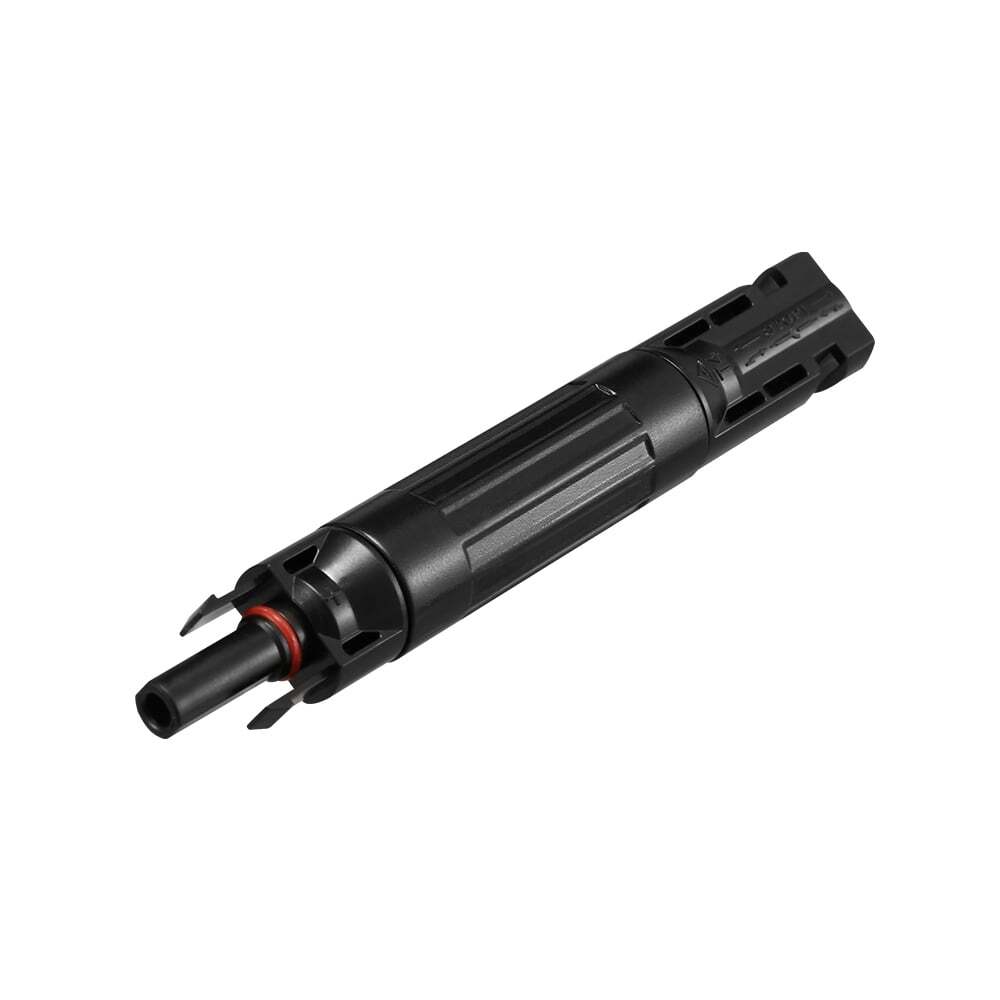

- Snap-in locking for a secure, vibration-resistant connection
- Standard Ø 4 mm connector system, compatible with MC4 connectors
Specifications
| Rated Current | 5A |
|---|---|
| Waterproof and Dustproof (Mated) | IP67 |
| Degree of Protection (Unmated) | IP2X |
| Rated Voltage | 1000V DC (IEC) |
| Contact Material | Tinned Copper |
| Insulation Material | PC/PPO |
| Temperature Range | –40°C to +90°C (IEC) |
| Upper Temperature Limit | +105°C (IEC) |
| Flame Class | UL94-V0 |
| Locking System | Snap-in |
| Contact Resistance | 0.5mΩ |
| Safety Class | II |
| Test Voltage | 6kV (50Hz, 1min) |
| Salt Mist Spray Test | Severity 5 (IEC 60068-2-52) |
| Connector System | Ø 4 mm |
