Exotronic Coorong Series Pre-Wired Victron Board: Complete Off-Grid Power System for Van Conversions

Premium, Pre-Wired Victron Energy Power Board — Landscape Layout for Space-Efficient Installation

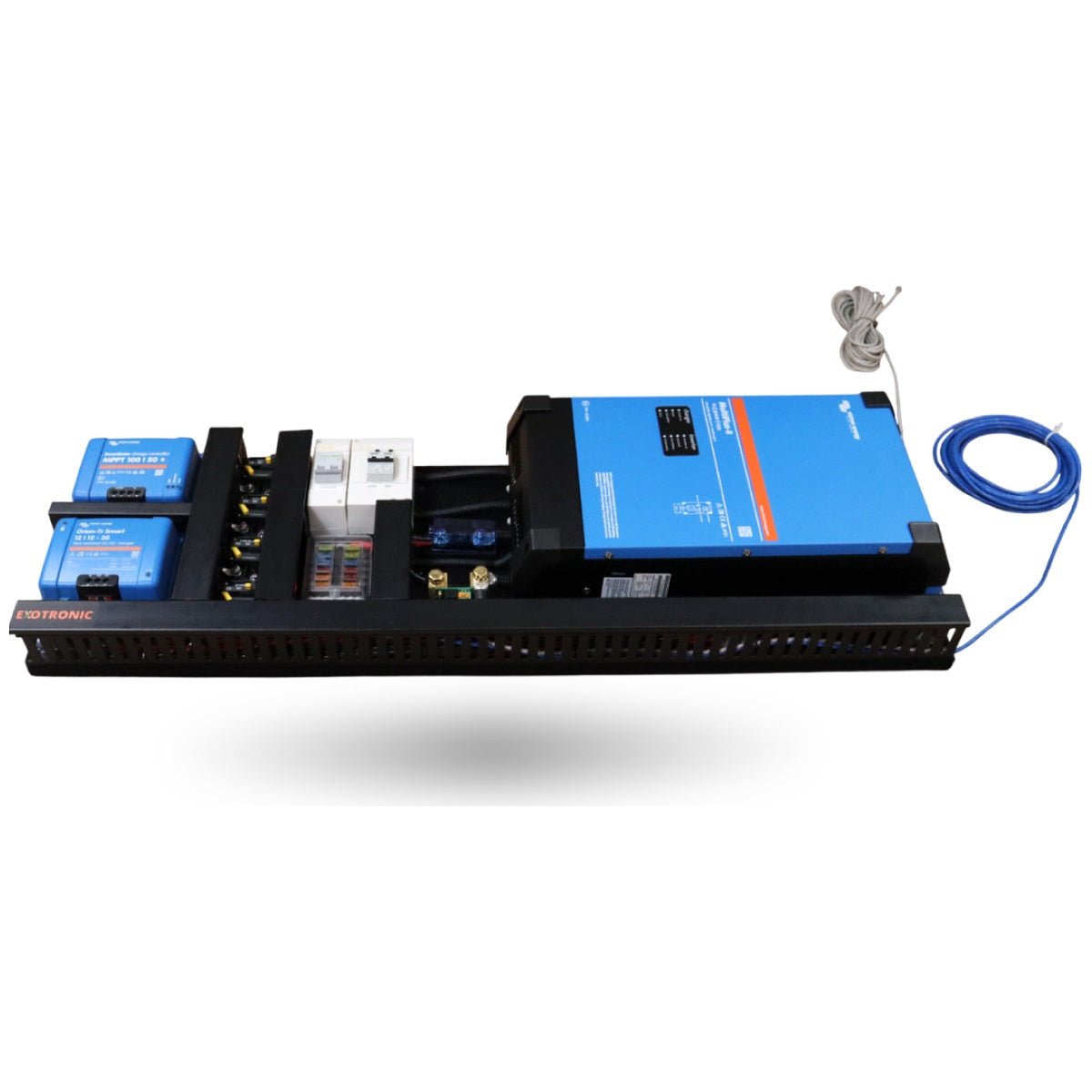

The Exotronic Coorong Series Pre-Wired Victron Board delivers a fully integrated, professionally assembled power solution for campervans, motorhomes, and expedition vehicles. By combining a Victron 3000VA MultiPlus-II inverter/charger, 50A MPPT SmartSolar controller, 30A Orion-Tr Smart DC-DC charger, and BMV-712 battery monitor on a single powder-coated aluminium chassis, this board eliminates the complexity, time, and risk of a custom electrical build. Every component is pre-wired, tested, and documented, allowing you to focus on your conversion rather than fault-finding.

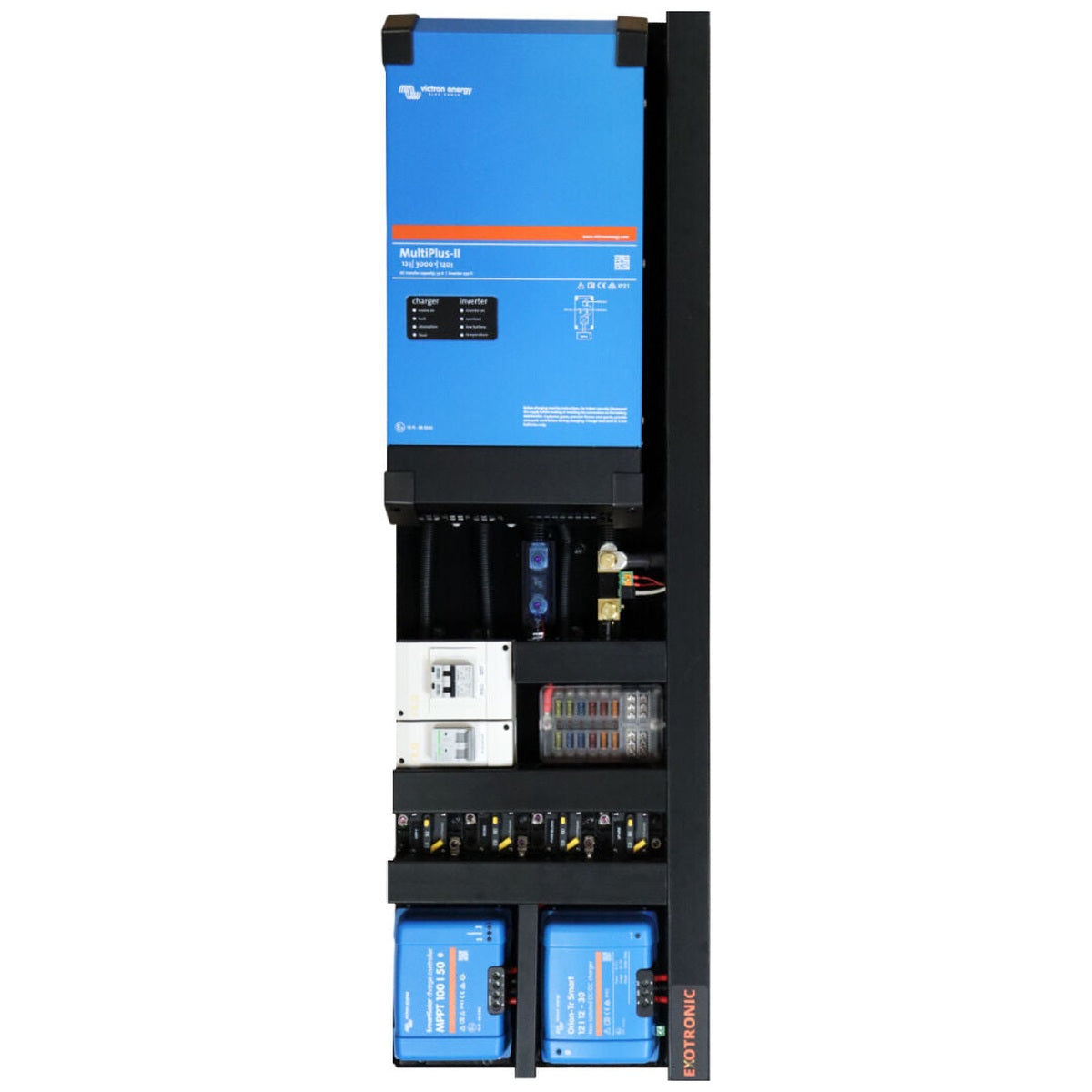

Engineered for 12V lithium battery systems, the Coorong Series is ideal for van lifers who demand reliable, high-capacity power for induction cooking, air conditioning, and off-grid workstations. The landscape orientation (1150 x 355 x 170 mm) fits neatly under beds or bench seats, maximising usable living space.

Why a Pre-Wired Board Reduces Risk and Saves Time

Custom wiring a multi-component power system requires advanced electrical knowledge, specialised tools, and hours of labour. Mistakes in cable sizing, fuse selection, or termination can lead to voltage drop, overheating, or even fire. The Coorong Series mitigates these risks with professionally crimped, oversized cables, correctly rated circuit protection, and a validated layout. Each board undergoes functional testing before dispatch, giving you confidence that your system will perform from day one.

Key Components and Benefits

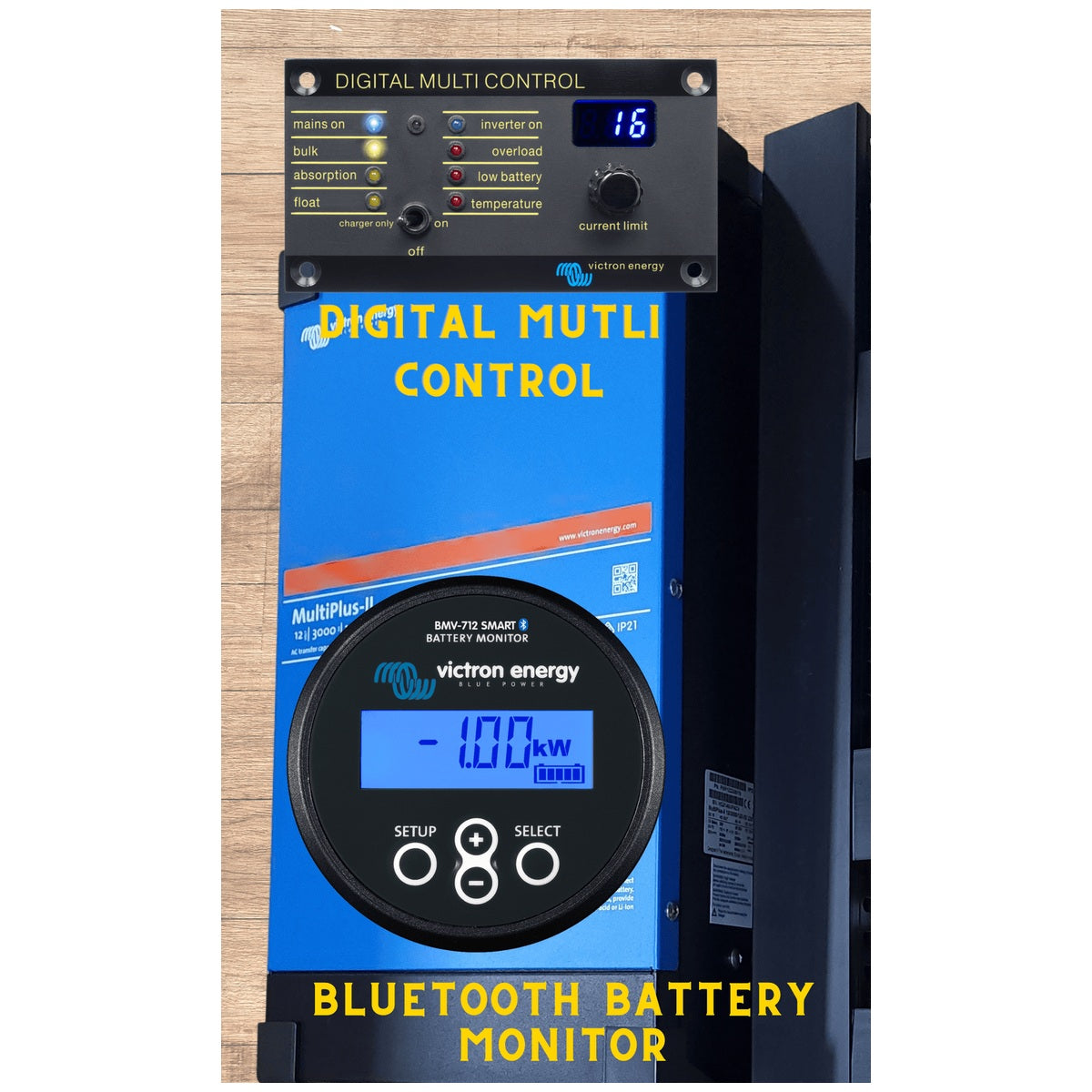

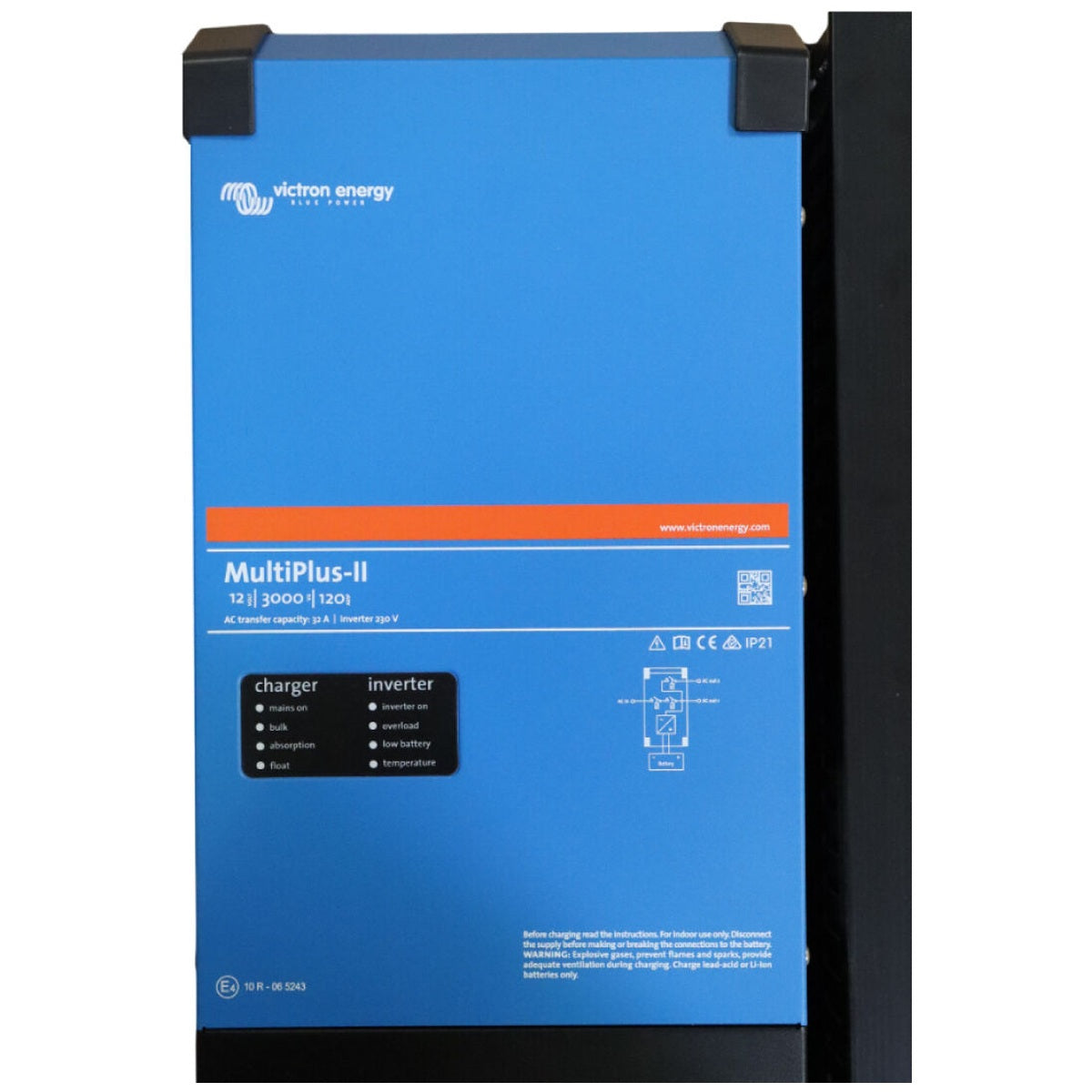

• Victron MultiPlus-II 3000VA Inverter/Charger: Powers 230V appliances up to 2400W continuous, with a 120A mains charger for rapid shore-power top-ups. The automatic transfer switch ensures uninterrupted power when connecting to or disconnecting from the grid. Includes a Digital Multi Control panel with 9m cable for remote on/off and charger-only operation.

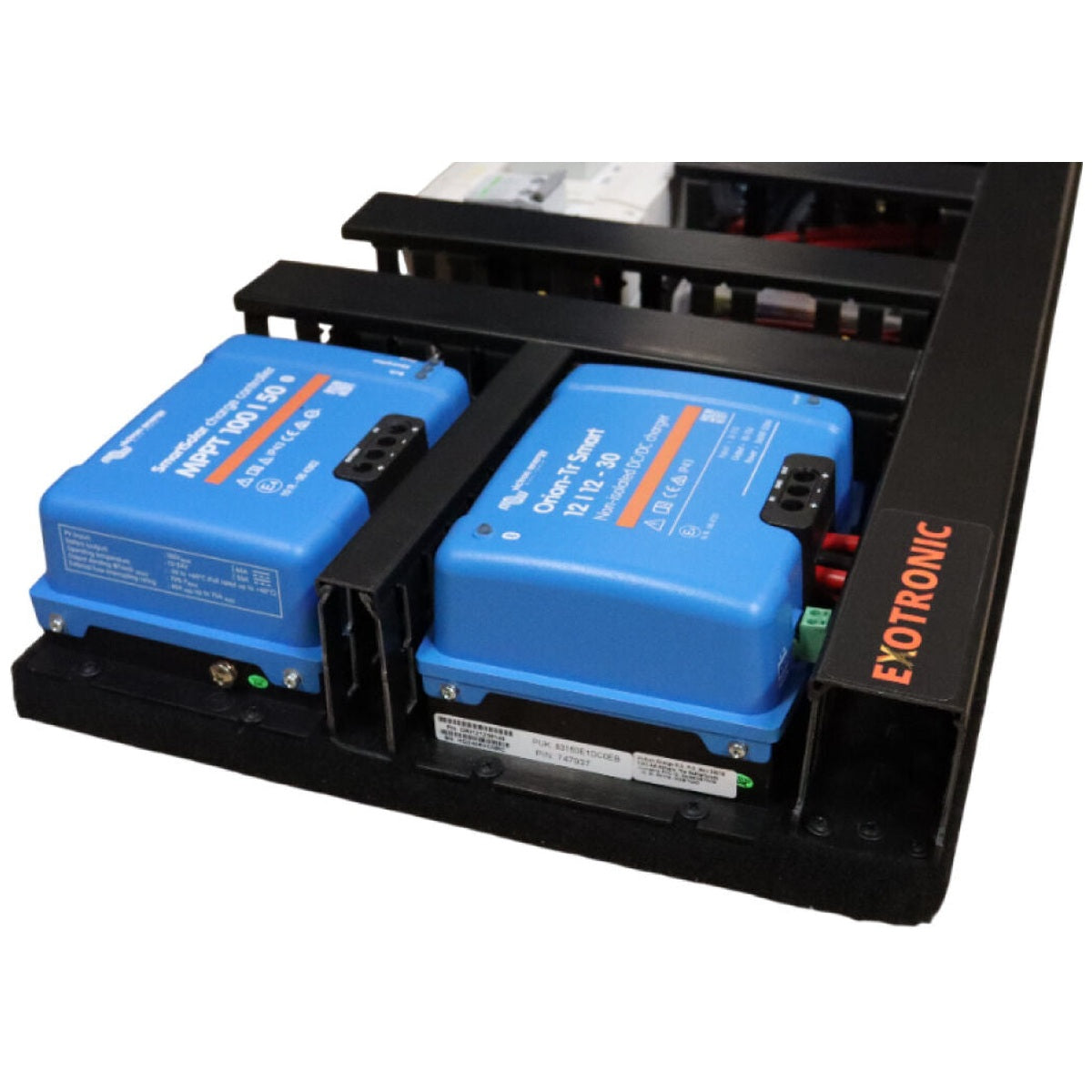

• Victron SmartSolar MPPT 100/50: Bluetooth-enabled solar charge controller with ultra-fast Maximum Power Point Tracking, maximising harvest from your rooftop panels. Pre-terminated with a genuine red Anderson connector for plug-and-play solar input.
• Victron Orion-Tr Smart 30A DC-DC Charger: Non-isolated, Bluetooth-enabled charger compatible with smart alternators. Charges your house battery while driving, with a grey Anderson connector for straightforward starter battery connection.
• Victron BMV-712 Smart Battery Monitor: Provides precise state-of-charge, voltage, current, and time-to-go data via Bluetooth. Set audible alarms for low battery levels. Includes 9m cable to the remote display.
• Integrated Protection and Distribution: A 12-blade fuse block with Exotronic circuit breakers manages DC loads safely. A 400A MEGA fuse and 70mm² double-insulated power cable handle high inverter currents. Safety switch circuit protection is fitted on both incoming and outgoing AC circuits.

Designed for Australian Conditions

The board’s components are selected for durability in demanding mobile environments. The Victron MultiPlus-II features a robust toroidal transformer and conformal-coated electronics, resisting vibration and humidity. The MPPT and DC-DC chargers are rated for high-temperature operation, essential for Australian summers. The aluminium chassis is powder-coated for corrosion resistance, and all connections use tinned copper lugs to prevent oxidation.

Simplified Installation and Documentation

Each Coorong Series board ships with a detailed wiring diagram, including example external connections for solar panels, starter battery, and AC loads. This documentation reduces guesswork and speeds up installation, whether you’re a professional converter or a skilled DIYer. The board is designed for wall or floor mounting, with pre-drilled holes and manageable weight (33 kg).

Shipping and Handling

Available for delivery Australia-wide. The unit is supplied on a pallet; please note the driver will not unload. A business address or depot is recommended, or a home address if someone is available to assist with unloading.

Power Your Adventure with Confidence

Choose the Exotronic Coorong Series Pre-Wired Victron Board for a turnkey, high-performance electrical system that lets you hit the road sooner. Backed by dedicated customer support, this board is the smart investment for your van conversion.
