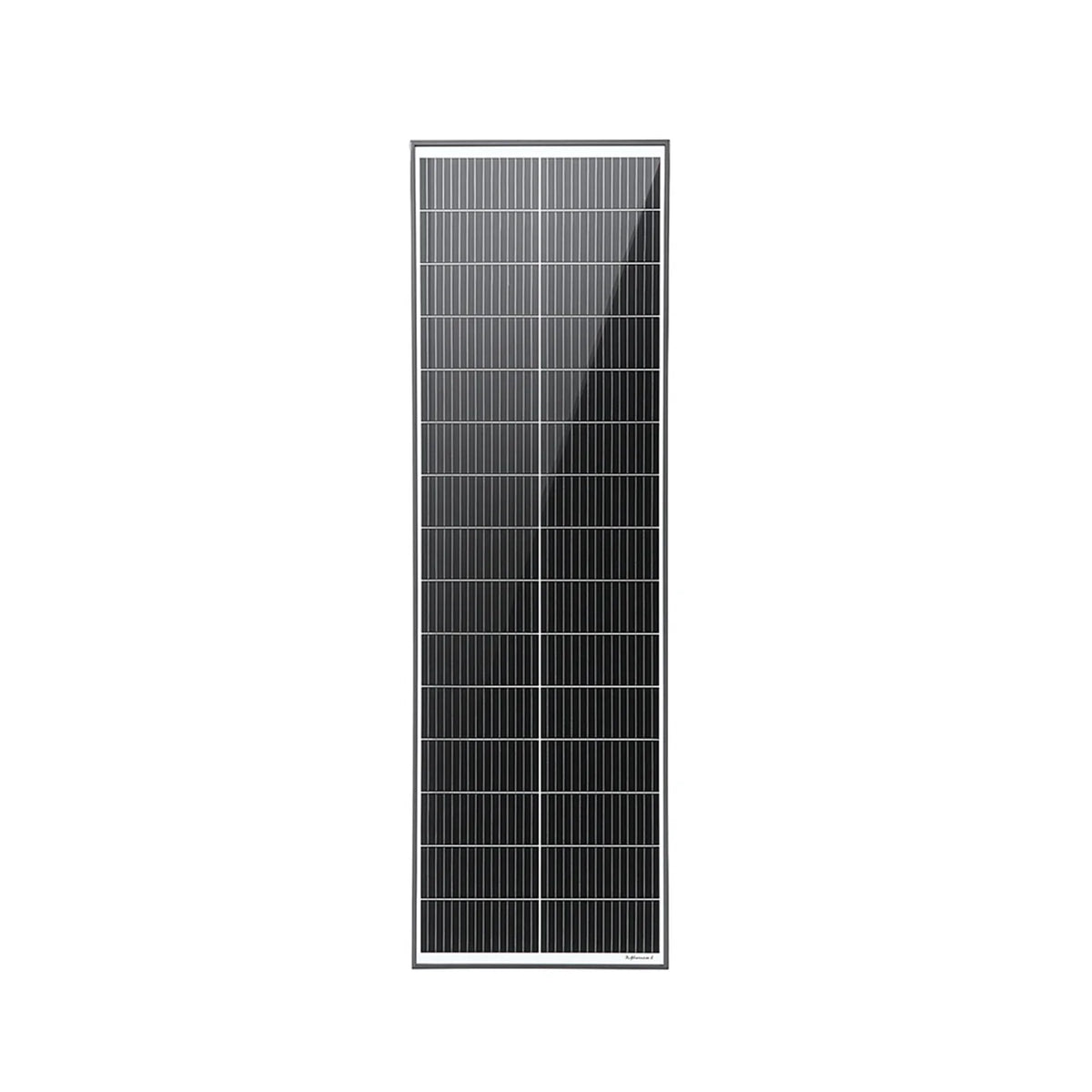

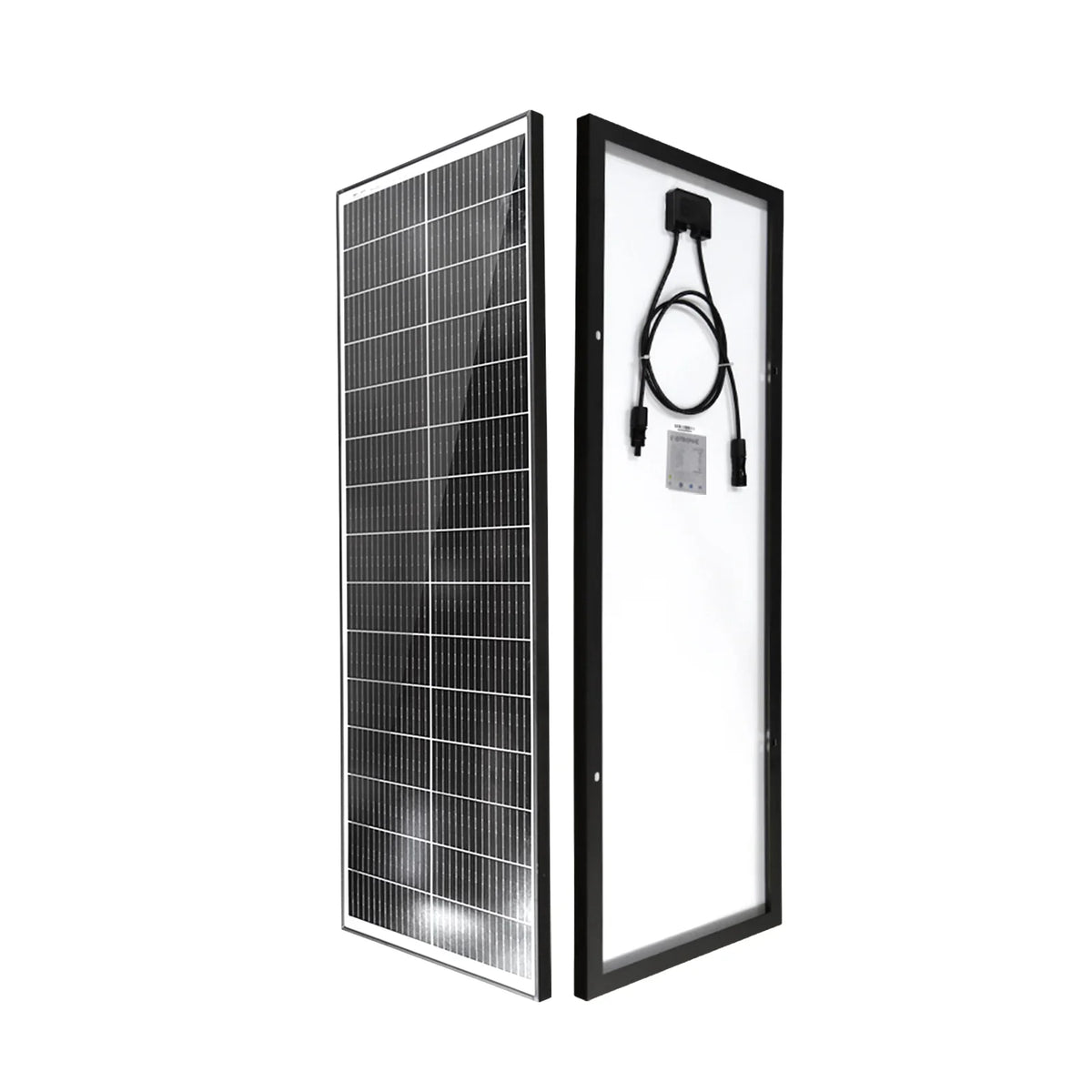

Exotronic 80W Narrow Fusion Fixed Solar Panel

N-Type TOPCon 12V Solar Panel for Caravans, RVs and Marine

The Exotronic 80W Narrow Fusion Fixed Solar Panel uses N-Type TOPCon solar cells rated at 25.2% cell efficiency. Exotronic states TOPCon technology gives higher efficiency, lower degradation and better low-light performance than older P-type and conventional monocrystalline cells, backed by an 18-wire busbar design to reduce resistive losses and hot spots.

The panel is a 12V rated solar panel, built with a 25mm anodised aluminium frame and 3.2mm tempered glass. Exotronic states it is salt mist and ammonia resistant, rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa, with a fully potted, IP68 junction box and an 800mm fly lead for installation.

Key Features

• 80W rated output from N-Type TOPCon cells rated at 25.2% efficiency
• 18-wire busbar design to reduce resistive losses and hot spots
• 12V rated solar panel, suitable for caravans, RVs and boats

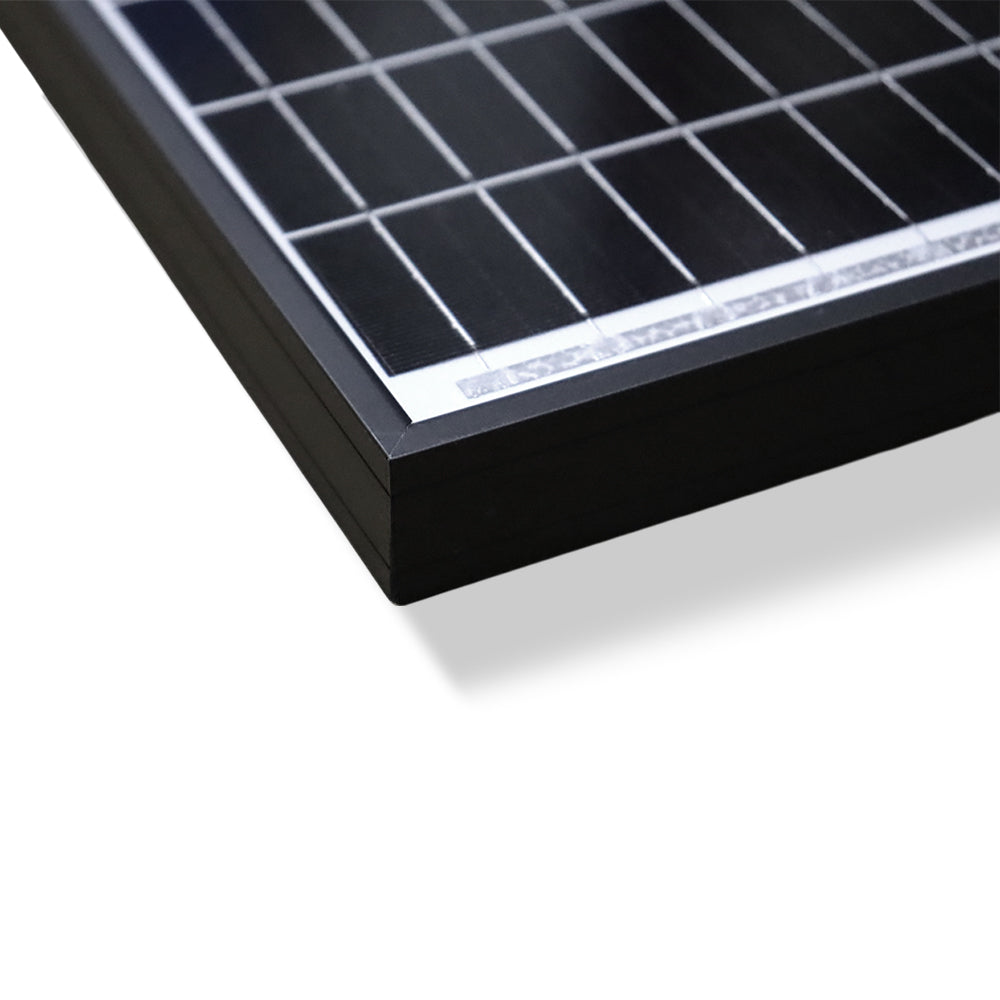

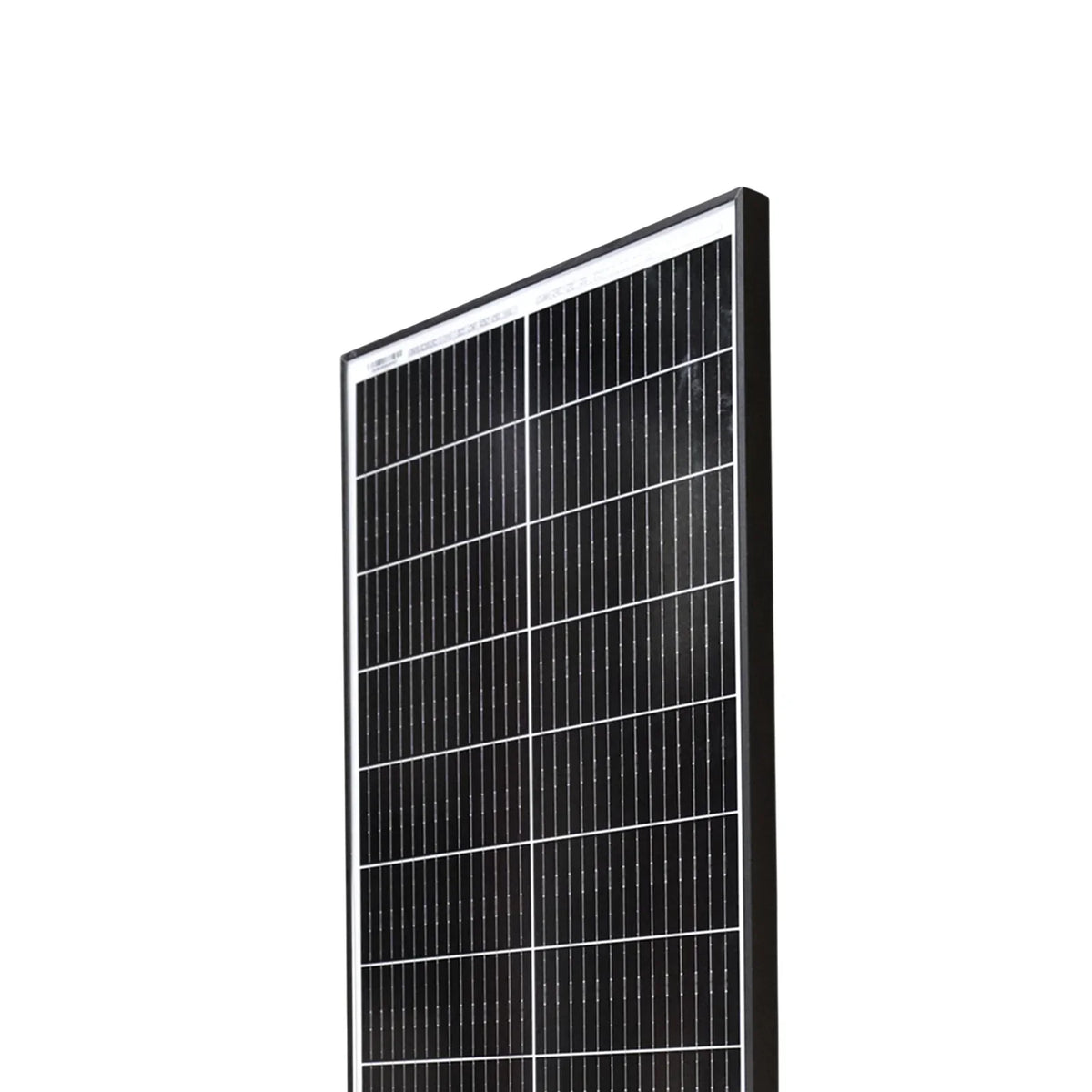

• 3.2mm tempered glass face with 25mm anodised aluminium frame
• Salt mist and ammonia resistant - suited to marine and coastal use

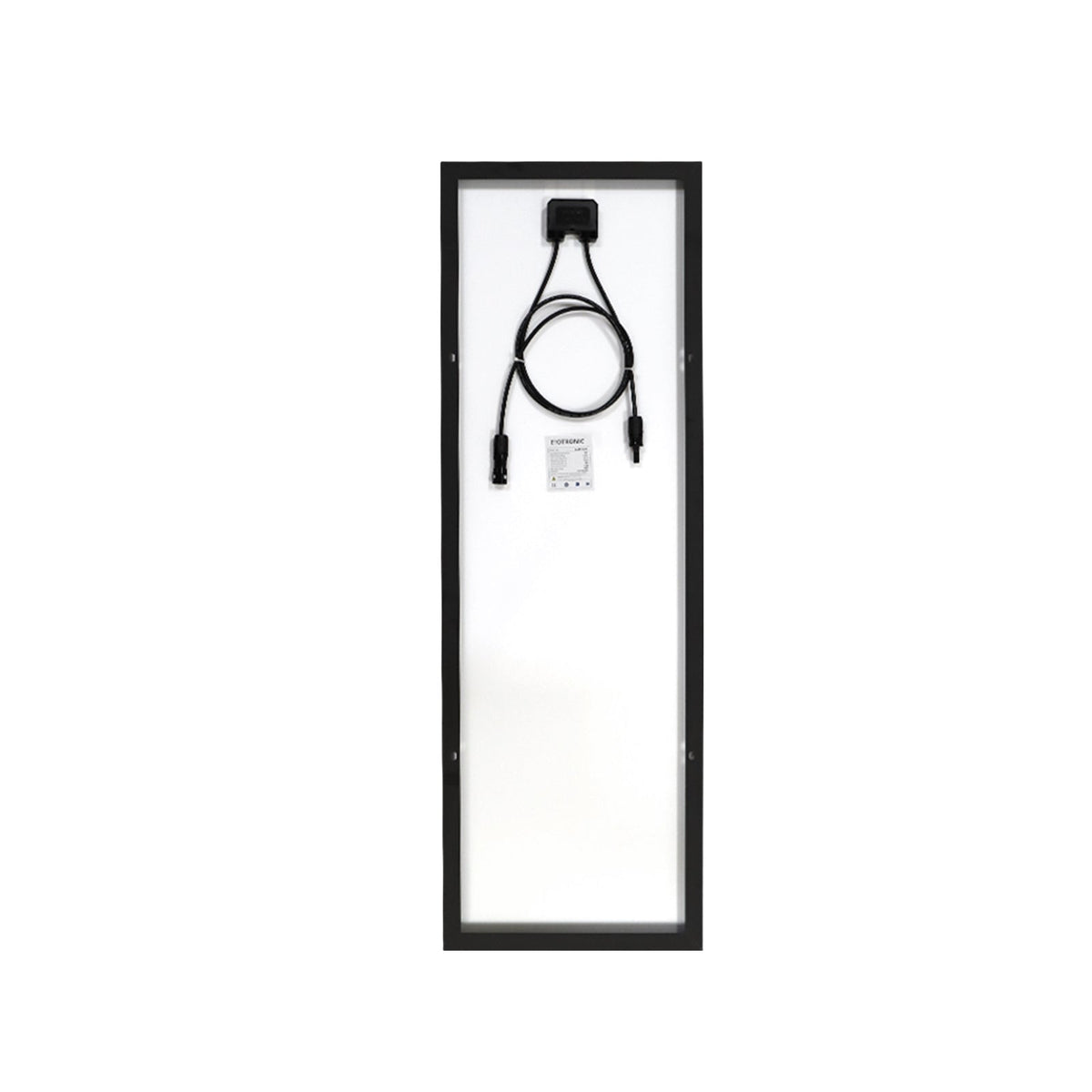

• IP68 fully potted junction box with MC4 compatible connectors and an 800mm fly lead
• Wide -40°C to +85°C operating range for harsh Australian conditions

Specifications
