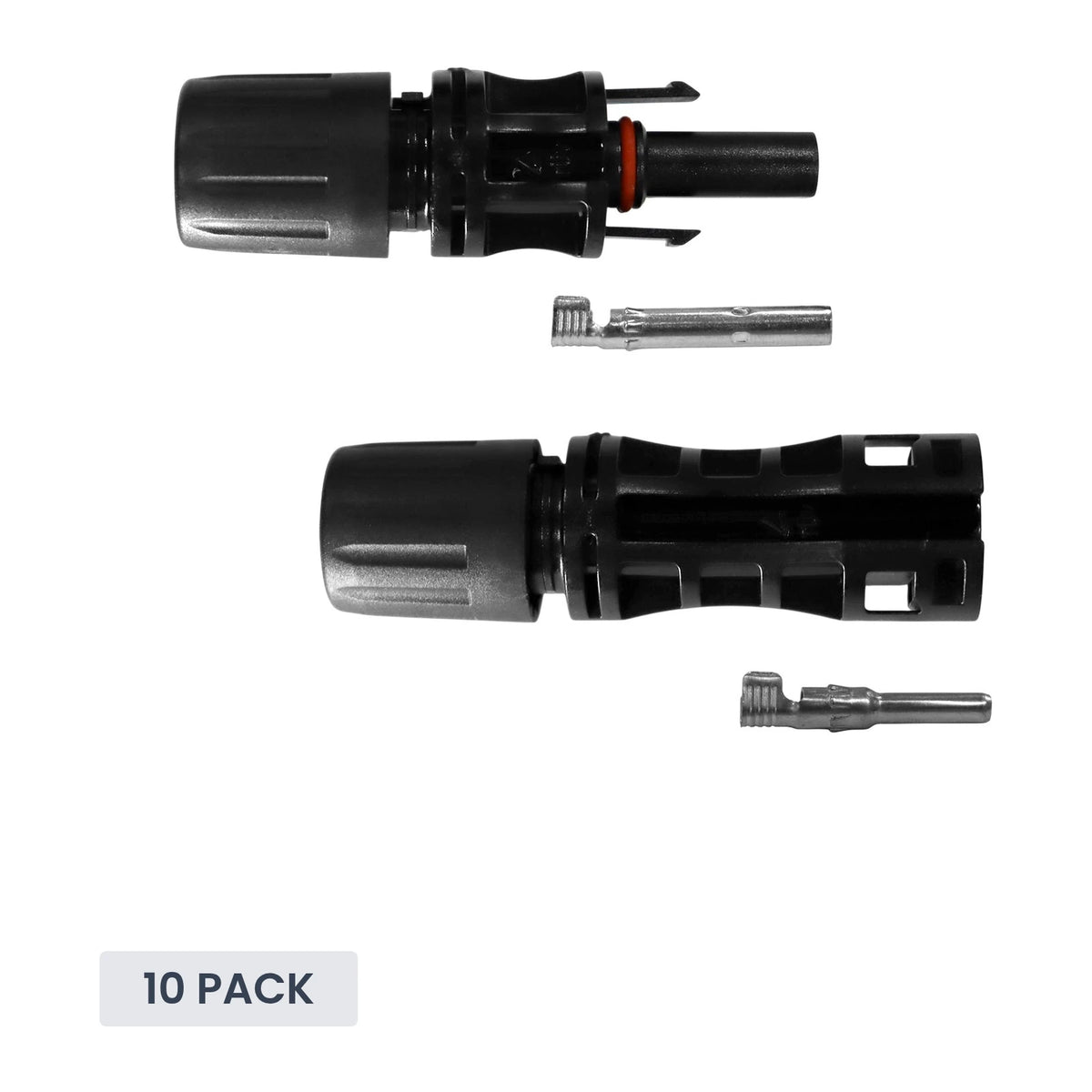

Exotronic Gen 2 Solar Connector Pair - Pack of 10

Higher-Voltage IP67 Connectors for Demanding Solar Arrays

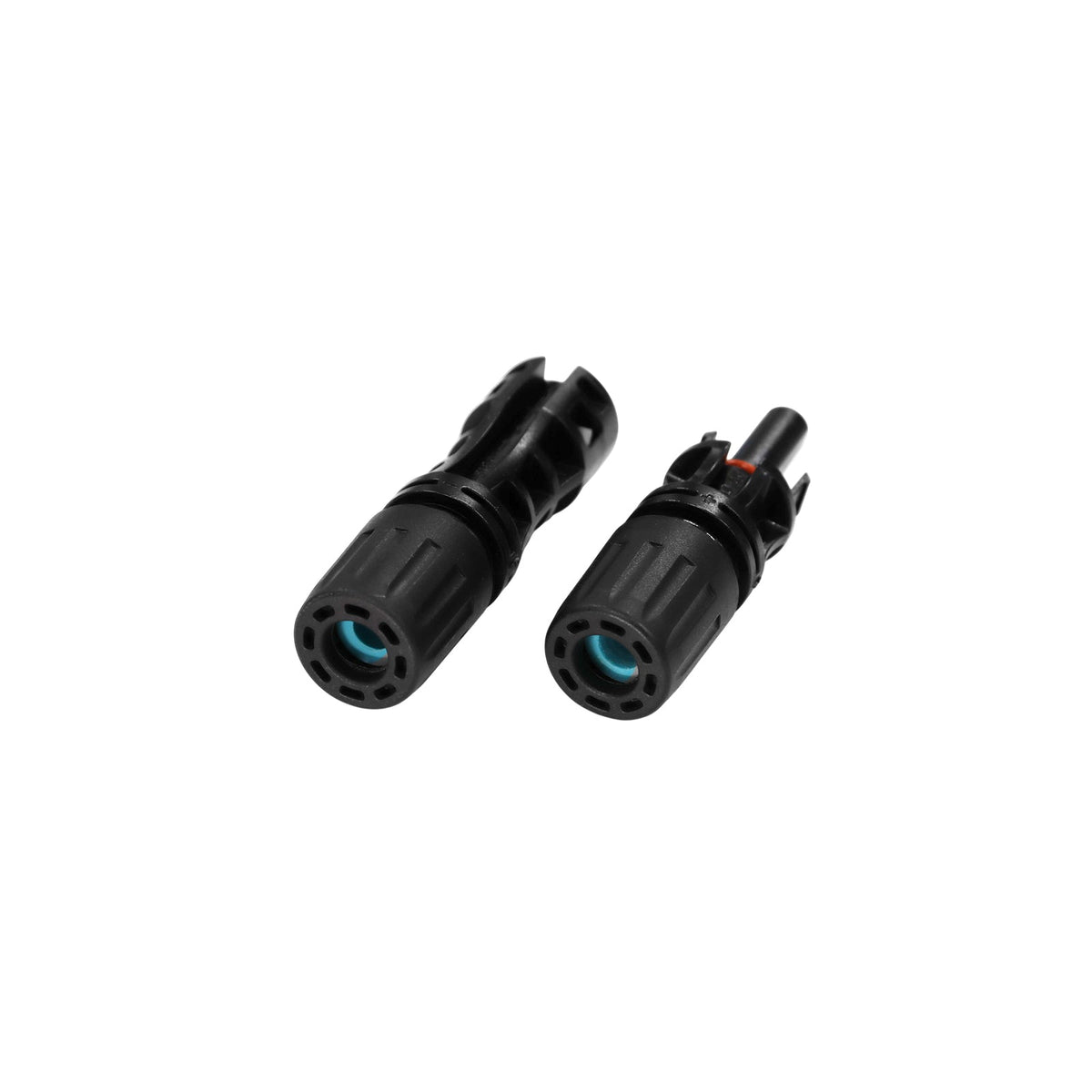

This pack contains 10 identical Exotronic Gen 2 Solar Connector Pairs, fully compatible with industry-standard MC4 connectors. They suit both mobile RV setups and larger off-grid or high-voltage solar installations, providing a robust, low-resistance link between panels.

Tinned copper terminals keep contact resistance to just 0.5 mΩ, supporting efficient power transfer with minimal voltage drop. The Gen 2 design is rated for a higher maximum system voltage of 1500V DC, giving extra clearance and safety margin for larger series strings, while still handling up to 30A on 4mm² or 6mm² cable.

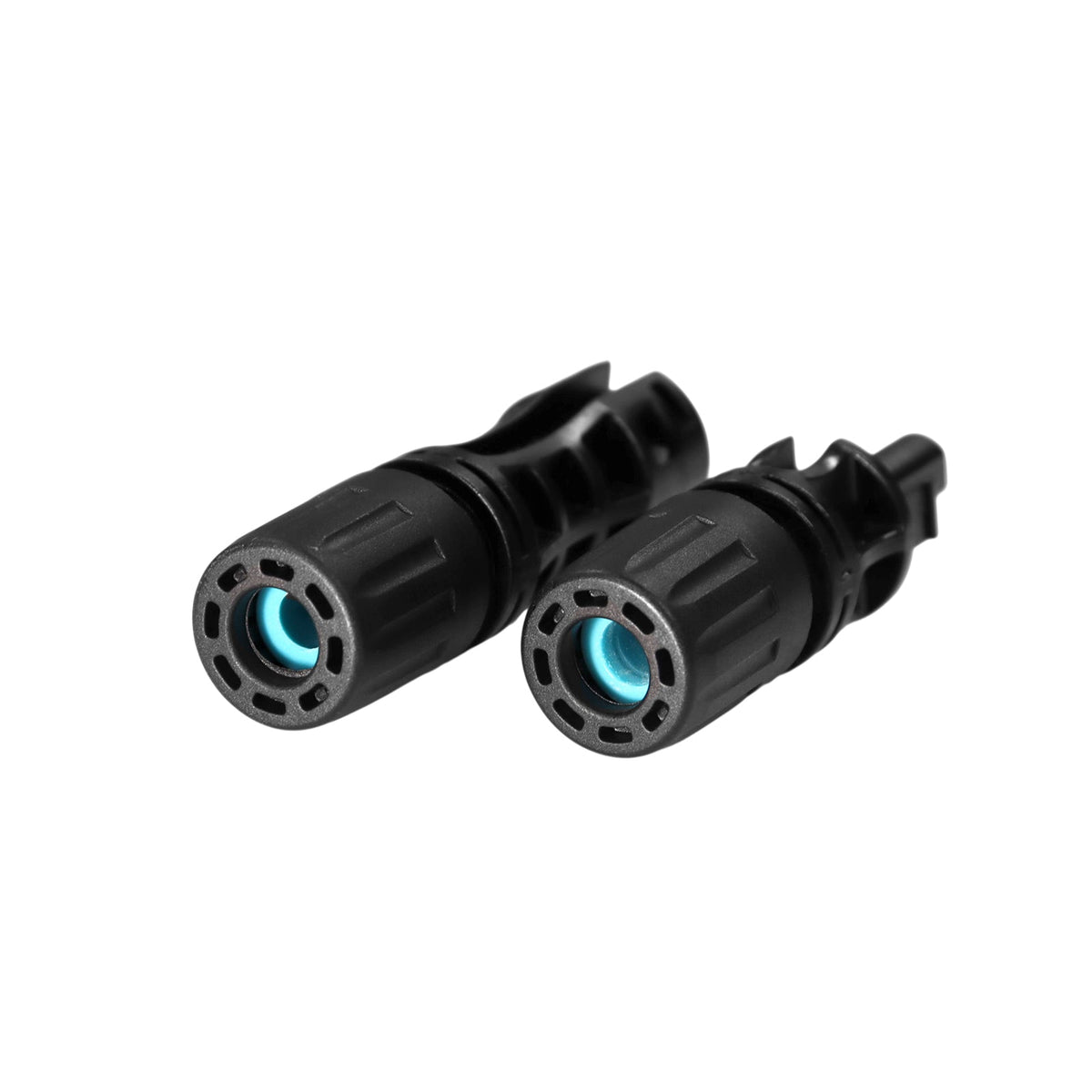

When mated, the connectors carry an IP67 waterproof and dustproof rating, with a PC/PPO housing that is UV-resistant and rated from -40°C to +90°C. A snap-in locking system and UL94-V0 flame class round out the safety features.

Key Features

• 10 identical Gen 2 solar connector pairs
• IP67 waterproof and dustproof when mated
• 1500V DC maximum rated voltage and up to 30A current capacity

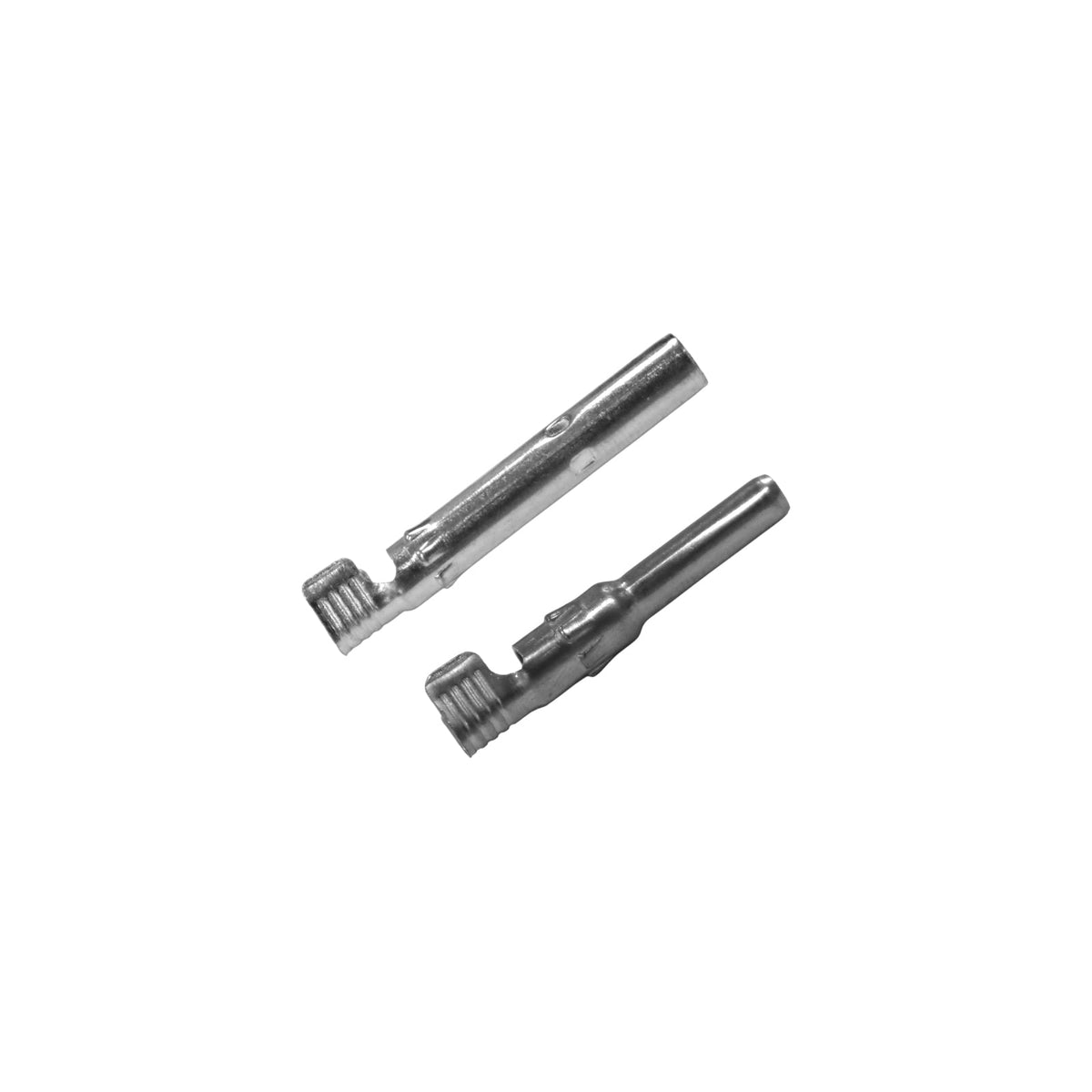

• Tinned copper terminals with 0.5 mΩ contact resistance
• PC/PPO housing rated from -40°C to +90°C
• Snap-in locking system resists vibration and cable strain
• Suits 1.5mm² to 6mm² solar cable and is MC4-compatible

Specifications
