Exotronic - Karijini Series - Split - Pre-wired Victron Board

Exotronic Karijini Series Pre-Wired Victron Energy Power Board (Split Layout) for Van Conversions

Professional-Grade, Pre-Assembled Power Solution for Off-Grid Vehicles

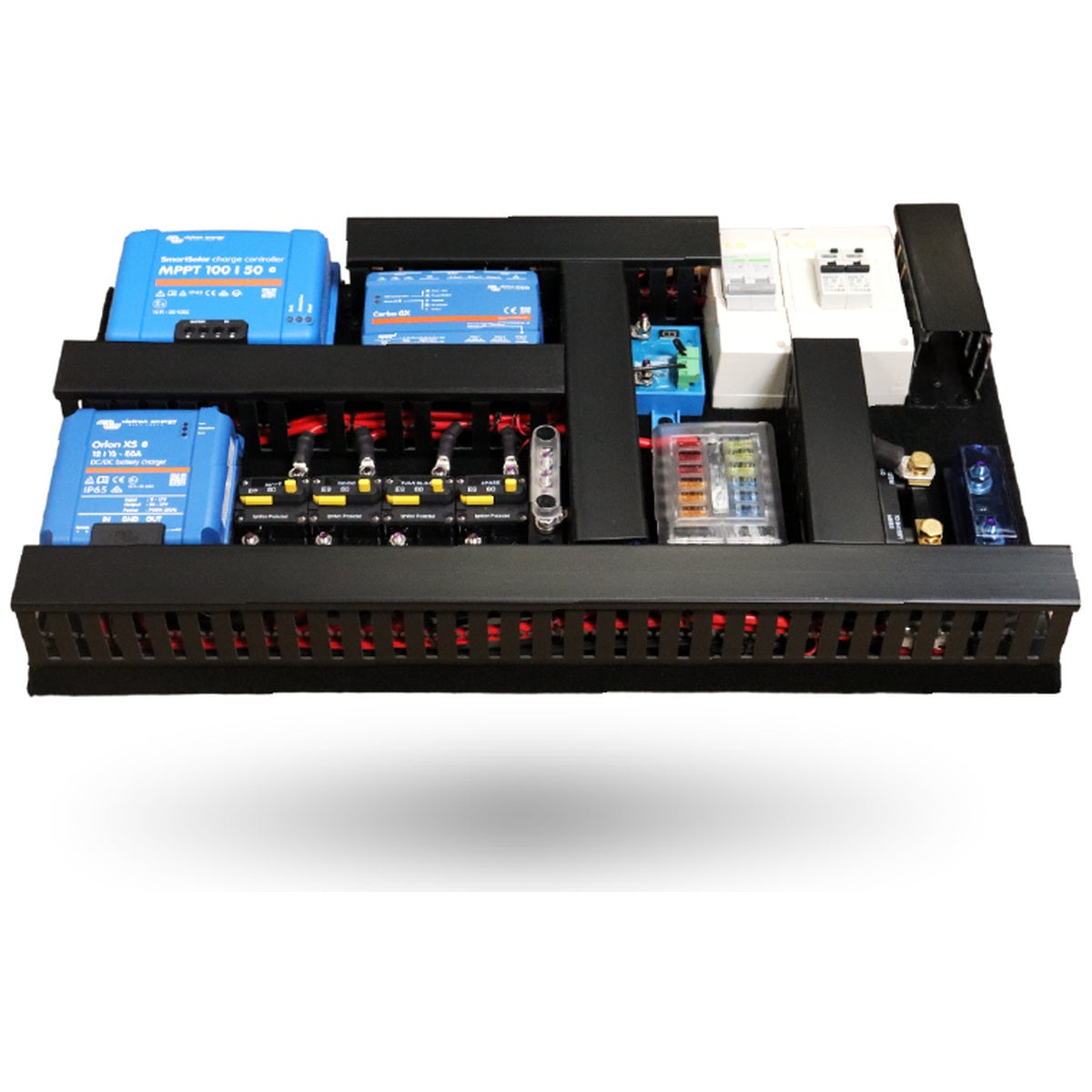

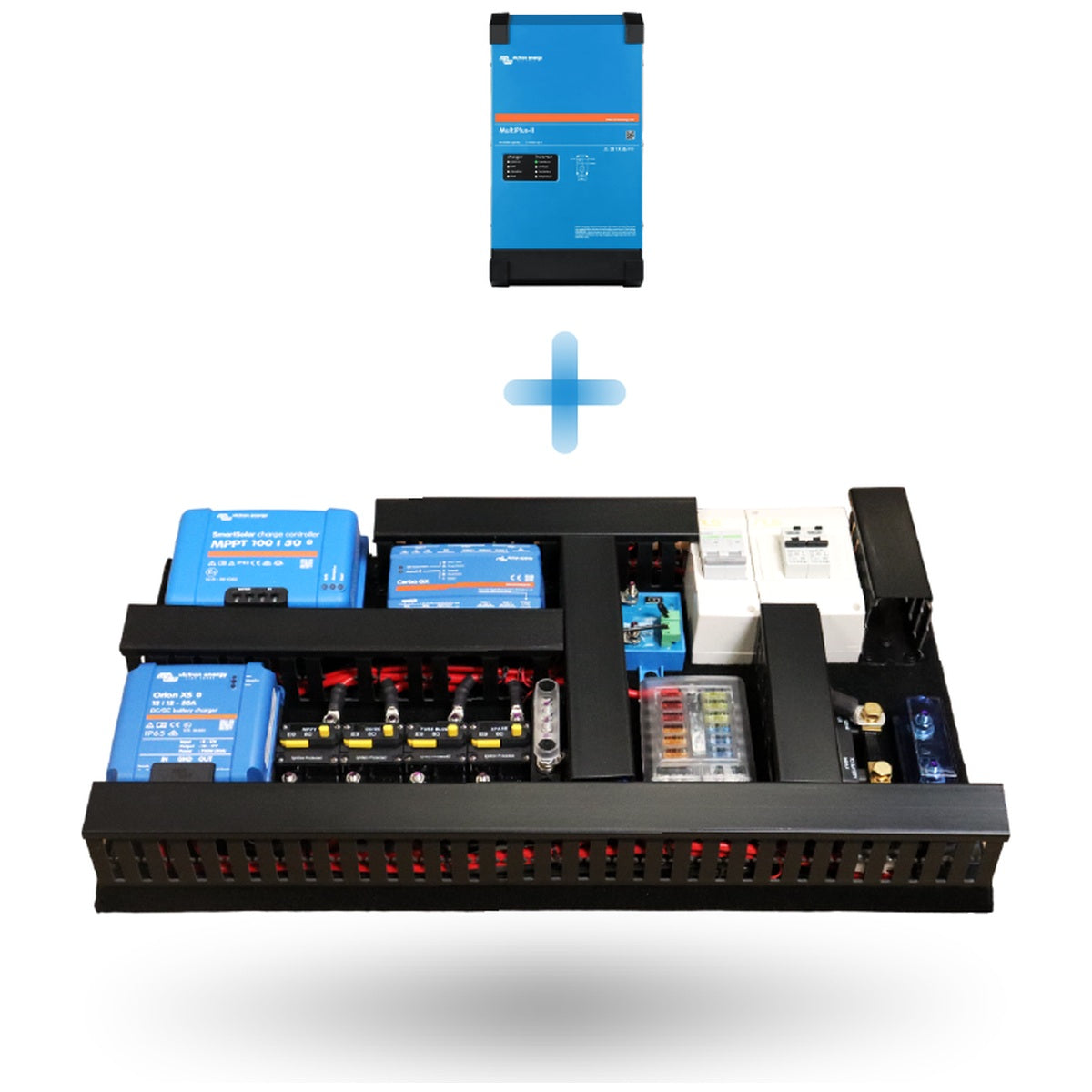

Inspired by the rugged landscapes of Karijini National Park, the Karijini Series Pre-Wired Victron Energy Power Board delivers a complete, expertly assembled electrical system for van conversions, caravans, RVs, and marine applications. This split layout configuration separates the Victron 3000VA MultiPlus-II inverter from the main control board, optimising space in tight installations under beds or seats while maintaining full functionality.

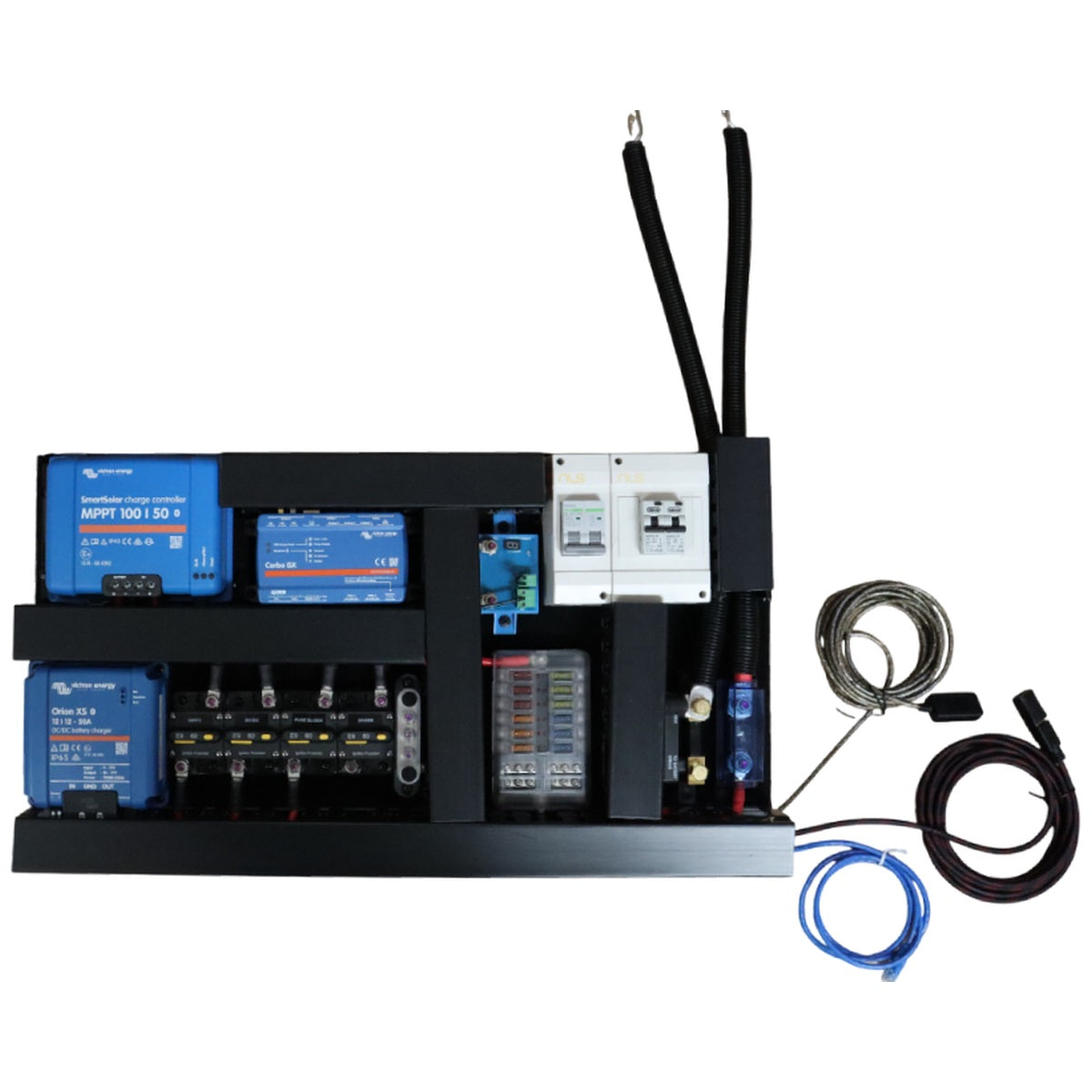

Every component is professionally wired and tested, reducing installation time and eliminating the risk of wiring errors. The board arrives ready to connect to your battery bank, solar array, and DC loads, allowing you to focus on your build rather than complex electrical integration.

Key Features

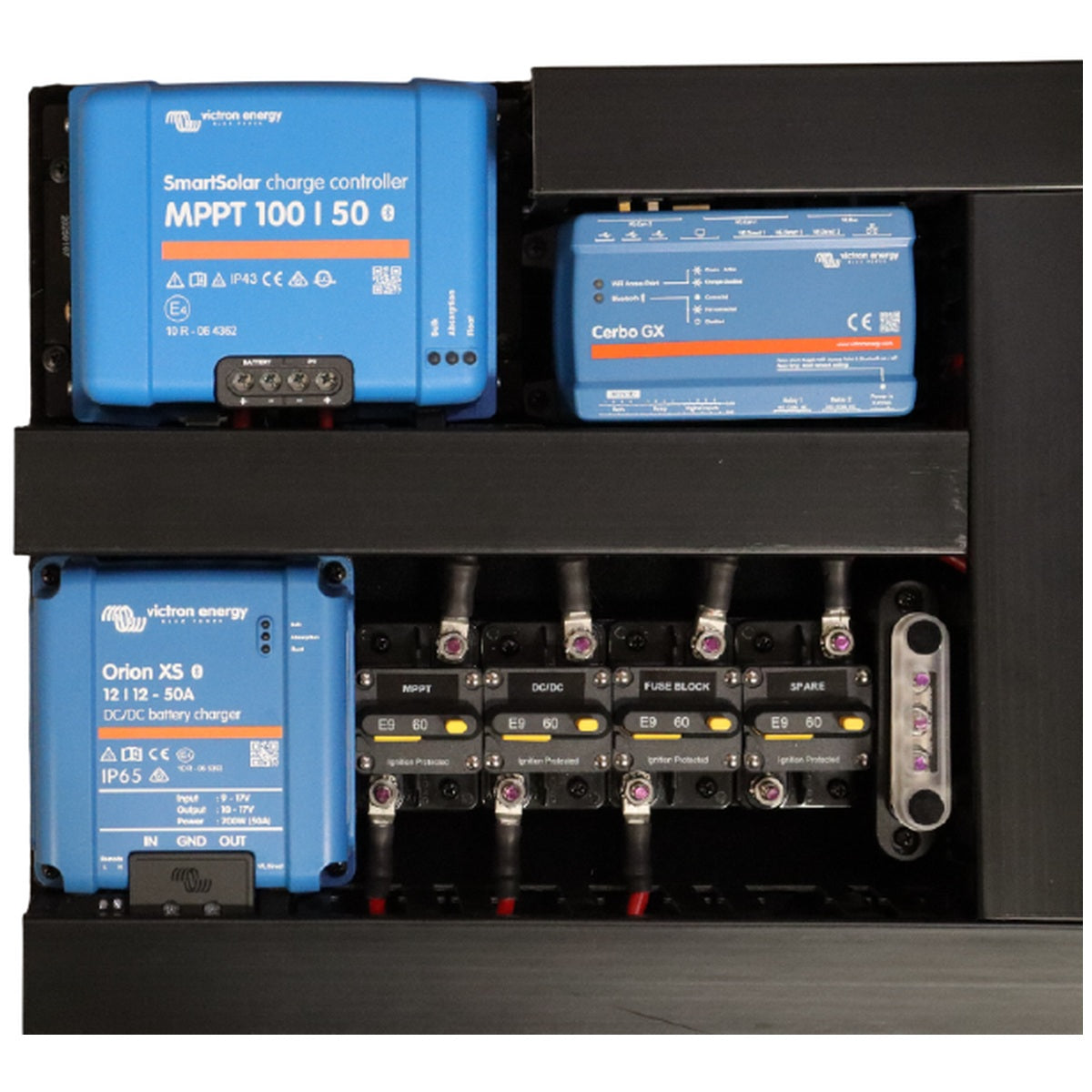

• Victron 3000VA MultiPlus-II Inverter with 120A mains charger and automatic transfer switch for seamless grid-to-battery transitions
• Victron 50A MPPT SmartSolar Controller with Bluetooth monitoring and red Anderson connector for quick solar panel connection
• Victron Orion XS 50A DC-DC Charger with adaptive three-step charging and intelligent recovery function for alternator charging
• Victron 300A SmartShunt Battery Monitor for real-time state of charge, voltage, and energy usage tracking
• Victron Cerbo GX system controller with adjustable current limits, relay control, and sensor inputs (Ruuvi and Mopeka compatible)

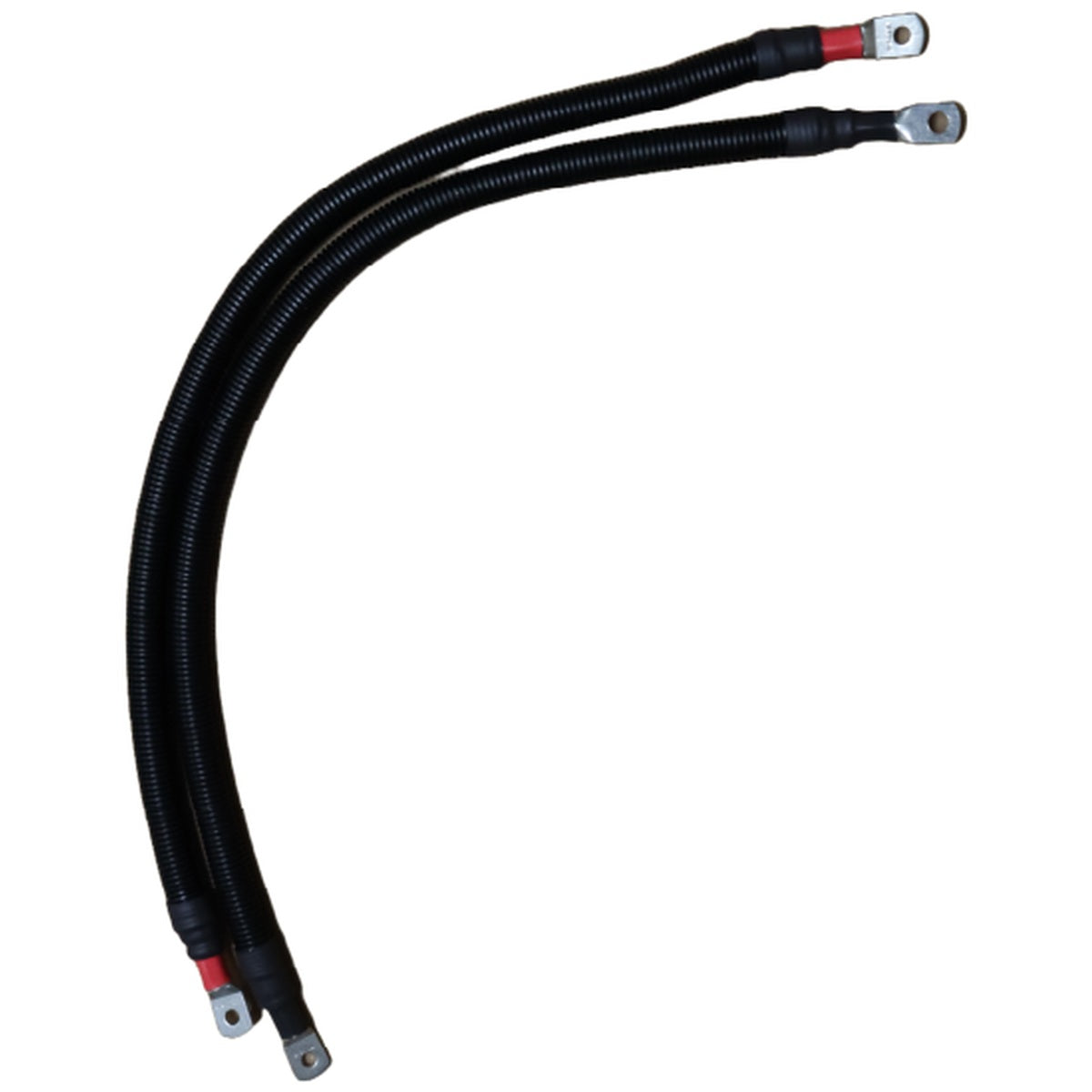

• Integrated circuit protection including 12-blade fuse block, Exotronic circuit breakers, and 400A MEGA fuse with 70mm² insulated power cable
• Smart Battery Protect prevents excessive battery discharge from DC loads
• PV isolator included to meet current regulatory requirements

Engineered for Reliability and Ease of Installation

The Karijini Series addresses common pain points in DIY electrical setups. Generic, piecemeal systems often lead to compatibility issues, messy wiring, and troubleshooting headaches. This pre-wired board eliminates those risks by providing a cohesive, tested assembly with detailed wiring diagrams. The split layout allows the inverter to be mounted separately, reducing heat buildup and freeing up valuable space in compact van interiors.

All high-current connections use robust terminals and properly sized cabling, minimising voltage drop and heat generation. The inclusion of a 400A MEGA fuse and 70mm² power cable ensures safe handling of peak currents, while the Smart Battery Protect safeguards your battery bank from deep discharge damage.

Complete Energy Management and Monitoring

With the Victron Cerbo GX at the heart of the system, you gain full remote monitoring and control via the Victron Remote Management (VRM) portal. Adjust inverter settings, monitor solar yield, and track battery health from your smartphone or tablet. The system is ready for optional Ruuvi temperature sensors and Mopeka tank level sensors (sold separately), providing a comprehensive view of your vehicle's resources.

The Victron SmartShunt delivers precise battery monitoring, including state of charge and time-to-go estimates, helping you manage energy consumption effectively during extended off-grid stays.

Built for Australian Conditions

Designed and assembled in Australia, the Karijini Series uses genuine Victron Energy components known for their durability and performance in harsh environments. The board's compact dimensions (650 x 350 x 100 mm) and 12 kg weight make it manageable for single-person installation, while the robust construction withstands vibration and temperature extremes encountered on rough outback tracks.

Applications

• Campervan and motorhome electrical systems
• Caravan power upgrades
• Off-grid tiny homes and cabins
• Marine and yacht auxiliary power
• Mobile workshops and command vehicles

Ready to Power Your Adventure

Equip your vehicle with a professionally pre-wired power system that saves time and delivers dependable energy. Order the Exotronic Karijini Series Pre-Wired Victron Energy Power Board today and experience a streamlined installation with premium components built for life on the road.

Specifications
