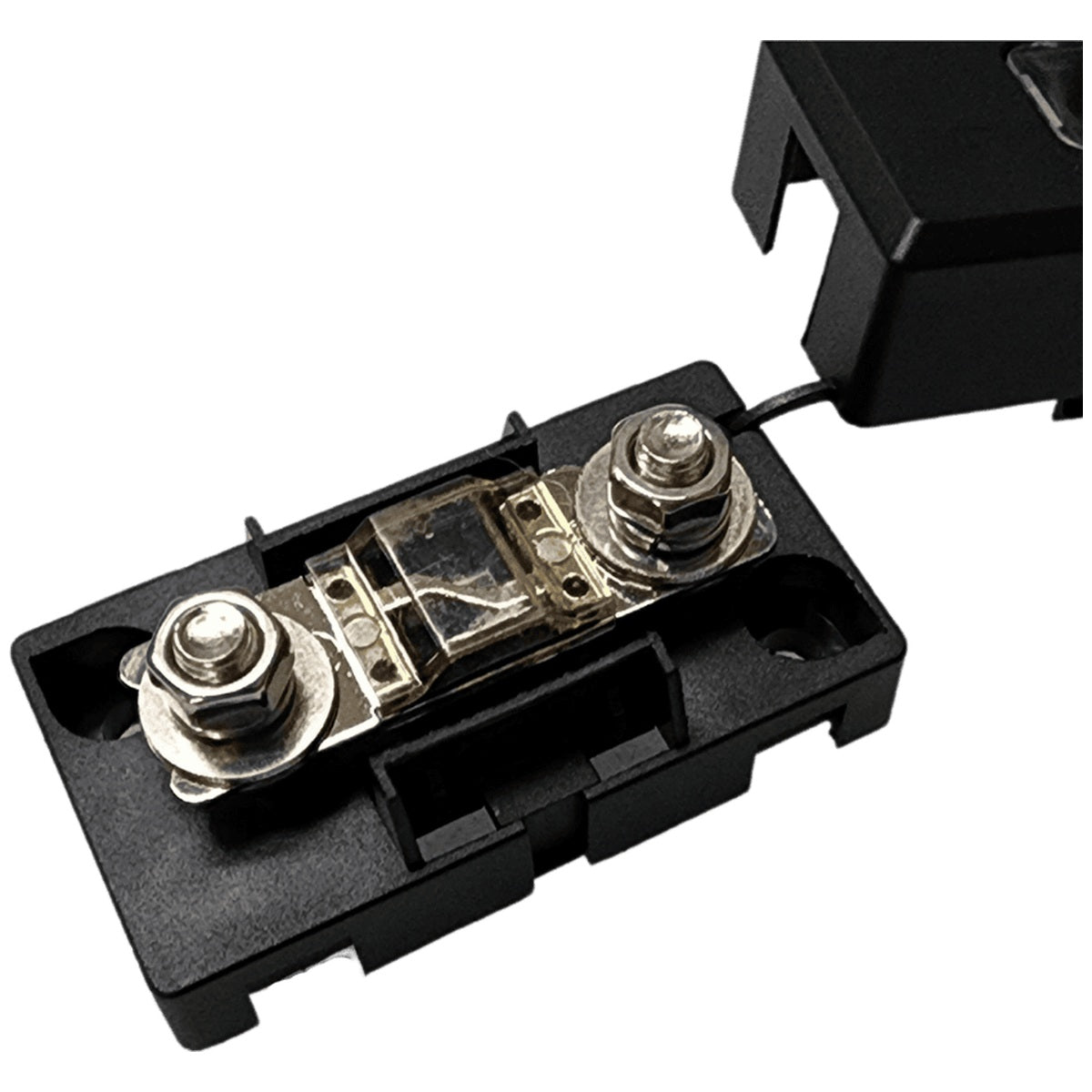

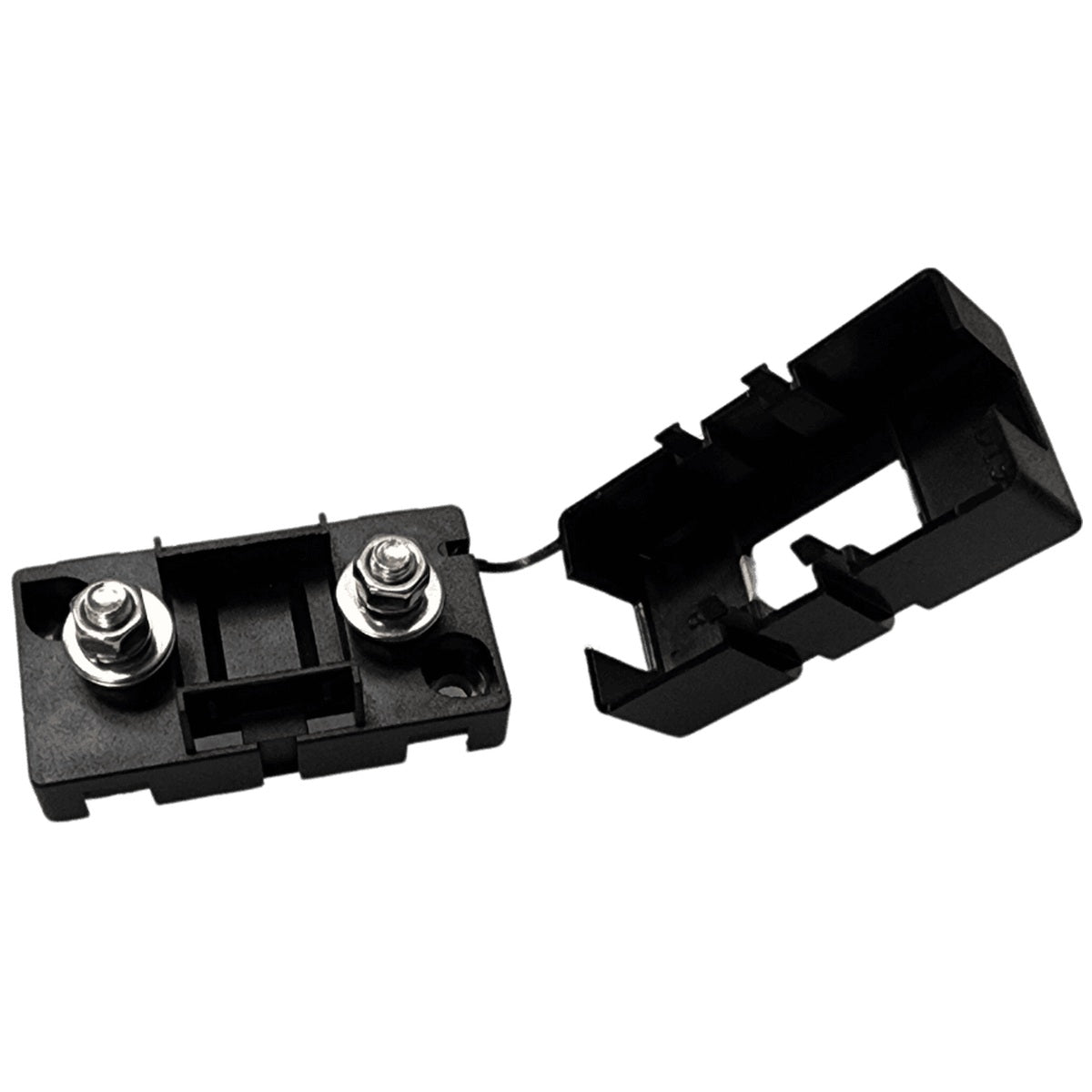

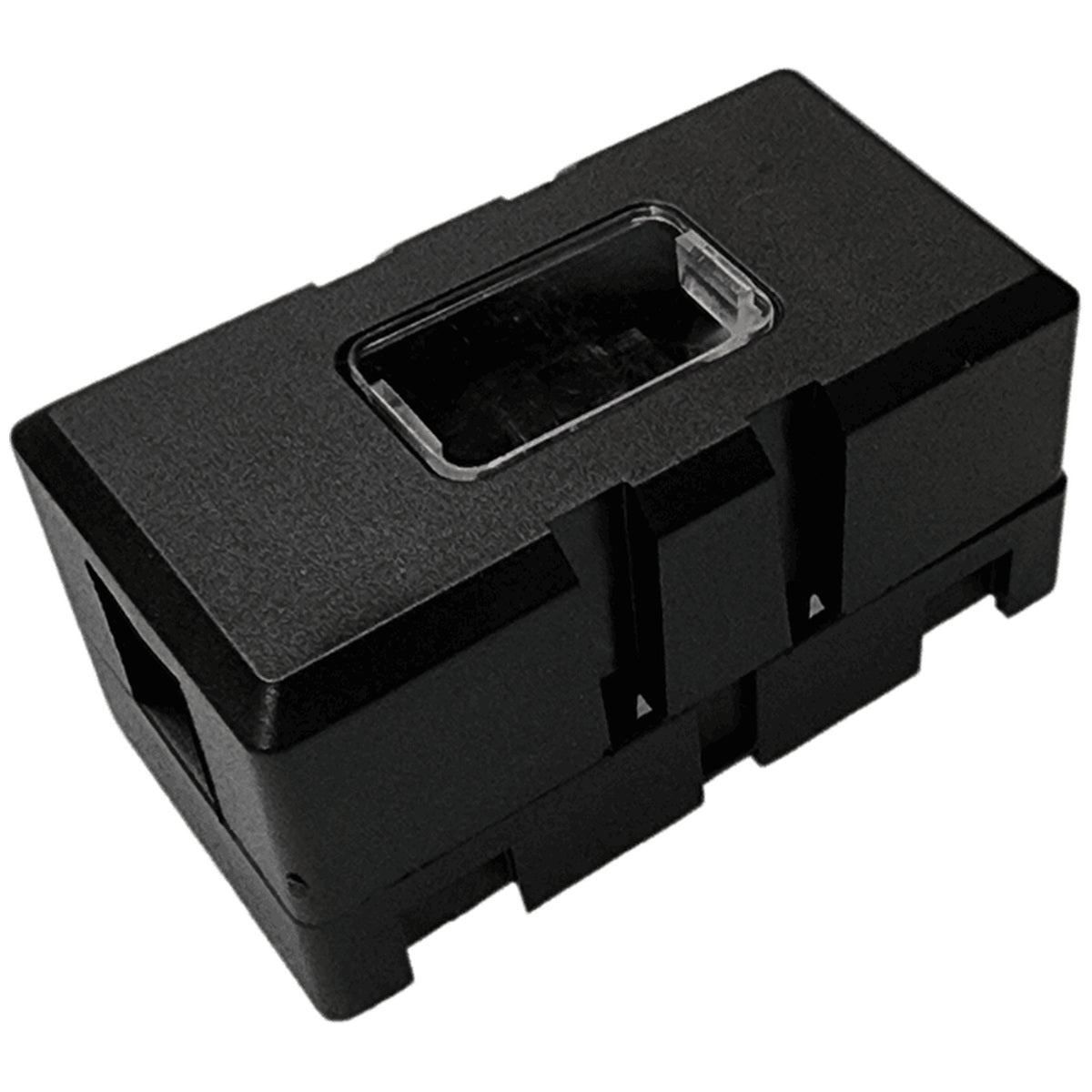

Exotronic - Midi/AMI/ANS Fuse Holder

Modular MIDI/AMI/ANS Fuse Holder for High-Current DC Distribution

Scalable Circuit Protection for Automotive, Marine, and Off-Grid Systems

The Exotronic Midi/AMI/ANS Fuse Holder provides a robust, space-efficient solution for managing high-current DC circuits. Engineered to accept standard MIDI, AMI, and ANS fuses from 23A to 200A, this holder supports voltage ratings up to 125V DC, making it suitable for 12V, 24V, and 48V electrical architectures in vehicles, vessels, and renewable energy installations.

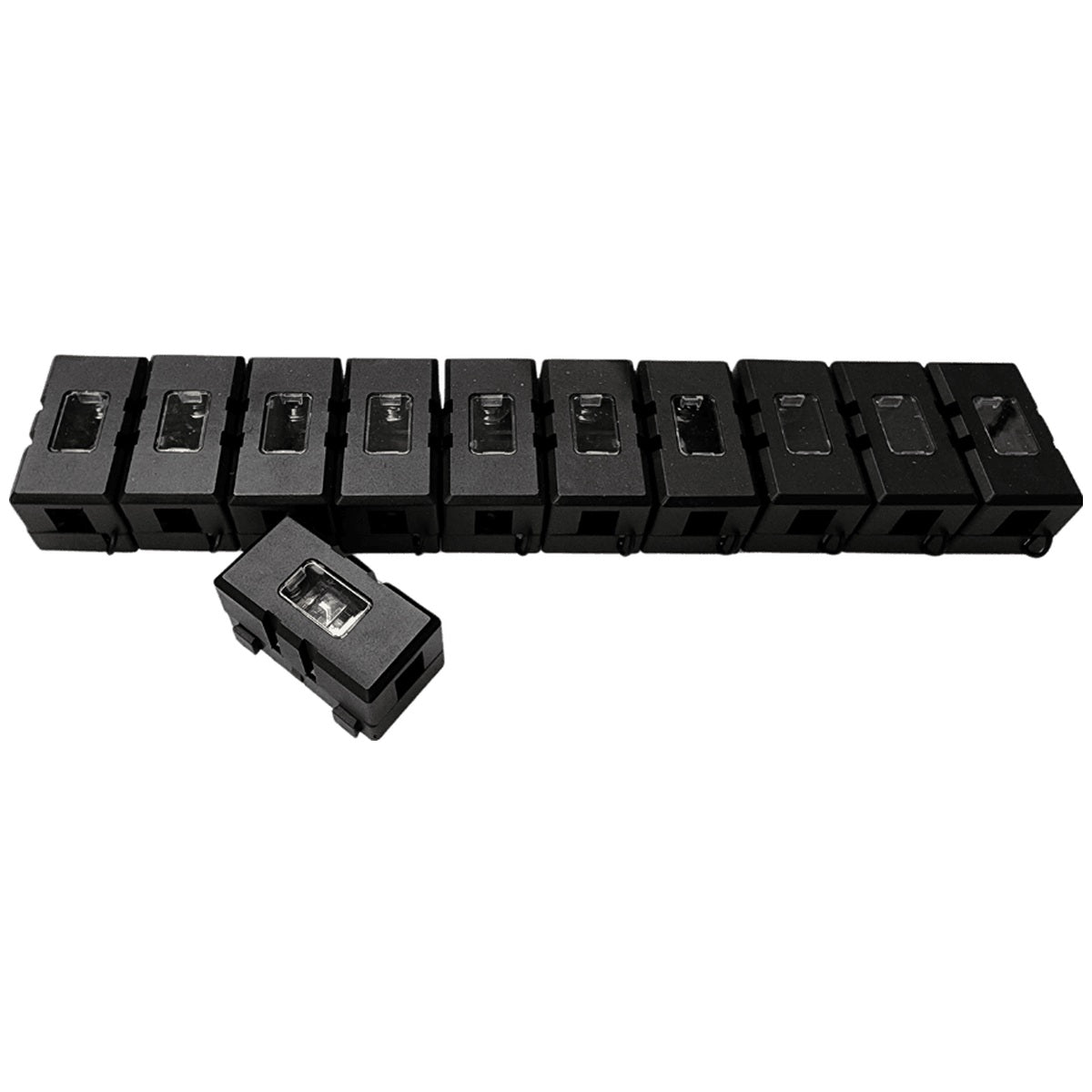

Unlike generic fuse blocks that require separate mounting for each circuit, this holder’s interlocking modular design allows multiple units to be clipped together side by side. This creates a clean, organised fuse array that simplifies wiring, reduces installation time, and improves long-term serviceability—critical for professional installers and DIY enthusiasts alike.

Built for Demanding Environments

Constructed from high-temperature-resistant materials, the holder withstands the thermal stress common in engine bays, battery compartments, and inverter enclosures. The compact footprint (58mm L x 30mm W x 27mm H) fits into tight spaces, while the M5 stud terminals provide secure, low-resistance connections for ring terminals. A transparent inspection window allows immediate visual confirmation of fuse status without opening the cover, reducing maintenance downtime and enhancing safety during routine checks.

• Accepts MIDI, AMI, and ANS fuses from 23A to 200A
• Rated for DC voltages up to 125V, covering 12V, 24V, and 48V systems
• Interlocking modular design for neat, scalable fuse banks

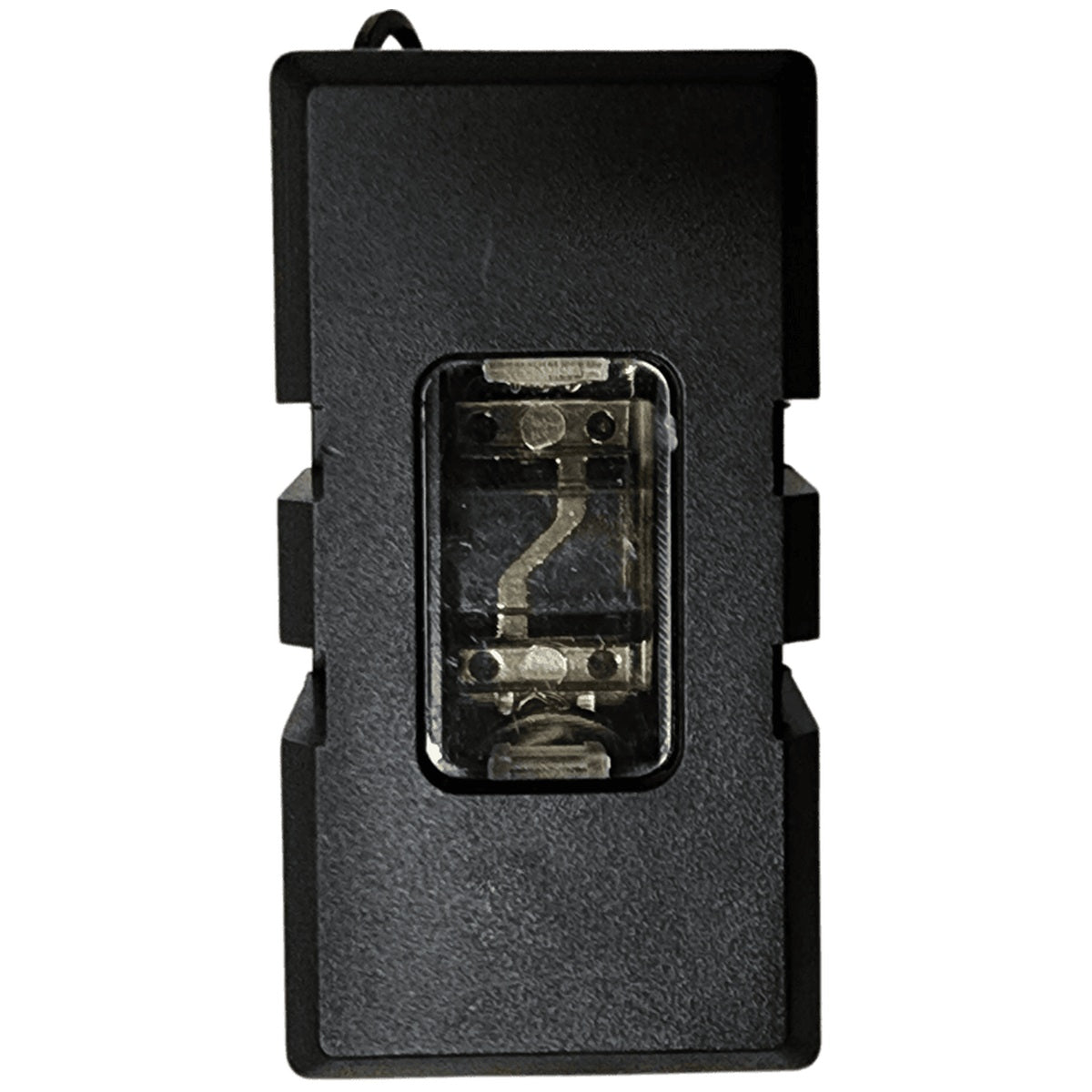

• Clear inspection window for quick fuse status checks
• High-temperature housing suitable for engine bays and battery compartments
• M5 stud terminals for reliable, low-resistance connections
• Compact dimensions: 58mm x 30mm x 27mm

Why Choose a Modular Fuse Holder?

Traditional fuse blocks often force compromises between space, accessibility, and expandability. The Exotronic modular system eliminates these trade-offs. By clipping holders together, you can build a custom fuse array that matches your exact circuit count—whether protecting a single auxiliary circuit or distributing power across multiple loads in a caravan, boat, or off-grid solar setup. This approach reduces cable clutter, minimises voltage drop, and makes future upgrades straightforward.

Additionally, the holder’s compatibility with widely available MIDI/AMI/ANS fuses means you are not locked into proprietary components. Replacement fuses can be sourced easily, keeping your system operational with minimal downtime.

Applications

• Automotive auxiliary circuits: lighting, winches, audio systems
• Marine DC distribution: navigation equipment, pumps, windlasses
• Caravan and RV power management: battery chargers, inverters, solar regulators
• Off-grid solar installations: combiner boxes, battery protection
• Industrial equipment: DC motor circuits, control panels

Note: Fuses are purchased separately, allowing you to select the exact ratings required for your application.

Secure Your Electrical System with Confidence

Upgrade your DC circuit protection with the Exotronic Midi/AMI/ANS Fuse Holder. Its modular, high-temperature design delivers the reliability and flexibility needed for professional-grade installations. Add the required fuses to your order and build a safer, more organised power distribution system today.

Specifications
