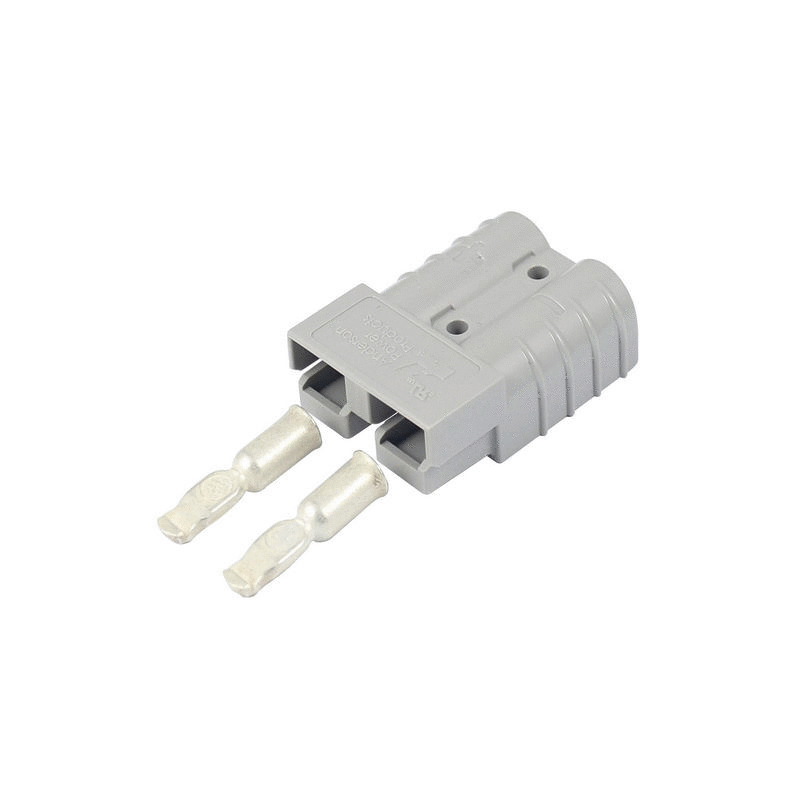

Genuine Anderson Plug - SB50

Based off the design pioneered by Anderson in 1953, the two pole SB® connectors set the standard for DC power distribution and battery connections. SB connectors feature a rugged one piece plastic housing using stainless steel springs to retain the contacts and create the “contact force” that provides extremely low resistance enabling greater electrical efficiency. The SB connectors are also genderless (flip one 180 degrees and they will mate to each other) reducing the customer’s bill of materials and providing greater economies of scale when purchasing.

The SB series of connectors range in size from SB50 to the SB350. Each family size offers color-coded, mechanically keyed housings designed to prevent both visually and physically cross-mating devices with different voltages. All the connectors are UL rated to 600 volts so the keys and colours are just identifiers to prevent accidents. Contacts are traditionally Silver plated to minimize electrical resistance while offering supreme durability and reliability.

Available with 3 wire input gauges, 6 AWG, 8AWG and 10-12 AWG.
