Hellermann Tyton - Pre-Insulated Terminal Yellow Ring Lug - M10

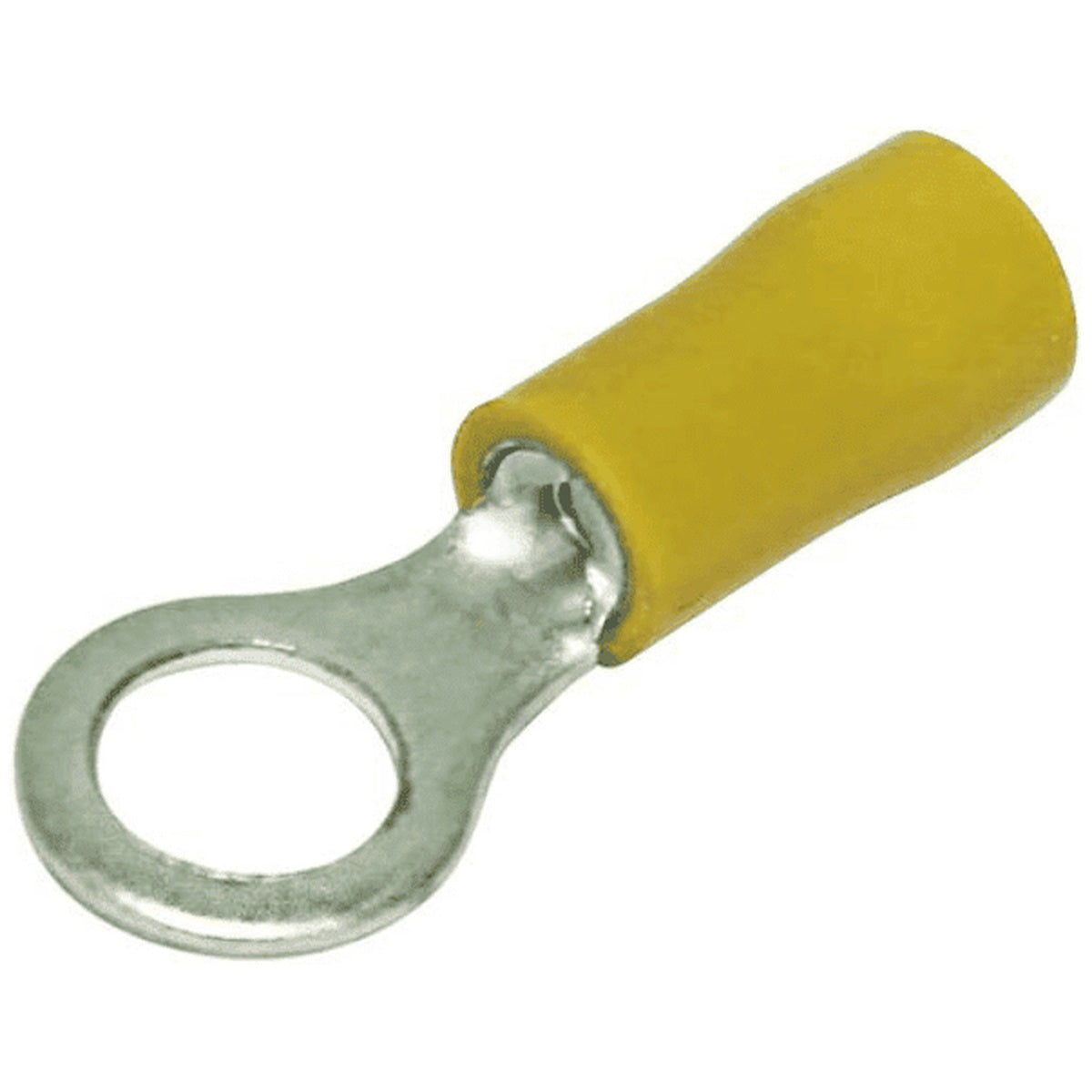

Hellermann Tyton Yellow Pre-Insulated Ring Terminal: Reliable High-Vibration Connections

Engineered for Demanding Electrical Environments

The Hellermann Tyton Yellow Pre-Insulated Ring Terminal is designed to deliver secure, long-lasting connections in applications where vibration and mechanical stress are constant concerns. With its double grip crimp design, this terminal provides a dual-point contact on the conductor and insulation, significantly reducing the risk of connection failure in automotive, marine, and industrial settings.

Manufactured using a precise three-piece process, the terminal combines a high-conductivity copper body with a durable PVC insulation sleeve. This construction ensures excellent electrical performance while offering clear visual identification through its yellow colour coding, which corresponds to conductor sizes from 4.0 mm² to 6.0 mm² (approximately 12 AWG to 10 AWG).

Built for High-Vibration Applications

Unlike standard single-crimp terminals, the double grip system provides enhanced mechanical retention. The first crimp secures the conductor strands, while the second grips the insulation, creating a strain relief that absorbs vibration and prevents wire pull-out. This makes the terminal ideal for engine bays, machinery, and mobile equipment where movement is unavoidable.

The M10 stud hole (10.5 mm diameter) accommodates larger bolts, making it suitable for high-current connections such as battery terminals, earth points, and power distribution blocks. With a maximum current rating of 48 A and a voltage rating of 600 V, this terminal handles substantial electrical loads while maintaining a compact footprint.

Note: The 48 A rating is the maximum current under ideal conditions. Typical de-rating factors such as ambient temperature, bundling, and duty cycle should be applied in practice.

Key Features

• Double grip crimp for superior vibration resistance and mechanical strength
• Colour-coded yellow insulation for quick identification of 4.0–6.0 mm² conductors
• M10 stud hole (10.5 mm) suits common high-current connection points
• Copper body with PVC insulation rated to +75 °C for reliable performance
• 600 V maximum voltage suitable for 12 V, 24 V, and 48 V DC systems
• RoHS compliant for environmentally conscious installations

Applications Where Reliability Matters

This ring terminal is a practical choice for professionals and enthusiasts working on:

• Automotive wiring, including starter motors, alternators, and auxiliary circuits
• Marine electrical systems exposed to constant vibration and moisture
• Industrial control panels and machinery with high connection integrity requirements
• Solar and off-grid power systems where secure terminations are critical
• Caravan and RV 12 V/24 V installations needing durable, insulated lugs

Why Choose Hellermann Tyton?

Hellermann Tyton is a globally recognised brand in cable management and connection technology. Their pre-insulated terminals are manufactured to consistent standards, ensuring every crimp meets performance expectations. The three-piece construction—copper barrel, insulation sleeve, and colour-coded collar—provides a reliable solution that reduces installation time and minimises the risk of poor crimps.

Compared to generic terminals, the double grip design offers a measurable improvement in pull-out force and vibration endurance. This reduces the likelihood of intermittent faults, voltage drops, and potential equipment damage caused by loose connections.

Installation Tips for Best Results

To achieve the full performance of this terminal, use a quality ratchet crimping tool with the correct die profile for insulated terminals. Ensure the conductor is fully inserted into the barrel before crimping, and verify that both the conductor and insulation grips are properly formed. For high-vibration environments, consider additional strain relief such as cable ties or conduit.

Secure Your Connections Today

Upgrade your wiring projects with the Hellermann Tyton Yellow Pre-Insulated Ring Terminal. Whether you're rewiring a classic vehicle, building a custom electrical panel, or maintaining critical equipment, this terminal provides the durability and performance you need. Add to your cart now and experience the difference a quality connection makes.

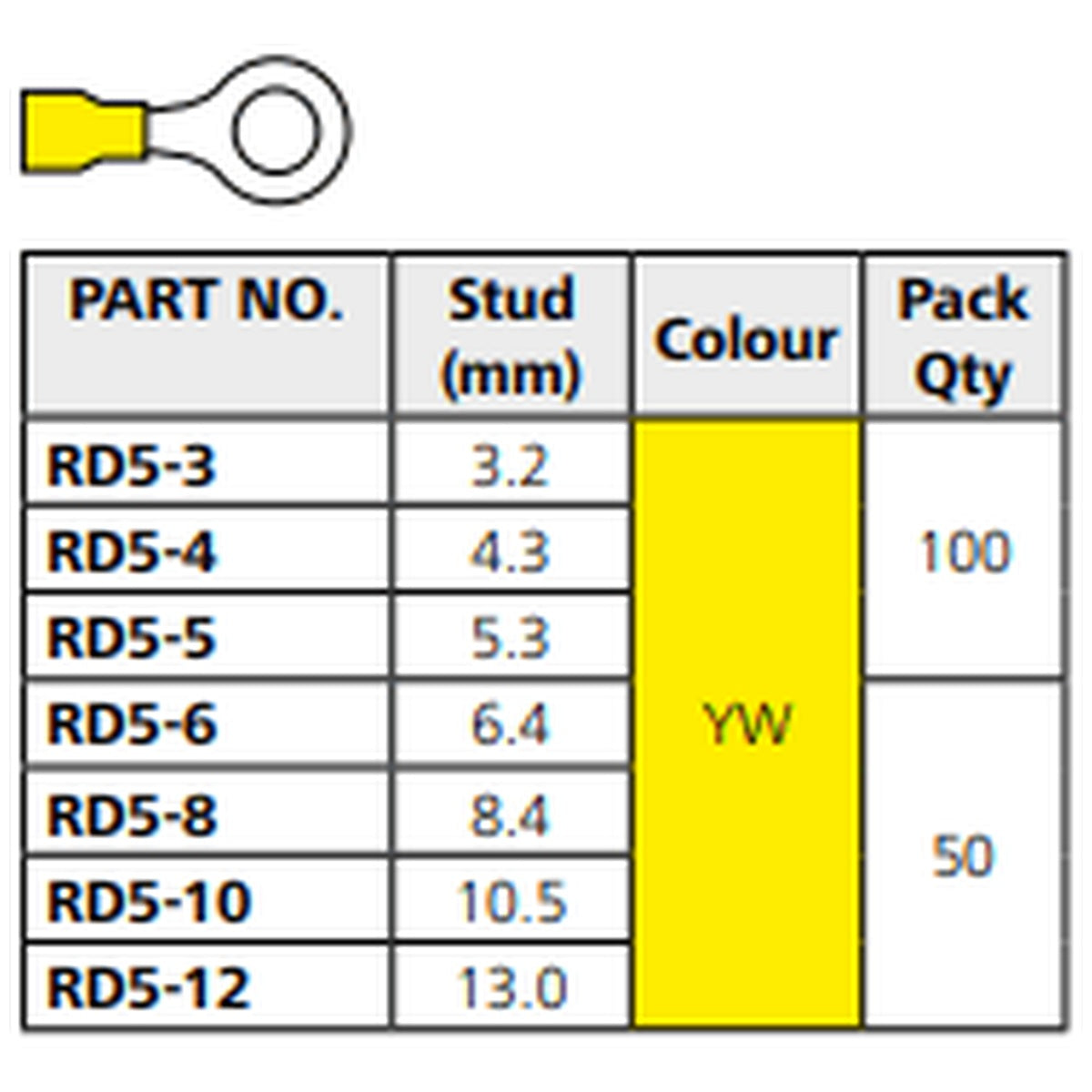

Specifications
