KEY - 3B&S (26mm²) Red Single Core Automotive Cable - Australian Made - Per Metre

KEY 3B&S (26mm²) Red Single Core Automotive Cable, Sold Per Metre for 12V, 24V and 48V Wiring

Cut-to-Length Heavy-Duty Cable for Caravans, 4WDs and Marine Wiring

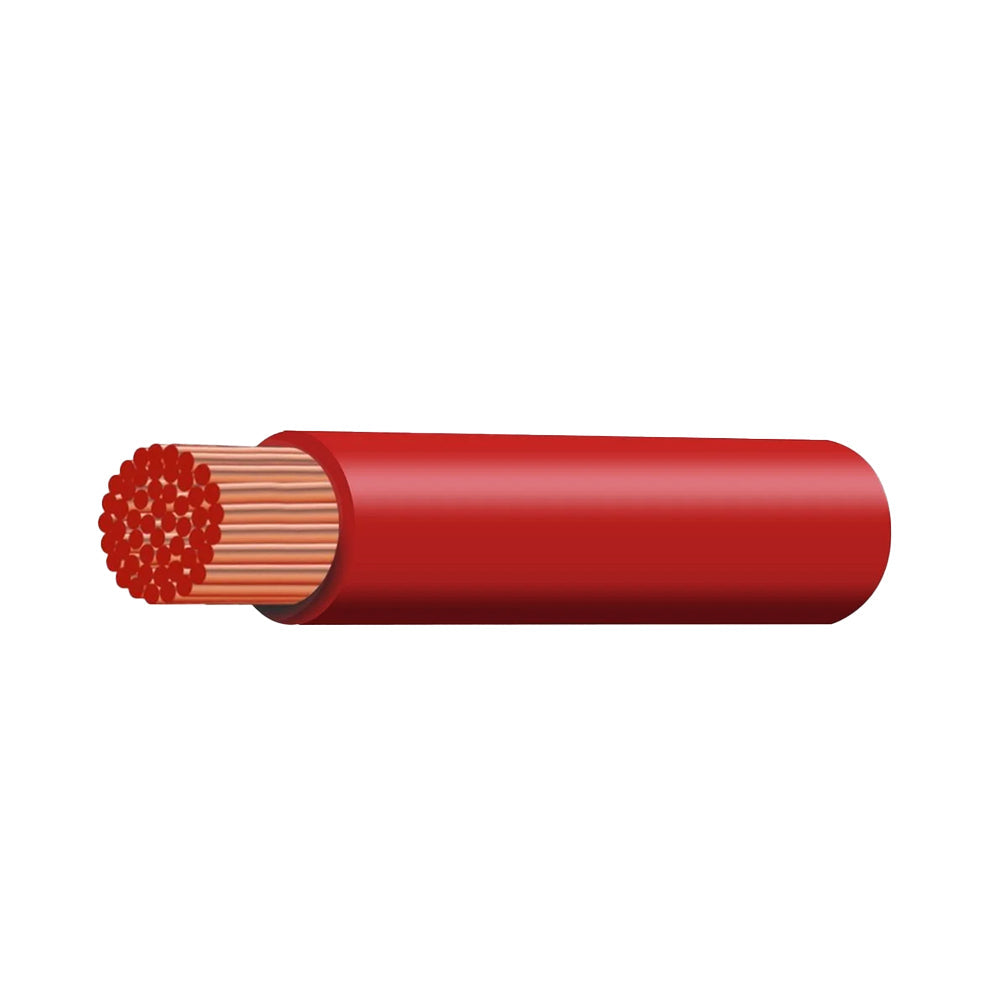

This 3B&S (26mm²) red single core automotive cable is sold per metre so you only buy the length you need. Manufactured by KEY, an Australian cable maker based in South Australia, it uses 99.9% OFHC (Oxygen Free High Conductivity) copper conductors (364 strands of 0.30mm) to keep resistance low and maintain voltage at the load over high-current battery, starter and inverter runs.

The conductor is insulated in V90HT PVC rated to 90°C, with a red sheath for positive circuit identification when paired with a black single core of the same size. The cable carries a 170A current rating with a 120V DC maximum, suiting 12V, 24V and 48V low-voltage systems.

Because it is cut to order, this per-metre option suits shorter high-current runs, repairs and top-ups where a full 100m roll is not needed.

Key Features

• 26mm² OFHC copper conductor for low resistance and reliable high-current delivery
• 170A current rating, subject to de-rating for bundling and ambient temperature
• V90HT PVC insulation rated to 90°C for engine bay and enclosed canopy installations
• Red sheath for clear positive circuit identification
• Fine-stranded, flexible construction (364/0.30mm) for easier routing in tight spaces
• Cut to your exact length, reducing waste on shorter runs
• Meets AS/NZS 1125 and AS/NZS 3808 standards

Specifications
