KEY - 4B&S (20.29mm²) Red Single Core Automotive Cable - Australian Made - 100m Roll

100m Roll of 4B&S (20.29mm²) Red Single Core Automotive Cable - High-Current Wiring for Vehicles and Outdoor Projects

Engineered for Demanding 12V, 24V, and 48V DC Applications

This 100-metre roll of 4B&S (20.29mm²) red single core automotive cable is built to handle high-current loads in vehicle electrical systems, from starter motor circuits to auxiliary battery banks and high-power accessories. With a current rating of 135A at 30°C (derating factors apply), it suits auxiliary battery charging, DC-DC chargers, large MPPT solar controllers and inverter connections. The cable is rated for maximum DC voltage up to 120V, making it suitable for 12V, 24V, and 48V systems in caravans, 4WDs, marine setups, and off-grid solar arrays.

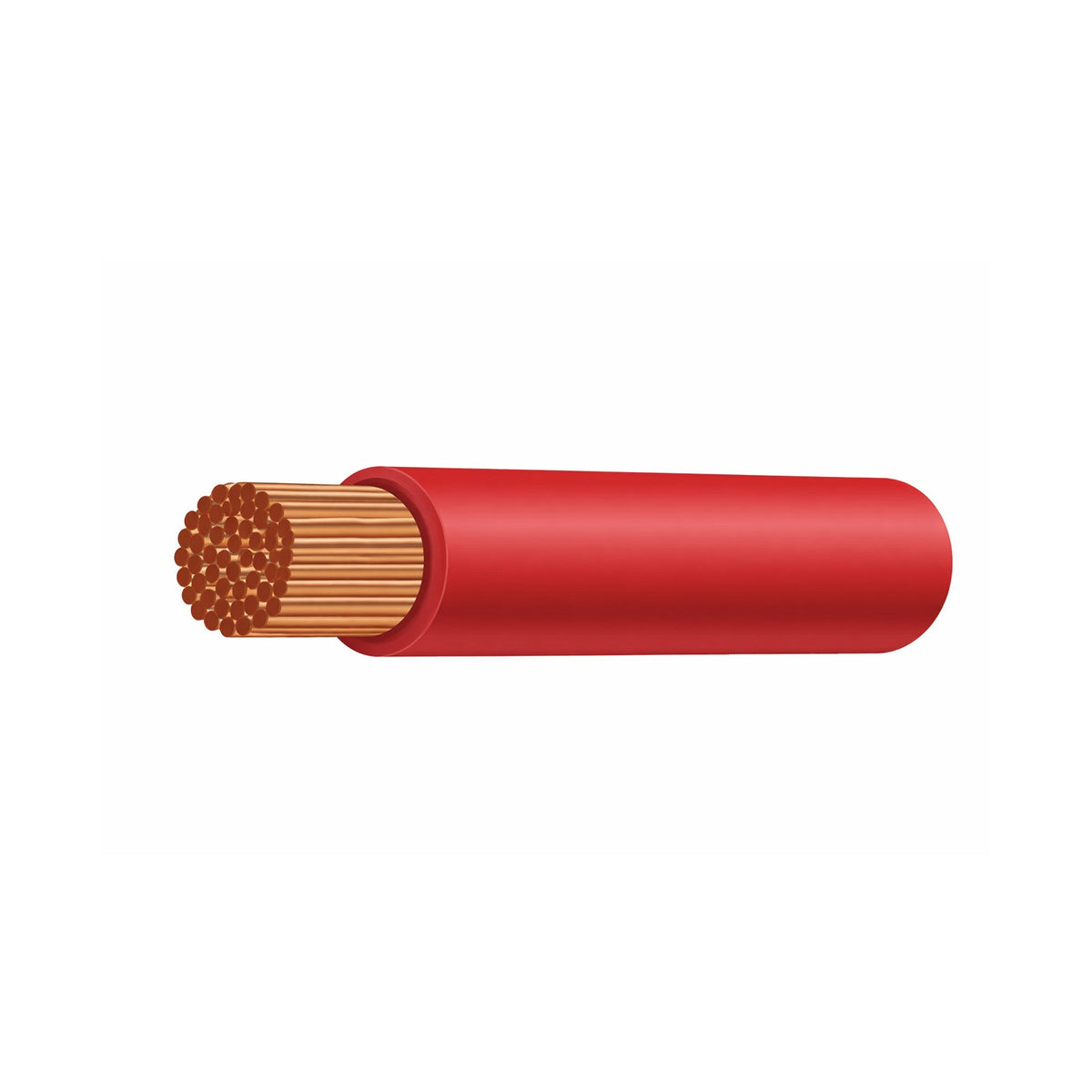

It uses a high-conductivity oxygen-free copper conductor with fine-stranded construction for flexibility and vibration resistance, with a low electrical resistance of 0.9 ohm/km at 20°C. The PVC insulation is rated up to 90°C, for reliable performance under the bonnet, in chassis runs and in marine environments.

*Note typical de-rating factors apply: current capacity reduces when cables are bundled or ambient temperatures exceed 30°C. For example, two cables bundled together require a 0.8 multiplier, reducing the effective rating to 108A.

Key Features

• 20.29mm² (4B&S) conductor - 135A rating at 30°C, ideal for high-current DC circuits
• Oxygen-free copper - fine stranding for conductivity and flexibility
• 90°C PVC insulation - withstands engine bay heat and resists common automotive fluids
• 120V DC maximum voltage - suitable for 12V, 24V, and 48V automotive and off-grid systems

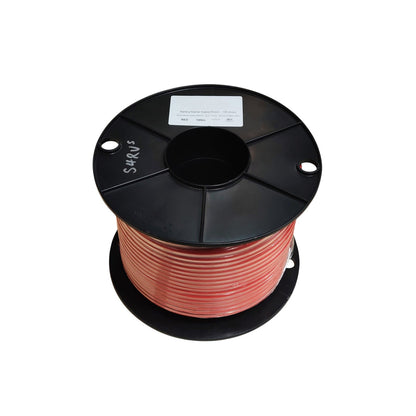

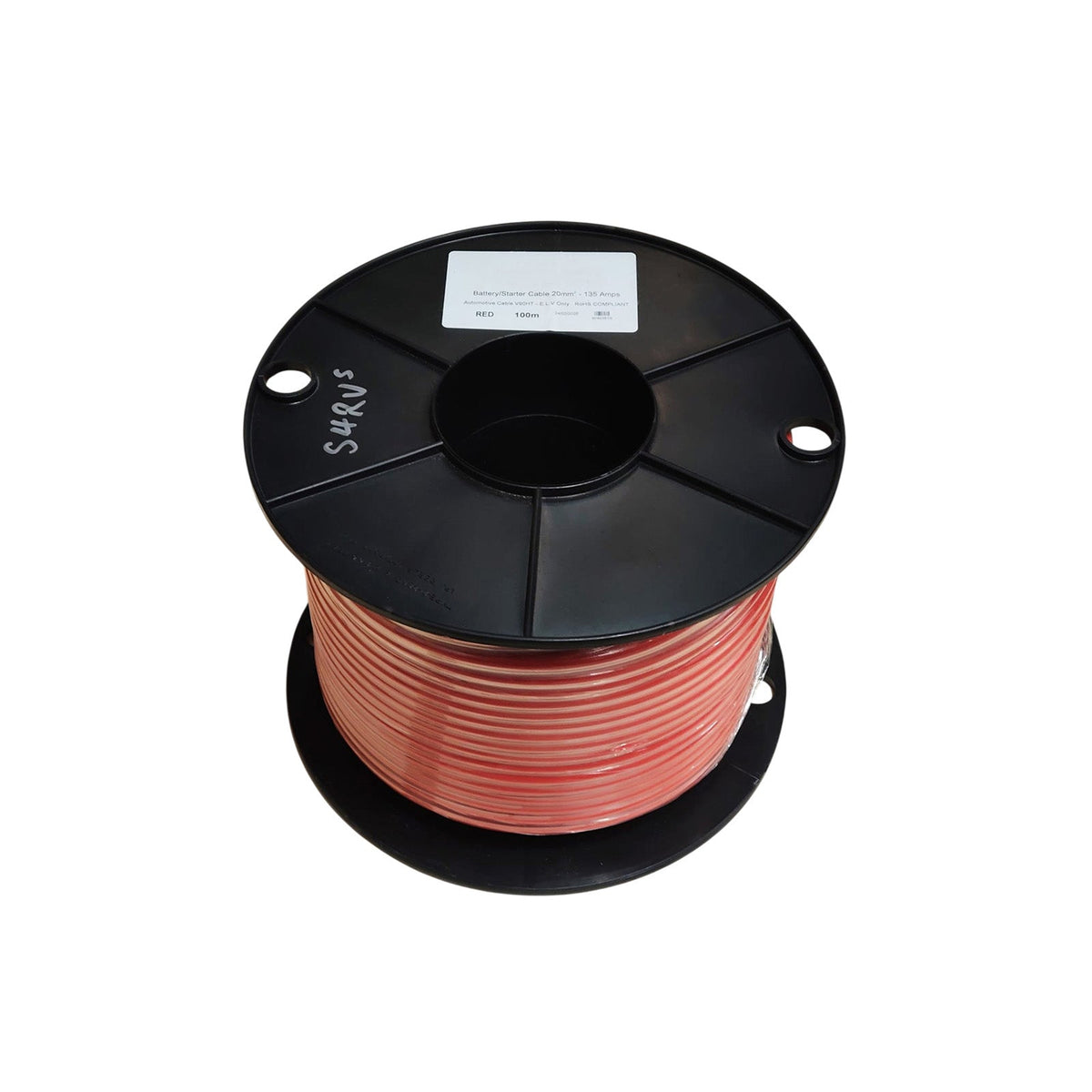

• 100-metre roll - for workshops, installers, and large projects
• RoHS compliant

Built for Australian Conditions

Australian made by KEY Tubing & Electrical (KTE), an Australian-owned manufacturer based in South Australia with over 60 years of industry experience. The red insulation gives clear polarity identification for positive runs, and the cable complies with RoHS and Australian and New Zealand safety standards.

Applications

• Dual-battery systems in 4WDs, caravans, and camper trailers
• High-output alternator and starter motor upgrades
• DC-DC charger and solar charge controller connections
• Large inverter installations (up to 120V DC)
• Marine electrical systems

Why This Cable Reduces Risk

Undersized or low-quality cable is a common cause of voltage drop, overheating, and unreliable system performance. This 4B&S cable's generous cross-section and high-purity copper minimise resistive losses. Note that these automotive battery/starter cables are not suitable for mains power supply connections; for the best results, have a professional install your cables.

Order Your 100m Roll Today

Add the 100m Roll of 4B&S (20.29mm²) Red Single Core Automotive Cable to your order for Australian-made cable that meets the demands of professional installers and DIY enthusiasts alike.
