Stäubli MC4 Evo 2 10mm² Solar Connector Pair
Genuine Stäubli MC4 Evo 2 Connectors for High-Current 10mm² Solar Cable
This pair uses genuine Stäubli MC4 Evo 2 cable couplers sized for 10mm² (8 AWG) solar cable, built around Stäubli's MULTILAM contact technology for consistent, low-resistance connections. The pair is rated at 69A (IEC 62852) with a 1500V DC rated voltage, suiting higher-current strings in residential, commercial and off-grid solar systems.
Each connector accepts cable with an outer diameter of 6.4-8.4mm and terminates by crimping onto tin-plated copper contacts. When mated, the pair carries IP65 and IP68 (1m, 1h) protection ratings.
Key Features

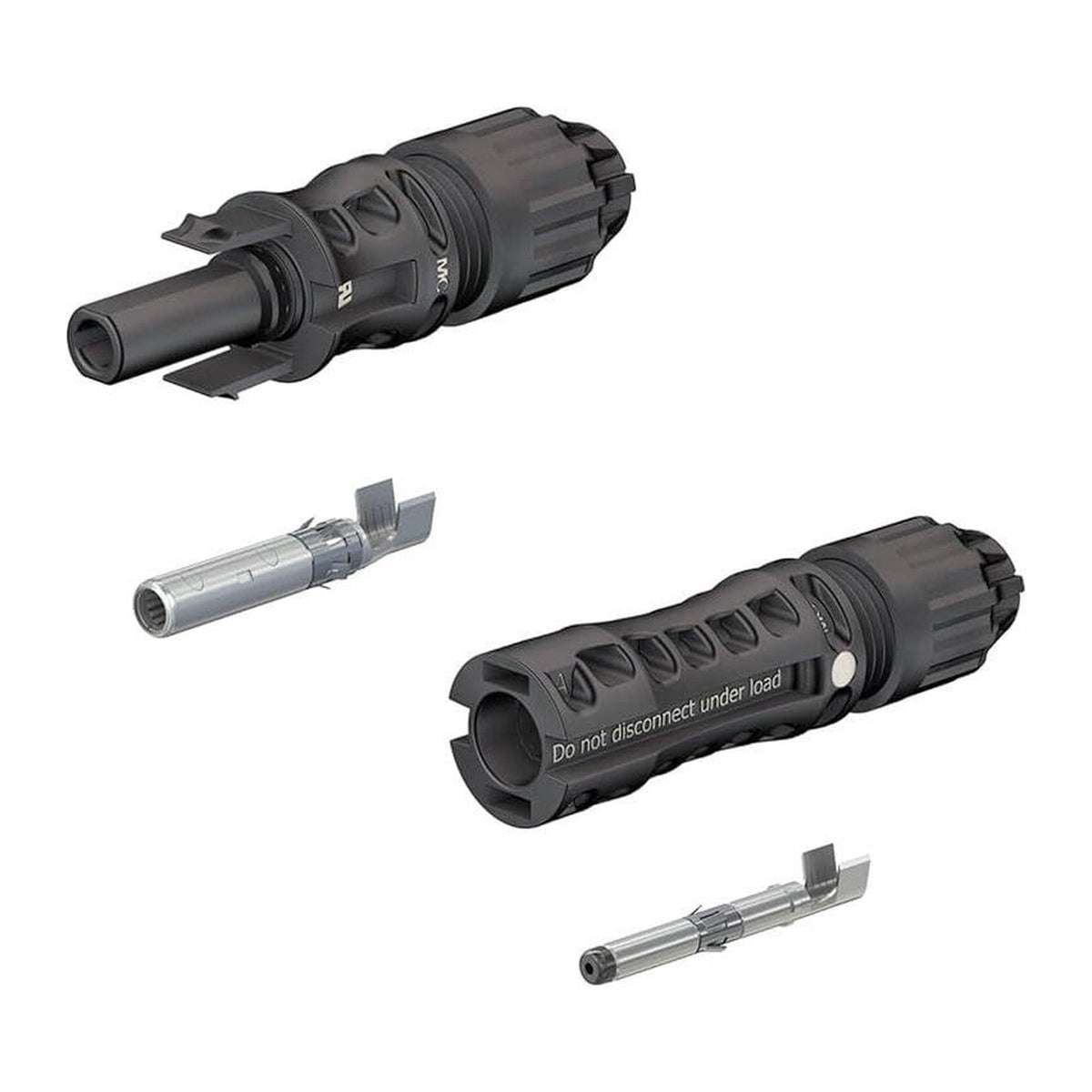

- Genuine Stäubli MC4 Evo 2 connector pair (male and female)
- 69A rated current (IEC 62852), 1500V DC rated voltage
- Suits 10mm² / 8 AWG solar cable, 6.4-8.4mm outer cable diameter
- IP65/IP68 rated when mated
- Tin-plated copper crimp contacts with Stäubli MULTILAM technology
Specifications
| Rated Current | 69A (IEC 62852) |
|---|---|
| Rated Voltage | 1500V DC |
| Cable Size | 10mm² (6.4-8.4mm outer diameter) |
| IP Rating (Mated) | IP65/IP68 (1m, 1h) |
| Contacts | Copper, tin plated |
| Contact System | MULTILAM |
