Multi-Contact Stäubli - Stäubli MC4 Connector Pair (Pack of 10)

Stäubli MC4 Connector Pair - Pack of 10

Genuine Stäubli MC4 Connectors for 4-6mm² Solar PV Systems

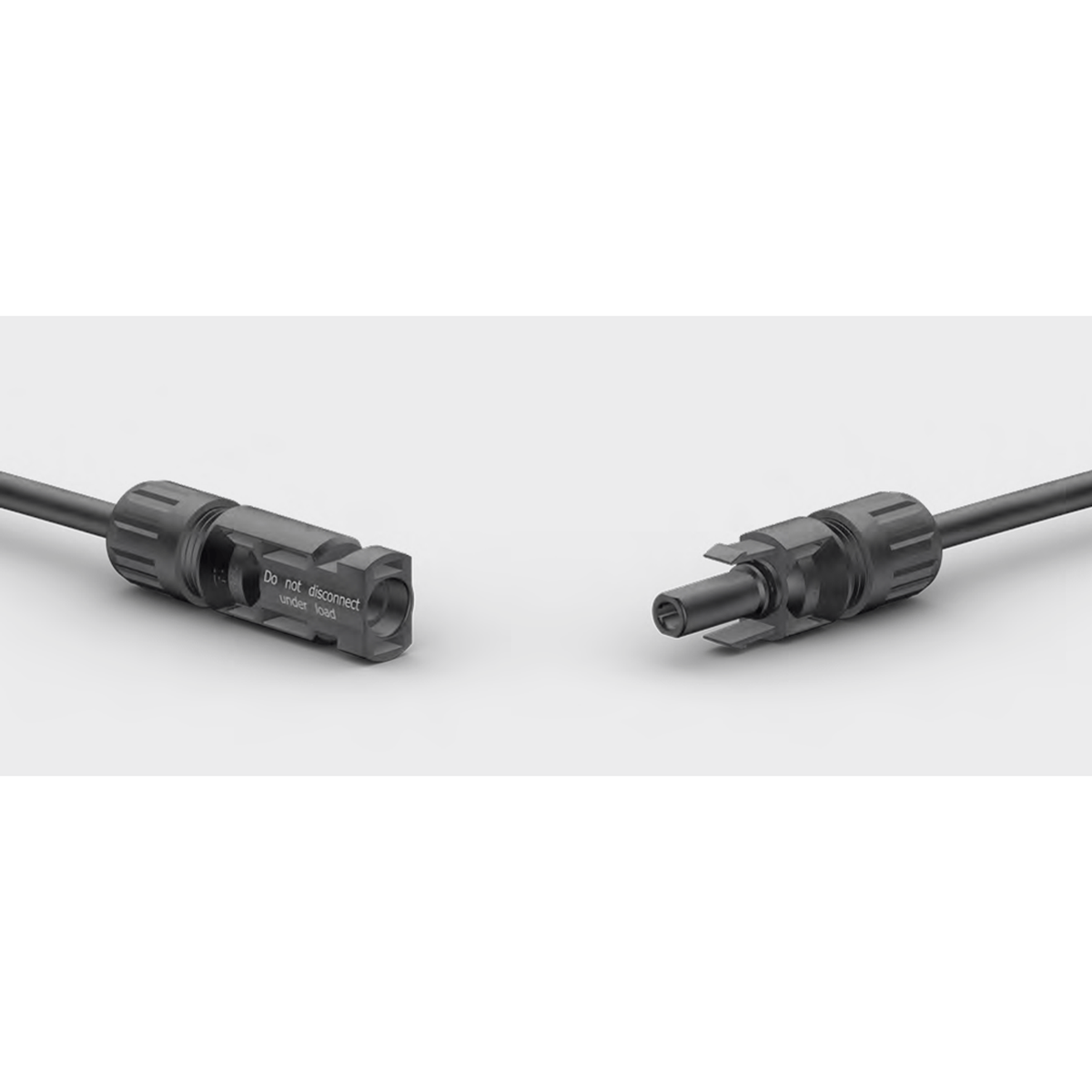

This pack contains 10 identical Stäubli MC4 connector pairs (one male, one female per pair), the same genuine connector as Stäubli's original MC4 line. Keeping a set of matched spares or extras on hand is useful when wiring multiple solar panels or building up a larger array, since every pair in this pack shares the same specification.

Each pair uses Stäubli's MULTILAM contact technology for consistent, low-resistance contact, and is rated for 39A current with a 1100V DC rated voltage (IEC 62852) (1500V DC under UL 6703). The connectors suit solar cable from 4mm² up to 6mm², with an outer cable diameter of 7.0-8.8mm, and terminate by crimping onto tin-plated copper contacts.

When mated, the connector carries an IP65 ingress protection rating. As with all Stäubli MC4 connectors, a specific locking/unlocking tool is required to separate a mated pair, reducing the risk of accidental disconnection.

Key Features

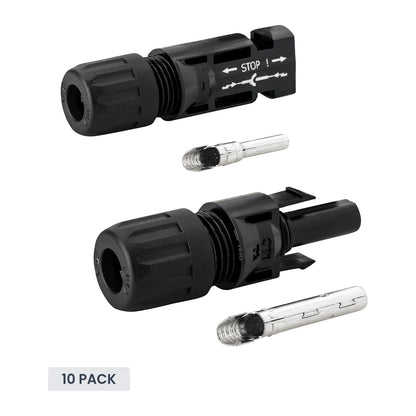

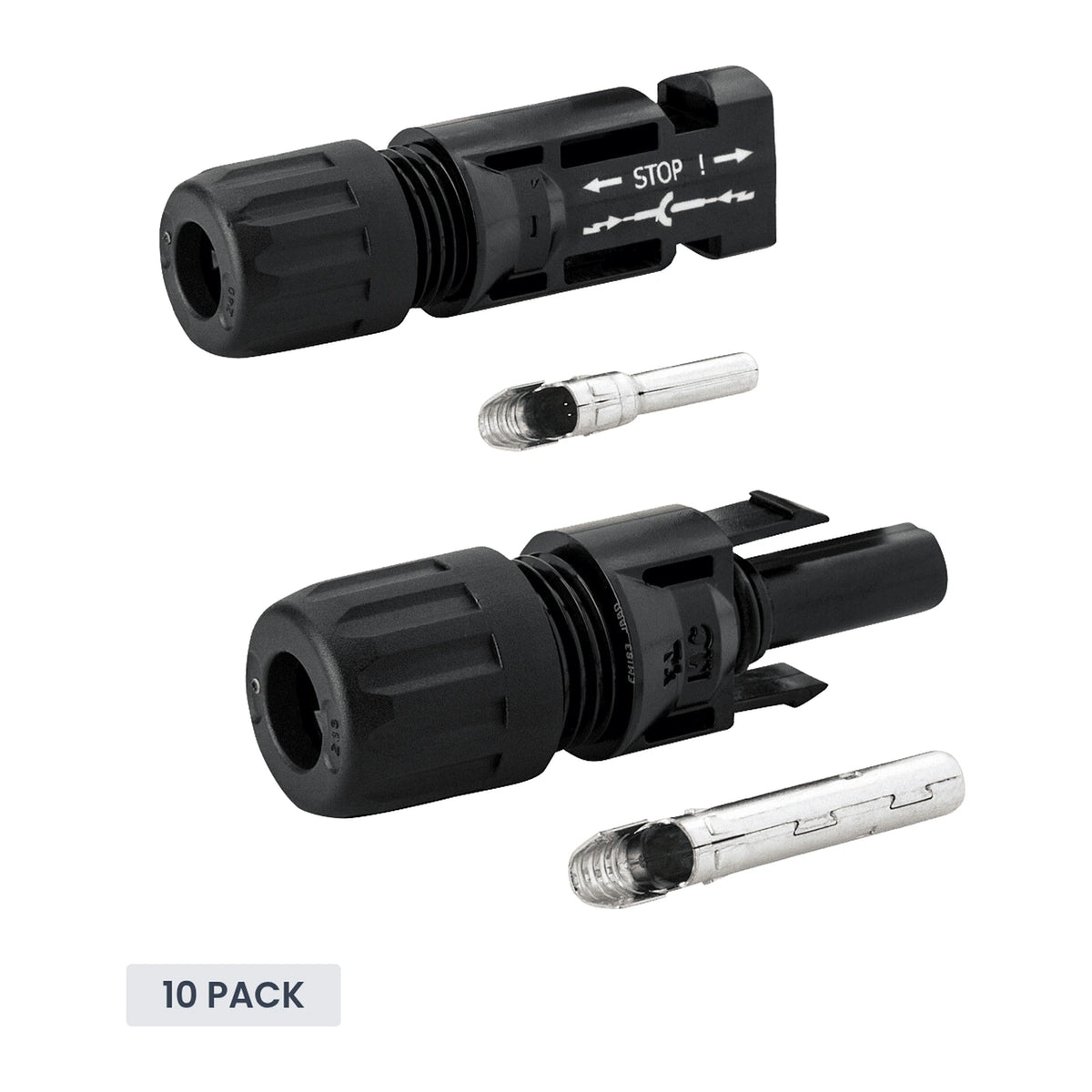

• 10 x Stäubli MC4 connector pairs (male and female), all the same specification
• 39A rated current, 1100V DC rated voltage (IEC 62852) (1500V DC under UL 6703)
• Suits 4mm² to 6mm² solar cable, 7.0-8.8mm outer cable diameter
• IP65 rated when mated
• Tin-plated copper crimp contacts with Stäubli MULTILAM technology
