Multi-Contact Stäubli - Stäubli MC4 Evo 2 Solar Connector Pair (Pack of 10)

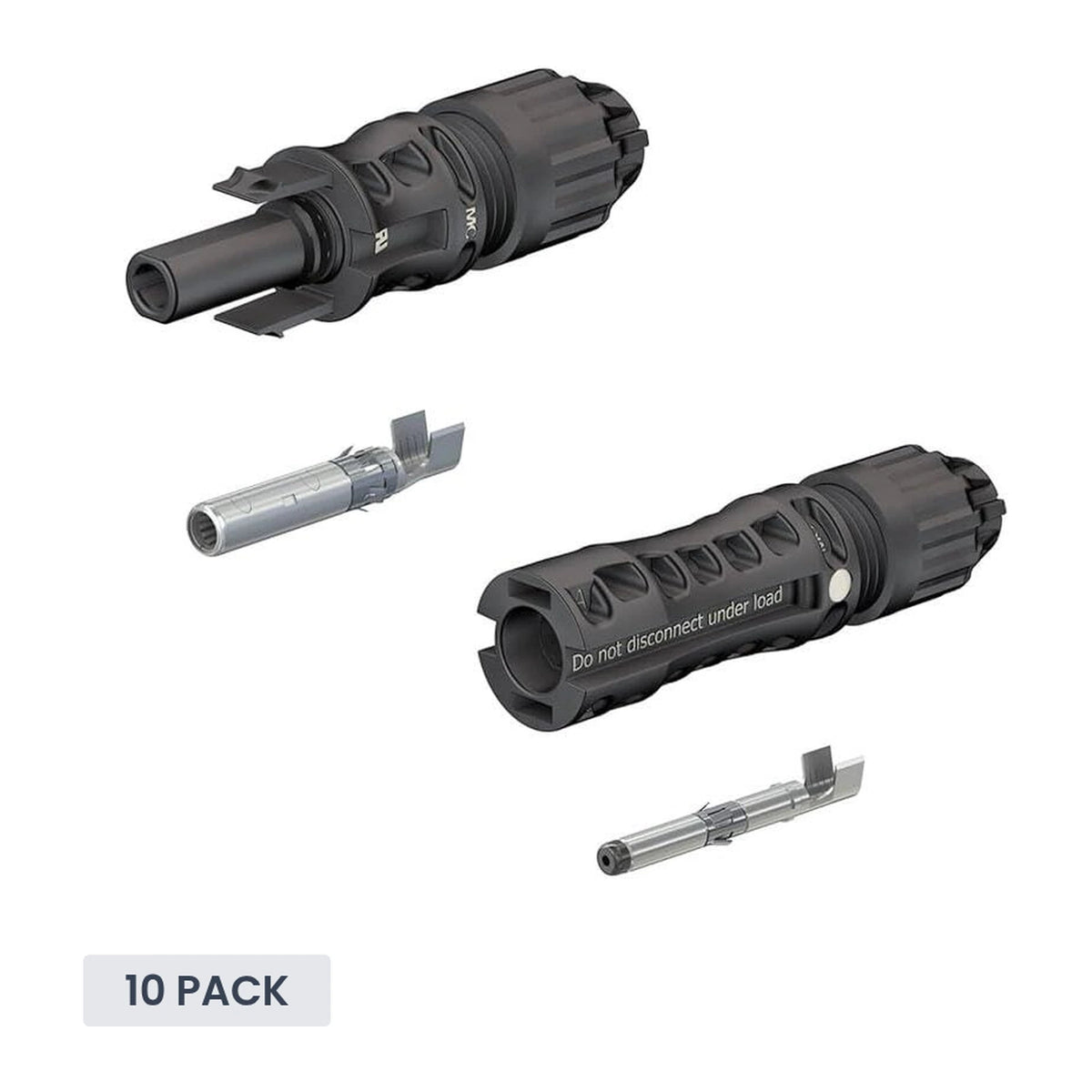

Stäubli MC4 Evo 2 Solar Connector Pair - Pack of 10

Genuine Stäubli MC4 Evo 2 Connectors for Solar PV Systems

This pack contains 10 identical Stäubli MC4 Evo 2 connector pairs, the current generation of Stäubli's genuine MC4 connector line. Every pair in the pack is the same specification, useful for wiring multiple panels or keeping matched spares on hand.

Each pair uses Stäubli's MULTILAM contact technology and is rated for up to 53A at 6mm² cable cross-section (45A at 4mm²), with a 1500V DC rated voltage. The connectors terminate onto tin-plated copper contacts by crimping, and remain cross-compatible with Stäubli's original MC4 connectors.

When mated, the connection carries an IP65 ingress protection rating. As with other Stäubli MC4 connectors, a specific tool is required to unlock and separate a mated pair.

Key Features

• 10 x Stäubli MC4 Evo 2 connector pairs, all the same specification
• Up to 53A rated current (6mm² cable), 45A at 4mm²
• 1500V DC rated voltage
• IP65 rated when mated
• Tin-plated copper crimp contacts with Stäubli MULTILAM technology
• Cross-compatible with original Stäubli MC4 connectors

Specifications
