Naked Anderson Cable - 8 AWG (7.71mm2)
Naked Anderson Cable - 8 AWG (7.71mm2)

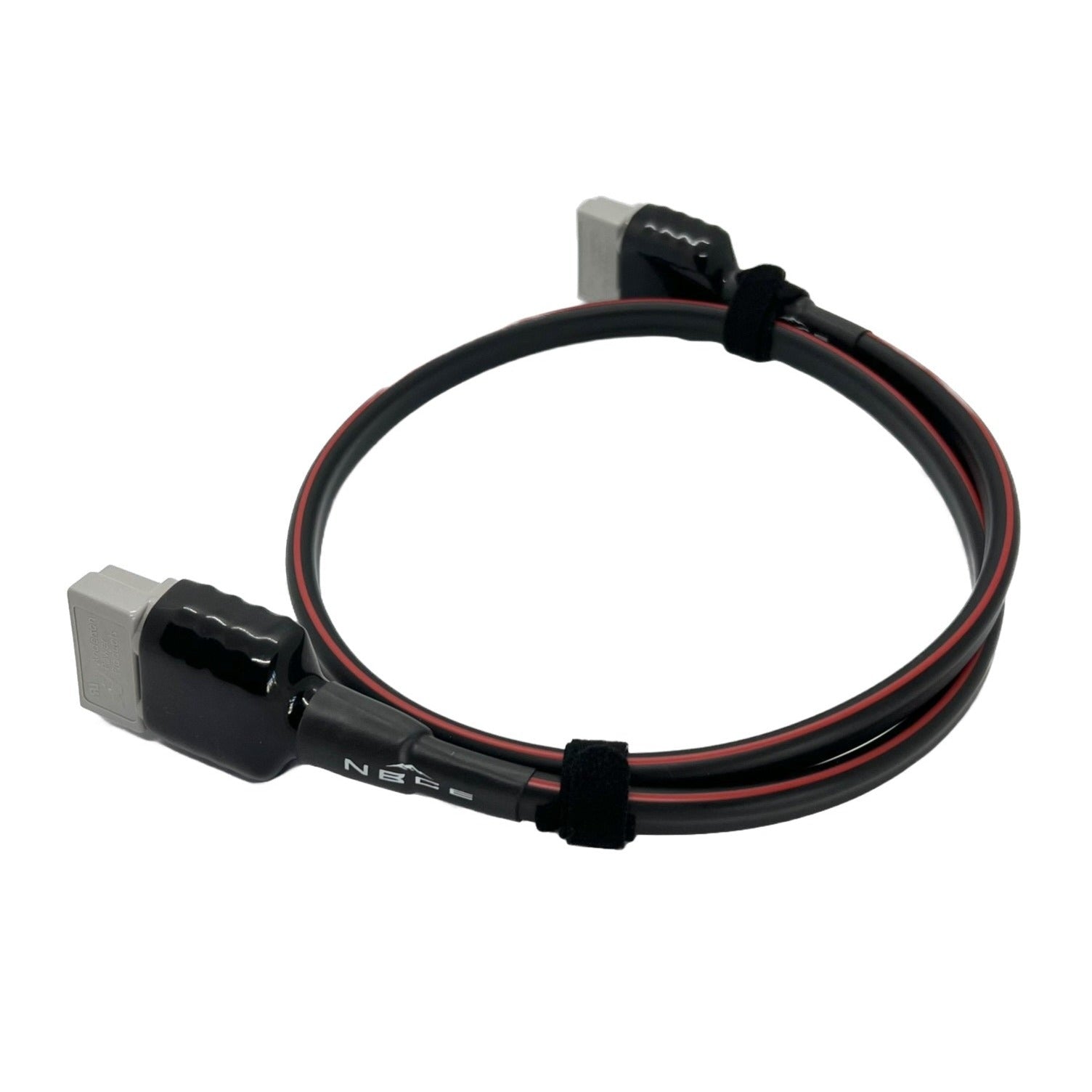

Our Naked Anderson Cables are custom made to order using Australian Made Twin Core Cable and Genuine Anderson SB50 Connectors.
Our "Naked" cables utilise the insulated wire only. For "Sleeved" versions which add an extra layer of protection, see our "Sleeved" version found here.
Suitable for an array of uses in 12v systems including solar panels/regulators, fridges, compressors and much more.
As all cables are custom made to order, we have short lead times before your cables will be posted. For more information, click here.
Can be offered in "Kit" form for a 10% discount. The kit comes with only the MIDI Fuse end pre-terminated so you can cut the wire to the required length and attach the Anderson Plug for neat installation. Email us to find out more.
Prior to purchasing our Anderson Cables, please read our Cable Guide found here to ensure your choosing the right size cable for the job. A quick guide on our recommended cable lengths for this cable can be found below:
Length (m)
|
Maximum Recommended Amperage^
|
0.5
|
59*
|
1
|
59*
|
2
|
37
|
3
|
24
|
4
|
18
|
5
|
14
|
6
|
12
|
7
|
10
|
8
|
9
|
9
|
8
|
10
|
7 |
*Limited by manufacturers amp rating
^Assumes maximum 3% voltage drop with an ambient temperature of 50c
The Boring Stuff:
Wire:
- Manufactured in Australia
- 59.2 amp rating at 30c
- Comprising of 96 x 0.32mm conductors for a nominal area of 7.71mm2 (or 8AWG)
- Oxygen Free Copper (OFC) to AS1125 Standards
- Insulated with RoHS Compliant V90 PVC to AS3808 Standards
- Electrical Resistance – 2.4 ohm/km @ 20c
- Insulation thickness - 0.9mm
- Sheath thickness – 0.8mm
- Nominal OD - 7.1mm x 12.5mm
- 22kg per 100m
Connectors:

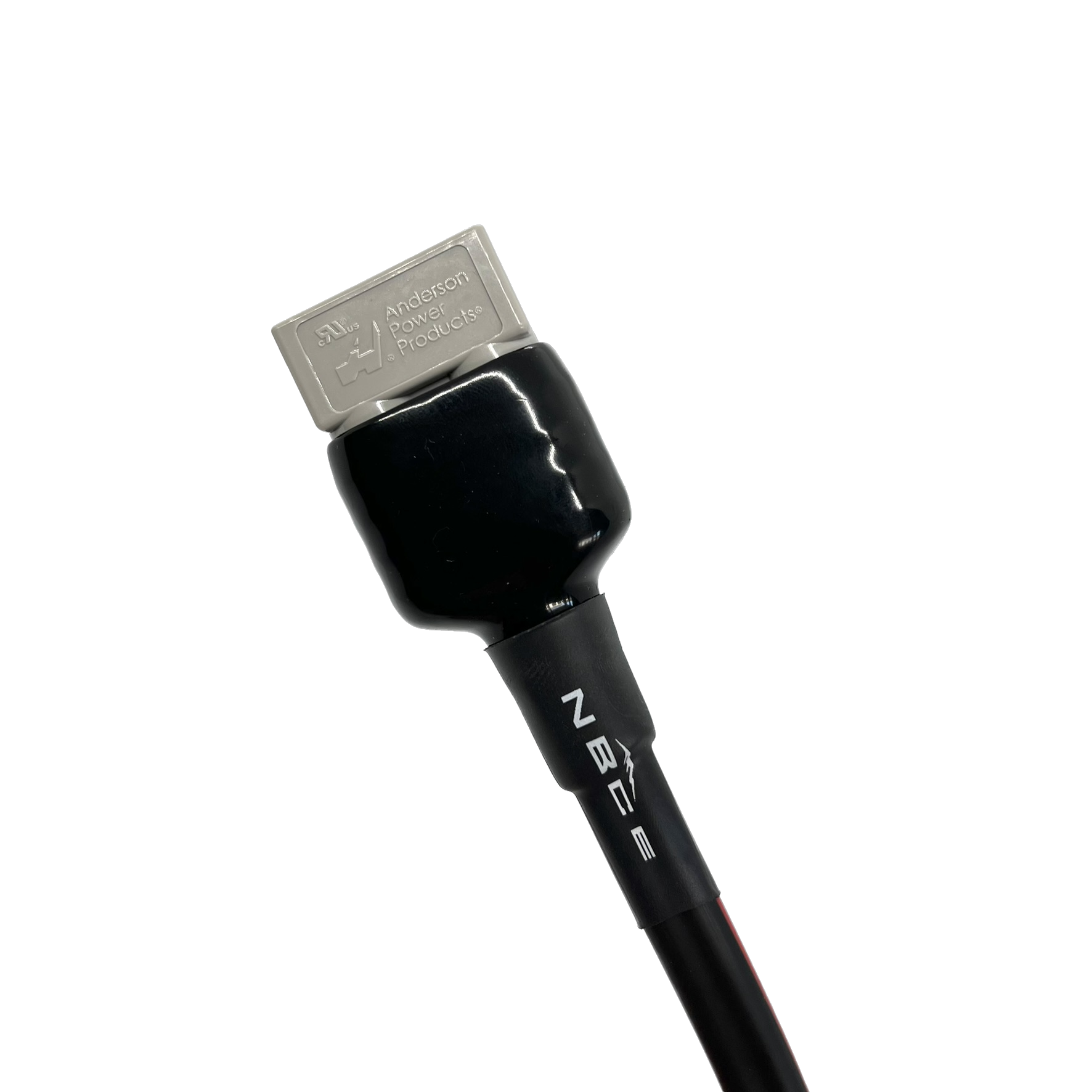

- Genuine 'Anderson Power Products' SB series 50A Plug
- Silver Coated 8 AWG Contacts
- Genderless design
- Rated to 600V 50A
- Size: 16x35x48mm
- Weight: 24 grams
