Renogy

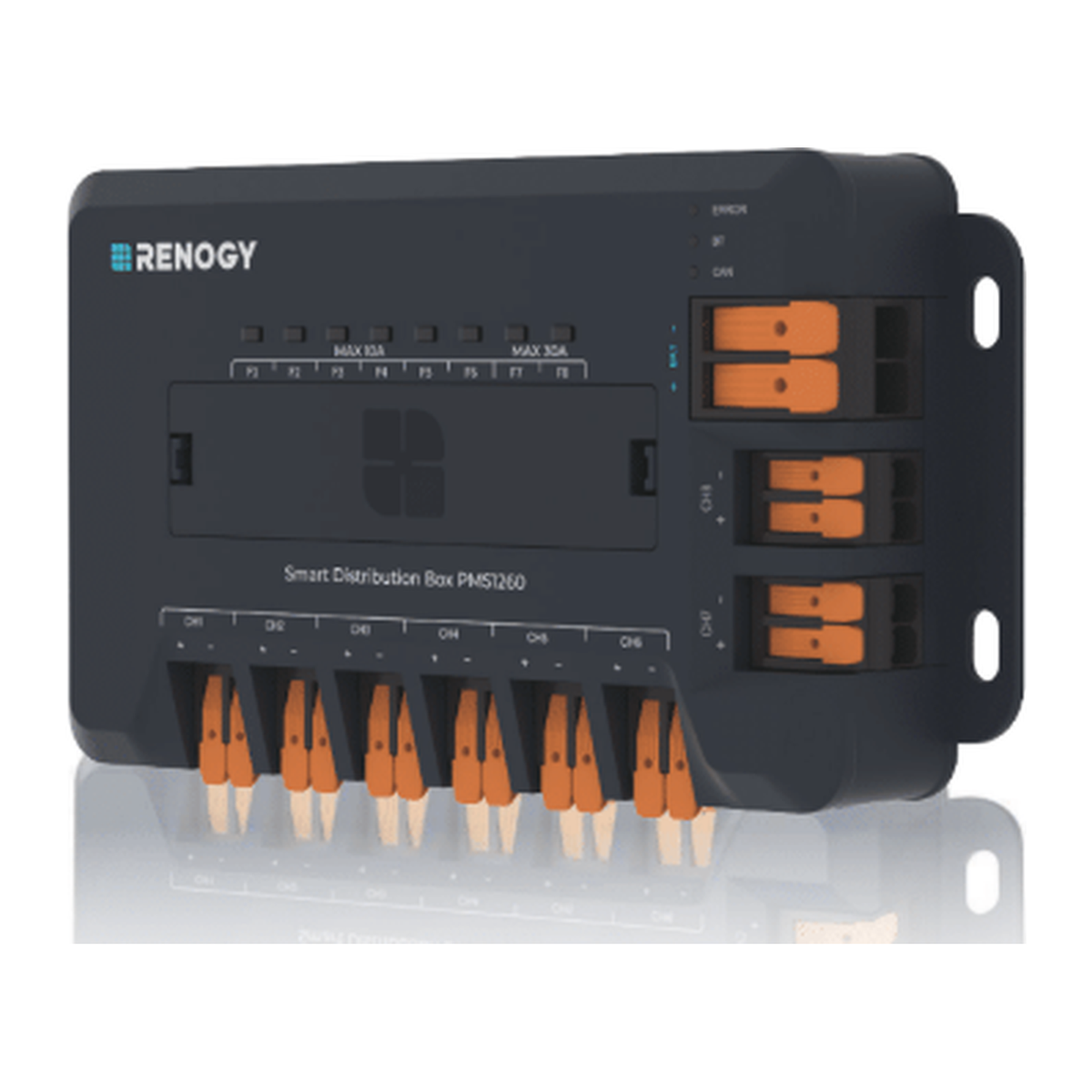

Renogy - 12/24V - 60A - Smart Distribution Box PMS1260
Renogy - 12/24V - 60A - Smart Distribution Box PMS1260
Regular price
$504.95 AUD
Regular price
$539.99 AUD
Sale price
$504.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Renogy Smart Distribution Box PMS1260
The Renogy Smart Distribution Box PMS1260 is a centralised DC power hub for off-grid recreational vehicles, yachts and motorhomes. Compatible with 12V and 24V battery systems, it supports up to 60A total input across 6 channels of 10A and 2 channels of 30A for precise load control.
Built-in Bluetooth, CAN and RS-485 communication enable real-time monitoring and control via the Renogy ONE Core, Renogy app or Renogy ONE Vision, while quick-connect terminals and LED status indicators simplify installation and everyday monitoring.
Key Features
- Manages up to 8 DC loads with a maximum total of 60A
- Built-in Bluetooth for smartphone monitoring and configuration, with long-range access via CAN bus through Renogy ONE Core
- Automation and scene management through the Renogy app
- Automatic low-voltage shutdown and high-voltage reconnect for battery protection
- Supports CAN, RS-485 and Bluetooth communication with compatible Renogy energy devices
- Reverse polarity, overload, short circuit, surge and over-temperature protection
- Quick-connect terminals and LED circuit status indicators
- Two resistive water level sensor inputs and remote inverter control
Specifications
| Model | PMS1260 (RSHCB-B02P-G1) |
|---|---|
| System Voltage | 12V / 24V DC |
| Maximum Input / Output | 60A (6 x 10A & 2 x 30A channels) |
| Communication | Bluetooth, CAN, RS-485 |
| Analog Voltage Range | 8V to 35V (±0.2V) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 221 x 118 x 42.8mm |
| Weight | 501.5g |
In the Box
- Renogy Smart Distribution Box PMS1260 x 1
- RJ45 CAN Termination Resistor x 1
- Mounting Screw x 4
- User Manual x 1
