Renogy
Renogy - 12V - 200AH - Core Mini Lithium Iron Phosphate Battery (Pack of 4)
Renogy - 12V - 200AH - Core Mini Lithium Iron Phosphate Battery (Pack of 4)
Regular price
$2,709.95 AUD
Regular price
Sale price
$2,709.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

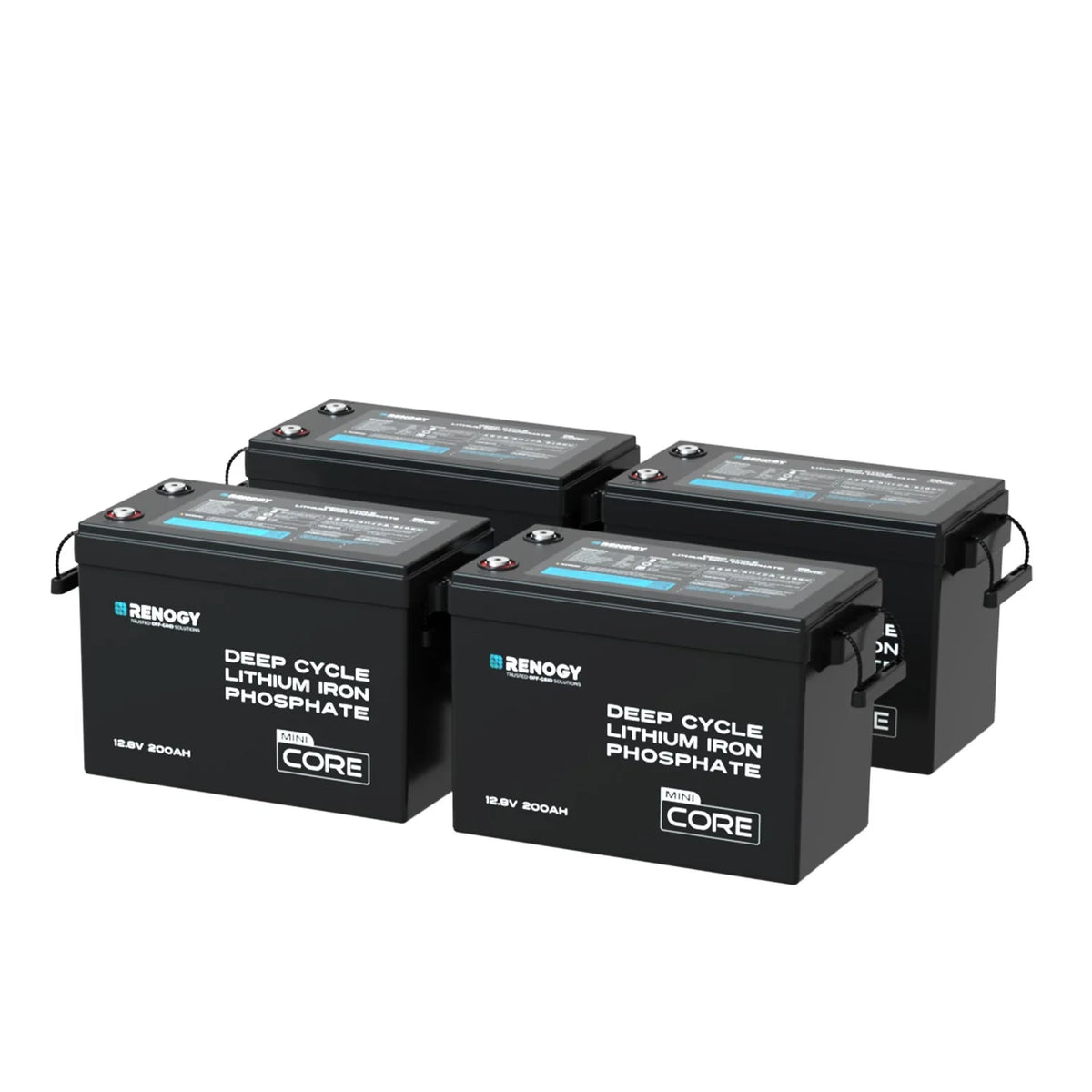

Renogy Core Mini 12V 200Ah Lithium Iron Phosphate Battery (Pack of 4)
This listing is for four of Renogy's Core Mini 12V 200Ah LiFePO4 batteries. Each is a compact deep-cycle battery from the Core Mini range, which packs 100 to 300Ah into an ultra-compact footprint to save space in tight installs such as trailers, kayaks and boats.
Each battery is built with a Battery Management System (BMS) with low-temperature charge protection. Connect the 4 batteries in series and/or parallel to build a larger 12V, 24V or 48V bank, and pair with the optional Renogy Battery Shunt for remote monitoring from your phone.
Key Features
- Sold as a pack of 4 batteries
- Compact Mini form factor delivering 200Ah per battery in a smaller footprint than standard batteries
- Low-temperature charge cut-off protects the battery in cold conditions
- Connect in series and parallel for larger 24V/48V systems
- Pair with an optional Renogy Battery Shunt for remote monitoring from your phone
Specifications (per battery)
| Battery Cell Type | Lithium Iron Phosphate |
|---|---|
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Cycle Life (0.5C, 25°C) | 5000 Cycles (80% DOD) |
| Dimensions (per battery) | 384 x 194 x 253 mm |
| Weight (per battery, approx.) | 19.25 kg |
| Maximum Continuous Charge/Discharge Current | 100A / 200A |
| Peak Discharge Current | 380A@10s |
| Protection Rating | IP65 |
| Connection Method | Series (4S) & Parallel (8P) |
| Pack Quantity | 4 batteries |
In the Box
- Renogy Core Mini 12V 200Ah Lithium Iron Phosphate Battery x 4
