Renogy - 12V - 300AH - Core Series Lithium Iron Phosphate Battery with Self-Heating (Pack of 4)
Renogy - 12V - 300AH - Core Series Lithium Iron Phosphate Battery with Self-Heating (Pack of 4)
Couldn't load pickup availability
Renogy Core Series 12V 300Ah Lithium Iron Phosphate Battery with Self-Heating (Pack of 4)
This listing is for four of Renogy's Core Series 12V 300Ah LiFePO4 batteries with self-heating. Each is a deep-cycle battery built to the standard BCI group size, so it drops in in place of an equivalent lead-acid battery, and suits RVs, caravans, boats and off-grid solar systems in cold climates.
Each battery can be safely discharged to 100% depth of discharge and is built with automotive-grade cells. A 90W self-heating element brings the battery up to temperature automatically so it can keep charging below freezing, and the Battery Management System (BMS) adds further protection against overvoltage, overcurrent and short circuits. Connect the 4 batteries in series and/or parallel to build a larger 12V, 24V or 48V bank.
Key Features

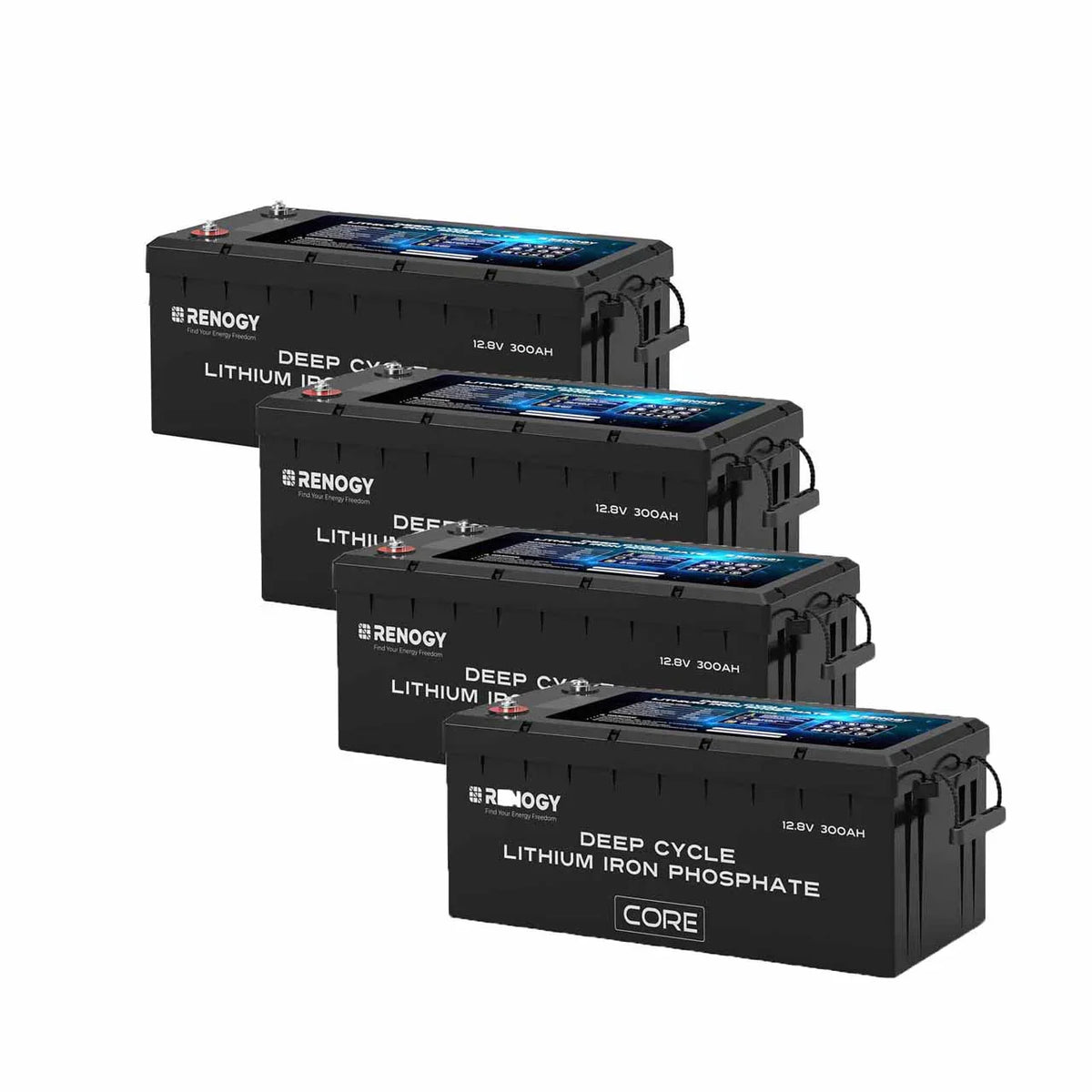

- Sold as a pack of 4 batteries
- 300Ah per battery with automotive-grade cells for an extended cycle life
- Safely discharges to 100% depth of discharge (DOD)
- Built-in 90W self-heating element switches on automatically below 0°C so the battery keeps charging in the cold
- IP65-rated housing for all-weather durability
- Connect in series and parallel for larger 24V/48V systems
- Monitor with an optional Renogy Battery Shunt 300 and the DC Home app
Specifications (per battery)
| Battery Cell Type | Lithium Iron Phosphate / Prismatic Cell |
|---|---|
| Nominal Voltage | 12.8V |
| Rated Capacity | 300Ah (0.5C, 25°C) |
| Charge Voltage Range | 10V to 14.4V |
| Cycle Life | 5000 cycles (80% DOD, 0.5C, 25°C) |
| Dimensions | 522 x 240 x 219 mm |
| Weight | 27.5 kg |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 390A @ 5s |
| Self-Heating | 90W element, activates below 0°C, stops above 15°C |
| Charge Temperature Range | -20°C to 55°C |
| Discharge Temperature Range | -20°C to 60°C |
| Protection Rating | IP65 |
| Certification | MSDS, UN38.3, FCC, CE, PSE, UKCA |
| Pack Quantity | 4 batteries |
In the Box
- Renogy Core Series 12V 300Ah Lithium Iron Phosphate Battery with Self-Heating x 4
- Long terminal bolt x 2 per battery
- Insulating sleeve x 2 per battery
- User manual x 1 per battery
