Renogy - 48V - 50AH - Core Series Smart Lithium Iron Phosphate Battery with Self-Heating
Renogy - 48V - 50AH - Core Series Smart Lithium Iron Phosphate Battery with Self-Heating
Regular price
$984.95 AUD
Regular price
$1,187.99 AUD
Sale price
$984.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

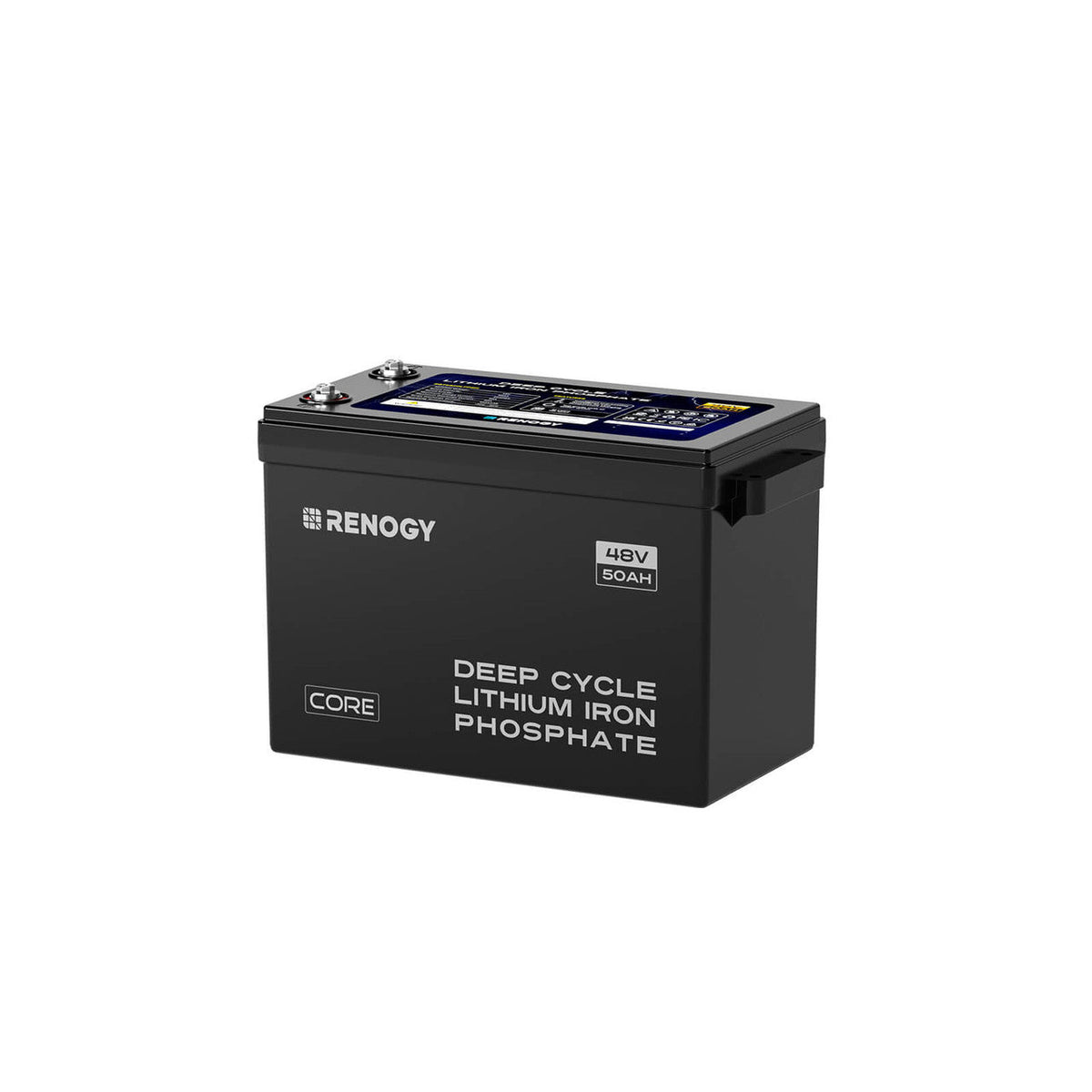

Renogy Core 48V 50Ah Smart Lithium Iron Phosphate Battery with Self-Heating
The Renogy Core 48V 50Ah battery is a LiFePO4 battery built for cabins, sheds and other higher-voltage off-grid systems in the 5-15kWh range. It can be connected in parallel with other Renogy 48V batteries (up to 8) to expand storage.
Built-in heating pads switch on automatically in cold weather to keep the battery charging safely, and an auto-balancing function keeps cells even when multiple batteries are connected. The IP65-rated housing and Battery Management System (BMS) protect the battery in demanding conditions.
Key Features
- 48V 50Ah capacity for cabin, shed and off-grid battery banks
- Built-in self-heating pads for safe charging below 0°C
- Auto-balancing function keeps multiple batteries in a bank even
- IP65-rated housing for water and dust resistance
- Connect up to 8 batteries in parallel, expanding to 19.2kWh
Specifications
| Battery Type | Lithium Iron Phosphate |
|---|---|
| Nominal Voltage | 48V |
| Rated Capacity | 50Ah |
| Voltage Range | 42V to 55.5V |
| Energy | 2400Wh |

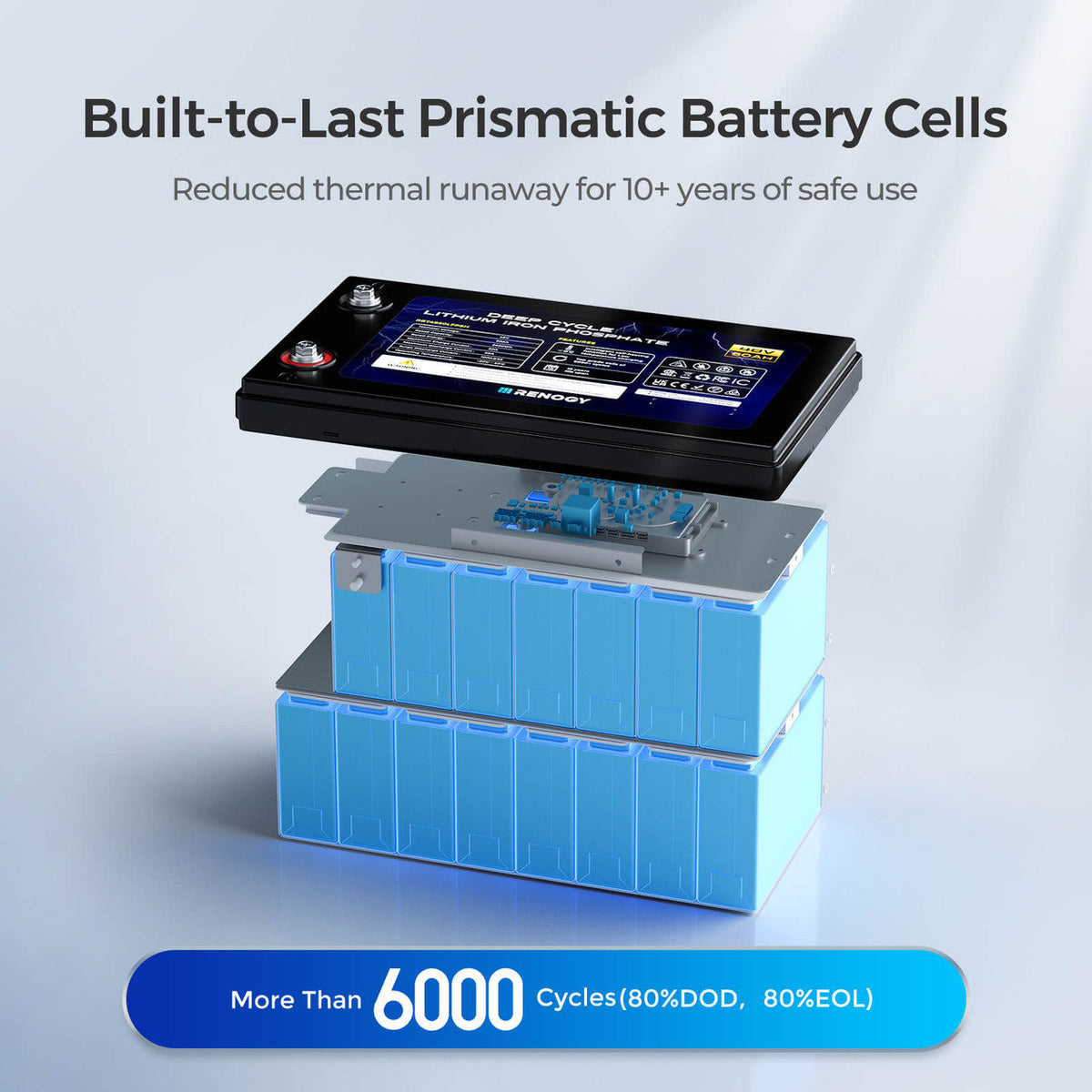

| Cycle Life | More than 6000 cycles (80% DOD, 80% EOL, 0.5C/0.5C, 25°C) |
| Connection Method | Parallel (up to 8) |
| Dimensions | 384 x 195 x 248 mm |
| Weight | 23.3 kg |
| Housing Material | ABS |
| Charge Cut-off Voltage | 54V |
| Maximum Continuous Charge Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Charge Temperature Range | 0°C to 55°C |
| Discharge Temperature Range | -20°C to 60°C |
| Protection Rating | IP65 |
| Certification | MSDS, UN38.3, FCC, IC, UKCA, CE, PSE, RoHS |
In the Box
- Renogy Core 48V 50Ah Smart Lithium Iron Phosphate Battery x 1
- Long terminal bolts (M8 x 1.25 x 20 mm) x 2
- Insulating sleeve x 2
- User manual x 1
