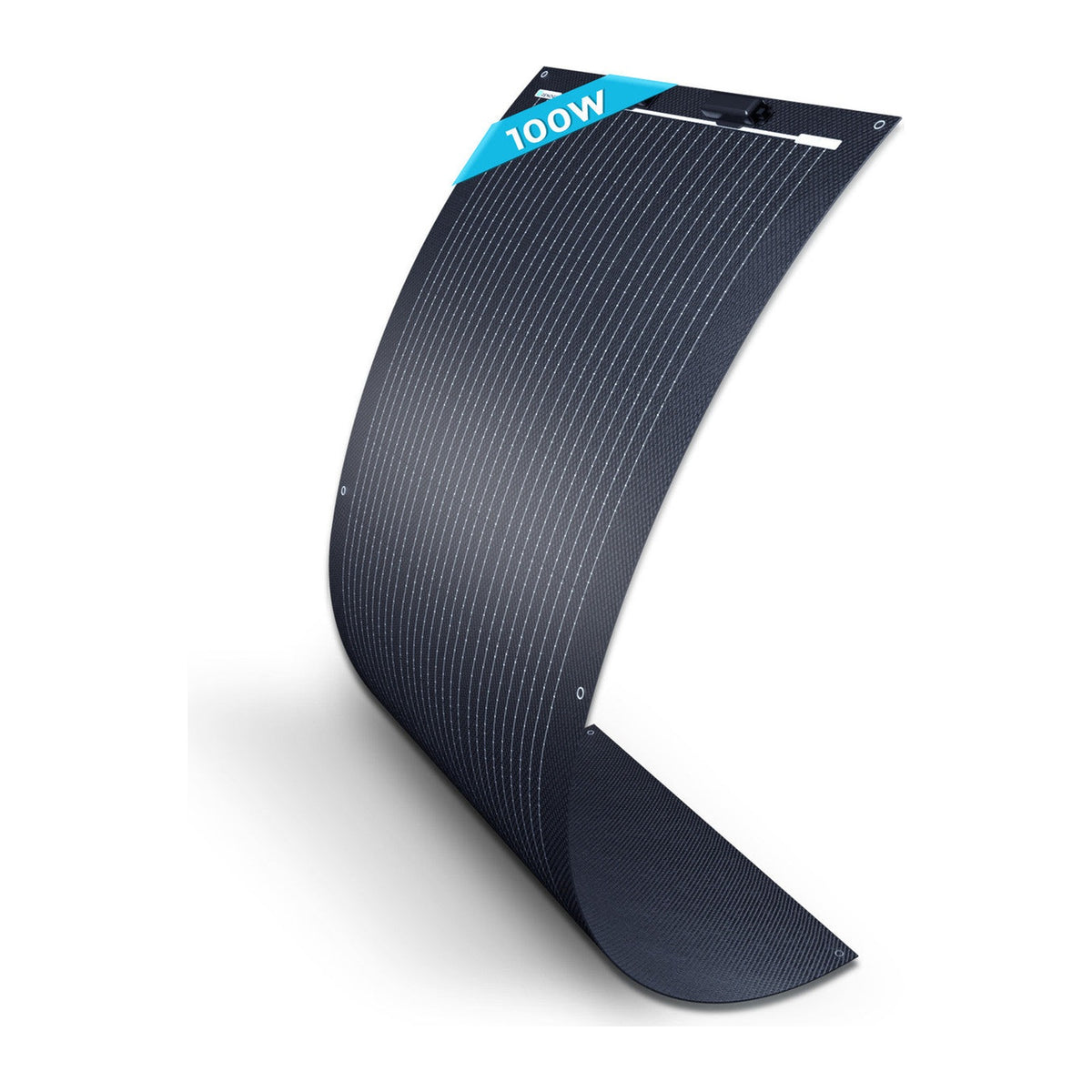

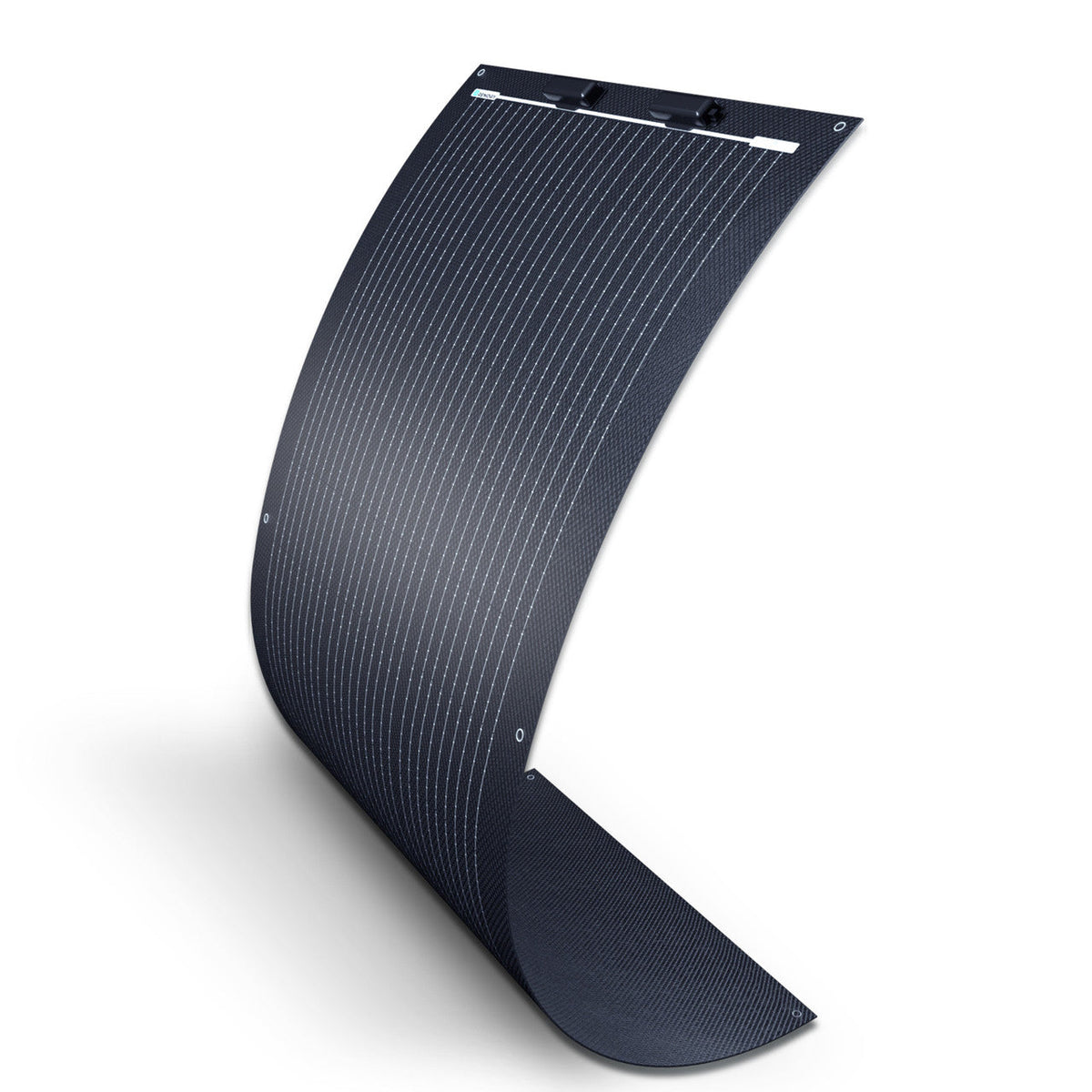

Renogy Black Division 100W Lightweight Monocrystalline Solar Panel
The Renogy Black Division 100W panel is a flexible monocrystalline panel built to save weight and bulk on RVs, boats and other off-grid setups. Its lightweight substrate lets it bend up to 240 degrees to follow curved roofs, while the all-black finish keeps a low-profile look.
Half-cut PERC monocrystalline cells improve electrical performance, and the panel comes with pre-drilled mounting holes, solar connectors and an IP-rated junction box for a quick install.
Key Features
Bends up to 240° and weighs around a third of an equivalent rigid panel

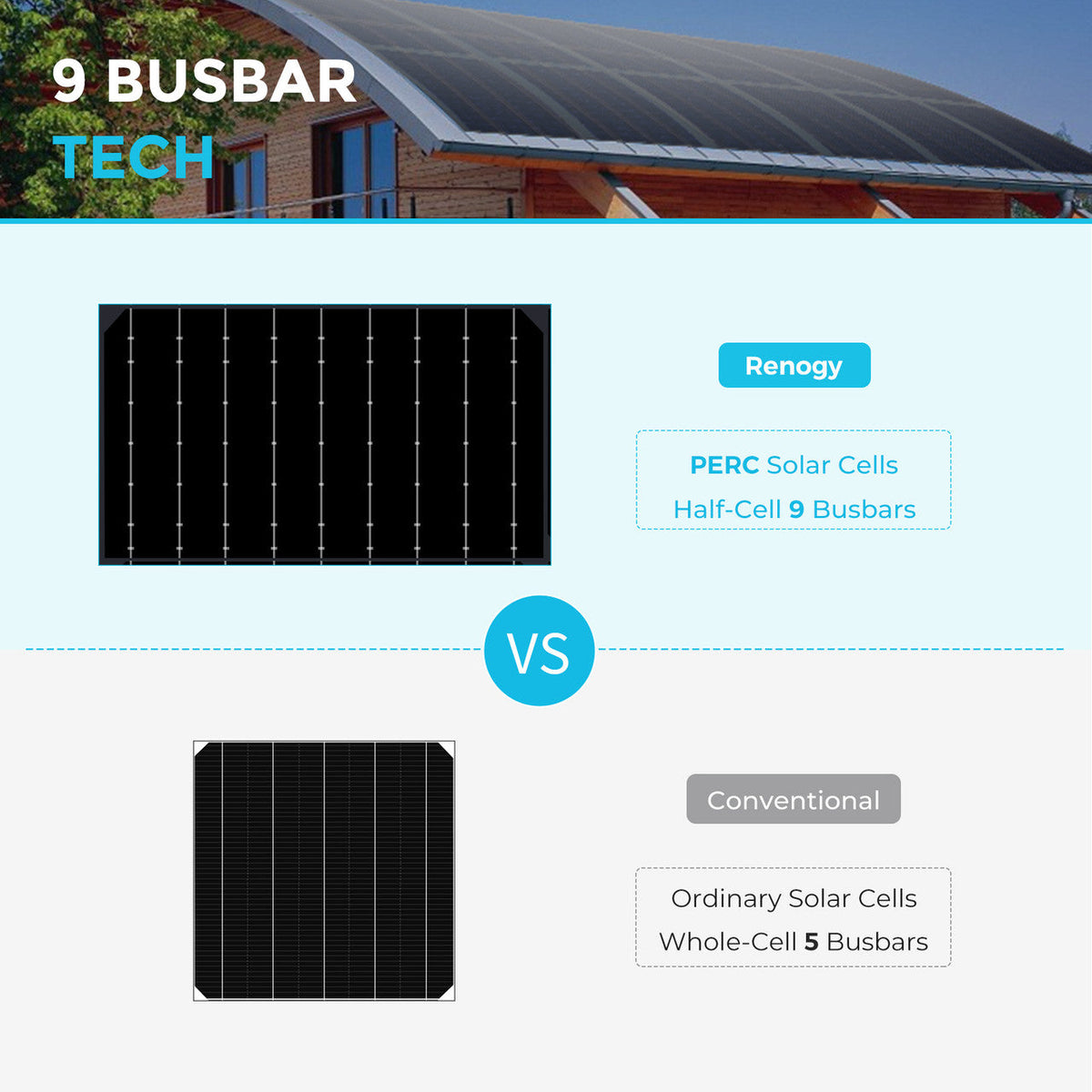

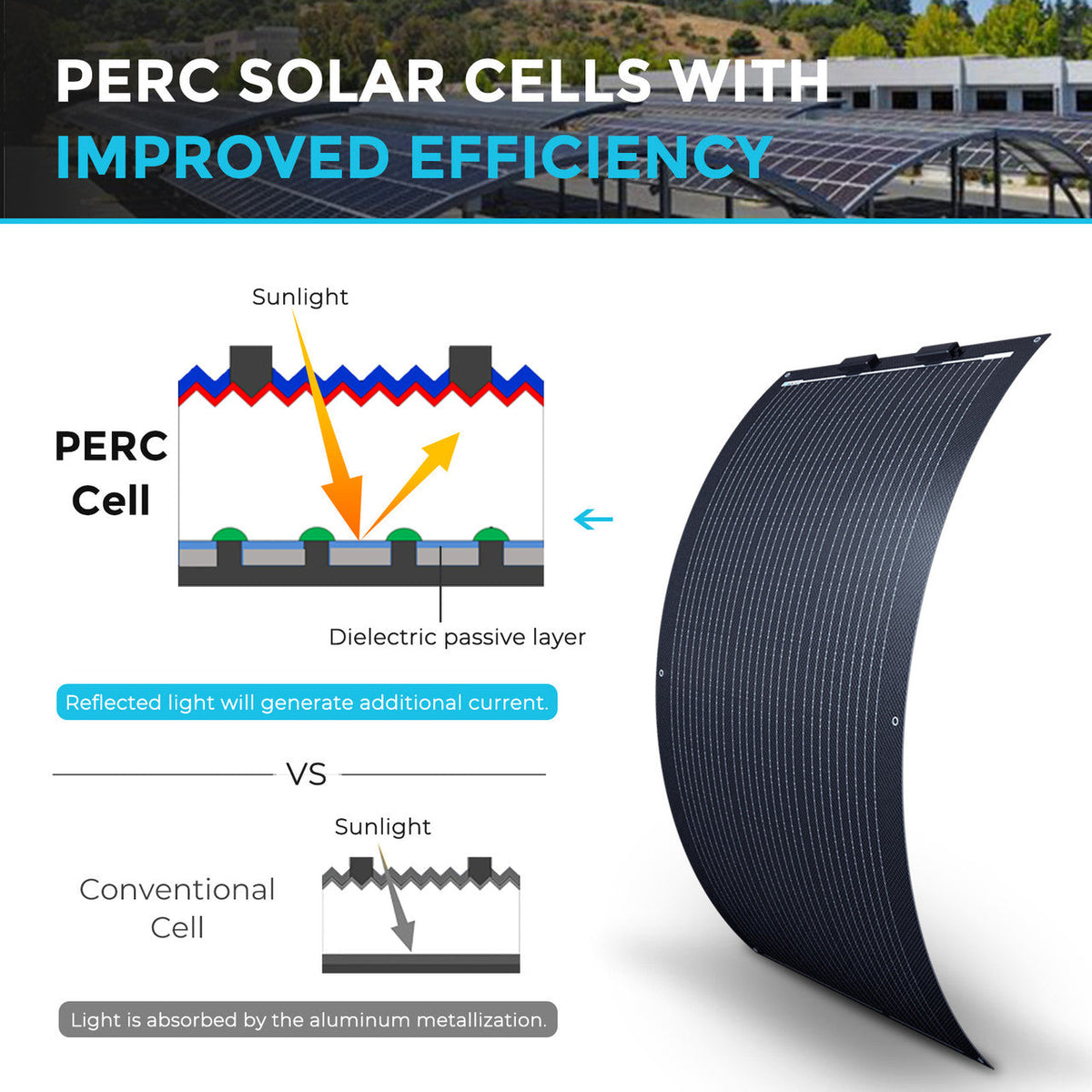

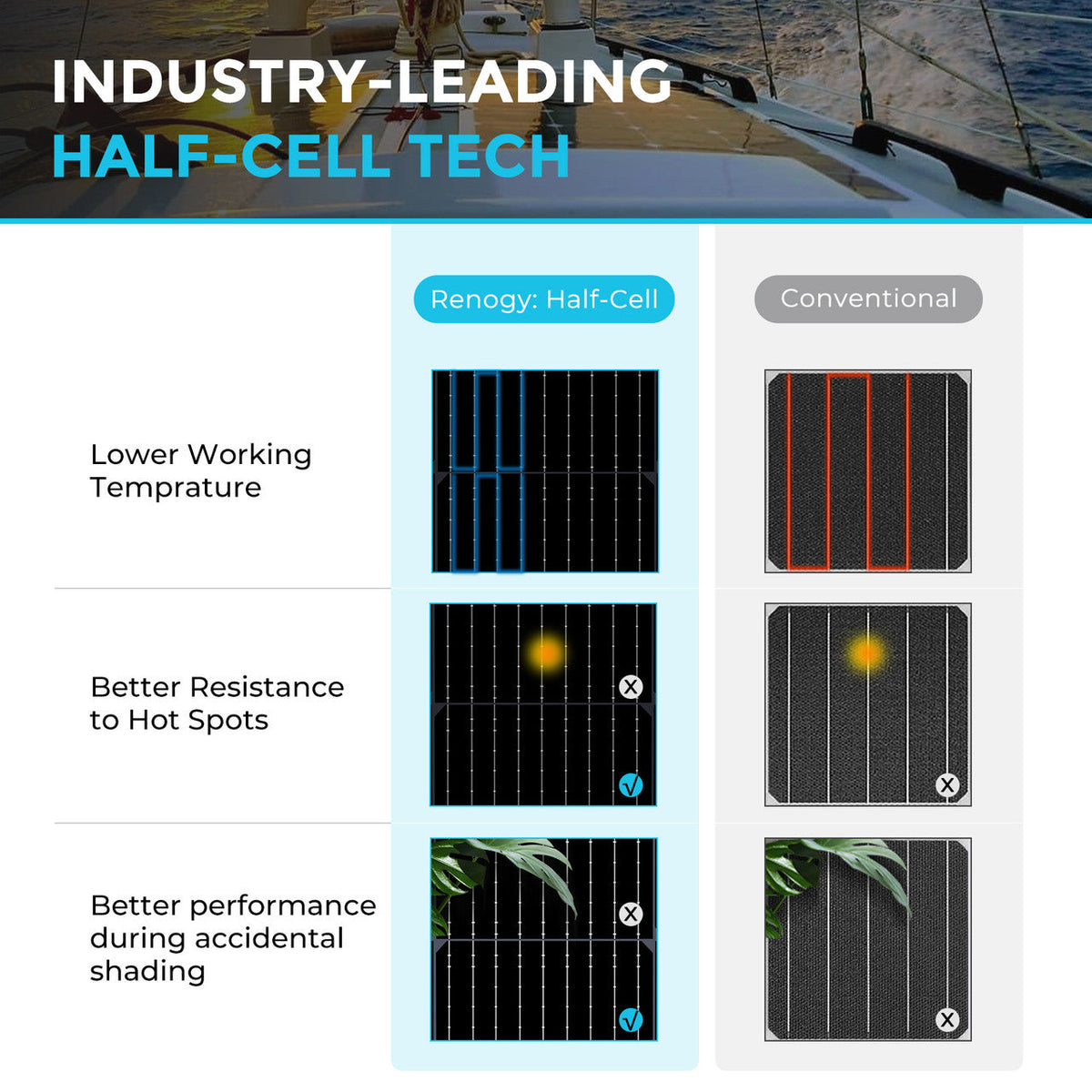

Half-cut PERC monocrystalline cells for improved efficiency
Pre-drilled mounting holes; can also be bonded with silicone adhesive or velcro
Withstands up to 5400Pa snow load and 2400Pa wind load
Reverse-current protection diode in the junction box
Specifications
Maximum Power (STC)
100W
Optimum Operating Voltage (Vmp)
19.4V
Open-Circuit Voltage (Voc)
23.5V
Optimum Operating Current (Imp)
5.20A
Short-Circuit Current (Isc)
5.51A
Module Efficiency
15.7%
Maximum System Voltage
600V DC
Maximum Series Fuse Rating
15A

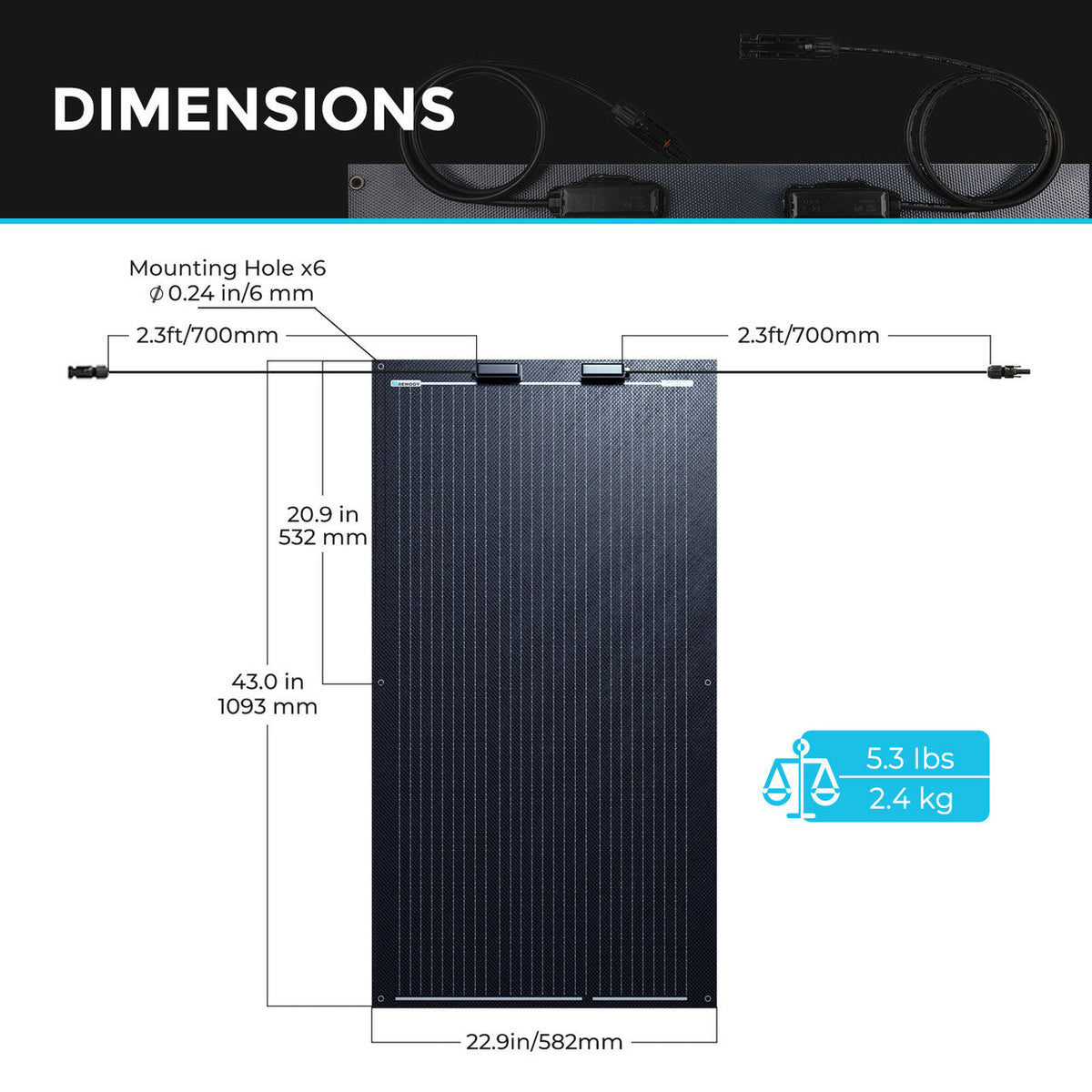

Dimensions
1093 x 582 x 3mm (43.0 x 22.9 x 0.1in)
Weight
2.4kg (5.3lb)
Output Cables
12AWG, 700mm (27.6in)
Junction Box
IP67
Solar Connectors
IP67
In the Box
1 x Renogy Black Division 100W Lightweight Monocrystalline Solar Panel
