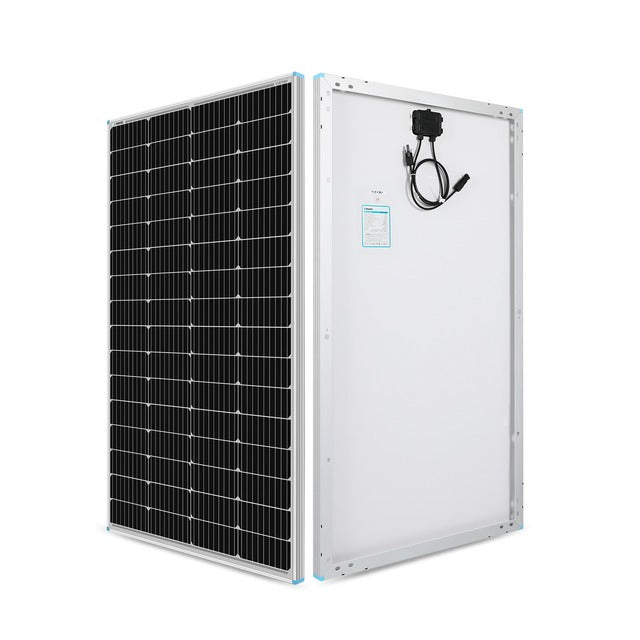

Renogy 12V 175W Rigid Solar Panel
The Renogy 12V 175W Rigid Solar Panel is a monocrystalline panel for 12V off-grid, RV, marine and camping power systems. It uses monocrystalline cells behind tempered glass, inside a corrosion-resistant aluminium frame with corner supports for frame protection.
Pre-installed bypass diodes reduce power loss when part of the panel is shaded, and an IP65 junction box protects the wiring from dust and water.
Key Features
- 175W rated output from 64 monocrystalline cells (4 x 16)
- 3.2mm tempered glass front
- Corrosion-resistant aluminium frame with reinforced corner protectors
- IP65-rated junction box
- Bypass diodes minimise power loss from partial shading
- Pre-drilled mounting and grounding holes
Specifications
| Maximum Power (STC) | 175W |
|---|---|
| Cell Type | Monocrystalline, 64 cells (4 x 16) |
| Open-Circuit Voltage (Voc) | 21.6V |
| Short-Circuit Current (Isc) | 10.31A |
| Optimum Operating Voltage (Vmp) | 18.1V |
| Optimum Operating Current (Imp) | 9.67A |
| Module Efficiency | 19.8% |
| Maximum Series Fuse Rating | 20A |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 1262 x 699 x 35mm |
| Weight | 10kg |
| Junction Box / Connectors | IP65 junction box, solar connectors |
In the Box
- 1 x 175 Watt Monocrystalline Solar Panel
