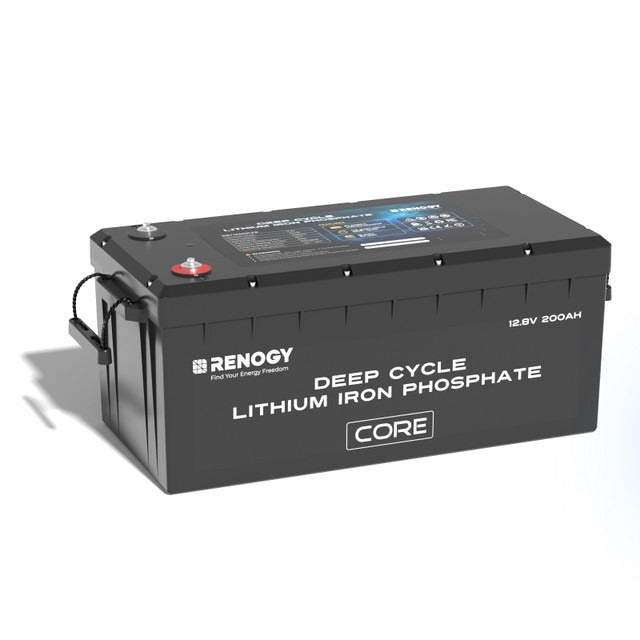

Renogy - 12V - 200AH - Core Lithium Iron Phosphate Battery

Renogy Core 12V 200Ah Lithium Iron Phosphate Battery

The Core Series 200Ah is a 12.8V deep-cycle lithium iron phosphate battery designed as a drop-in replacement for a standard BCI group size lead-acid battery. It weighs about half as much as its lead-acid counterpart, safely discharges to 100% depth of discharge, and Renogy rates it for around 212Ah of usable capacity.

Automotive-grade battery cells and a built-in Battery Management System give the Core 200Ah multiple layers of electrical protection, and up to 16 batteries can be wired in series and parallel for larger 12V-48V systems.

Key Features

• 200Ah / 12.8V LiFePO4 battery, drop-in replacement for a standard BCI group size lead-acid battery
• Rated for around 212Ah of usable capacity
• Automotive-grade battery cells
• Built-in BMS with low-temperature charge cut-off and cell balancing
• IP65-rated, rugged case for RV, marine and off-grid use
• Series and parallel connection, up to 4S4P (48V, 800Ah, 40.96kWh max)

Specifications
