Renogy - 12V - 200AH - Core Lithium Iron Phosphate Battery with Bluetooth

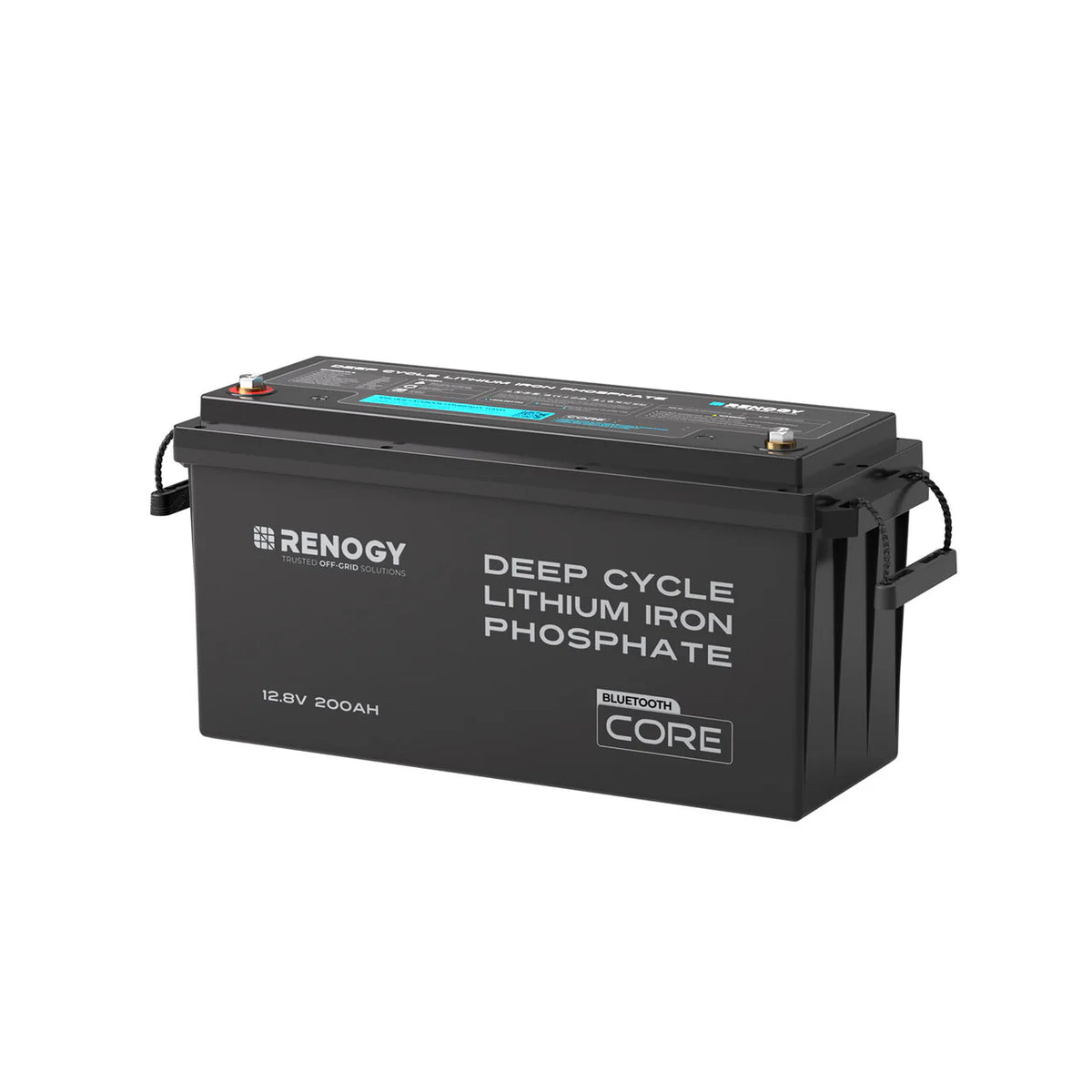

Renogy Core 12V 200Ah Lithium Iron Phosphate Battery with Bluetooth

This Core Series battery is a 12.8V, 200Ah deep-cycle LiFePO4 battery built on Renogy's standard BCI group size for a straightforward lead-acid replacement. Renogy rates it for around 212Ah of usable capacity, a true 200A BMS, and a 400A/10s surge to start heavy loads such as inverters and compressors.

Built-in Bluetooth connects to the DC Home app for real-time voltage, state-of-charge and history monitoring, and up to 16 batteries can be wired in series and parallel to build larger 12V-48V systems.

Key Features

• 200Ah / 12.8V LiFePO4 battery, drop-in replacement for lead-acid batteries of the same BCI group size
• Rated for around 212Ah of usable capacity and a true 200A BMS
• 400A peak discharge for 10 seconds to start heavy loads
• Built-in Bluetooth for real-time monitoring via the DC Home app
• Automotive-grade battery cells
• IP65-rated, with low-temperature charge cut-off and cell balancing
• Series and parallel connection, up to 4S4P (48V, 800Ah, 40.96kWh max)

Specifications

In the Box

• Core 12.8V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth x 1
• User Manual x 1
• Long Terminal Bolt (M8 x 1.25 x 20 mm) x 2
• Insulating Sleeve x 2
