Renogy - 12V - 50AH - Core Deep Cycle Lithium Iron Phosphate Battery
Renogy - 12V - 50AH - Core Deep Cycle Lithium Iron Phosphate Battery
Regular price
$254.95 AUD
Regular price
$296.99 AUD
Sale price
$254.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

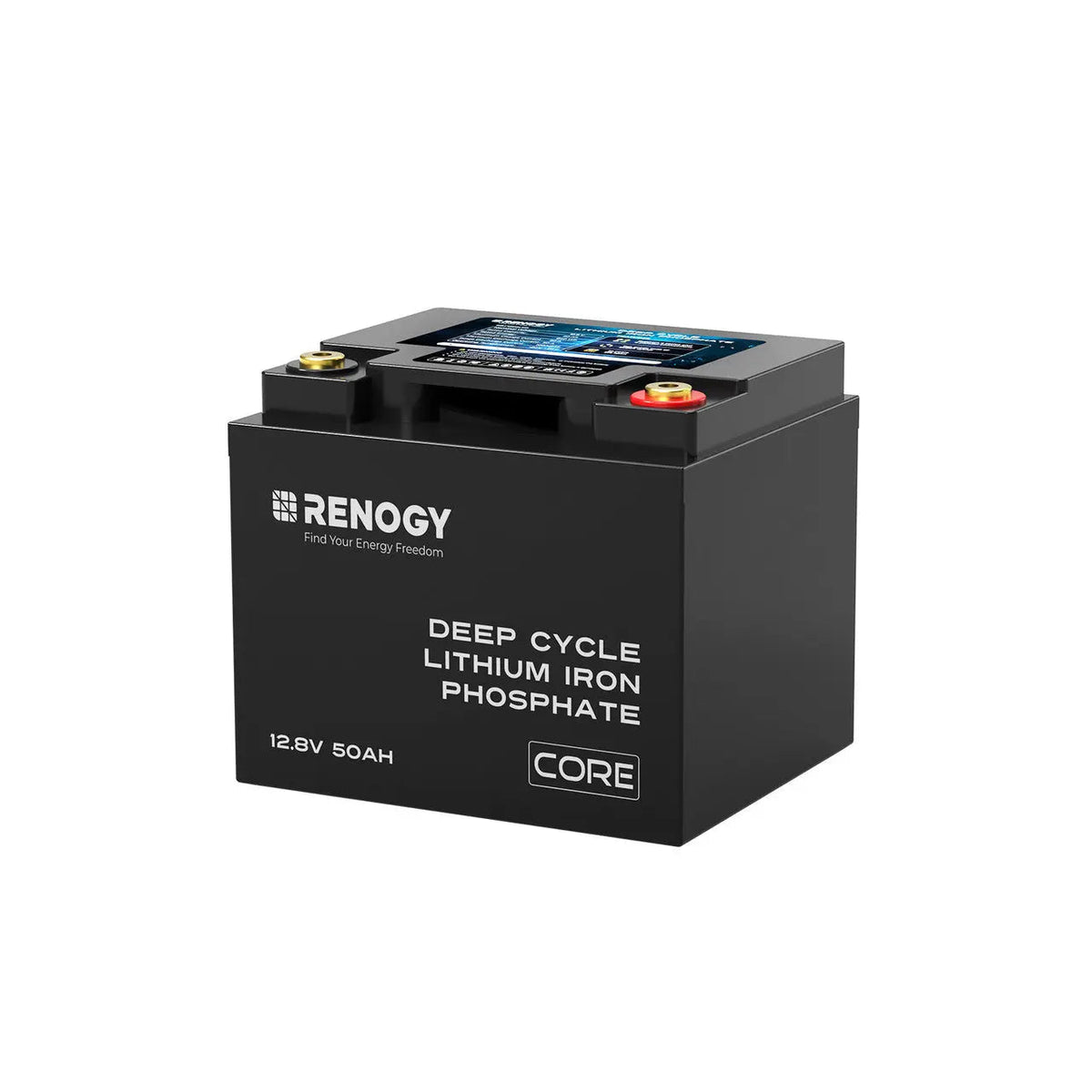

Renogy Core 12V 50Ah Deep Cycle Lithium Iron Phosphate Battery
The Renogy Core 12V 50Ah battery is a compact LiFePO4 deep-cycle battery suited to smaller 12V systems such as trolling motors, camping setups, electric fences and backup power for sheds and cabins.
Built with an IP65-rated ABS/PC housing and an upgraded Battery Management System (BMS), it protects against overcharging, over-discharging and other faults, and can be connected in series or parallel to scale up a system's voltage or capacity.
Key Features
- Compact, portable 50Ah capacity for smaller 12V systems
- Advanced BMS upgrade for improved safety and efficiency
- IP65-rated splash-resistant housing

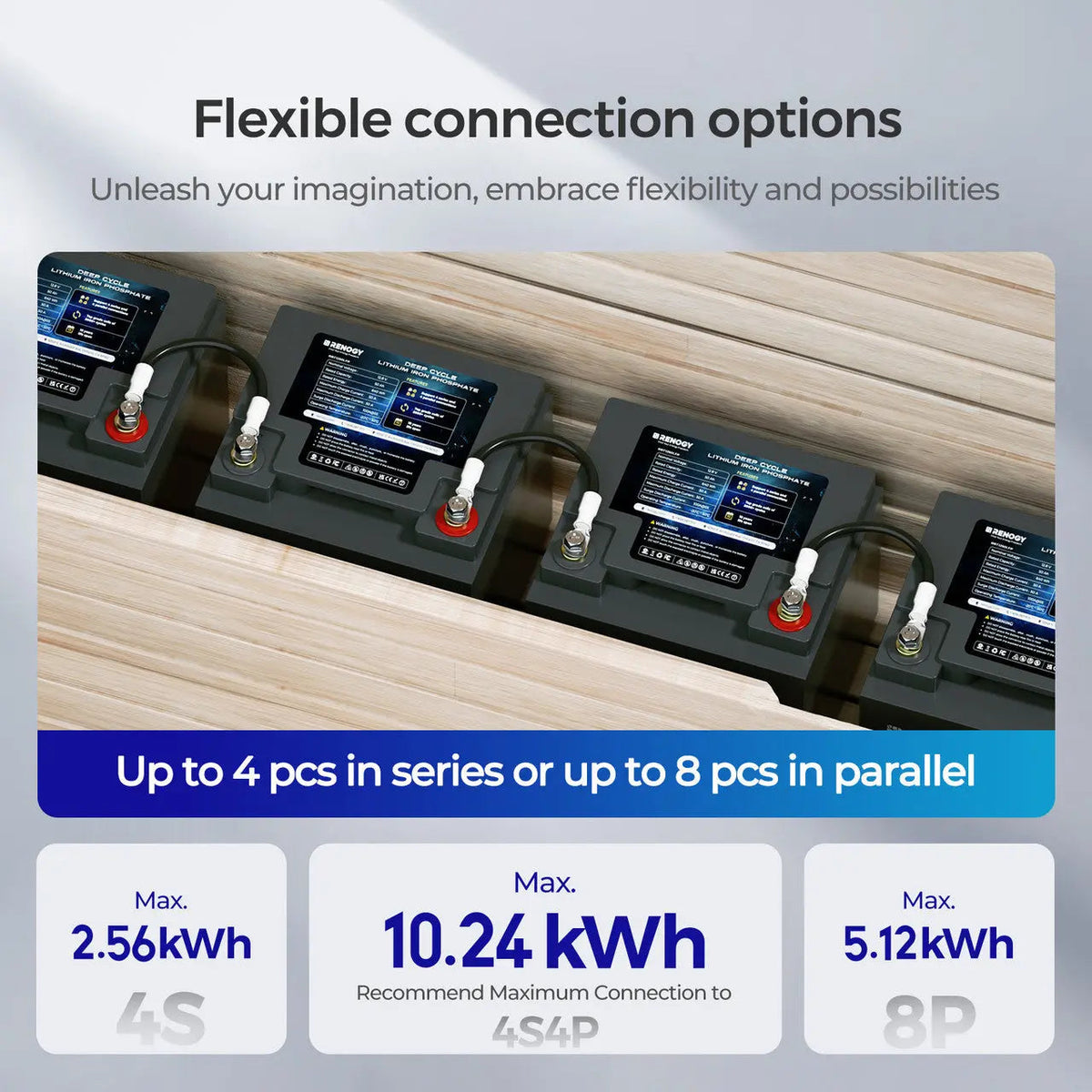

- Connect up to 4 batteries in series or 8 in parallel
Specifications
| Battery Cell Type | Lithium Iron Phosphate |
|---|---|
| Nominal Voltage | 12V |
| Rated Capacity | 50Ah |
| Voltage Range | 10V to 14.8V |
| Energy | 640Wh |
| Cycle Life | 3500 cycles (80% DOD, 80% EOL, 0.5C, 25°C) |
| Connection Method | Series (up to 4) and parallel (up to 8) |
| Dimensions | 198 x 165 x 169 mm |
| Weight | 5.35 kg |
| Housing Material | ABS + PC |
| Maximum Continuous Charge Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Peak Discharge Current | 100A |
| Charge Temperature Range | 0°C to 55°C |
| Discharge Temperature Range | -20°C to 60°C |
| Protection Rating | IP65 |
In the Box
- Renogy Core 12V 50Ah Deep Cycle Lithium Iron Phosphate Battery x 1
- M8 terminal bolts x 2
