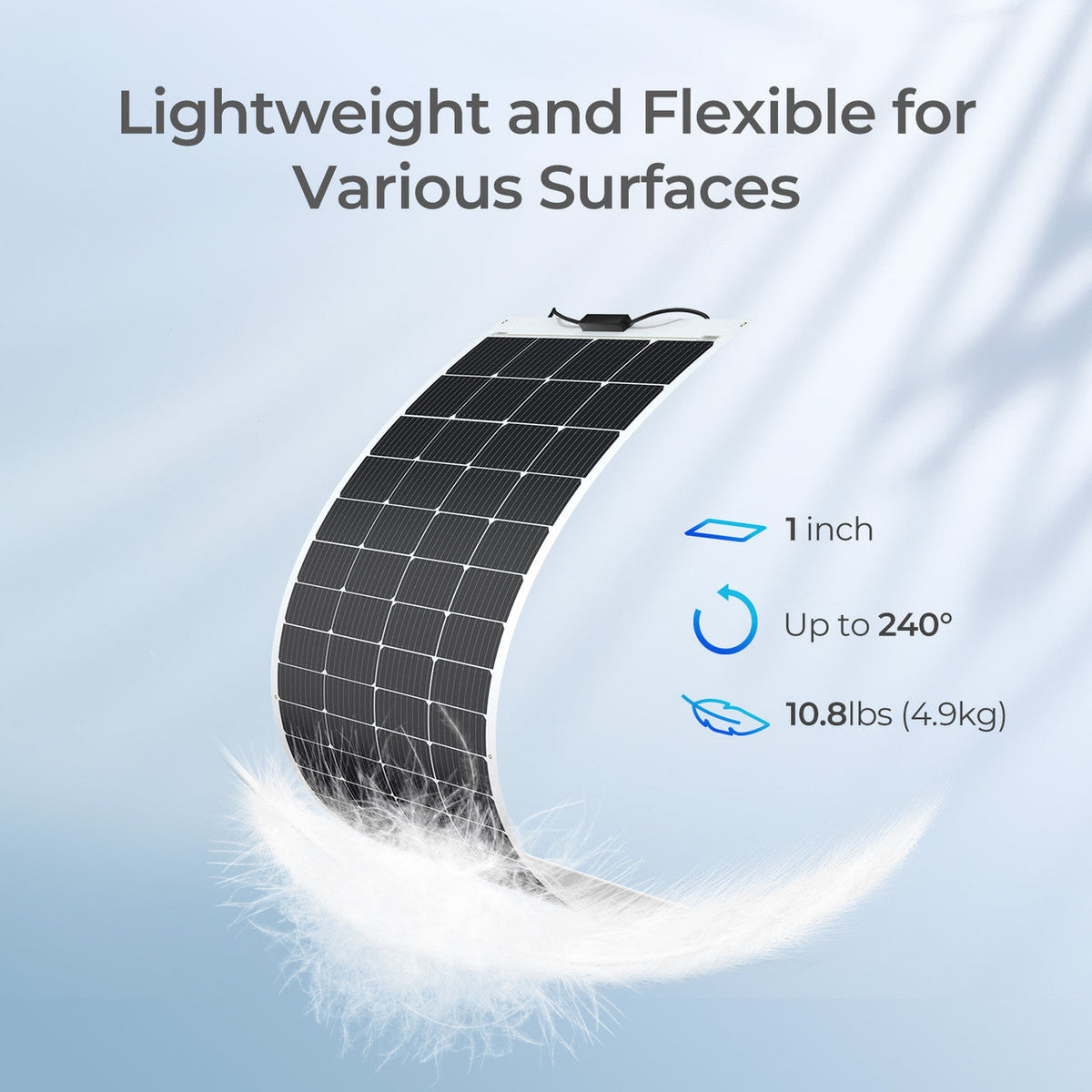

This flexible monocrystalline panel suits curved or weight-sensitive mounting spots where a rigid, framed panel won't fit or adds too much weight. It bends up to 240° to follow a curved roof and weighs about half as much as an equivalent rigid panel.

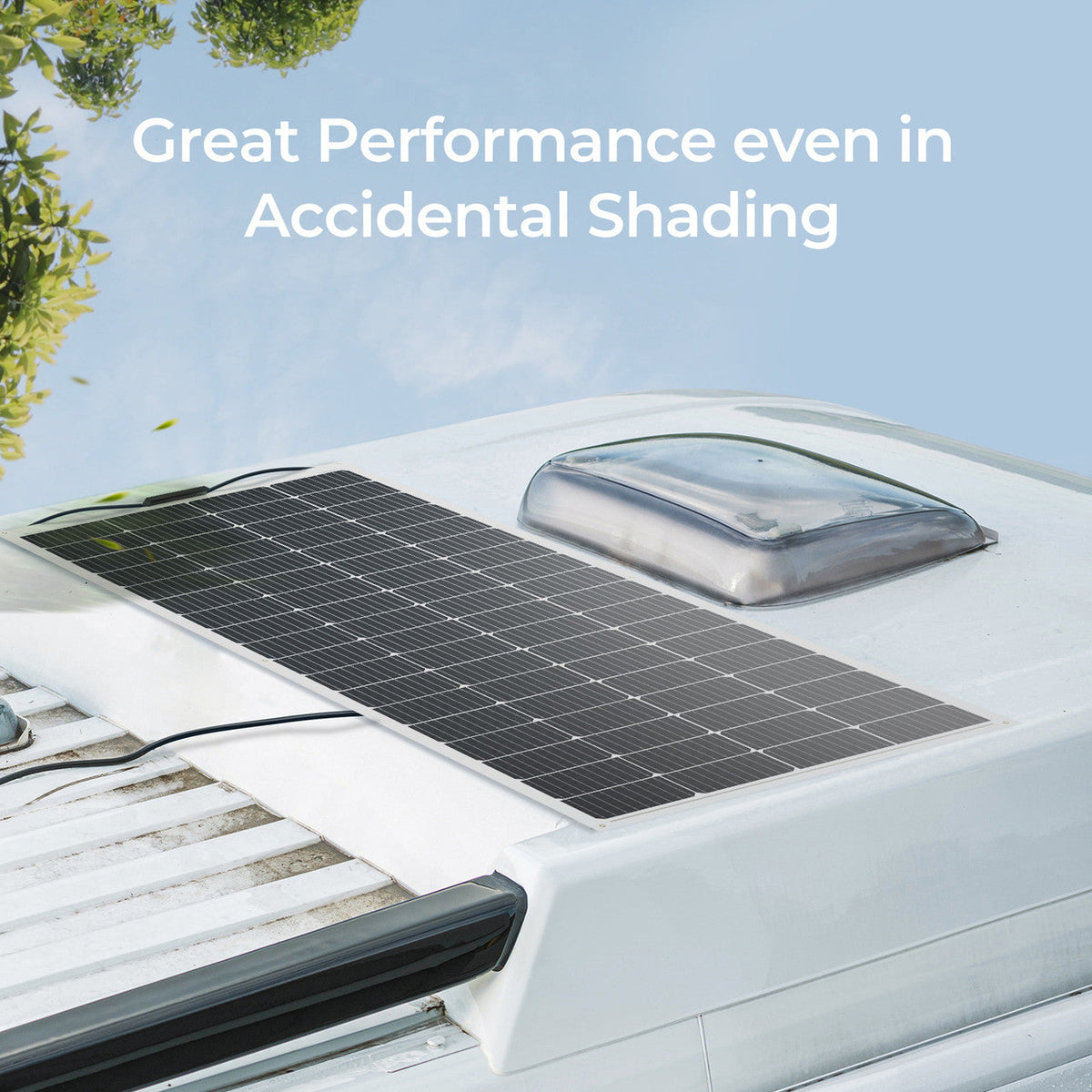

An ETFE surface and 9 busbars per cell improve light transmission and conductivity, while half-cut PERC cells and bypass diodes help it keep producing under accidental shading.
Key Features

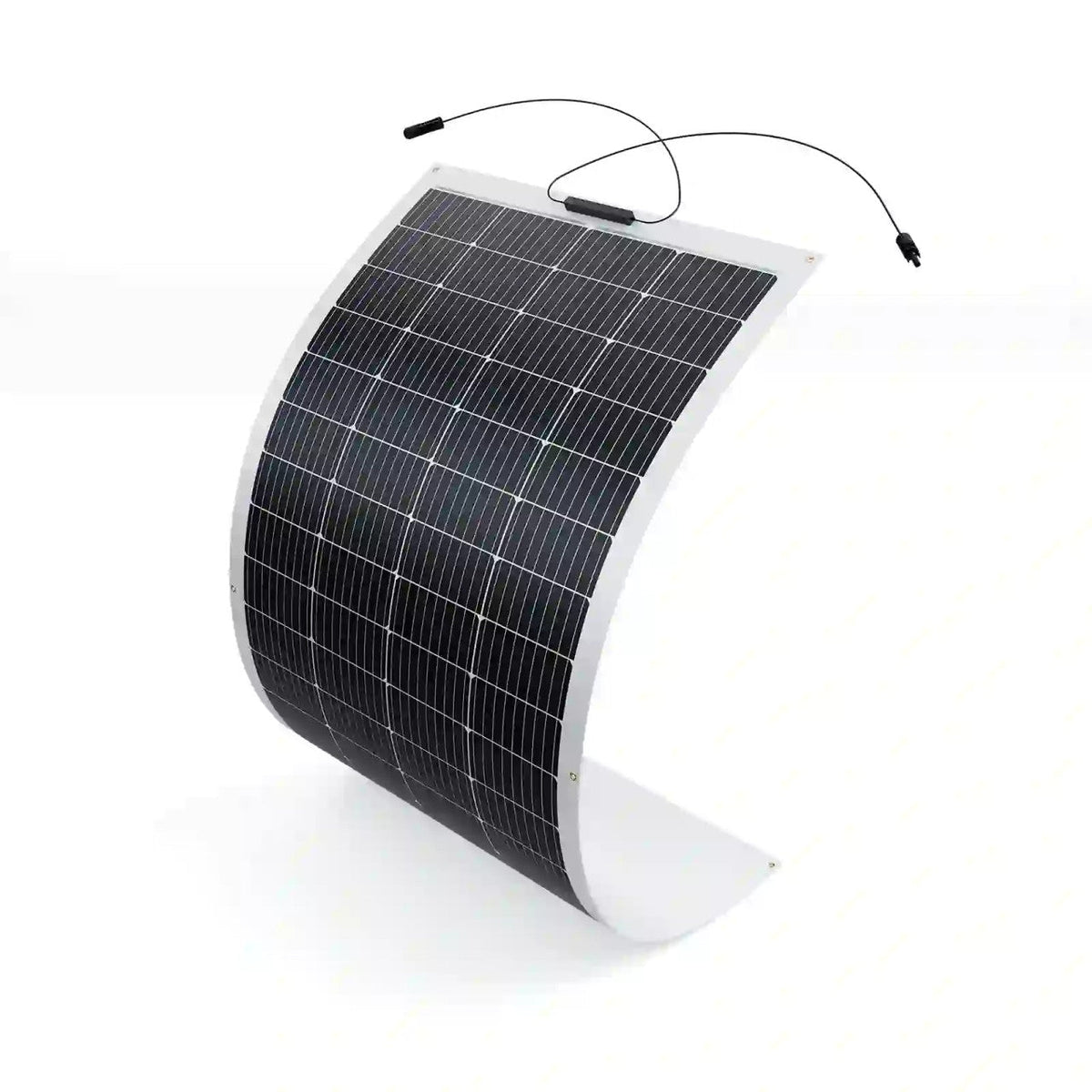

Bends up to 240° for curved or uneven surfaces

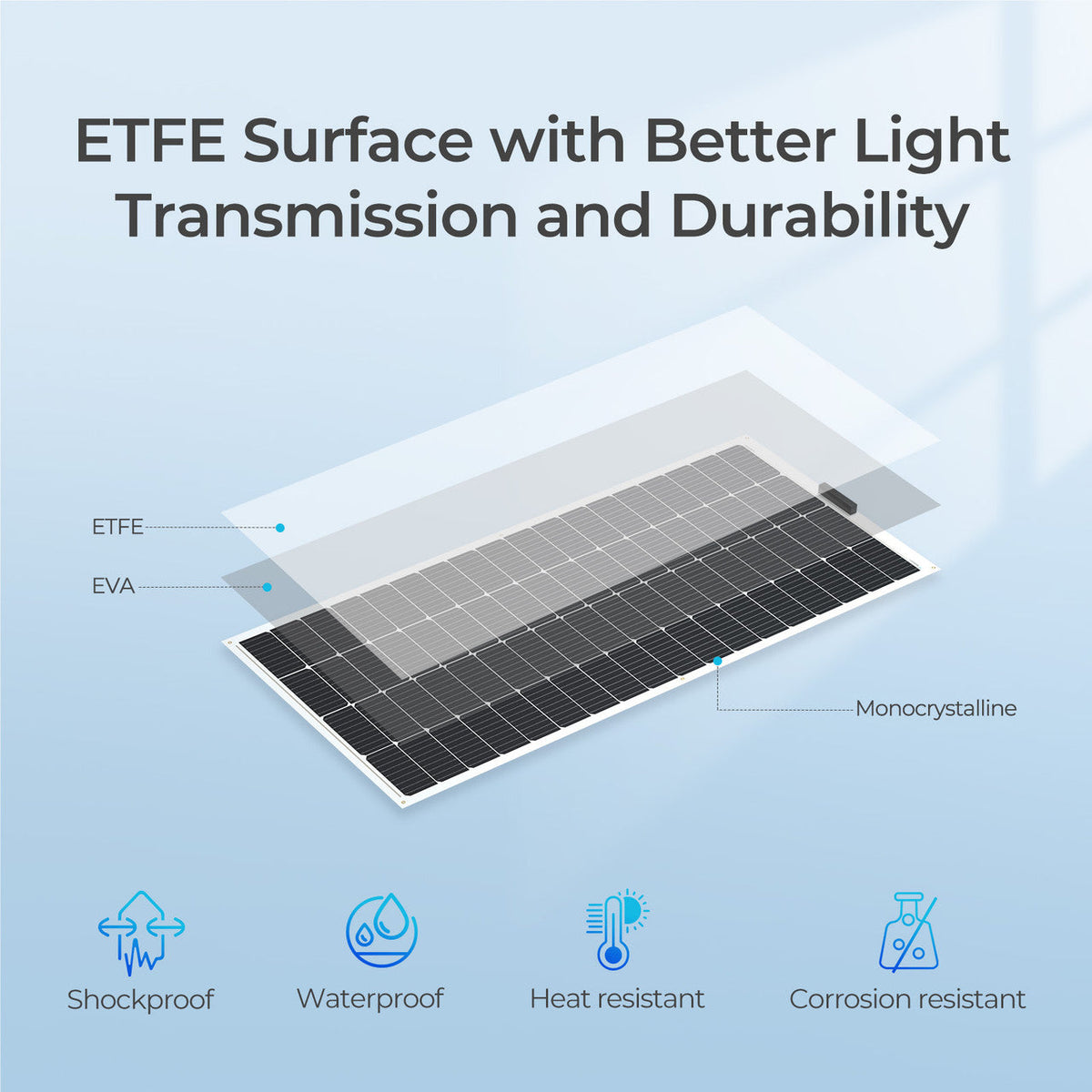

ETFE surface with 9 busbars per cell for better light transmission

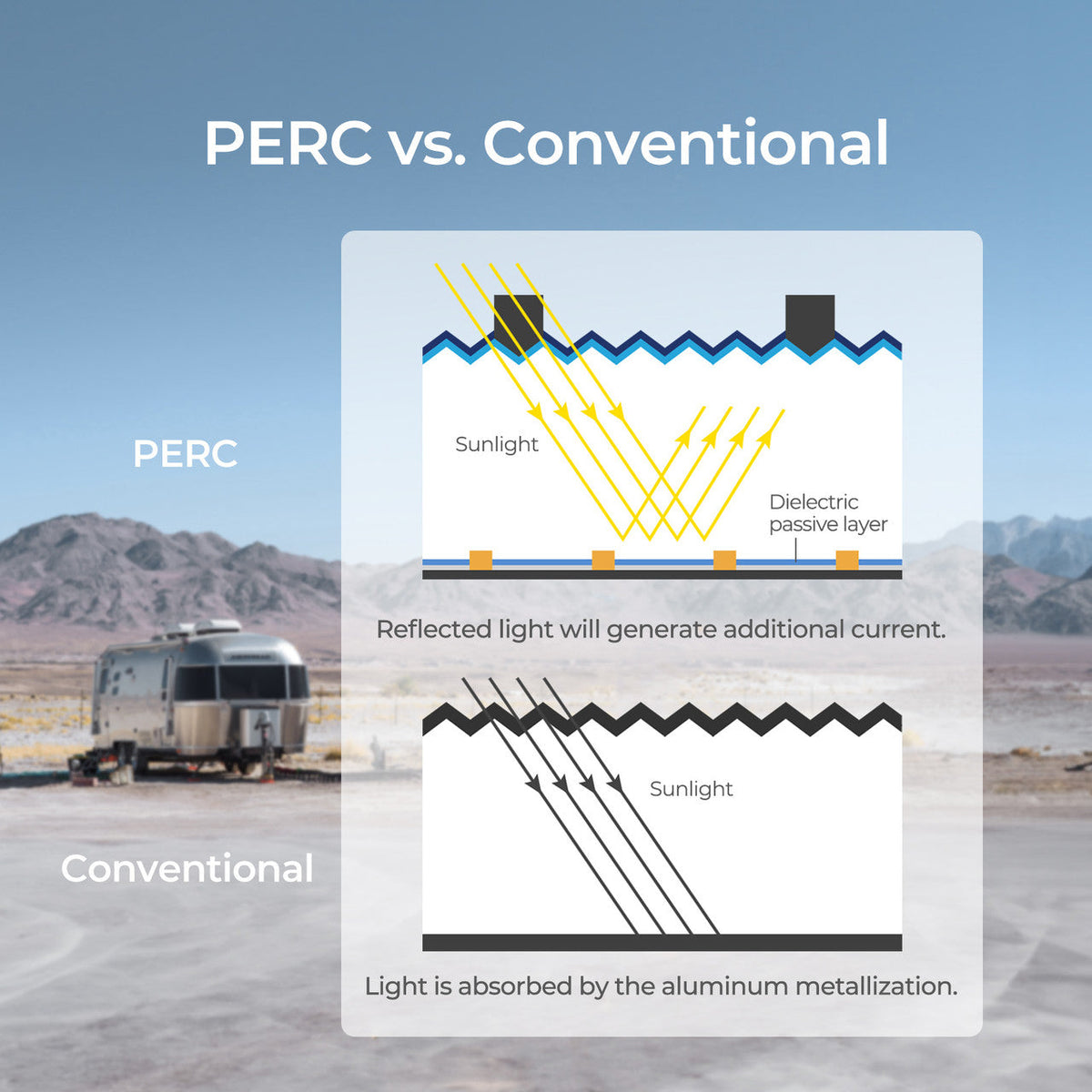

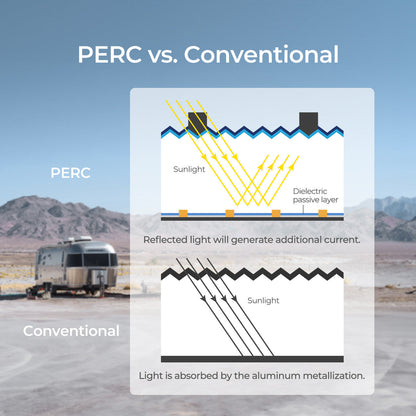

Half-cut PERC cells and bypass diodes resist hotspots under partial shading

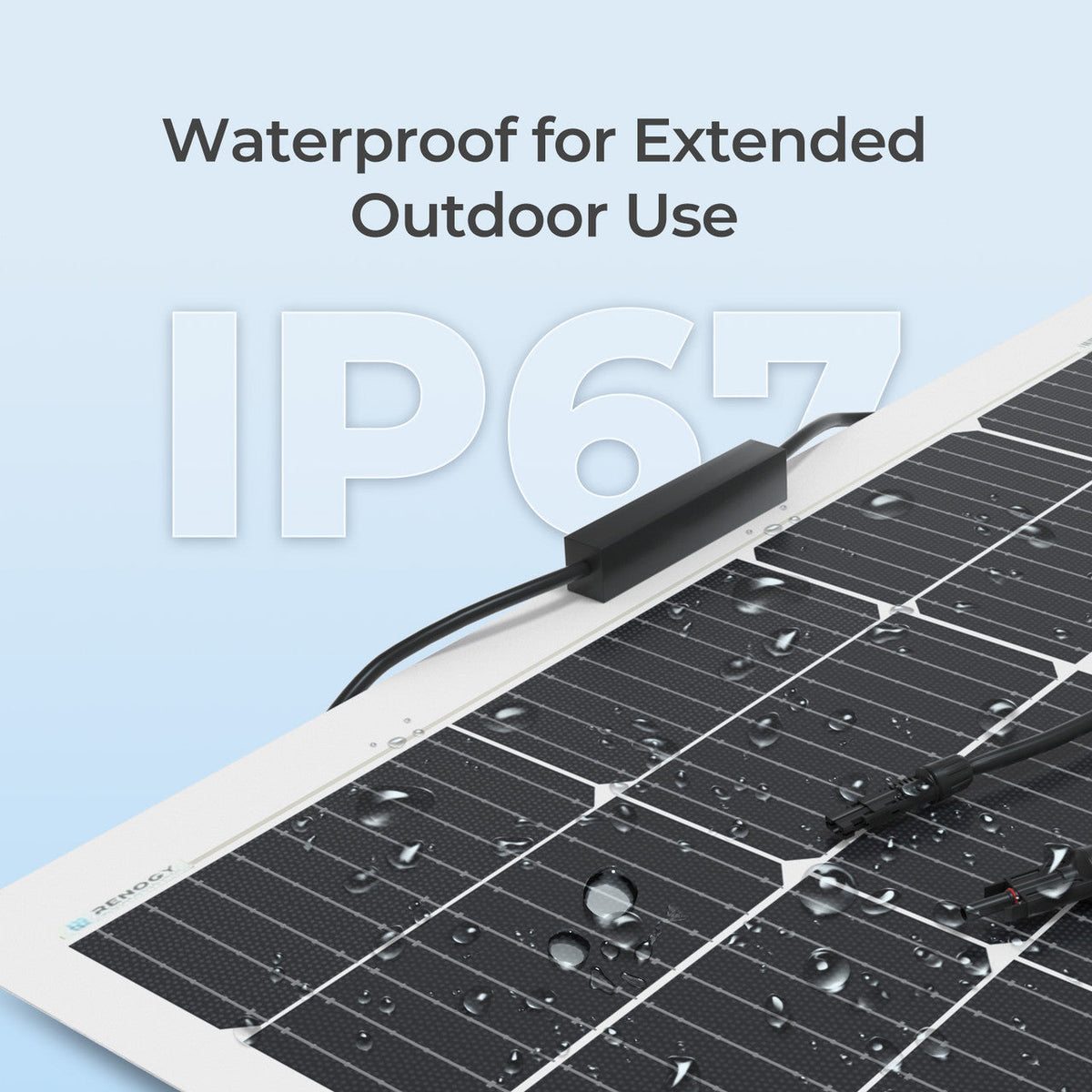

IP68 junction box and IP67-rated solar connectors

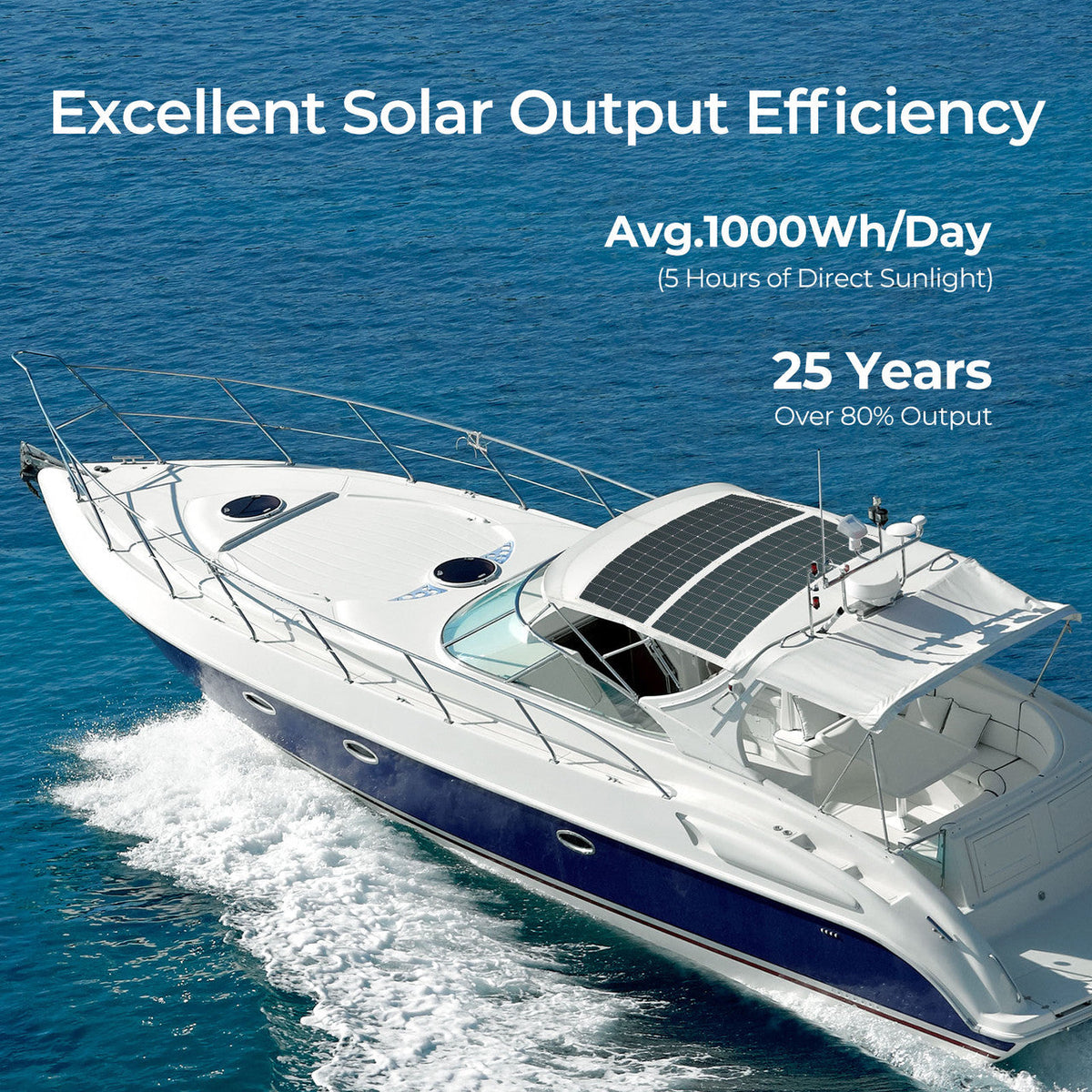

Suited to 12V off-grid, RV, marine and camping systems
Specifications
Maximum Power (STC)
200W
Recommended System Voltage
12V
Optimum Operating Voltage (Vmp)
20.1V
Open-Circuit Voltage (Voc)
23.9V
Optimum Operating Current (Imp)
10.02A
Short-Circuit Current (Isc)
10.74A
Module Efficiency
16.7%
Maximum System Voltage
600V DC
Maximum Series Fuse Rating
15A
Number of Cells
72 (18 x 4)
Dimensions

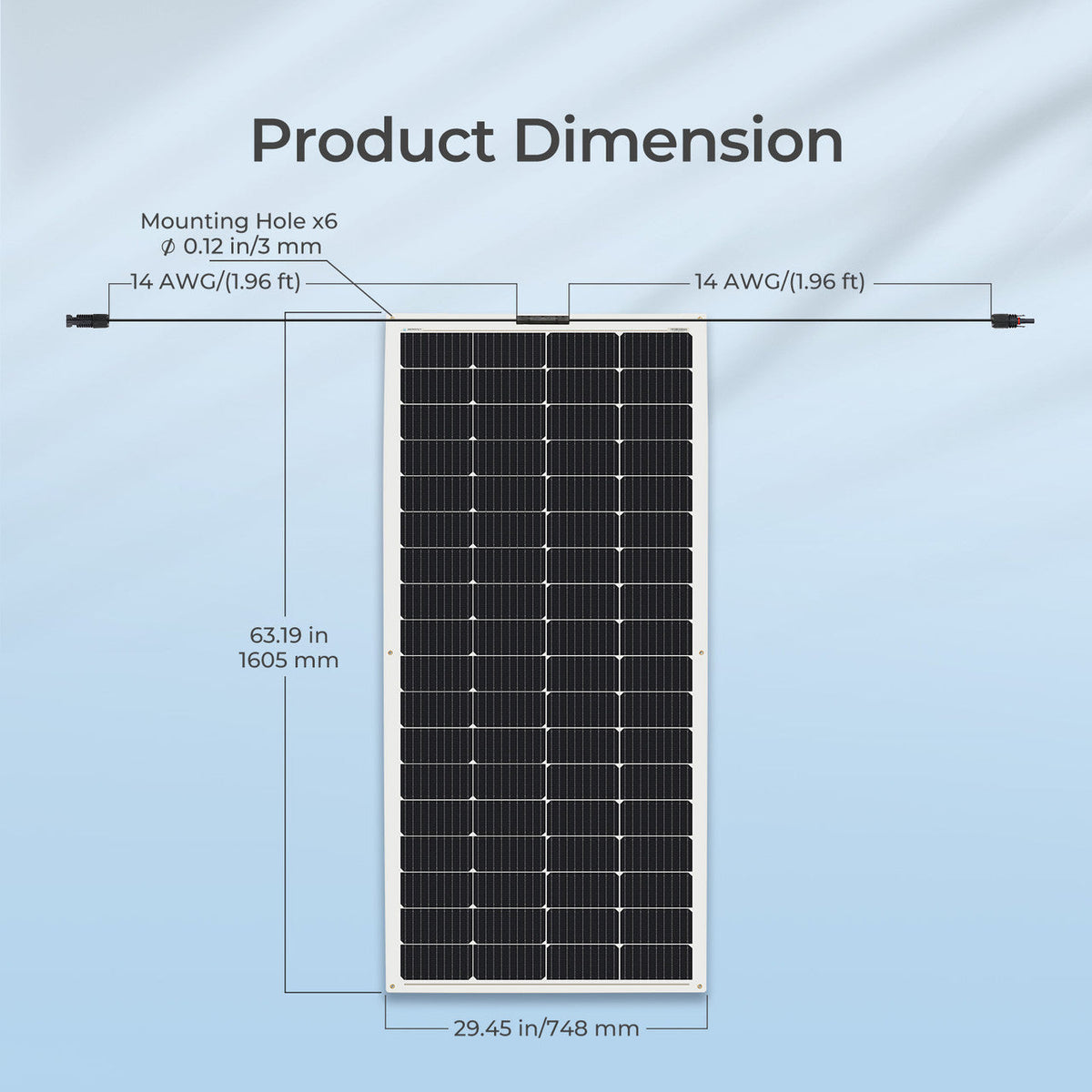

160.5 x 74.8 x 0.3cm (63.2 x 29.4 x 0.1in)
Weight
4.9kg (10.8lb)
Junction Box
IP68
Solar Connectors
IP67
In the Box
1 x Renogy 200W 12V Flexible Monocrystalline Solar Panel
