Renogy
Renogy - 24V - 100AH - Core Series Lithium Iron Phosphate Battery with Self-Heating
Renogy - 24V - 100AH - Core Series Lithium Iron Phosphate Battery with Self-Heating
Regular price
$1,179.95 AUD
Regular price
$1,385.99 AUD
Sale price
$1,179.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

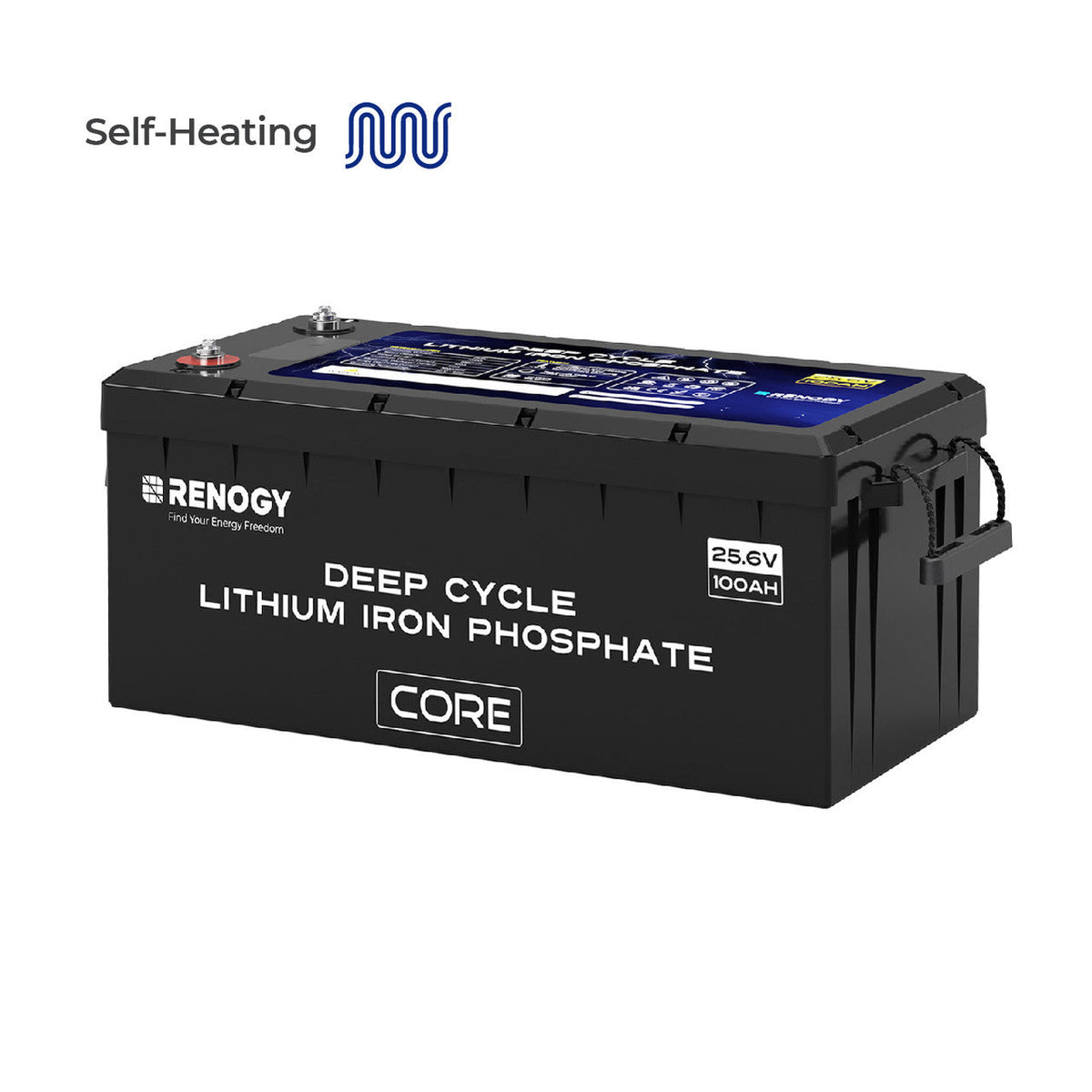

Renogy Core Series 24V 100Ah Lithium Iron Phosphate Battery with Self-Heating
The Renogy Core Series 24V 100Ah battery is a deep-cycle LiFePO4 battery built to the standard BCI group size, so it drops in in place of an equivalent lead-acid battery. It suits RVs, boats and off-grid systems that run a 24V bank.
Weighing about half as much as a comparable lead-acid battery, it can be safely discharged to 100% depth of discharge and is built with automotive-grade cells. A 200W self-heating element brings the battery up to temperature automatically so it can keep charging below freezing.
Key Features
- 24V 100Ah capacity with automotive-grade cells for an extended cycle life
- Safely discharges to 100% depth of discharge (DOD)
- 200W self-heating function switches on automatically below 5°C so the battery keeps charging in the cold

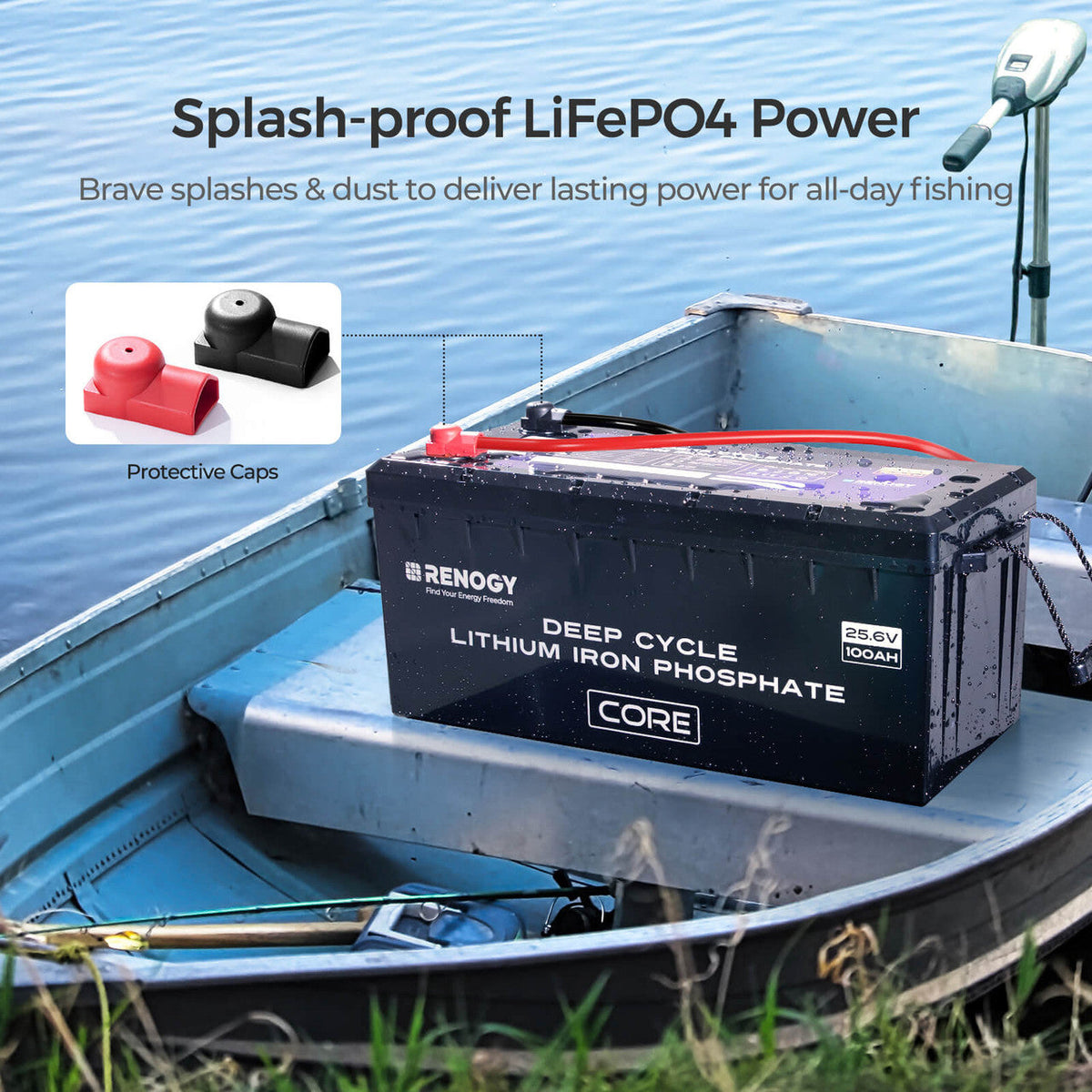

- IP65-rated housing for all-weather durability
- Vibration-resistant design for upright or side mounting
- Connect up to 16 batteries in 2 series x 8 parallel (2S8P) for a 48V (51.2V) 800Ah bank
Specifications
| Battery Cell Type | Lithium Iron Phosphate / Prismatic Cell |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah (0.5C, 25°C) |
| Voltage Range | 20.0V to 29.2V |
| Cycle Life | 5000 cycles (80% DOD, 0.5C, 25°C) |
| Dimensions | 522 x 240 x 219 mm |
| Weight | 20.5 kg |
| Connection Method | Series and parallel (2S8P) |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A @ 5s |
| Self-Heating | 200W element, activates below 5°C, stops above 10°C |
| Charge Temperature Range | -20°C to 55°C |
| Discharge Temperature Range | -20°C to 60°C |
| Protection Rating | IP65 |
| Certification | MSDS, UN38.3, FCC, CE, PSE, UKCA |
In the Box
- Renogy Core Series 24V 100Ah Lithium Iron Phosphate Battery x 1
- Long terminal bolt x 2
- Insulating sleeve x 2
- User manual x 1
