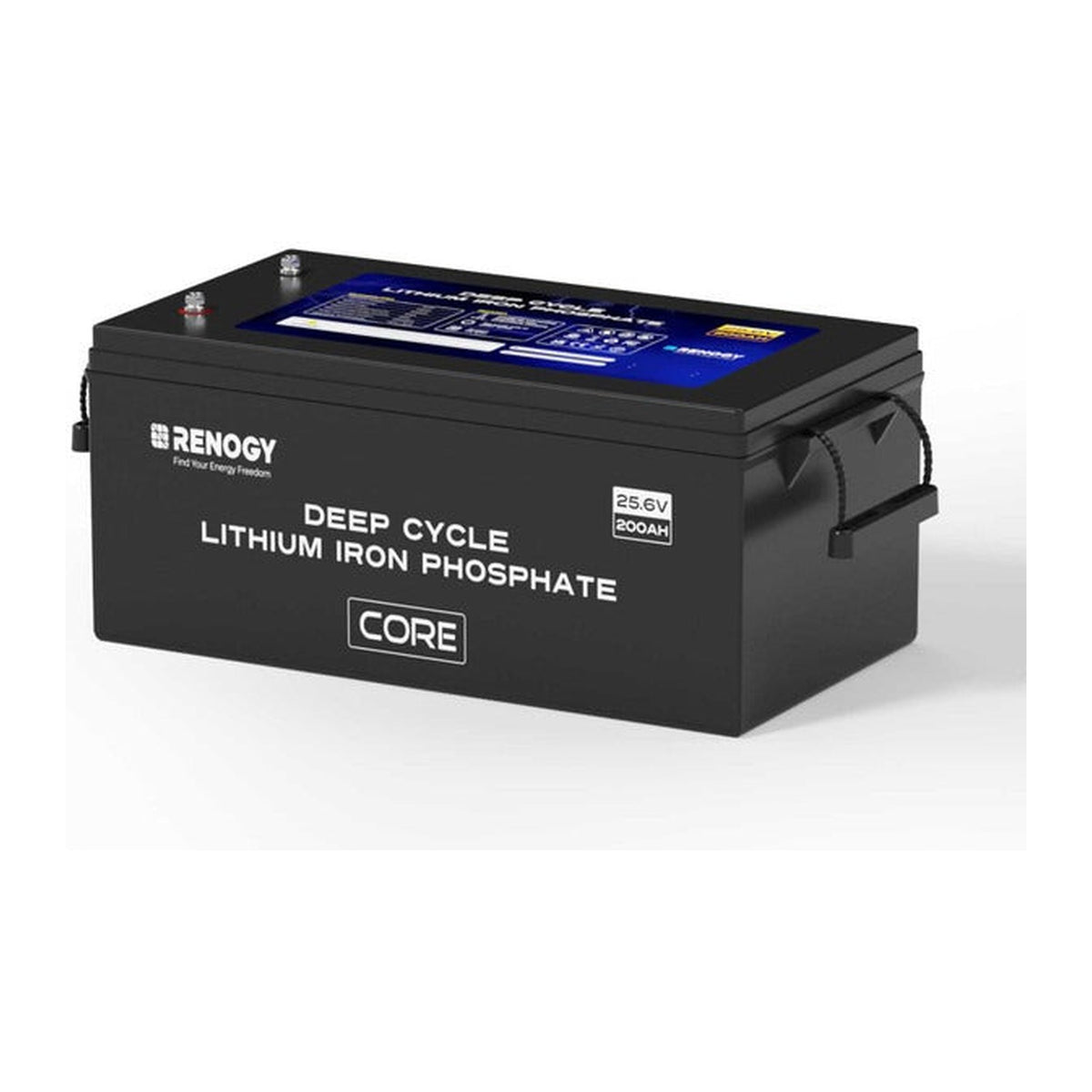

Renogy - 24V - 200AH - Core Series Lithium Iron Phosphate Battery with Self-Heating
Renogy - 24V - 200AH - Core Series Lithium Iron Phosphate Battery with Self-Heating
Regular price
$2,189.95 AUD
Regular price
$2,573.99 AUD
Sale price
$2,189.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Renogy Core Series 24V 200Ah Lithium Iron Phosphate Battery with Self-Heating
The Renogy Core Series 24V 200Ah battery is a deep-cycle LiFePO4 battery built to the standard BCI group size, so it drops in in place of an equivalent lead-acid battery. It suits RVs, boats and off-grid systems that run a 24V bank.
Weighing about half as much as a comparable lead-acid battery, it can be safely discharged to 100% depth of discharge and is built with automotive-grade cells. A 200W self-heating element brings the battery up to temperature automatically so it can keep charging below freezing.
Key Features
- 24V 200Ah capacity with automotive-grade cells for an extended cycle life
- Safely discharges to 100% depth of discharge (DOD)
- 200W self-heating function for charging in low temperatures
- IP65-rated housing for all-weather durability
- Continuous charge and discharge current of 200A
- Connect in series and parallel (up to 2S4P) for a 48V (51.2V) 800Ah bank
Specifications
| Battery Cell Type | Lithium Iron Phosphate / Prismatic Cell |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 200Ah (0.5C, 25°C) |
| Voltage Range | 20.0V to 29.2V |
| Cycle Life | 5000 cycles (80% EOL, 80% DOD, 0.5C/1C, 25°C) |
| Dimensions | 522 x 268 x 219 mm |
| Weight | 40.2 kg |
| Connection Method | Series and parallel (2S4P) |
| Charge Voltage | 29.0V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 390A @ 5s |
| Self-Heating | 200W element for charging in low temperatures |
| Charge Temperature Range | -20°C to 55°C |
| Discharge Temperature Range | -20°C to 60°C |
| Protection Rating | IP65 |
| Certification | MSDS, UN38.3, FCC, CE, PSE, UKCA |
In the Box
- Renogy Core Series 24V 200Ah Lithium Iron Phosphate Battery x 1
